桩−撑−锚支护在深厚杂填土基坑中的应用和变形特性研究

魏仁杰; 颜立明

doi:10.20265/j.cnki.issn.1007-2993.2024-0541

桩−撑−锚支护在深厚杂填土基坑中的应用和变形特性研究

doi: 10.20265/j.cnki.issn.1007-2993.2024-0541

中船勘察设计研究院有限公司，上海　200063

详细信息

作者简介:
魏仁杰，1986年生，女，硕士，高级工程师，注册土木工程师（岩土），主要从事岩土工程设计工作。E-mail：382388762@qq.com

中图分类号: TU437
计量
- 文章访问数: 8
- HTML全文浏览量: 1
- PDF下载量: 1
- 被引次数: 0
出版历程
- 收稿日期: 2024-11-22
- 修回日期: 2025-04-09
- 录用日期: 2025-04-09
- 网络出版日期: 2026-04-09
- 刊出日期: 2026-04-09

Application and deformation characteristics study of pile-brace-anchor support in deep and thick miscellaneous fill foundation pit

China Shipbuilding Industry Institute of Engineering Investigation & Design Co., Ltd., Shanghai 200063, China

摘要

摘要: 以江阴某环境综合整治项目为背景，介绍了在深厚杂填土基坑中桩−锚−撑的支护形式，并根据杂填土的特性及周边建筑的保护要求，提出相应的施工措施。通过PLAXIS 2D有限元模拟和理论计算相结合的方法，分析了围护结构的内力和变形特性以及周边地表的沉降规律。研究结果表明：（1）围护体侧向变形的整体位移主要发生在上部杂填土层中；（2）基坑地表沉降呈勺状分布，最大沉降位于距基坑边约0.5倍开挖深度处；（3）有限元模拟的弯矩值和剪力值与理论计算值存在一些差异，但曲线的整体变化规律基本相同，验证了本文数值计算模型和岩土参数的合理性。
- 深厚杂填土 /
- 桩−锚−撑 /
- PLAXIS 2D /
- 侧向变形 /
- 地面沉降
Abstract: Taking a comprehensive environmental improvement project in Jiangyin as the background, this article introduces the pile-anchor-brace support form in deep miscellaneous fill foundation pits. Based on the characteristics of miscellaneous fill and the protection requirements of surrounding buildings, corresponding construction measures were proposed. By combining PLAXIS 2D finite element simulation with theoretical calculations, the internal forces and deformation characteristics of the retaining structure, as well as the settlement patterns of the surrounding ground, were analyzed. The research results show that: (1) the overall displacement of lateral deformation of the retaining structure mainly occurs in the upper miscellaneous fill layer; (2)the surface settlement is spoon shaped, with the maximum settlement value located at about 0.5 times the excavation depth at the edge of the foundation pit; (3) there are some differences between the bending moment and shear force values simulated by finite element and the theoretical calculation values, but the overall variation pattern of the curves is basically the same, indicating that the established calculation mode and selected soil and rock parameter are all reasonable.
- deep miscellaneous fill /
- pile-anchor-brace /
- PLAXIS 2D /
- lateral deformation /
- surface settlement

HTML全文

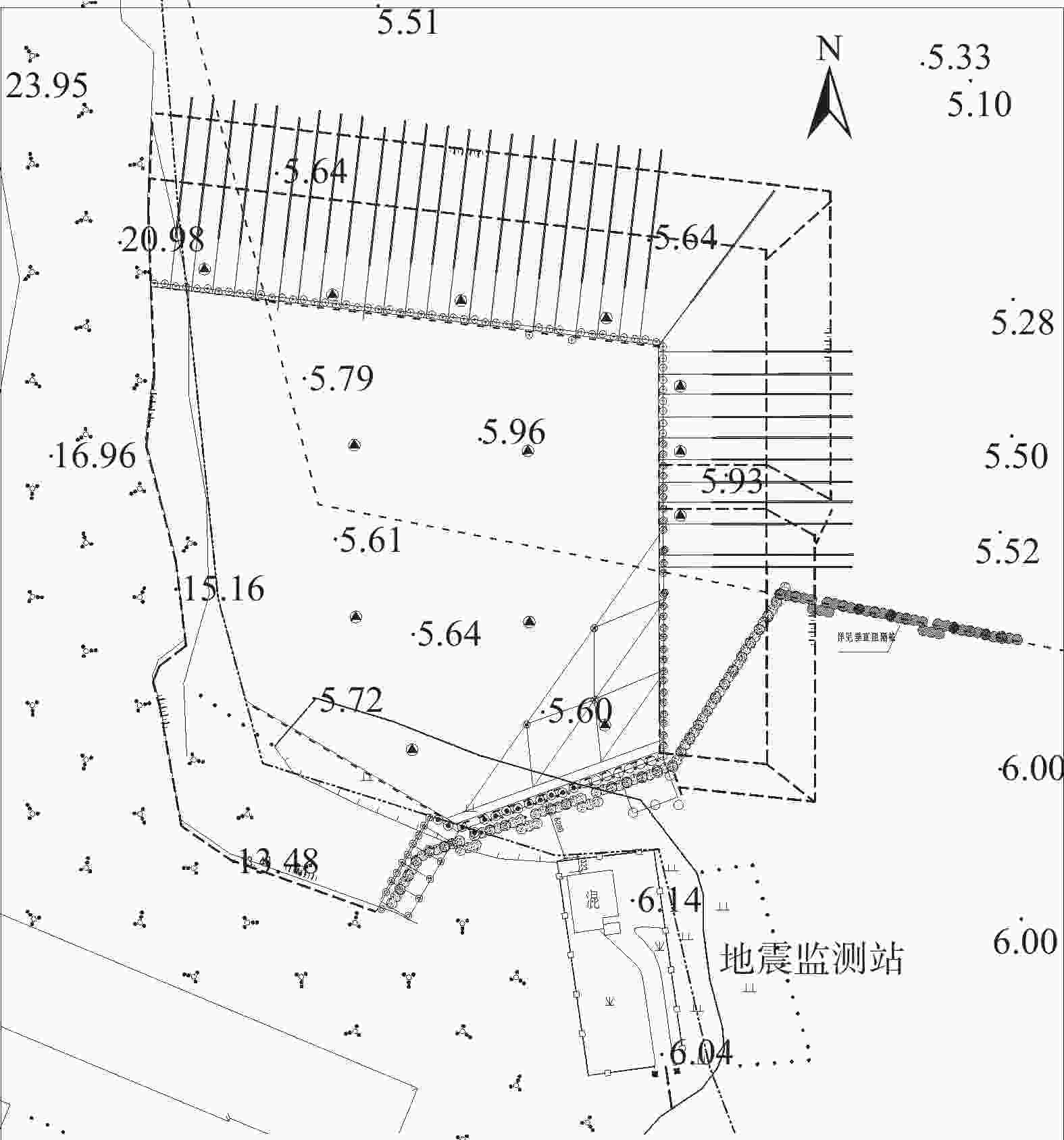

图 1 基坑周边环境图

Figure 1. Surrounding environment map of the foundation pit

下载: 全尺寸图片幻灯片

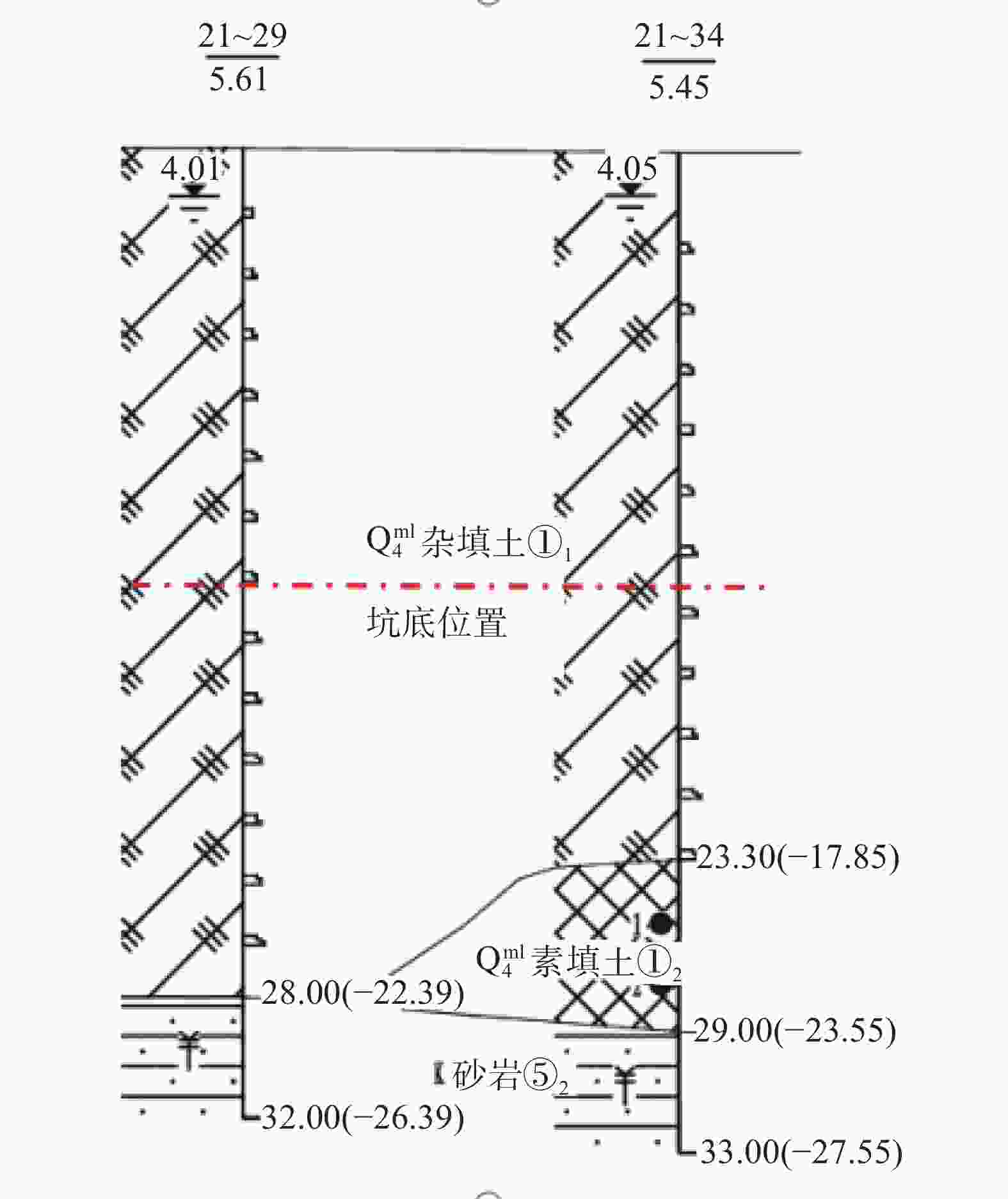

图 2 典型地质剖面图（单位：m）

Figure 2. Typical geological cross-section (Unit: m)

下载: 全尺寸图片幻灯片

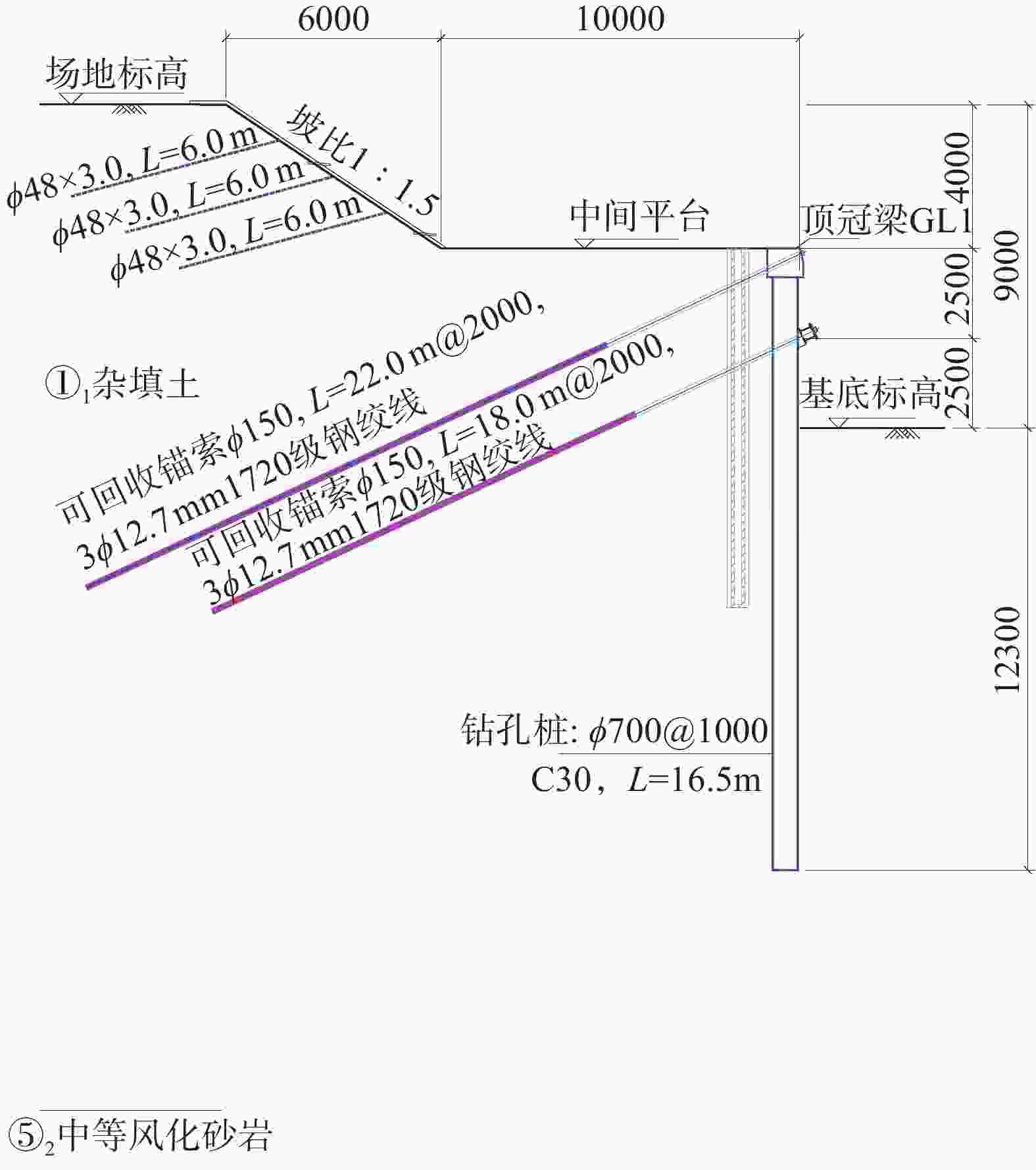

图 3 典型剖面图（单位：mm）

Figure 3. Typical cross-section profile (Unit: mm)

下载: 全尺寸图片幻灯片

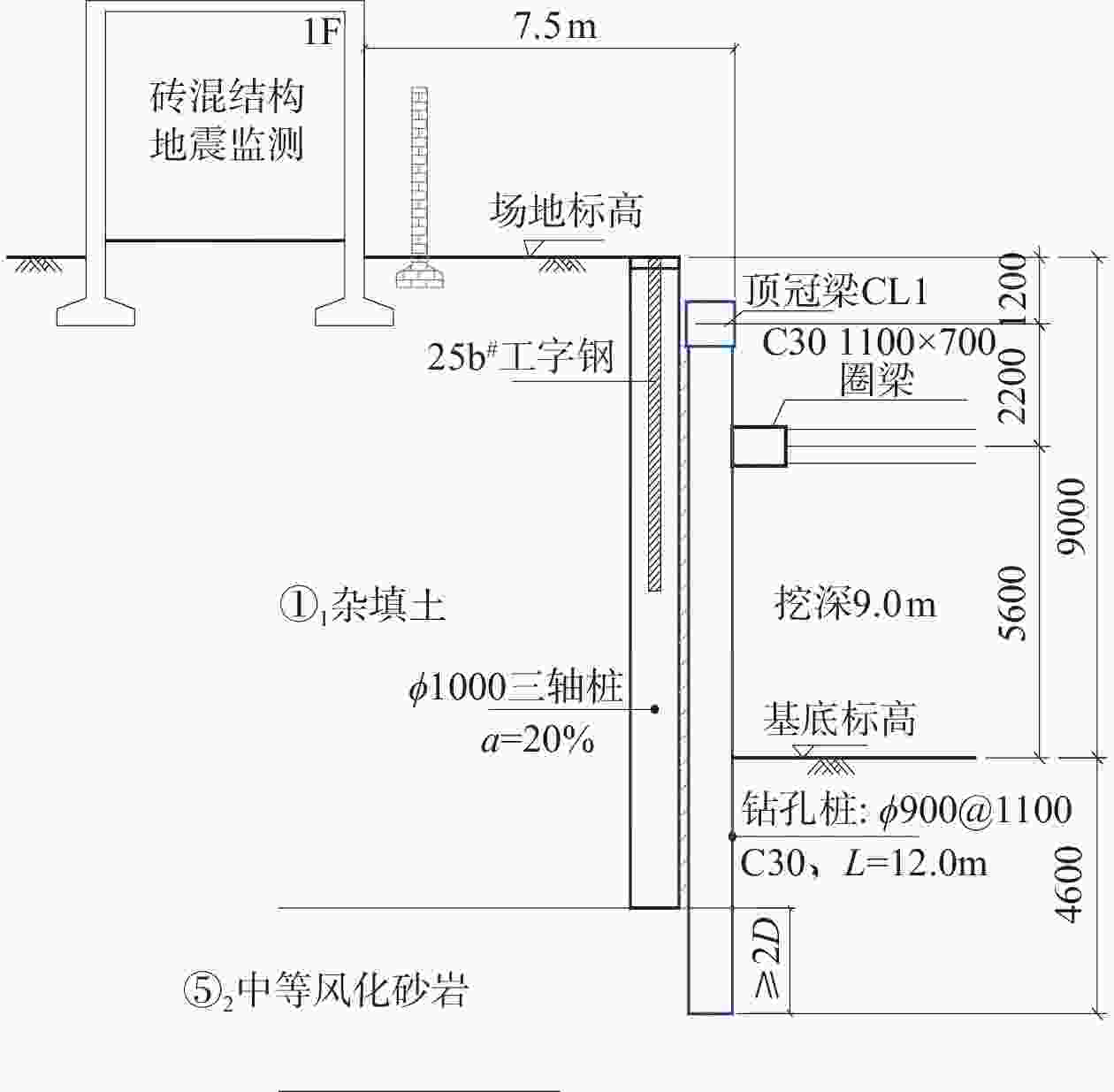

图 4 典型剖面图（单位：mm）

Figure 4. Typical cross-section profile (Unit: mm)

下载: 全尺寸图片幻灯片

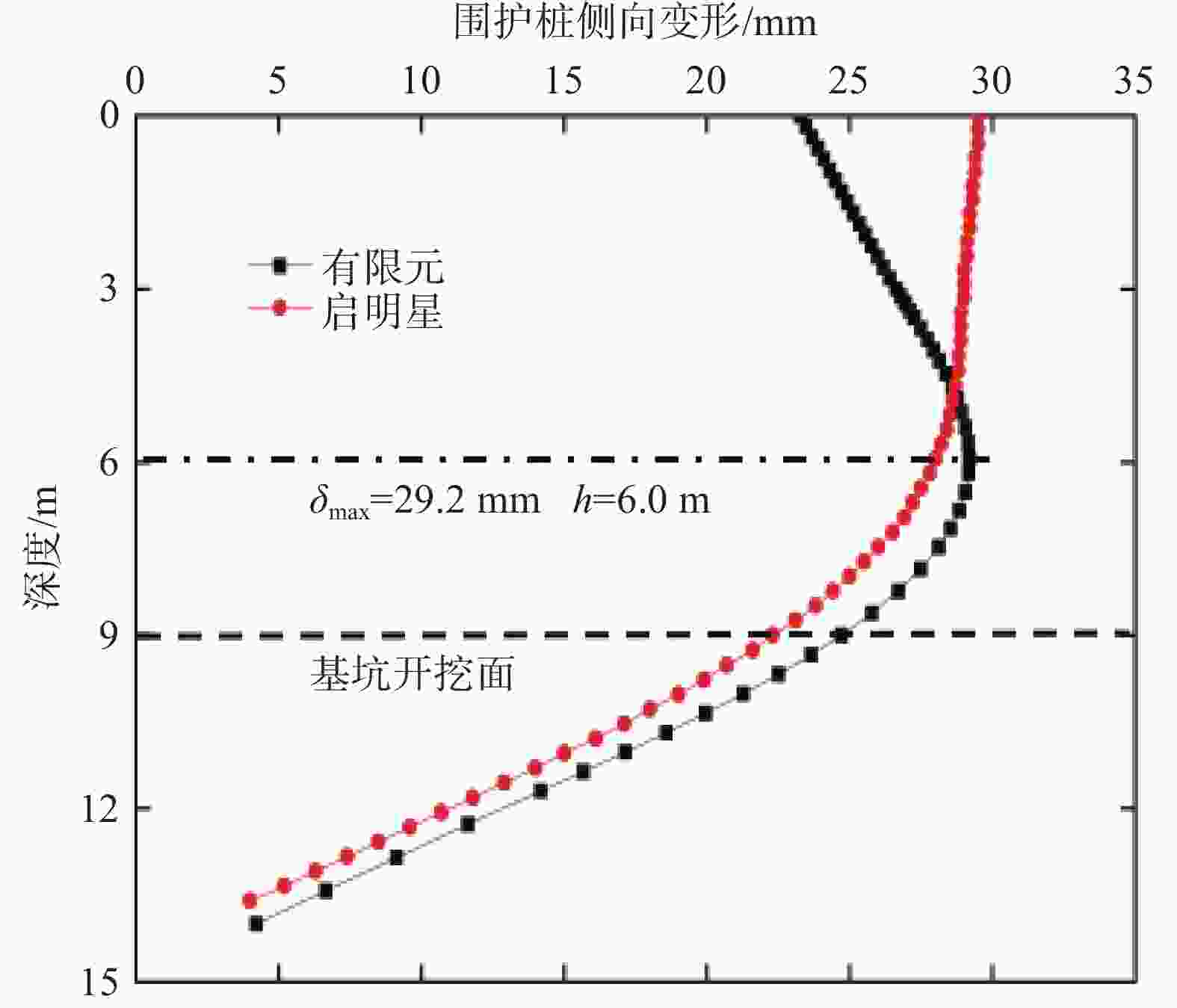

图 5 围护桩侧向变形

Figure 5. Lateral deformation of the retaining piles

下载: 全尺寸图片幻灯片

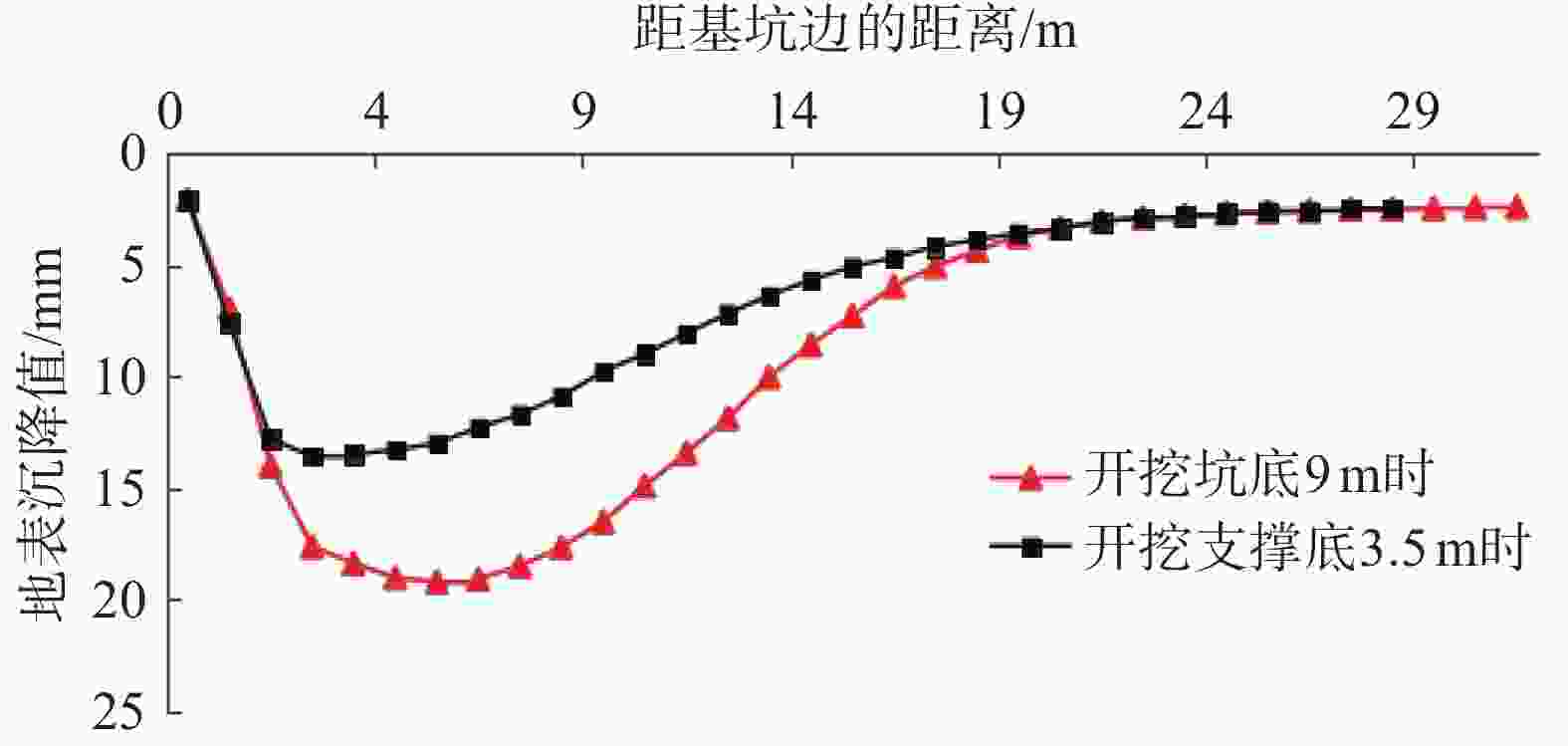

图 6 基坑周边地表沉降

Figure 6. Ground surface settlement around the foundation pit

下载: 全尺寸图片幻灯片

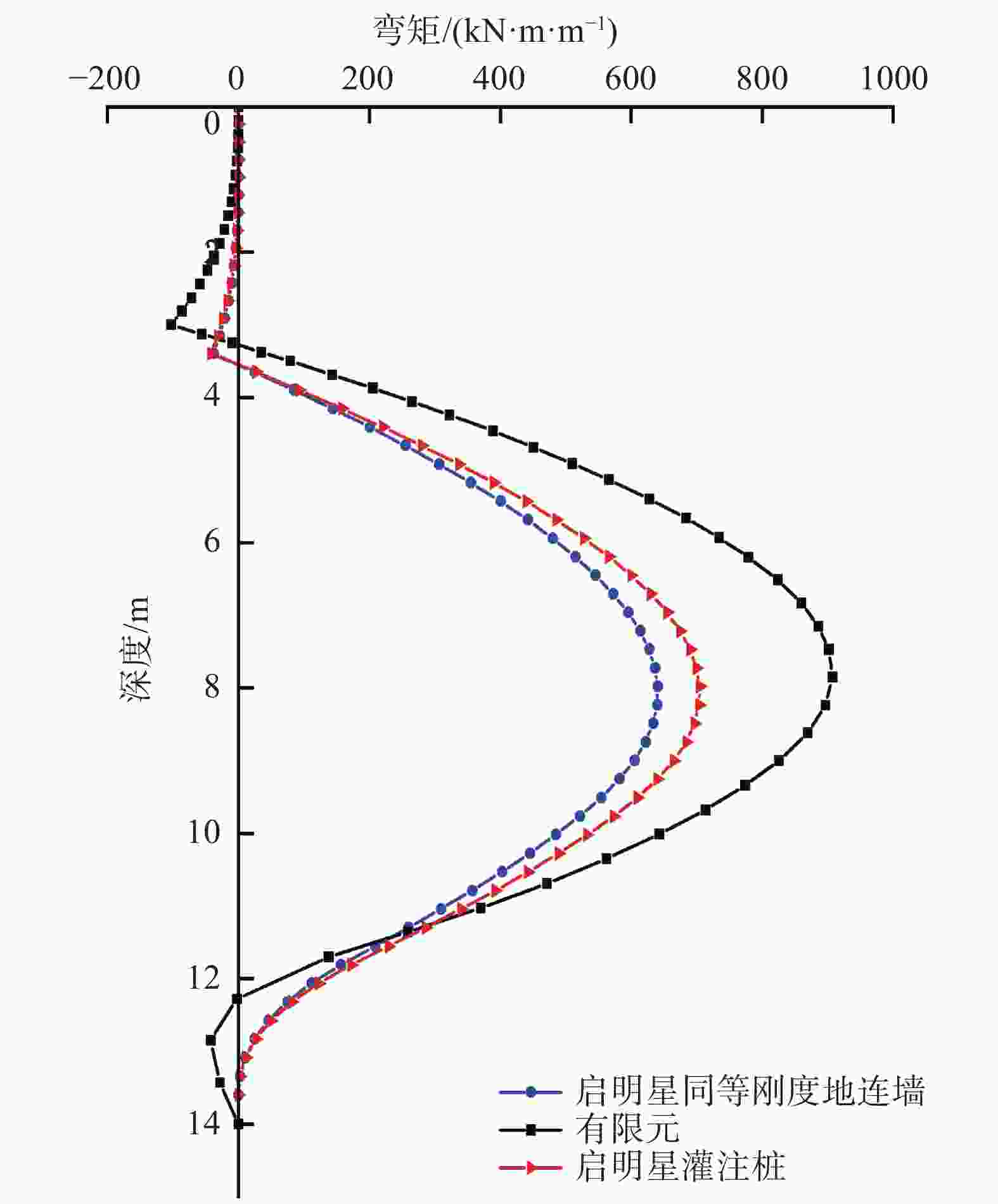

图 7 围护桩弯矩值

Figure 7. Bending moment value of the retaining piles

下载: 全尺寸图片幻灯片

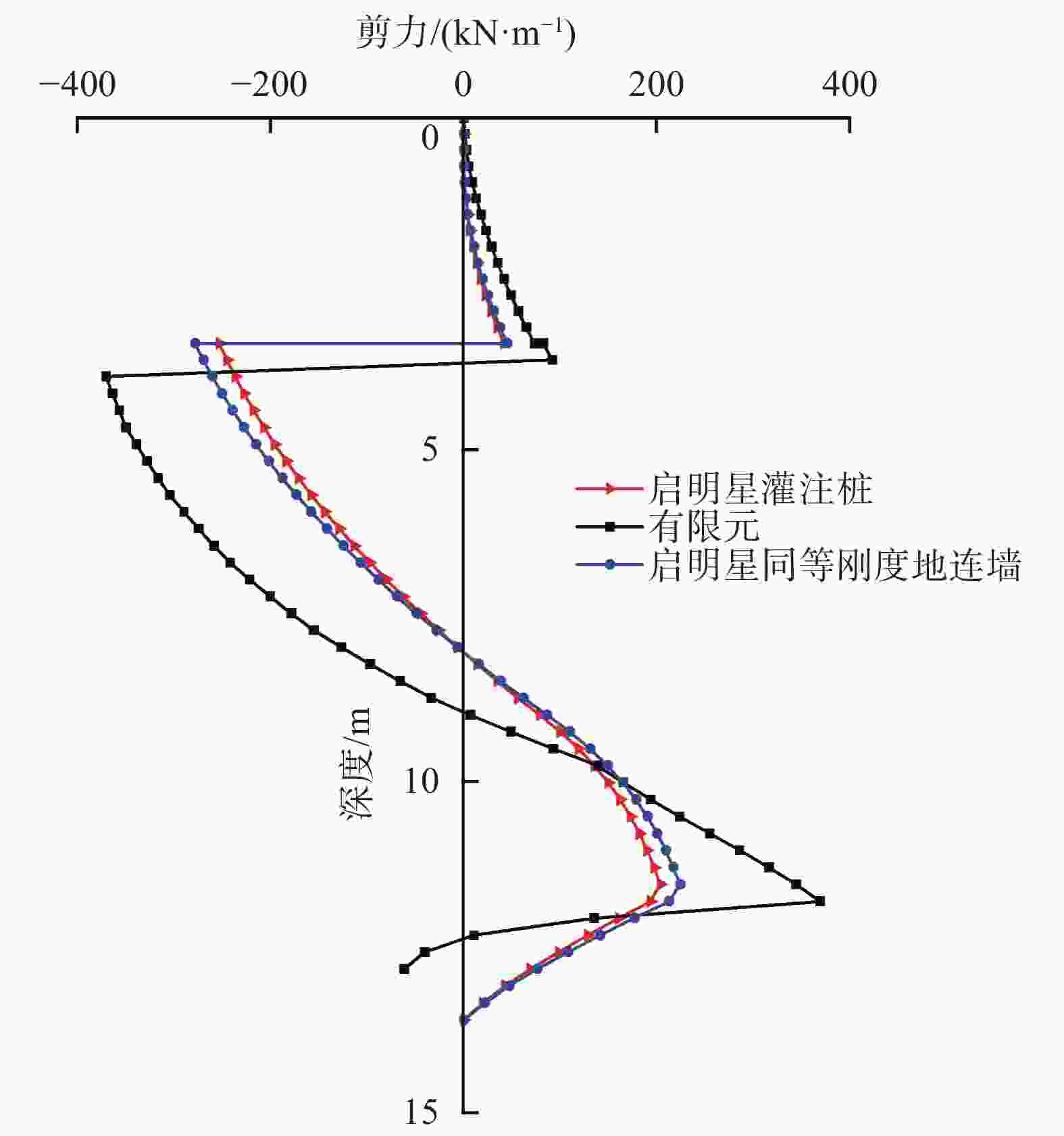

图 8 围护桩剪力值

Figure 8. Shear force value of the retaining piles

下载: 全尺寸图片幻灯片

表 1 基坑土层物理力学参数表

Table 1. Physical and mechanical parameters of foundation pit soil layers

层号	土层名称	层厚 /m	重度γ /（kN·m⁻³）	φ_k /（°）	c_k /kPa	渗透系数k /（cm·s⁻¹）
①₁	杂填土	0.50～28.00	19.0^*	15^*	10^*	5.0E-05
①₂	素填土	1.00～12.90	18.5	13.7	14.3	3.0E-05
⑤₂	中等风化砂岩			45^*	120^*	2.0E-05
注：带*均为经验值。

下载: 导出CSV

表 2 板单元计算参数

Table 2. Calculation parameters of the plate element

项目	d /m	EA /(kN·m⁻¹)	EI /(kN·m²·m⁻¹)	W /(kN·m⁻¹·m⁻¹)	泊松比
板	0.706	2.117×10⁷	8.782×10⁵	8	0.2

下载: 导出CSV

参考文献(13)

[1]	王涛, 闫振环. 钢管土钉结合压密注浆在深厚杂填土基坑中的应用[J]. 岩土工程技术, 2014, 28(3): 160-163. (WANG T, YAN Z H. Application of Soil Nailing of steel tube combined with compaction grouting in foundation pit with deep miscellaneous fill[J]. Geotechnical Engineering Technique, 2014, 28(3): 160-163. (in Chinese) doi: 10.3969/j.issn.1007-2993.2014.03.012 WANG T, YAN Z H. Application of Soil Nailing of steel tube combined with compaction grouting in foundation pit with deep miscellaneous fill[J]. Geotechnical Engineering Technique, 2014, 28（3）: 160-163. (in Chinese) doi: 10.3969/j.issn.1007-2993.2014.03.012
[2]	孙剑平, 邵广彪, 江宗宝. 深厚杂填土基坑位移控制设计与施工技术[J]. 岩土工程学报, 2012, 34(S1): 576-580. (SUN J P, SHAO G B, JIANG Z B. Design and construction technology of displacement control in deep miscellaneous fill foundation pits[J]. Chinese Journal of Geotechnical Engineering, 2012, 34(S1): 576-580. (in Chinese) SUN J P, SHAO G B, JIANG Z B. Design and construction technology of displacement control in deep miscellaneous fill foundation pits[J]. Chinese Journal of Geotechnical Engineering, 2012, 34（S1）: 576-580. (in Chinese)
[3]	朱志华, 刘涛, 单红仙. 土岩结合条件下深基坑支护方式研究[J]. 岩土力学, 2011, 32(S1): 619-623. (ZHU Z H, LIU T, SHAN H X. Study of supporting type for deep foundation pit in areas of rock and soil[J]. Rock and Soil Mechanics, 2011, 32(S1): 619-623. (in Chinese) doi: 10.16285/j.rsm.2011.s1.131 ZHU Z H, LIU T, SHAN H X. Study of supporting type for deep foundation pit in areas of rock and soil[J]. Rock and Soil Mechanics, 2011, 32（S1）: 619-623. (in Chinese) doi: 10.16285/j.rsm.2011.s1.131
[4]	白晓宇, 张明义, 袁海洋. 移动荷载作用下土岩组合基坑吊脚桩变形分析[J]. 岩土力学, 2015, 36(4): 1167-1173,1181. (BAI X Y, ZHANG M Y, YUAN H Y. Deformation analysis for the end-suspended piles in the combined soil-rock foundation pits under moving loadings[J]. Rock and Soil Mechanics, 2015, 36(4): 1167-1173,1181. (in Chinese) doi: 10.16285/j.rsm.2015.04.034 BAI X Y, ZHANG M Y, YUAN H Y. Deformation analysis for the end-suspended piles in the combined soil-rock foundation pits under moving loadings[J]. Rock and Soil Mechanics, 2015, 36（4）: 1167-1173,1181. (in Chinese) doi: 10.16285/j.rsm.2015.04.034
[5]	白晓宇, 张明义, 闫楠, 等. 土岩深基坑桩−撑−锚组合支护体系变形特性[J]. 中南大学学报(自然科学版), 2018, 49(2): 454-468. (BAI X Y, ZHANG M Y, YAN N, et al. Deformation properties of combined support system of pile-steel support-anchor cable for deep foundation pit in rock-soil combination[J]. Journal of Central South University (Science and Technology), 2018, 49(2): 454-468. (in Chinese) BAI X Y, ZHANG M Y, YAN N, et al. Deformation properties of combined support system of pile-steel support-anchor cable for deep foundation pit in rock-soil combination[J]. Journal of Central South University (Science and Technology), 2018, 49（2）: 454-468. (in Chinese)
[6]	刘红军, 王亚军, 姜德鸿, 等. 土岩组合双排吊脚桩桩锚支护基坑变形数值分析[J]. 岩石力学与工程学报, 2011, 30(S1): 4099-4103. (LIU H J, WANG Y J, JIANG D H, et al. Numerical analysis of deep foundation pit displacement with double-row end-suspended piles in strata of soil-rock dualistic structure[J]. Chinese Journal of Rock Mechanics and Engineering, 2011, 30(S1): 4099-4103. (in Chinese) LIU H J, WANG Y J, JIANG D H, et al. Numerical analysis of deep foundation pit displacement with double-row end-suspended piles in strata of soil-rock dualistic structure[J]. Chinese Journal of Rock Mechanics and Engineering, 2011, 30（S1）: 4099-4103. (in Chinese)
[7]	刘红军, 于雅琼, 王秀海. 土岩组合地层旋喷桩止水桩锚支护基坑变形与受力数值分析[J]. 岩土工程学报, 2012, 34(S1): 297-302. (LIU H J, YU Y Q, WANG X H. Deformation and force analysis of pile anchor for soil-rock dualistic structure based on finite element theory[J]. Chinese Journal of Geotechnical Engineering, 2012, 34(S1): 297-302. (in Chinese) LIU H J, YU Y Q, WANG X H. Deformation and force analysis of pile anchor for soil-rock dualistic structure based on finite element theory[J]. Chinese Journal of Geotechnical Engineering, 2012, 34（S1）: 297-302. (in Chinese)
[8]	徐中华, 王卫东. 敏感环境下基坑数值分析中土体本构模型的选择[J]. 岩土力学, 2010, 31(1): 258-264,326. (XU Z H, WANG W D. Selection of soil constitutive models for numerical analysis of deep excavations in close proximity to sensitive properties[J]. Rock and Soil Mechanics, 2010, 31(1): 258-264,326. (in Chinese) doi: 10.3969/j.issn.1000-7598.2010.01.044 XU Z H, WANG W D. Selection of soil constitutive models for numerical analysis of deep excavations in close proximity to sensitive properties[J]. Rock and Soil Mechanics, 2010, 31（1）: 258-264,326. (in Chinese) doi: 10.3969/j.issn.1000-7598.2010.01.044
[9]	王博文, 夏晨, 王子安, 等. 小应变硬化模型在南京漫滩区深大基坑中的应用研究[J]. 北京建筑大学学报, 2024, 40(3): 127-136. (WANG B W, XIA C, WANG Z A, et al. Application of small strain soil hardening model in deep foundation pit in floodplain area of Nanjing[J]. Journal of Beijing University of Civil Engineering and Architecture, 2024, 40(3): 127-136. (in Chinese) doi: 10.19740/j.2096-9872.2024.03.15 WANG B W, XIA C, WANG Z A, et al. Application of small strain soil hardening model in deep foundation pit in floodplain area of Nanjing[J]. Journal of Beijing University of Civil Engineering and Architecture, 2024, 40（3）: 127-136. (in Chinese) doi: 10.19740/j.2096-9872.2024.03.15
[10]	史康, 孙元硕, 张伟, 等. 桩锚支护变形规律及基坑周围变形分析[J]. 工程勘察, 2021, 49(10): 6-14. (SHI K, ZHANG Y S, ZHANG W, et al. Analysis of deformation law of pile anchor support and deformation around foundation pit[J]. Geotechnical Investigation & Surveying, 2021, 49(10): 6-14. (in Chinese) SHI K, ZHANG Y S, ZHANG W, et al. Analysis of deformation law of pile anchor support and deformation around foundation pit[J]. Geotechnical Investigation & Surveying, 2021, 49（10）: 6-14. (in Chinese)
[11]	胡瑞庚, 刘红军, 王兆耀, 等. 邻近建筑物的滨海土岩组合基坑支护结构变形分析[J]. 工程地质学报, 2020, 28(6): 1368-1377. (HU R K, LIU H J, WANG Z Y, et al. Deformation analysis of supporting structure for soil-rock combination foundation pit with adjacent buildings in coastal area[J]. Journal of Engineering Geology, 2020, 28(6): 1368-1377. (in Chinese) doi: 10.13544/j.cnki.jeg.2019-545 HU R K, LIU H J, WANG Z Y, et al. Deformation analysis of supporting structure for soil-rock combination foundation pit with adjacent buildings in coastal area[J]. Journal of Engineering Geology, 2020, 28（6）: 1368-1377. (in Chinese) doi: 10.13544/j.cnki.jeg.2019-545
[12]	顾晓强, 吴瑞拓, 梁发云, 等. 上海土体小应变硬化模型整套参数取值方法及工程验证[J]. 岩土力学, 2021, 42(3): 833-845. (GU X Q, WU R T, LIANG F Y, et al. On HSS model parameters for Shanghai soils with engineering verification[J]. Rock and Soil Mechanics, 2021, 42(3): 833-845. (in Chinese) doi: 10.16285/j.rsm.2020.0741 GU X Q, WU R T, LIANG F Y, et al. On HSS model parameters for Shanghai soils with engineering verification[J]. Rock and Soil Mechanics, 2021, 42（3）: 833-845. (in Chinese) doi: 10.16285/j.rsm.2020.0741
[13]	李斯海, 张玉军. 深基坑开挖与支护过程的平面有限元模拟[J]. 岩石力学与工程学报, 1999, 18(3): 342-345. (LI S H, ZHANG Y J. Numerical simulations by 2D fem in process of excavation and supporting of deep foundation ditch[J]. Chinese Journal of Rock Mechanics and Engineering, 1999, 18(3): 342-345. (in Chinese) LI S H, ZHANG Y J. Numerical simulations by 2D fem in process of excavation and supporting of deep foundation ditch[J]. Chinese Journal of Rock Mechanics and Engineering, 1999, 18（3）: 342-345. (in Chinese)
