Study on effects of vertical nonlinear-distributed loads on trenched utility tunnel
-

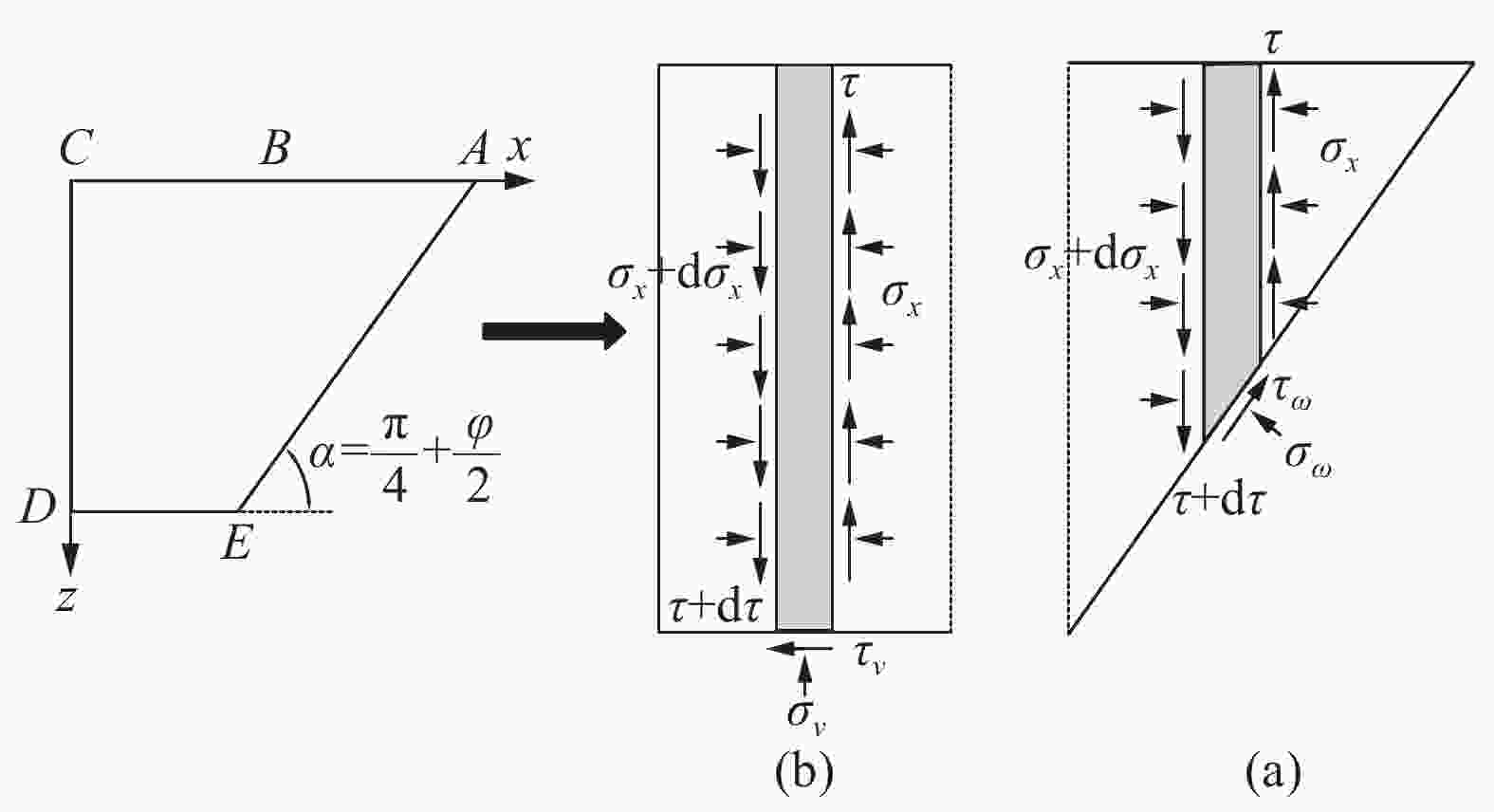

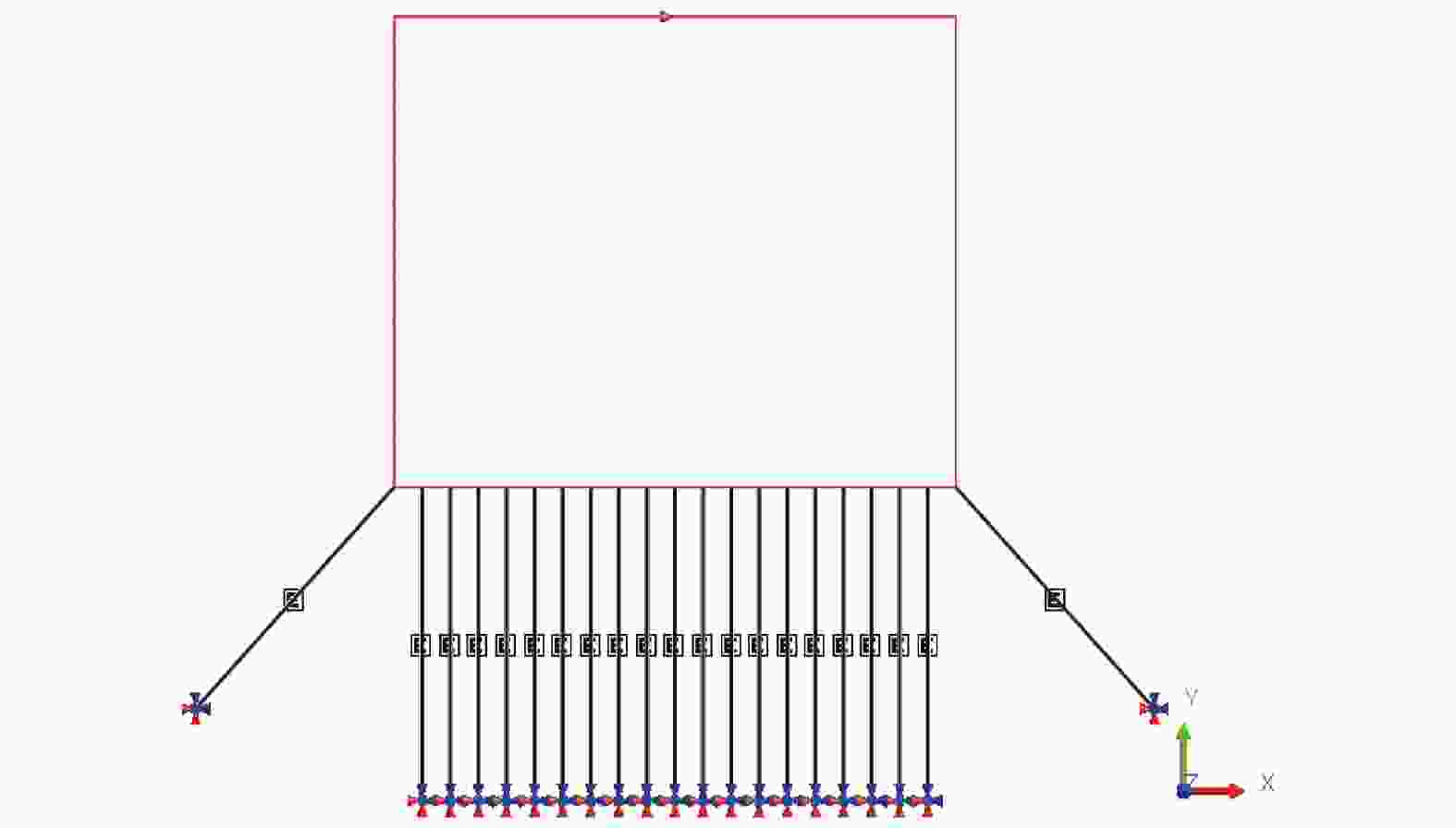

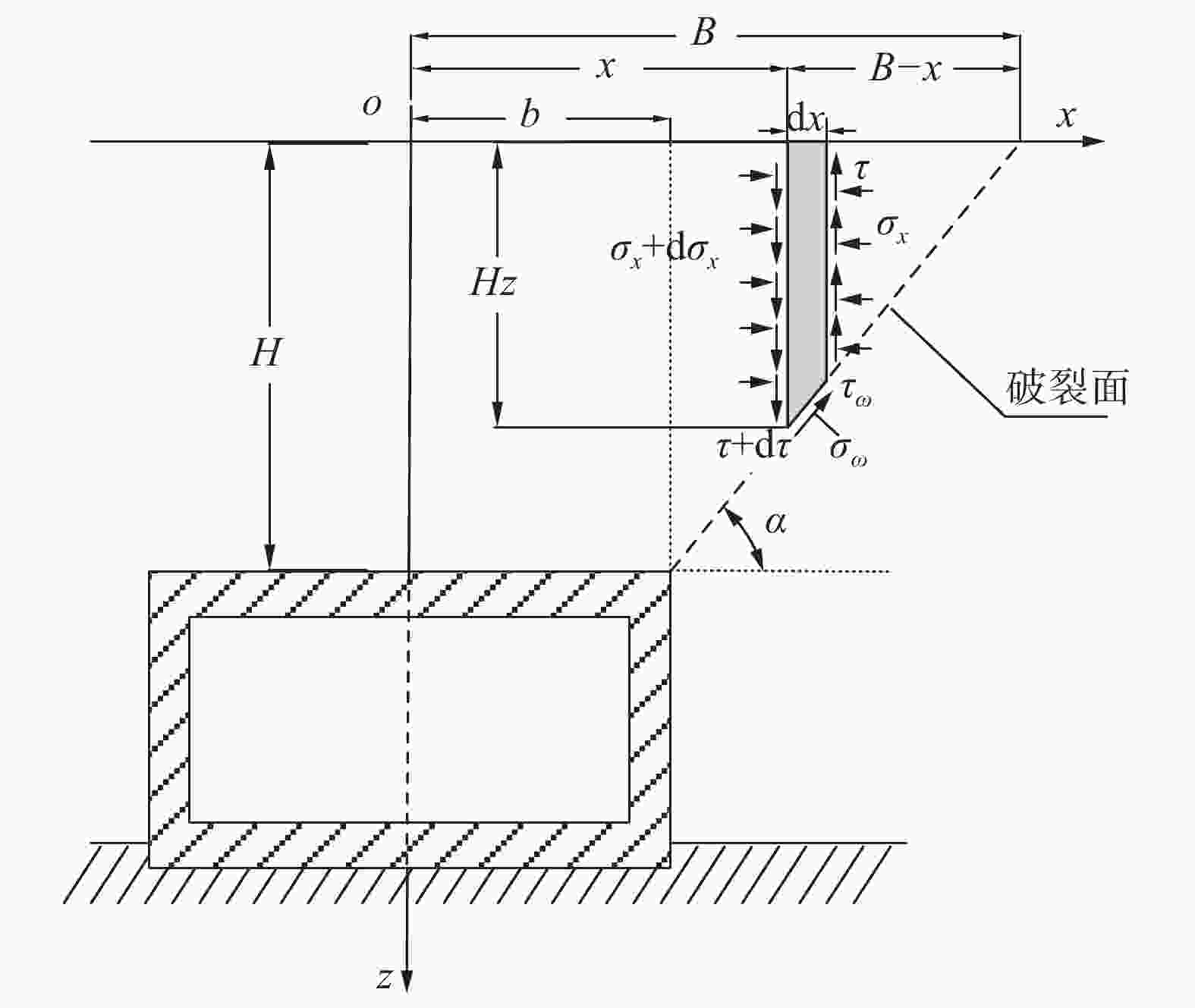

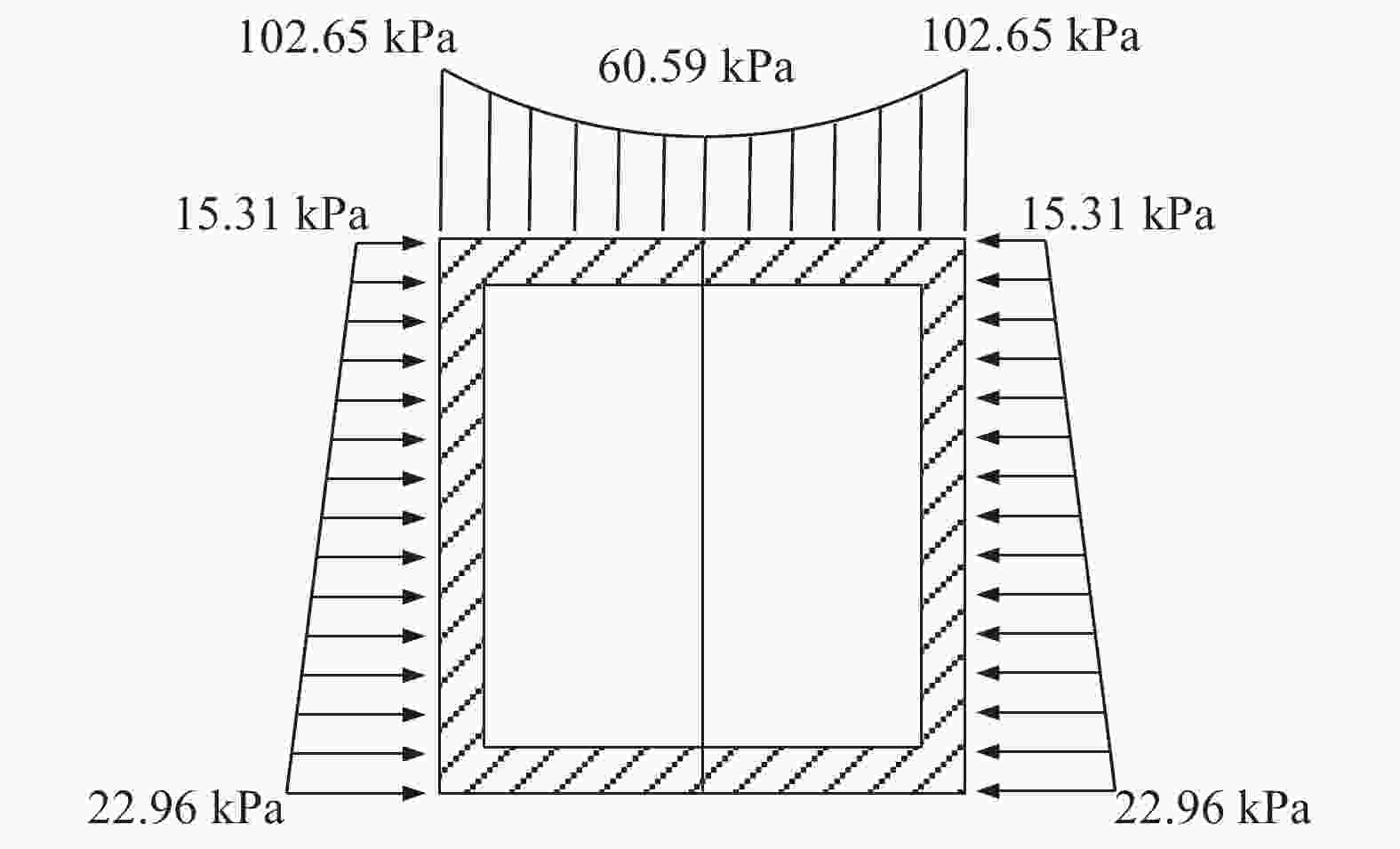

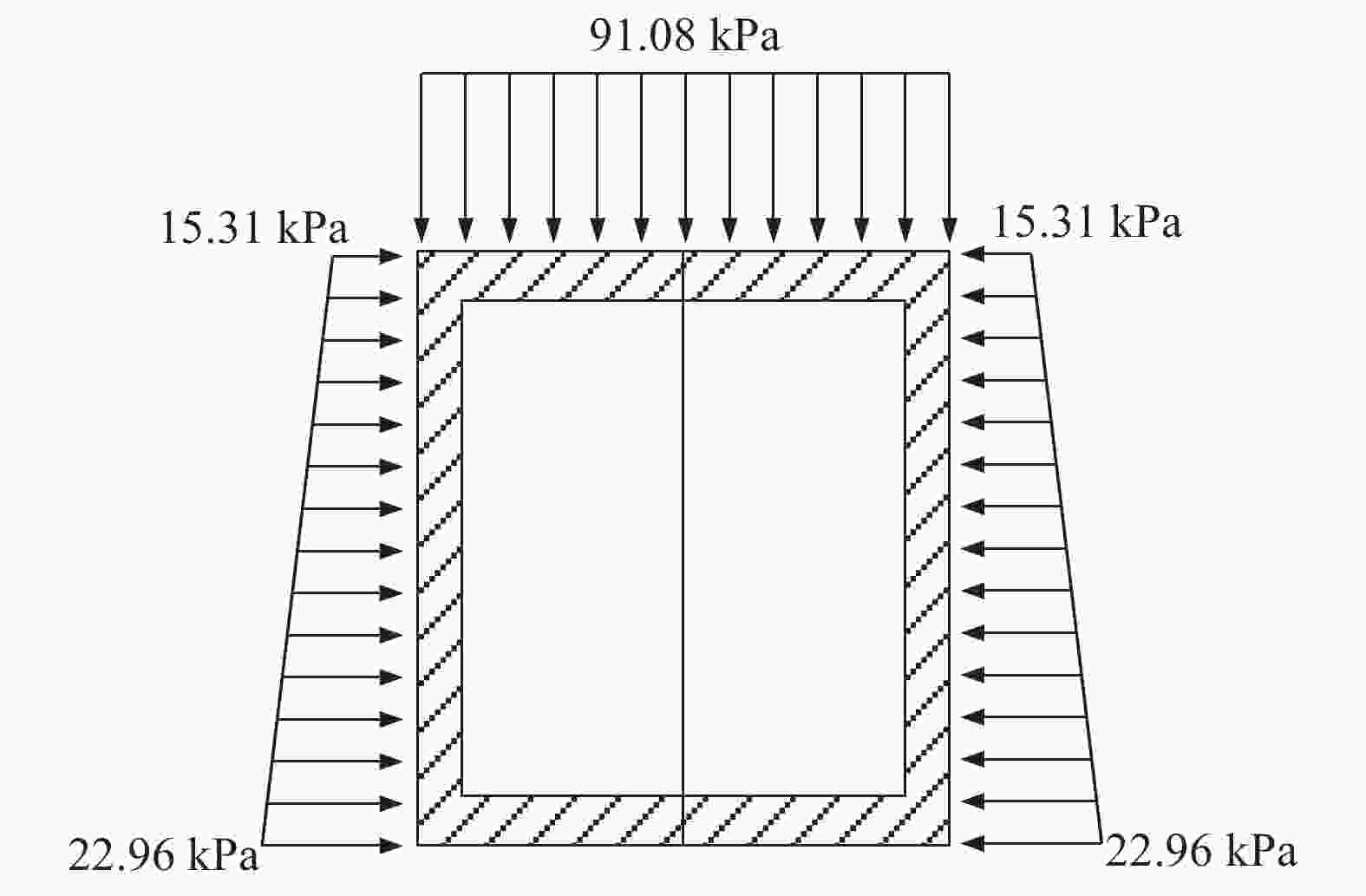

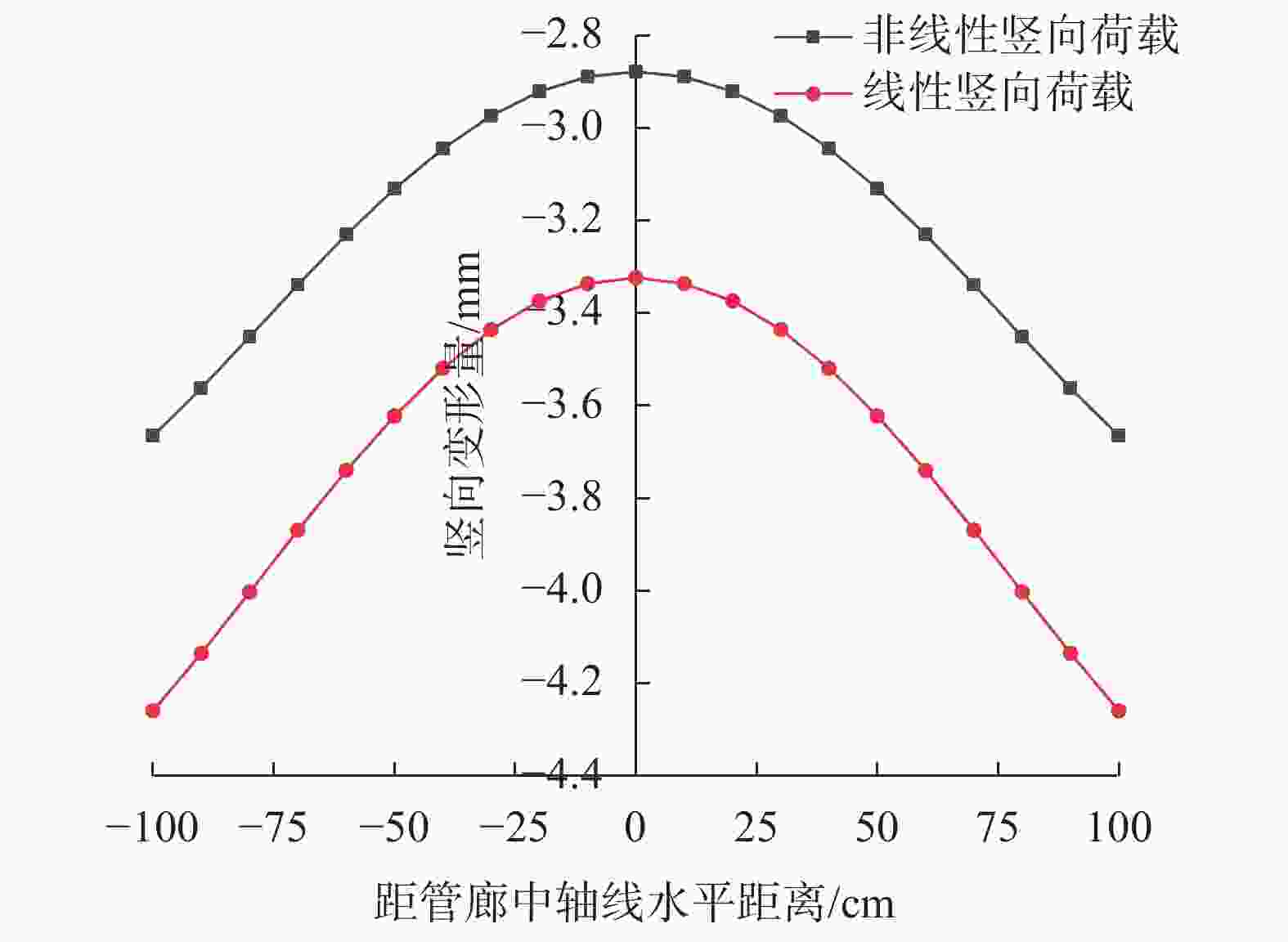

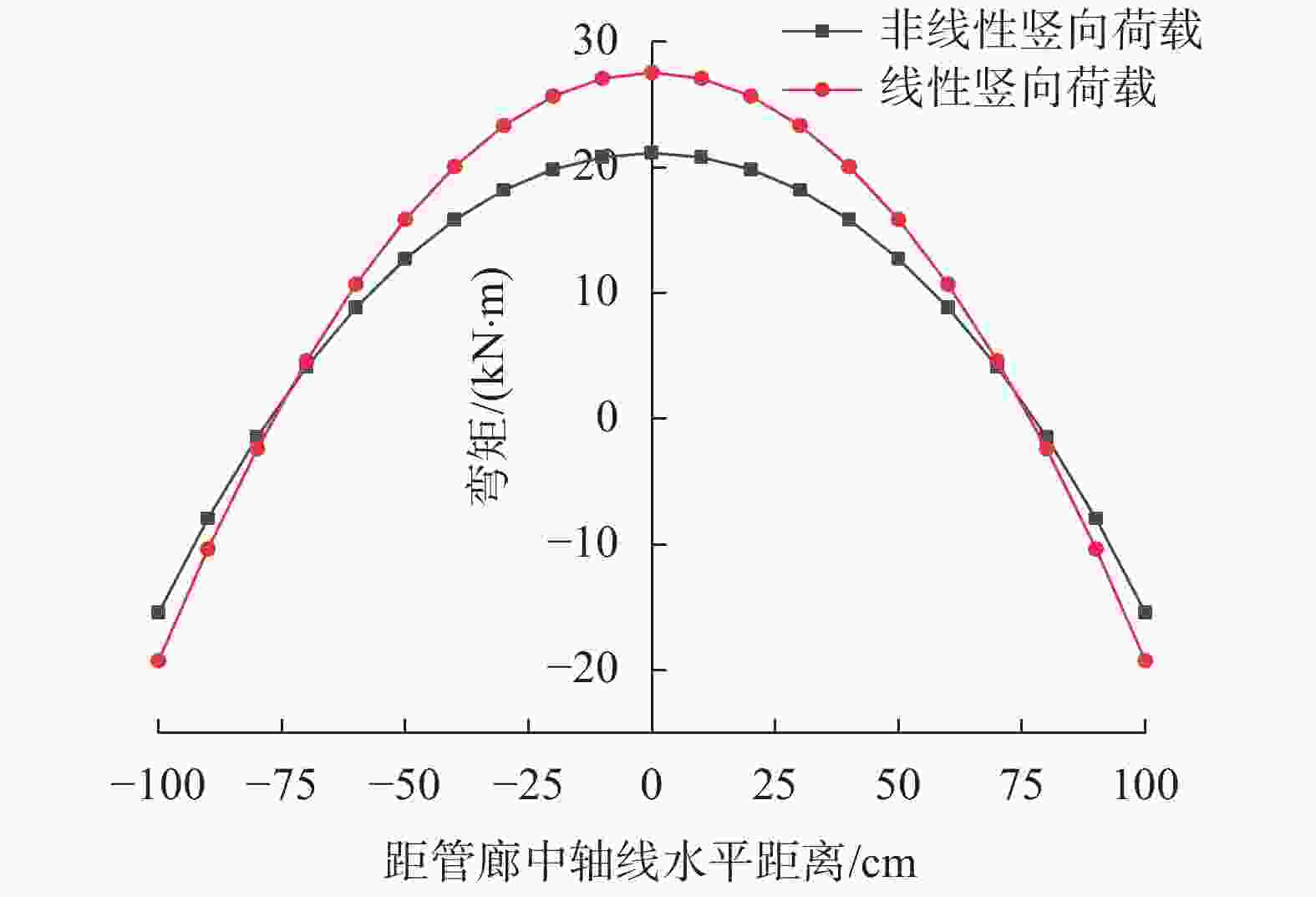

摘要: 针对沟埋式管廊上覆荷载非线性分布问题，采用竖向微分单元法，并引入土条条间摩擦力假设，推导出竖向土压力非线性分布的表达式。理论结果与沟埋式管廊现场实测对比表明，非线性解析式可以描述沟埋式管廊上覆荷载的非线性特性。采用荷载结构法，对管廊顶部分别施加线性荷载和非线性荷载进行计算，结果表明：在背景工程条件下，管顶非线性荷载、管侧线性荷载模式下，管廊结构顶部和底部变形量分别减小15%和14%，侧壁变形几乎没有影响；管廊顶部跨中最大弯矩减小约23%。Abstract: Aiming at nonlinear distribution of the overburden load of the buried utility tunnel, employing the vertical differential element method with the assumption on the friction force between the soil slices, the nonlinear analytical solution of the vertical soil pressure is deduced. The comparison between theoretical results and the field measurement of buried utility tunnel show that the non-linear analytical solutions are able to describe the nonlinear distribution characteristics of loads on trenched utility tunnel. By the load structure method, the utility tunnel with its top bearing linear and nonlinear overburden loads is computed. The results show that under the engineering condition proposed by the paper, the mode of linear distribution on structure top and nolinear distribution on side wall, the deformation value of structure top and bottom reduce 15% and 14%, respectively, nearly no effects on side wall deformation; the maximum moment of in the middle of utility tunnel top reduce 23%.
-
Key words:
- utility tunnel /
- trench-bury /
- loads /
- nonlinear distribution /
- structural internal force
-

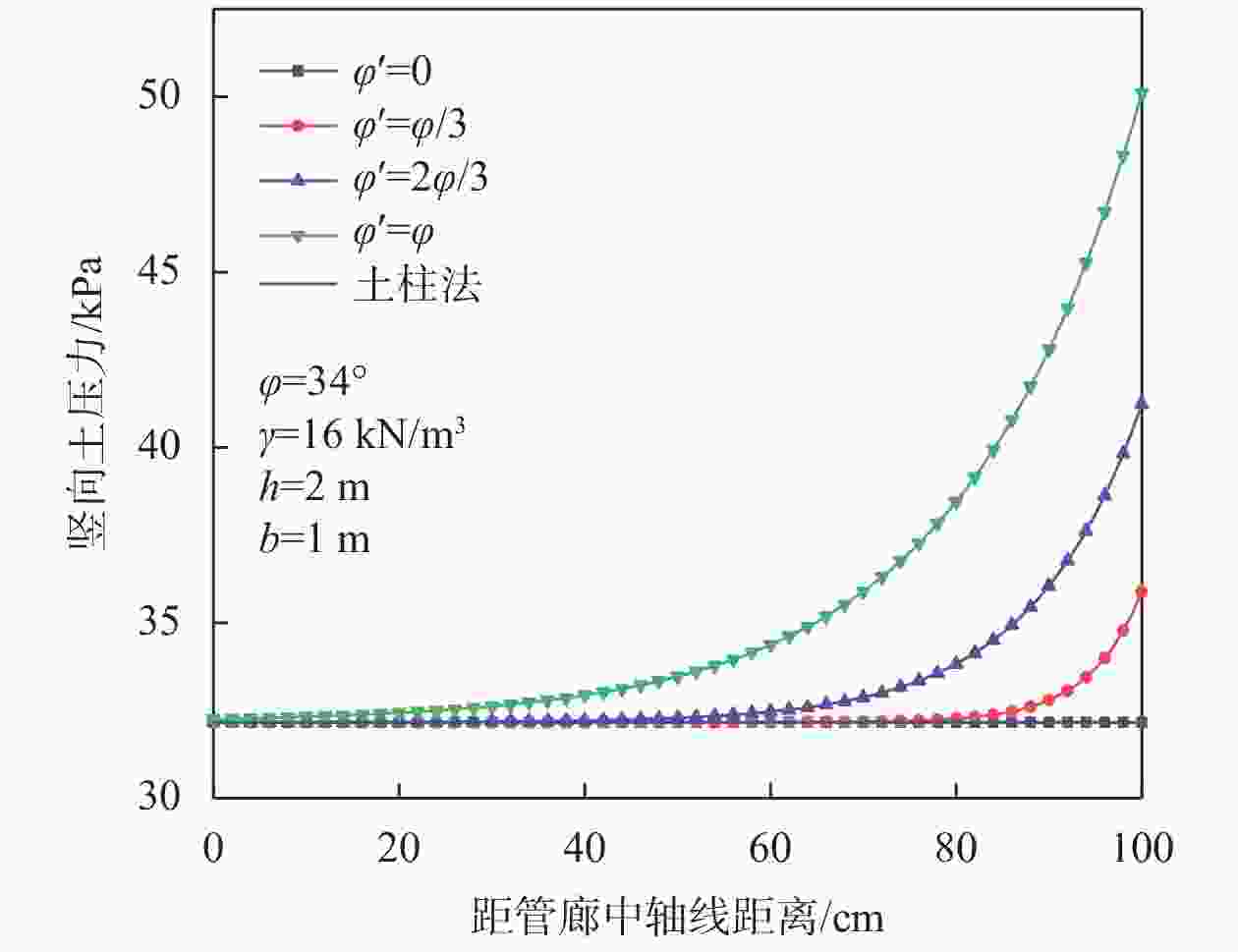

图 3 不同φ′值条件下的竖向土压力分布曲线
Figure 3. Fig 3.Vertical earth pressure distribution curves with different conditons of $ \varphi '$

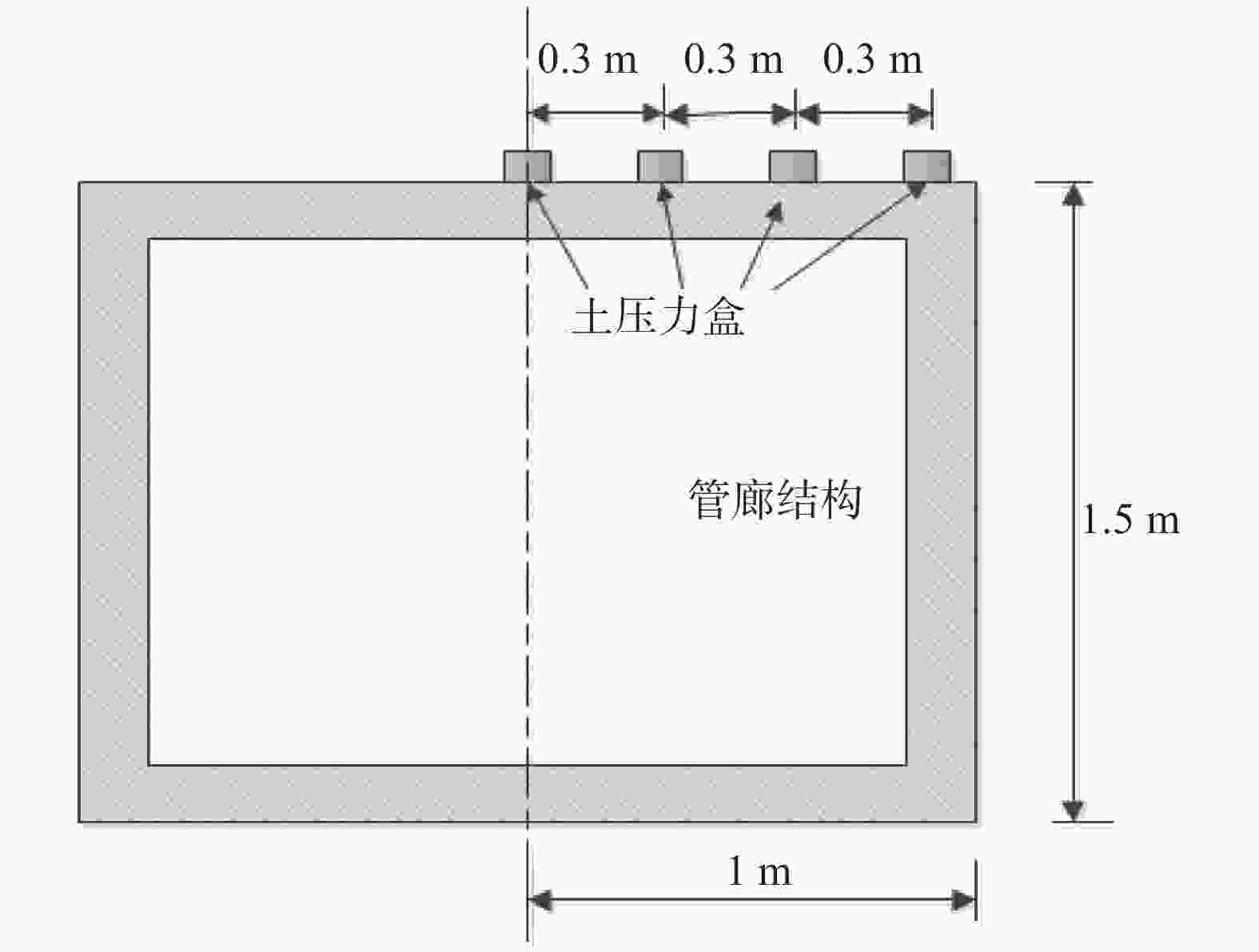

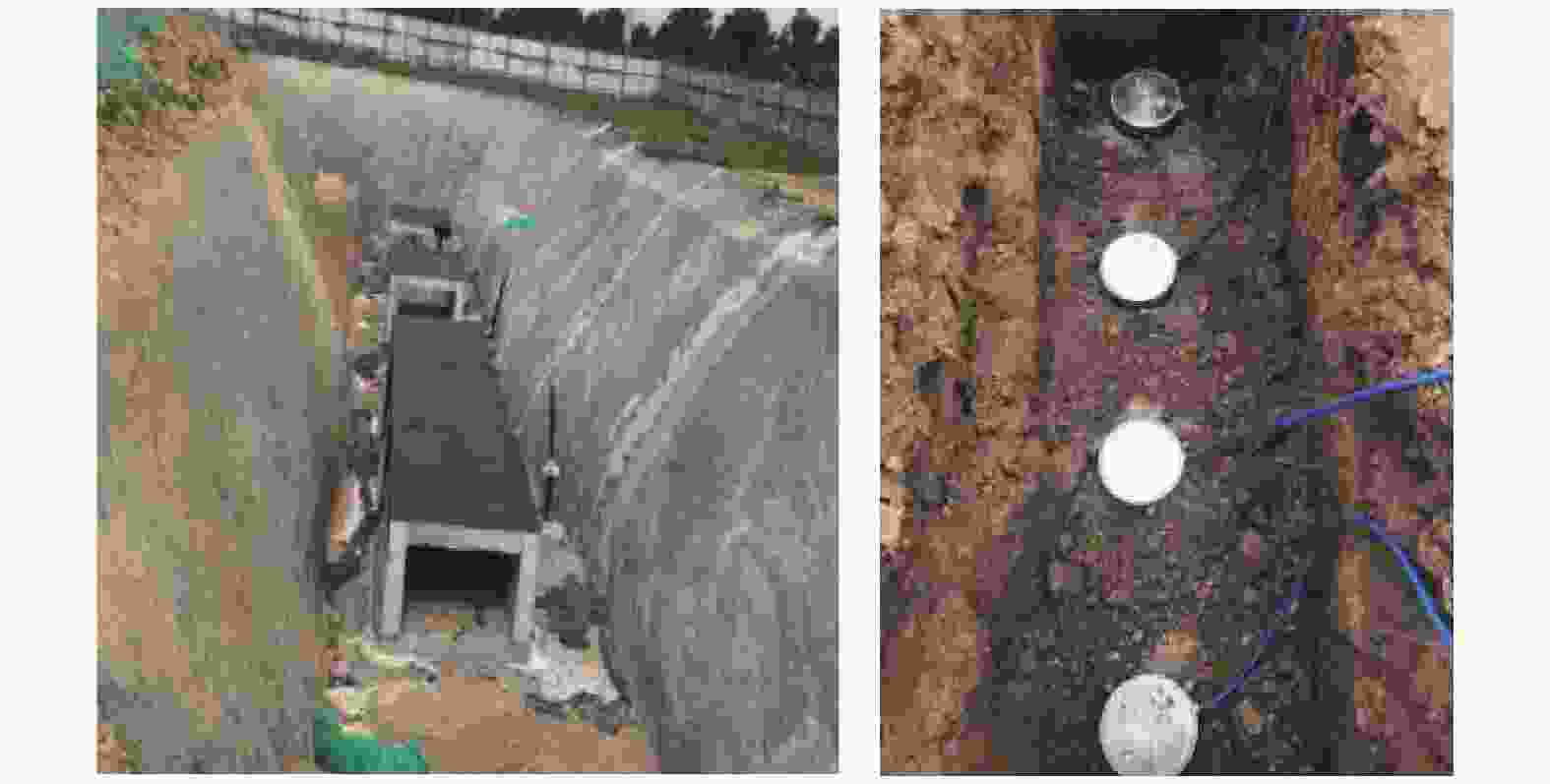

图 5 管廊顶土压力盒布置剖面图
Figure 5. Crossing section of earth pressure box on the utility tunnel top

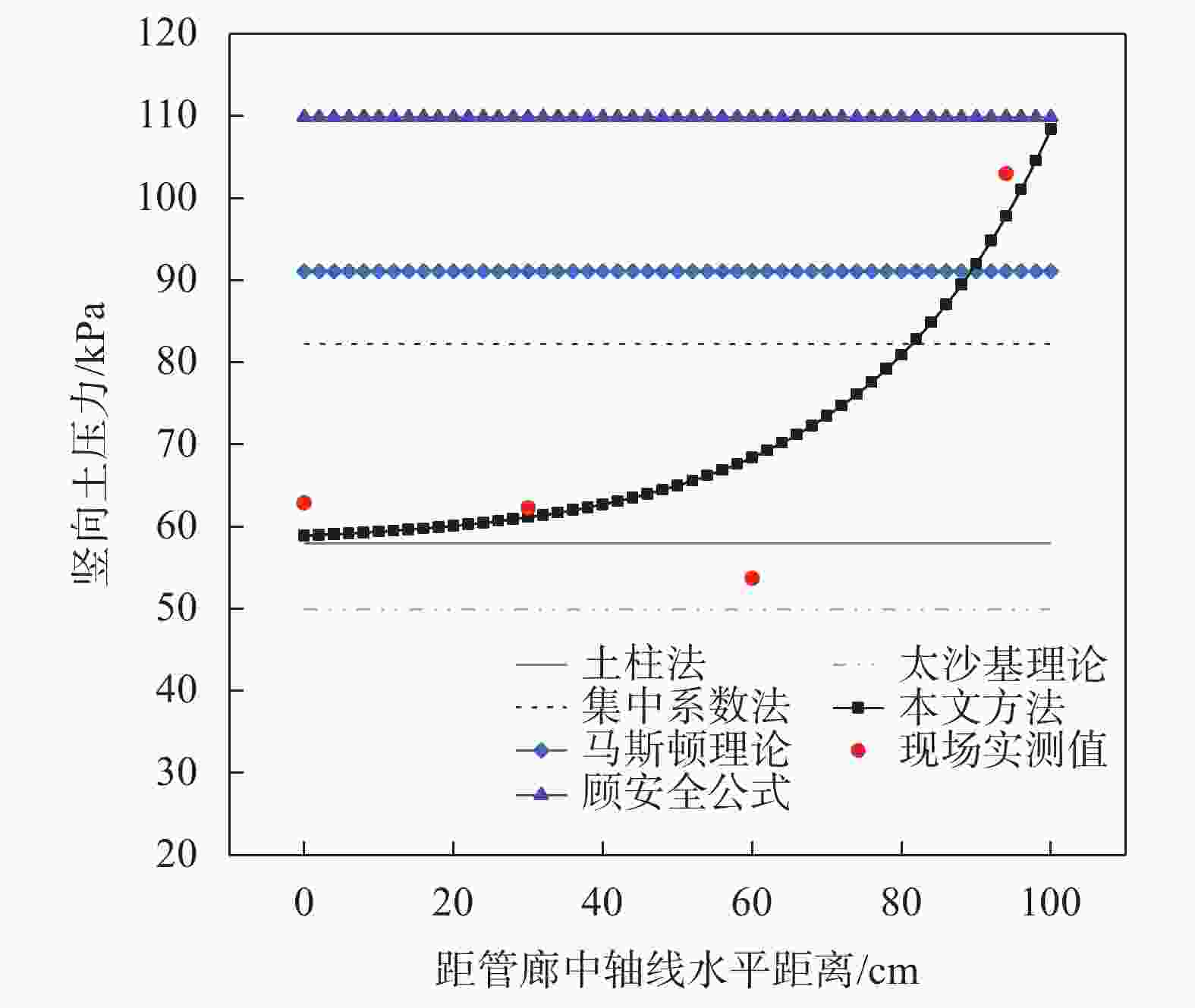

图 6 理论法竖向土压力分布与现场实测对比
Figure 6. Vertical earth pressure distribution comparison between the theoretical method and site monitoring datum

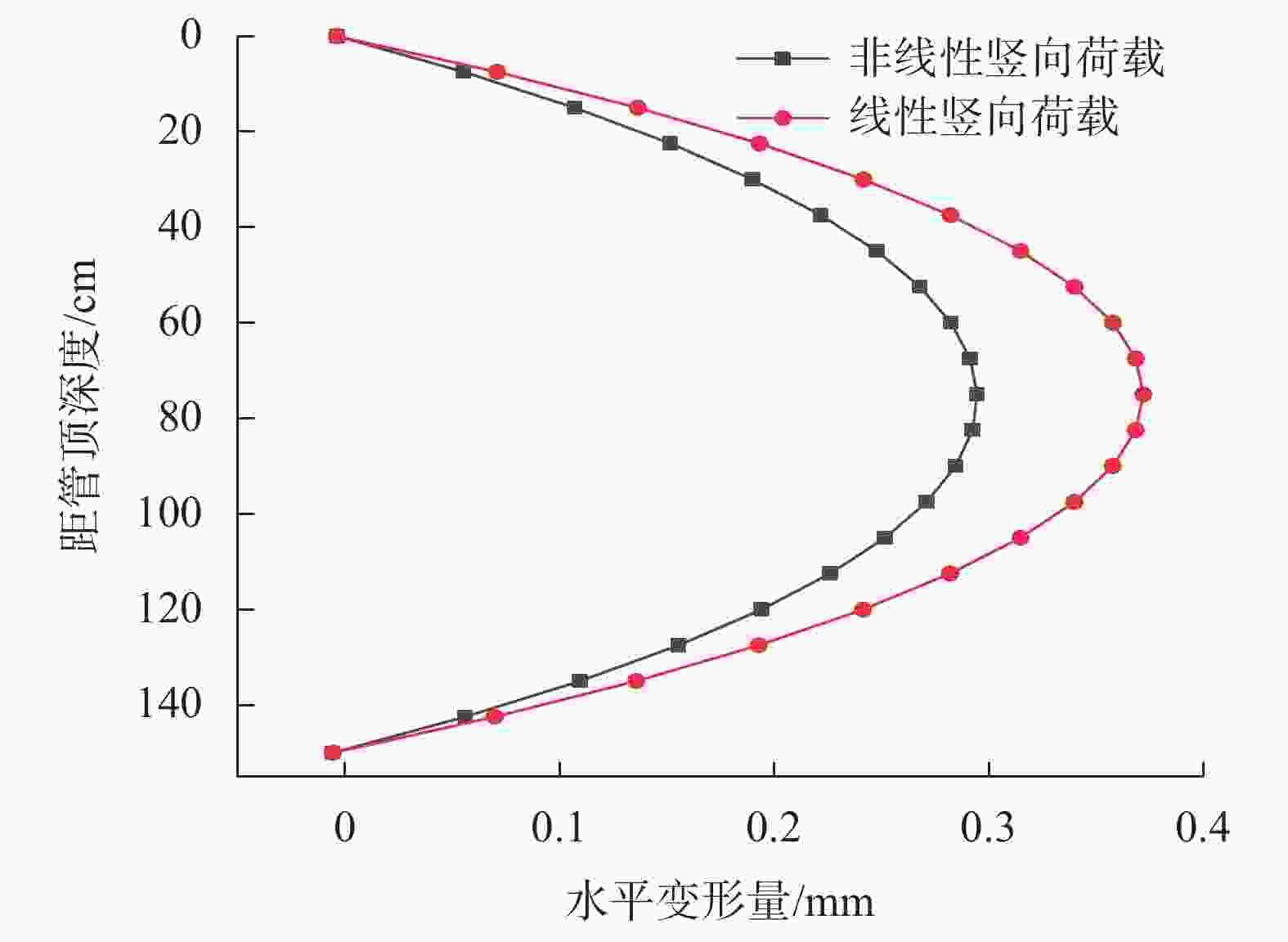

图 12 管廊侧壁水平变形曲线
Figure 12. Horizontal deformation curve of side wall of utility tunnel
表 1 某综合管廊试验相关土工参数
Table 1. Relevant geotechnical parameters of utility tunnel
管廊半宽
b/m填土高度
h/m填土重度
γ/(kN∙m−3)内摩擦角
$ \varphi $/(°)外摩擦角
$ \delta $/(°)1 3 19.3 28.3 $ \dfrac{2\varphi }{3} $
下载: 导出CSV
-
[1] MOSER A P. 地下管设计[M]. 北京市市政工程设计研究总院《地下管设计》翻译组, 译. 北京: 机械工业出版社, 2003. (MOSER A P. Buried pipe design[M]. Translation Team for Underground Pipe Design at Beijing Municipal Engineering Design and Research Institute, trans. Beijing: China Machine Press, 2003. (in Chinese)MOSER A P. Buried pipe design[M]. Translation Team for Underground Pipe Design at Beijing Municipal Engineering Design and Research Institute, trans. Beijing: China Machine Press, 2003. (in Chinese) [2] 王毅才. 隧道工程[M]. 北京: 人民交通出版社, 2006. (WANG Y C. Tunnel engineering[M]. Beijing: China Communications Press, 2006. (in Chinese)WANG Y C. Tunnel engineering[M]. Beijing: China Communications Press, 2006. (in Chinese) [3] TERZAGHI K. Theoretical soil mechanics[M]. New York: John Wiley & Sons, Inc. , 1943. [4] 曾国熙. 土埧下涵管竖向土压力的计算[J]. 浙江大学学报, 1960(1): 79-98. (ZENG G X. Calculation of vertical earth pressure of culvert pipe under soil[J]. Journal of Zhejiang University, 1960(1): 79-98. (in Chinese)ZENG G X. Calculation of vertical earth pressure of culvert pipe under soil[J]. Journal of Zhejiang University, 1960(1): 79-98. (in Chinese) [5] 顾安全. 上埋式管道垂直土压力的研究[D]. 西安: 陕西工业大学, 1963. (GU A Q. Research on vertical earth pressure of upper buried pipeline[D]. Xi’an: Shaanxi University of Technology, 1963. (in Chinese)GU A Q. Research on vertical earth pressure of upper buried pipeline[D]. Xi’an: Shaanxi University of Technology, 1963. (in Chinese) [6] 中华人民共和国住房和城乡建设部. 城市综合管廊工程技术标准: GB 50838—2015[S]. 北京: 中国计划出版社, 2015: 72. (Ministry of Housing and Urban Rural Development of the People’s Republic of China. Technical code for urban utility tunnel engineering: GB 50838—2015[S]. Beijing: China Planning Press, 2015: 72. (in Chinese)Ministry of Housing and Urban Rural Development of the People’s Republic of China. Technical code for urban utility tunnel engineering: GB 50838—2015[S]. Beijing: China Planning Press, 2015: 72. (in Chinese) [7] 申文明, 边学成, 唐晓武, 等. 低填方上埋式管涵土压力的模型试验和理论研究[J]. 岩土工程学报, 2010, 32(7): 1017-1022. (SHEN W M, BIAN X C, TANG X W, et al. Model tests and theoretical studies on earth pressure on shallow positive buried culverts[J]. Chinese Journal of Geotechnical Engineering, 2010, 32(7): 1017-1022. (in Chinese)SHEN W M, BIAN X C, TANG X W, et al. Model tests and theoretical studies on earth pressure on shallow positive buried culverts[J]. Chinese Journal of Geotechnical Engineering, 2010, 32（7）: 1017-1022. (in Chinese) [8] 杨明辉, 方天云, 赵明华, 等. 高填方段波纹管涵垂直土压力试验及计算[J]. 公路交通科技, 2014, 31(4): 33-38. (YANG M H, FANG T Y, ZHAO M H, et al. Test and calculation of vertical earth pressure on corrugated pipe culvert under high embankment[J]. Journal of Highway and Transportation Research and Development, 2014, 31(4): 33-38. (in Chinese) doi: 10.3969/j.issn.1002-0268.2014.04.006YANG M H, FANG T Y, ZHAO M H, et al. Test and calculation of vertical earth pressure on corrugated pipe culvert under high embankment[J]. Journal of Highway and Transportation Research and Development, 2014, 31（4）: 33-38. (in Chinese) doi: 10.3969/j.issn.1002-0268.2014.04.006 [9] 陶 涛, 蒋顺强, 秦长国, 等. 填土碾压对沟埋式箱涵土压力分布的影响研究[J]. 中外公路, 2015, 35(6): 29-32. (TAO T, JIANG S Q, QIN C G, et al. Fill compaction of ditch buried box culvert earth pressure distribution of impact study[J]. Journal of China & Foreign Highway, 2015, 35(6): 29-32. (in Chinese)TAO T, JIANG S Q, QIN C G, et al. Fill compaction of ditch buried box culvert earth pressure distribution of impact study[J]. Journal of China & Foreign Highway, 2015, 35(6): 29-32. (in Chinese) [10] ABUHAJAR O, EL NAGGAR H, NEWSON T. Numerical modeling of soil and surface foundation pressure effects on buried box culvert behavior[J]. Journal of Geotechnical and Geoenvironmental Engineering, 2016, 142(12): 04016072. doi: 10.1061/(ASCE)GT.1943-5606.0001567 [11] CHU I, WOO S K, WOO S I, et al. Analysis of vertical earth pressure acting on box culverts through centrifuge model test[J]. Applied Sciences, 2022, 12(4): 81. doi: 10.3390/app12010081 [12] TIAN Y, LIU H, JIANG X, et al. Analysis of stress and deformation of a positive buried pipe using the improved Spangler model[J]. Soils and Foundations, 2015, 55(3): 485-492. doi: 10.1016/j.sandf.2015.04.001 [13] 汪大海, 贺少辉, 刘夏冰, 等. 基于主应力旋转特征的浅埋隧道上覆土压力计算及不完全拱效应分析[J]. 岩石力学与工程学报, 2019, 38(6): 1284-1296. (WANG D H, HE S H, LIU X B, et al. A modified method for determining the overburden pressure above shallow tunnels considering the distribution of the principal stress rotation and the partially mobilized arching effect[J]. Chinese Journal of Rock Mechanics and Engineering, 2019, 38(6): 1284-1296. (in Chinese) doi: 10.13722/j.cnki.jrme.2018.0798WANG D H, HE S H, LIU X B, et al. A modified method for determining the overburden pressure above shallow tunnels considering the distribution of the principal stress rotation and the partially mobilized arching effect[J]. Chinese Journal of Rock Mechanics and Engineering, 2019, 38（6）: 1284-1296. (in Chinese) doi: 10.13722/j.cnki.jrme.2018.0798 [14] 张常光, 吴 凯, 隋建浩. 基于小主应力轨迹的上埋式涵管竖向土压力非线性描述[J]. 岩土工程学报, 2021, 43(12): 2200-2208. (ZHANG C G, WU K, SUI J H. Nonlinear descriptions of vertical earth pressure against positive buried pipelines based on minor principal stress trajectory[J]. Chinese Journal of Geotechnical Engineering, 2021, 43(12): 2200-2208. (in Chinese) doi: 10.11779/CJGE202112006ZHANG C G, WU K, SUI J H. Nonlinear descriptions of vertical earth pressure against positive buried pipelines based on minor principal stress trajectory[J]. Chinese Journal of Geotechnical Engineering, 2021, 43（12）: 2200-2208. (in Chinese) doi: 10.11779/CJGE202112006 [15] LIN X T, SU D, SHEN X, et al. Effect of tunnelling-induced ground loss on the distribution of earth pressure on a deep underground structure[J]. Computers and Geotechnics, 2022, 147: 104781. doi: 10.1016/j.compgeo.2022.104781 -
