Analysis of shear strength characteristics of saturated soft soil under self-weight preload consolidation load conditions
-
摘要: 宁波沿海平原区浅部饱和软土厚度一般30～40 m，不同深度土体自重应力具有一定差异，而室内直剪固结快剪试验采用统一标准的固结预压荷载，势必会造成固结压力与自重应力不匹配的现象，由此导致各试样因固结程度不同而对其抗剪强度产生影响。针对饱和软土实际应力条件，开展了规范法、自重预压荷载作用下的室内对比试验。结果表明：与规范法相比，自重预压固结法得到的饱和软土黏聚力提高幅度为48%，内摩擦角降低13%。当预压固结荷载小于其自重应力时，试样未充分固结变形，其颗粒间的胶结作用和摩擦、嵌入咬合作用减弱，导致其黏聚力及内摩擦角均相应降低；预压固结荷载大于土体自重应力时，孔隙水的排出使试样产生较大的固结变形，土颗粒重新排列，胶结作用产生的固化黏聚力减小，而咬合作用产生的内摩擦角则相应提高。最终呈现出自重预压荷载作用下饱和软土出现黏聚力增大，内摩擦角降低的抗剪强度特性。Abstract: In the Ningbo coastal plain area, the thickness of shallow saturated soft soil is generally 30~40 meters, the self-weight stress of soil at different depths has certain differences. Using a unified standard consolidation preload in the indoor consolidated quick shear test would inevitably lead to a mismatch between the consolidation and the self-weight pressure, thus affecting the shear strength of the samples due to different degrees of consolidation. Focusing on the actual stress conditions of saturated soft soil, indoor comparison tests under standard method and self-weight preload were carried out in this research. The results show that compared to the standard method, the cohesion of saturated soil increased by 48% and the internal friction angle decreased by 13% after consolidation with self-weight preload. When the pre-consolidation load is less than its self-weight stress, the sample is not fully consolidated. The cementation between particles and the friction, interlocking and biting action are weakened, leading to a decrease in cohesion and internal friction angle. When the preloading consolidation load is greater than the self-weight stress of the soil, the drainage of pore water causes the sample to undergo greater consolidation, and the soil particles are rearranged. The cohesive force generated by the cementation effect is reduced, and the internal friction angle generated by the interlocking effect increased correspondingly. The shear strength characteristics of saturated soft soil under self-weight preload show an increase in cohesion and a decrease in the internal friction angle.
-

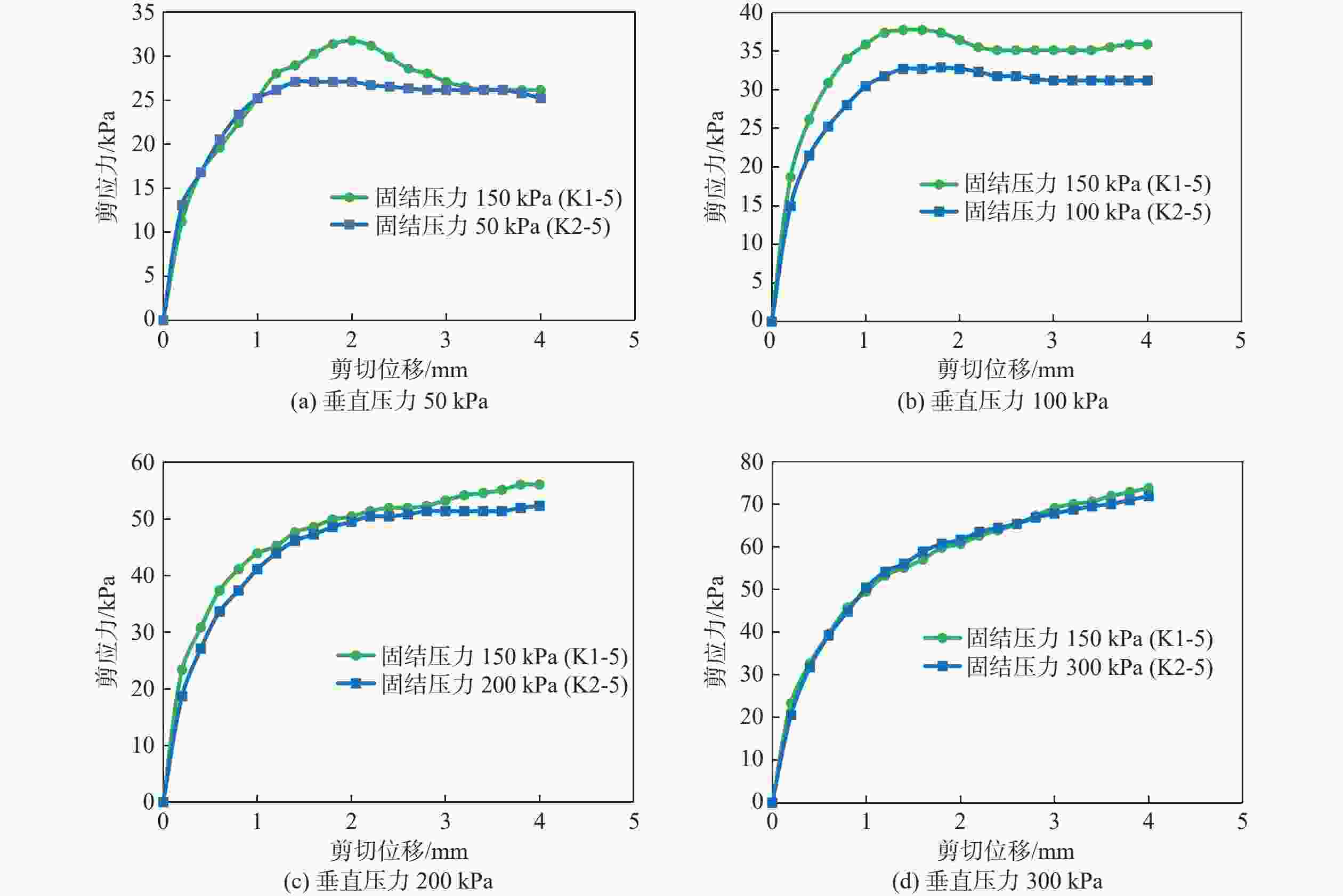

图 1 不同固结压力固结后土样在各级垂直压力作用下的剪应力–剪切位移曲线
Figure 1. Shear stress–displacement curves under different vertical pressures for soil samples consolidated at different pressures

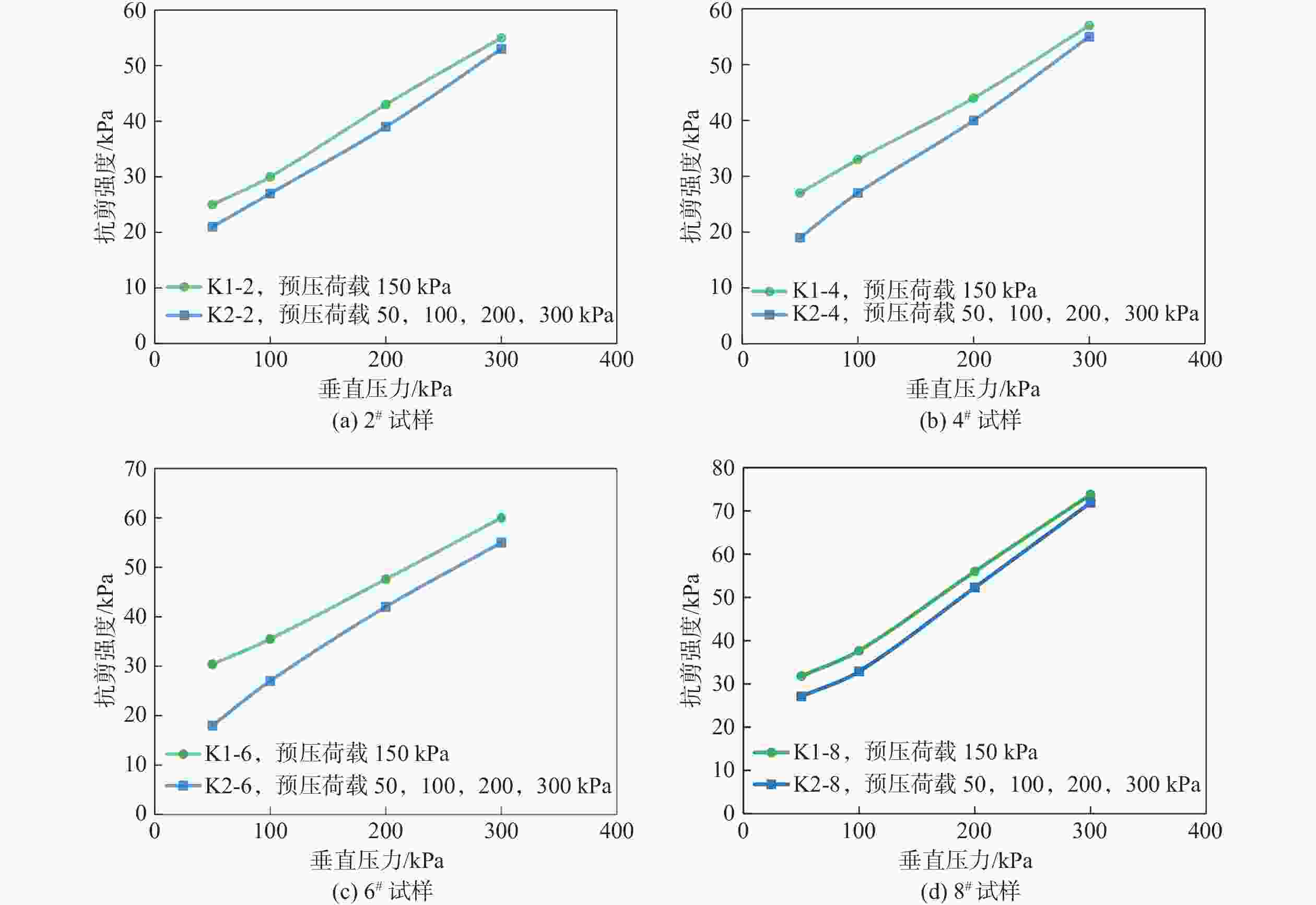

图 2 试样抗剪强度与剪切垂直压力关系曲线
Figure 2. Curve of the relationship between sample shear strength and vertical pressure

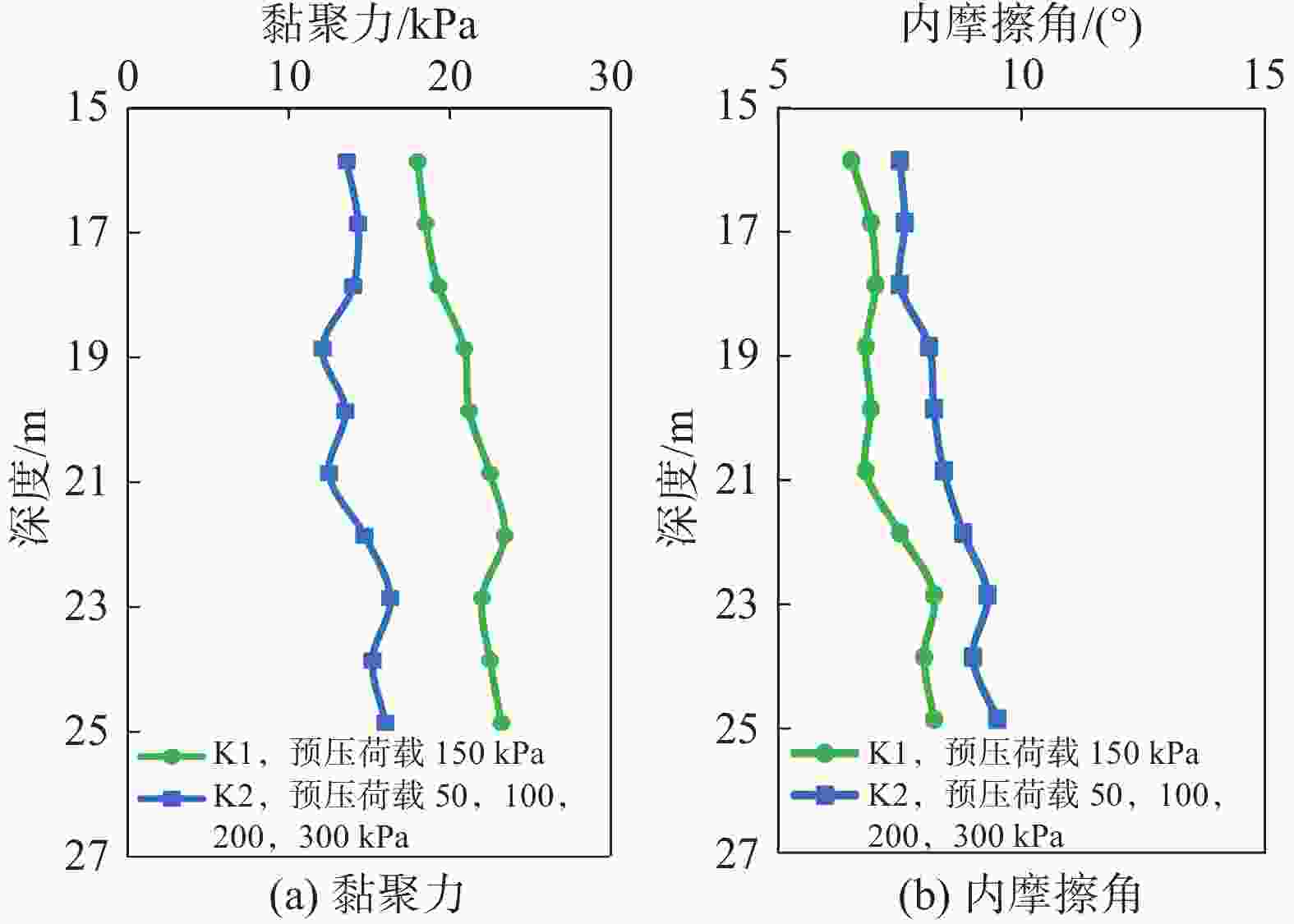

图 3 饱和软土抗剪强度指标对比曲线
Figure 3. Comparison curves of shear strength parameters for saturated soft soils
表 1 取样浅部土层分布及物理力学性质表
Table 1. Distribution of shallow soil layers and their physical and mechanical properties
编号 土层名称 分布深度/m 密度/(g·cm−3) 含水量/% 孔隙比 液限/% 饱和度/% 塑性指数 液性指数 固结状态 ①2 黏土 0～1.2 1.79 38.4 1.09 47.5 95.2 21.6 0.71 正常固结 ②2 淤泥 1.2～10.0 1.68 58.1 1.59 44.5 100 21.2 1.64 ③2 淤泥质黏土 10.0～15.0 1.74 44.9 1.23 39.4 100 21.2 1.64 ④1 淤泥质粉质黏土 15.0～28.0 1.78 37.2 1.04 34.3 100 16.4 1.18 ④2 淤泥质黏土 28.0～40.0 1.77 45 1.25 43.3 100 18.6 1.09
下载: 导出CSV
表 2 室内试验方案
Table 2. Indoor test plan
组号 样号 土样中心点
深度/m中点自重
压力/kPa预压固结
荷载/kPa剪切垂直
荷载/kPaK1，K2 1 15.85 约150 K1：150
K2：50，100，
200，30050，100，
200，3002 16.85 3 17.85 4 18.85 5 19.85 6 20.85 7 21.85 8 22.85 9 23.85 10 24.85
下载: 导出CSV
表 3 土样抗剪强度指标取值
Table 3. Values of shear strength parameters for soil samples
样号 抗剪强度指标 样号 抗剪强度指标 黏聚力
c/kPa内摩擦角
φ/（°）黏聚力
c/kPa内摩擦角
φ/（°）K1-1 18.0 6.5 K2-1 13.6 7.5 K1-2 18.5 6.9 K2-2 14.3 7.6 K1-3 19.3 7.0 K2-3 14.0 7.5 K1-4 20.9 6.8 K2-4 12.1 8.1 K1-5 21.2 6.9 K2-5 13.5 8.2 K1-6 22.5 6.8 K2-6 12.5 8.4 K1-7 23.4 7.5 K2-7 14.7 8.8 K1-8 22.0 8.2 K2-8 16.3 9.3 K1-9 22.5 8.0 K2-9 15.2 9.0 K1-10 23.2 8.2 K2-10 16.0 9.5 均值 21.1 7.3 均值 14.2 8.4
下载: 导出CSV
-
[1] 龚晓南. 软黏土地基土体抗剪强度若干问题[J]. 岩土工程学报, 2011, 33(10): 1596-1600. (GONG X N. Some problems concerning shear strength of soil in soft clay ground[J]. Chinese Journal of Geotechnical Engineering, 2011, 33(10): 1596-1600. (in Chinese)GONG X N. Some problems concerning shear strength of soil in soft clay ground[J]. Chinese Journal of Geotechnical Engineering, 2011, 33（10）: 1596-1600. (in Chinese) [2] 李广信, 张丙印, 于玉贞. 土力学[M]. 2版. 北京: 清华大学出版社, 2013. (LI G X, ZHANG B Y, YU Y Z. Soil mechanics[M]. 2nd ed. Beijing: Qinghua University Press, 2013. (in Chinese)LI G X, ZHANG B Y, YU Y Z. Soil mechanics[M]. 2nd ed. Beijing: Qinghua University Press, 2013. (in Chinese) [3] 潘永坚, 姚燕明, 李高山, 等. 滨海软土城市工程勘察关键技术[M]. 杭州: 浙江工商大学出版社, 2021. (PAN Y J, YAO Y M, LI G S, et al. Key technologies for engineering investigation in coastal soft soil city[M]. Hangzhou: Zhejiang Gongshang University Press, 2021. (in Chinese)PAN Y J, YAO Y M, LI G S, et al. Key technologies for engineering investigation in coastal soft soil city[M]. Hangzhou: Zhejiang Gongshang University Press, 2021. (in Chinese) [4] 中华人民共和国住房和城乡建设部. 土工试验方法标准: GB/T 50123—2019[S]. 北京: 中国计划出版社, 2019. (Ministry of Housing and Urban Rural Development of the People’s Republic of China. Standard for geotechnical testing method: GB/T 50123—2019[S]. Beijing: China Planning Press, 2019. (in Chinese)Ministry of Housing and Urban Rural Development of the People’s Republic of China. Standard for geotechnical testing method: GB/T 50123—2019[S]. Beijing: China Planning Press, 2019. (in Chinese) [5] 中华人民共和国交通部. 公路土工试验规程: JTG E40—2007[S]. 北京: 人民交通出版社, 2007. (Ministry of Communications of the People’s Republic of China. Test methods of soils for highway engineering: JTG E40—2007[S]. Beijing: People’s Communications Publishing House, 2007. (in Chinese)Ministry of Communications of the People’s Republic of China. Test methods of soils for highway engineering: JTG E40—2007[S]. Beijing: People’s Communications Publishing House, 2007. (in Chinese) [6] 宁波市住房和城乡建设委员会. 宁波市土工试验技术细则: 2018甬DX-02[S]. 杭州: 浙江工商大学出版社, 2018. (Ningbo Municipal Commission of Housing and Urban Rural Development. Technical rules for geotechnical test in Ningbo: 2018 Yong DX-02[S]. Hangzhou: Zhejiang Gongshang University Press, 2018. (in Chinese)Ningbo Municipal Commission of Housing and Urban Rural Development. Technical rules for geotechnical test in Ningbo: 2018 Yong DX-02[S]. Hangzhou: Zhejiang Gongshang University Press, 2018. (in Chinese) [7] 蔡渊蛟, 裴生虎, 丁荣富. 直接快剪试验条件对抗剪强度的影响[J]. 西部探矿工程, 2003, 15(12): 40-42. (CAI Y J, PEI S H, DING R F. Influence of direct fast shear test conditions on shear strength[J]. West-China Exploration Engineering, 2003, 15(12): 40-42. (in Chinese)CAI Y J, PEI S H, DING R F. Influence of direct fast shear test conditions on shear strength[J]. West-China Exploration Engineering, 2003, 15(12): 40-42. (in Chinese) [8] 潘永坚, 楼希华. 不同剪切速率下软土的直剪固结快剪抗剪强度[J]. 工程勘察, 2005(2): 37-39. (PAN Y J, LOU X H. Strength for the consolidation quick direct test of soft clay at different shear rate[J]. Geotechnical Investigation & Surveying, 2005(2): 37-39. (in Chinese)PAN Y J, LOU X H. Strength for the consolidation quick direct test of soft clay at different shear rate[J]. Geotechnical Investigation & Surveying, 2005（2）: 37-39. (in Chinese) [9] 孔令伟, 张先伟, 郭爱国, 等. 湛江强结构性黏土的三轴排水蠕变特征[J]. 岩石力学与工程学报, 2011, 30(2): 365-372. (KONG L W, ZHANG X W, GUO A G, et al. Creep behavior of Zhanjiang strong structured clay by drained triaxial test[J]. Chinese Journal of Rock Mechanics and Engineering, 2011, 30(2): 365-372. (in Chinese)KONG L W, ZHANG X W, GUO A G, et al. Creep behavior of Zhanjiang strong structured clay by drained triaxial test[J]. Chinese Journal of Rock Mechanics and Engineering, 2011, 30（2）: 365-372. (in Chinese) [10] 李佐良, 杨爱武, 许再良, 等. 不同固结度对软土强度及变形的影响[J]. 中国港湾建设, 2012(2): 47-50. (LI Z L, YANG A W, XU Z L, et al. Impact of different consolidation degrees on strength and deformation of soft soil[J]. China Harbour Engineering, 2012(2): 47-50. (in Chinese) doi: 10.3969/j.issn.1003-3688.2012.02.012LI Z L, YANG A W, XU Z L, et al. Impact of different consolidation degrees on strength and deformation of soft soil[J]. China Harbour Engineering, 2012（2）: 47-50. (in Chinese) doi: 10.3969/j.issn.1003-3688.2012.02.012 [11] 陈秀云, 陈春芳, 楼希华, 等. 土工试验中的几个问题探讨[J]. 科技通报, 2012, 28(9): 50-53. (CHEN X Y, CHEN C F, LOU X H, et al. Discussion of several issues in geotechnical test[J]. Bulletin of Science and Technology, 2012, 28(9): 50-53(in Chinese) doi: 10.3969/j.issn.1001-7119.2012.09.014CHEN X Y, CHEN C F, LOU X H, et al. Discussion of several issues in geotechnical test[J]. Bulletin of Science and Technology, 2012, 28（9）: 50-53(in Chinese) doi: 10.3969/j.issn.1001-7119.2012.09.014 [12] 杨 俊, 童 磊, 张国栋, 等. 不同垂直荷重对风化砂改良膨胀土抗剪强度影响研究[J]. 工程地质学报, 2013, 21(4): 591-597. (YANG J, TONG L, ZHANG G D, et al. Effects of different vertical loads on shear strength of weathered sand modified expansive soil[J]. Journal of Engineering Geology, 2013, 21(4): 591-597. (in Chinese) doi: 10.3969/j.issn.1004-9665.2013.04.016YANG J, TONG L, ZHANG G D, et al. Effects of different vertical loads on shear strength of weathered sand modified expansive soil[J]. Journal of Engineering Geology, 2013, 21（4）: 591-597. (in Chinese) doi: 10.3969/j.issn.1004-9665.2013.04.016 [13] 吕宾林, 王金文, 蔡德钩. 剪切速率对黏土不排水强度影响的试验研究[J]. 铁道建筑, 2013(1): 73-75. (LÜ B L, WANG J W, CAI D G. Experimental study of influence of shear rate on clay undrained strength[J]. Railway Engineering, 2013(1): 73-75. (in Chinese)LÜ B L, WANG J W, CAI D G. Experimental study of influence of shear rate on clay undrained strength[J]. Railway Engineering, 2013（1）: 73-75. (in Chinese) [14] 刘红军, 靳晨杰. 软土的固结状态对抗剪强度影响的研究[J]. 公路, 2015, 60(10): 51-55. (LIU H J, JIN C J. Research on the impact of the soft soil consolidation state on shear strength[J]. Highway, 2015, 60(10): 51-55. (in Chinese)LIU H J, JIN C J. Research on the impact of the soft soil consolidation state on shear strength[J]. Highway, 2015, 60（10）: 51-55. (in Chinese) [15] 戚玉红, 田 伟, 杨鸿钧, 等. 海口市东海岸软土抗剪强度随固结度变化规律研究[J]. 港工技术, 2016, 53(3): 98-100. (QI Y H, TIAN W, YANG H J, et al. Soft soil shear strength at east coast of Haikou city changes with degree of consolidation[J]. Port Engineering Technology, 2016, 53(3): 98-100. (in Chinese) doi: 10.16403/j.cnki.ggjs20160325QI Y H, TIAN W, YANG H J, et al. Soft soil shear strength at east coast of Haikou city changes with degree of consolidation[J]. Port Engineering Technology, 2016, 53（3）: 98-100. (in Chinese) doi: 10.16403/j.cnki.ggjs20160325 [16] 黄朝煊. 软土地基预压加固处理后抗剪强度指标分析[J]. 中国水利水电, 2019(1): 127-131,136. (HUANG C X. An analysis of shear strength index after soft soil foundation preloading treatment[J]. China Rural Water and Hydropower, 2019(1): 127-131,136. (in Chinese)HUANG C X. An analysis of shear strength index after soft soil foundation preloading treatment[J]. China Rural Water and Hydropower, 2019（1）: 127-131,136. (in Chinese) [17] 王振祥, 王 军, 钟 萍, 等. 固结度对长江漫滩相软土抗剪强度的影响[J]. 地质学刊, 2021, 45(4): 438-443. (WANG Z X, WANG J, ZHONG P, et al. Effect of consolidation degree on shear strength of soft soil of Yangtze River floodplain facies[J]. Journal of Geology, 2021, 45(4): 438-443. (in Chinese) doi: 10.3969/j.issn.1674-3636.2021.04.012WANG Z X, WANG J, ZHONG P, et al. Effect of consolidation degree on shear strength of soft soil of Yangtze River floodplain facies[J]. Journal of Geology, 2021, 45（4）: 438-443. (in Chinese) doi: 10.3969/j.issn.1674-3636.2021.04.012 [18] 崔志鹏, 严 刚, 王 军, 等. 预固结对长江漫滩相软土抗剪强度的影响研究[J]. 岩土工程技术, 2024, 38(1): 116-120. (CUI Z P, YAN G, WANG J, et al. Influence of preconsolidation on the shear strength of the soft soil in floodplain facies of Yangtze River[J]. Geotechnical Engineering Technique, 2024, 38(1): 116-120. (in Chinese) doi: 10.3969/j.issn.1007-2993.2024.01.021CUI Z P, YAN G, WANG J, et al. Influence of preconsolidation on the shear strength of the soft soil in floodplain facies of Yangtze River[J]. Geotechnical Engineering Technique, 2024, 38（1）: 116-120. (in Chinese) doi: 10.3969/j.issn.1007-2993.2024.01.021 -
