基于里氏硬度法建立岩石单轴抗压强度测强曲线研究

江政贵

doi:10.20265/j.cnki.issn.1007-2993.2025-0011

基于里氏硬度法建立岩石单轴抗压强度测强曲线研究

doi: 10.20265/j.cnki.issn.1007-2993.2025-0011

江政贵

江苏地质矿产设计研究院（中国煤炭地质总局检测中心），江苏徐州　221006

详细信息

作者简介:
江政贵，男，1978年生，大学本科，高级工程师，主要从事岩土分析测试。E-mail：2833076727@qq.com

中图分类号: TU455
计量
- 文章访问数: 6
- HTML全文浏览量: 2
- PDF下载量: 2
- 被引次数: 0
出版历程
- 收稿日期: 2025-01-08
- 修回日期: 2025-06-06
- 录用日期: 2025-06-26
- 网络出版日期: 2026-04-09
- 刊出日期: 2026-04-09

Uniaxial compressive strength testing curve of rock based on the Leeb hardness method

JIANG Zhenggui

Jiangsu Institute of Geological and Mineral Design (China Coal Geology Administration Testing Center), Xuzhou 221006, Jiangsu, China

摘要

摘要: 里氏硬度计因冲击装置尺寸小、冲击能量小，具有便于携带和操作、对测试面要求低、对岩石尤其是软弱岩石的表面冲击破坏影响小的优势，能更好地应用于复杂地质环境下的岩石强度评估。本文通过使用里氏硬度计测试地质岩体中不同类型岩石里氏硬度值，再分别测试经冲击后各岩石对应的单轴抗压强度值，分析对比测试岩石的里氏硬度和对应的单轴抗压强度之间的关系，分别建立基于线性、乘幂以及二次多项式的测强曲线。在分析过程中引入强度曲线适用性评价指标，比较各类型测强曲线的相关系数、强度相对误差和强度相对标准差。结果表明，对于试验选取的花岗岩、砂岩、泥岩和石灰岩，单轴抗压强度范围7.63～161 MPa内，使用乘幂拟合所得的测强曲线相关评价参数最优。乘幂回归测强曲线公式为Y=(2×10^–5)X^2.2931，相关系数达到0.9616，对应的强度曲线平均相对误差为14.74%；相对标准差为17.41%，符合统一测强曲线强度适用性评价的要求。
- 岩石 /
- 单轴抗压强度 /
- 里氏硬度 /
- 测强曲线 /
- 相关系数 /
- 平均相对误差 /
- 相对标准差
Abstract: The Leeb hardness tester, due to its small impact device size and low impact energy, has the advantages of being easy to carry and operate, low requirements for the testing surface, and inducing minimal surface damage to rock specimens especially weak rocks. Therefore, it can be better applied in rock strength assessment in complex environments. This study tests the Leeb hardness of different types of rocks in geological bodies using a Leeb hardness tester, and then tests the uniaxial compressive strength of the rocks after impact. It analyzes and compares the relationship between the Leeb hardness and the corresponding uniaxial compressive strength of the tested rocks, and establishes the strength measurement curves based on linear, power, and quadratic polynomial functions. And the applicability evaluation indicators of the strength curve were introduced in the analysis. The correlation coefficients, relative errors of strength, and relative standard deviations different types of strength curves were compared. The results show that for the selected granites, sandstones, mudstones, and limestones, the uniaxial compressive range of 7.63 to 161 MPa, the fitting parameters obtained using the power function fitting are optimal. The power function regression formula the strength measurement curve is Y=(2×10^–5)X^2.2931, with a correlation coefficient of 0.9616, the average relative error of the corresponding strength curve is 14.74%. The relative standard deviation is 17.41%, which meets the applicability of the unified strength measurement curve.
- rock /
- uniaxial compressive strength /
- Leeb hardness /
- strength measurement curve /
- correlation coefficient /
- average relative error /
- relative standard

HTML全文

图 1 花岗岩样品照片

Figure 1. Photograph of granite sample

下载: 全尺寸图片幻灯片

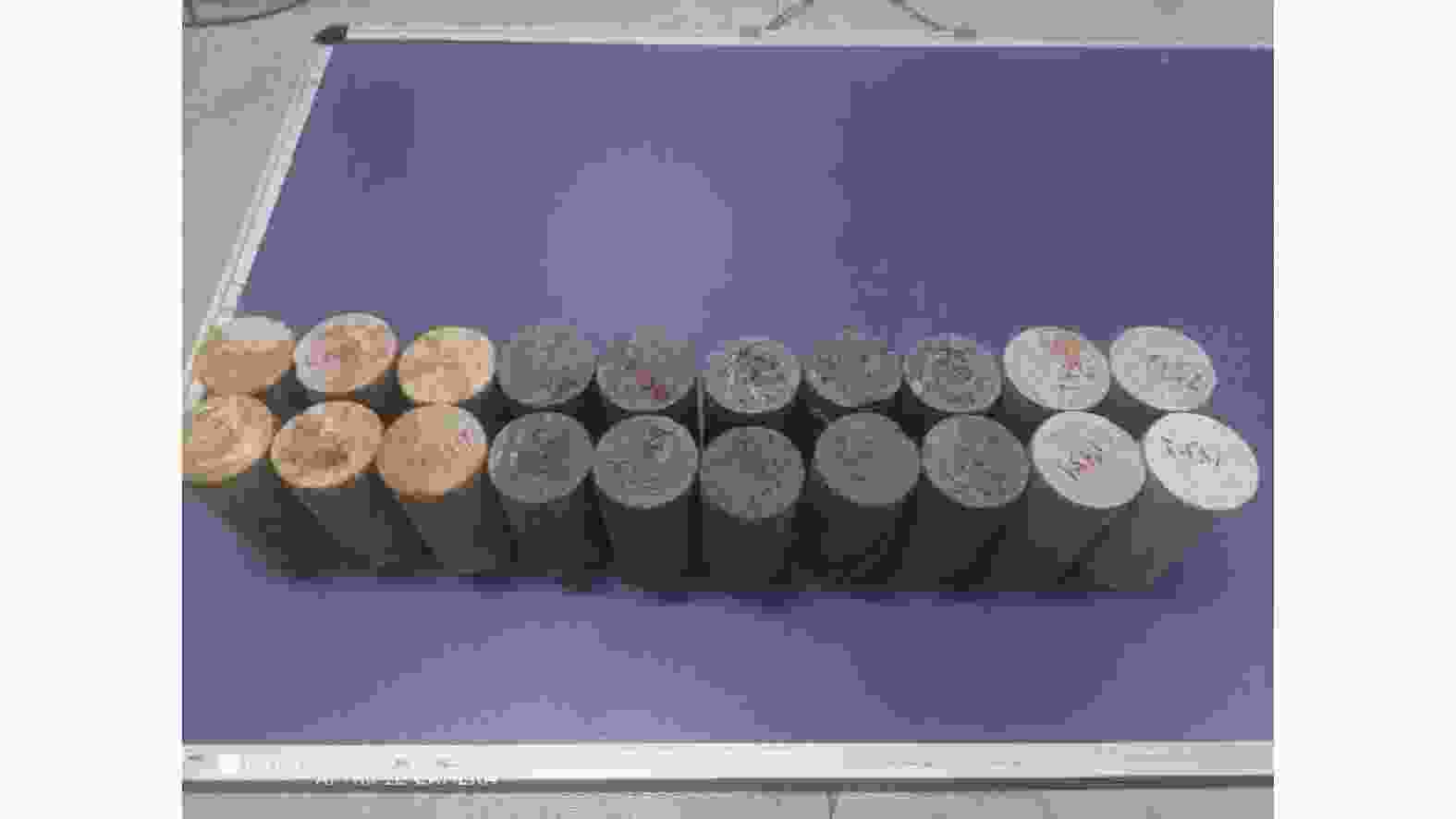

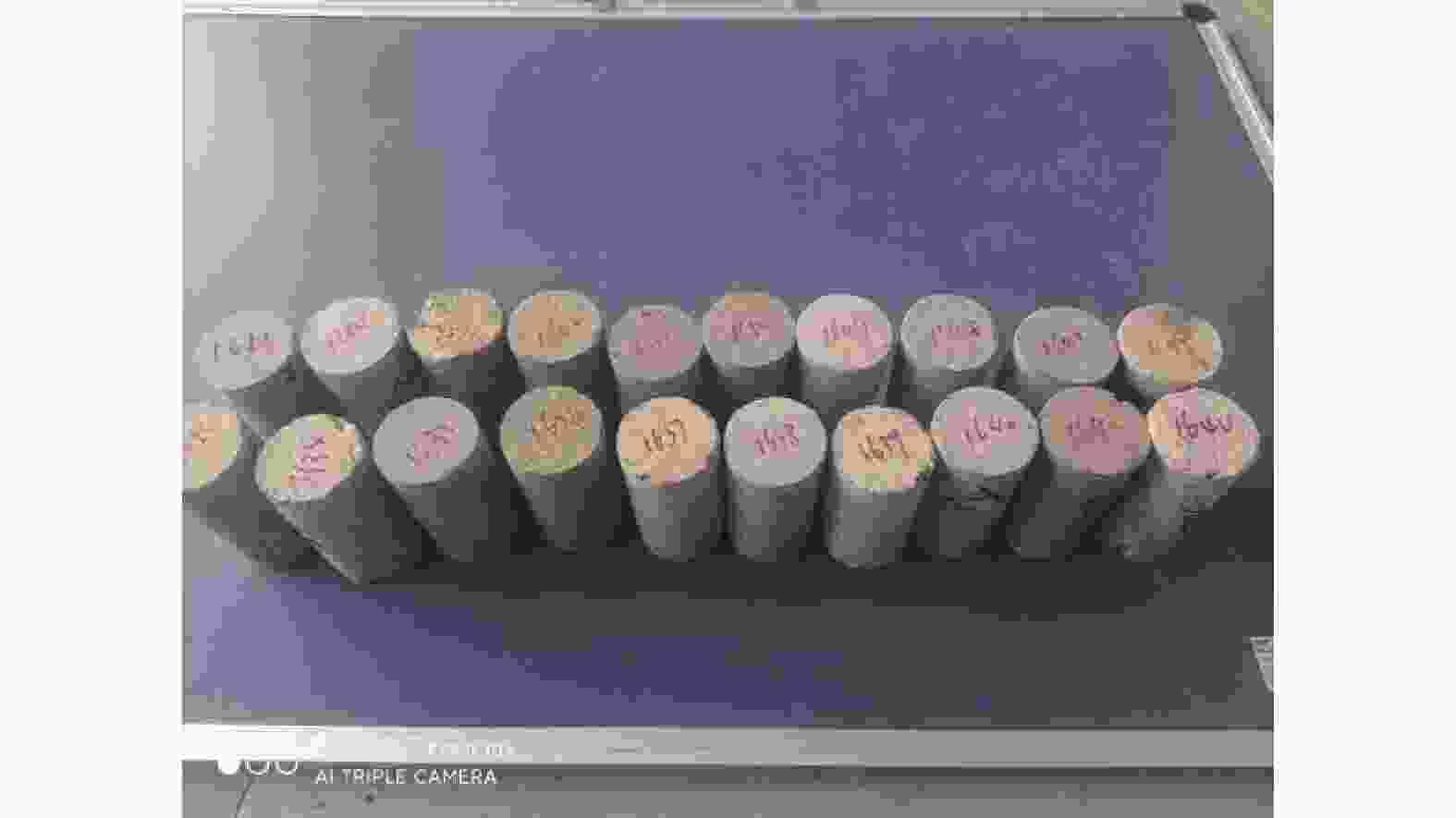

图 2 石灰岩样品照片

Figure 2. Photograph of limestone sample

下载: 全尺寸图片幻灯片

图 3 砂岩样品照片

Figure 3. Photograph of sandstone sample

下载: 全尺寸图片幻灯片

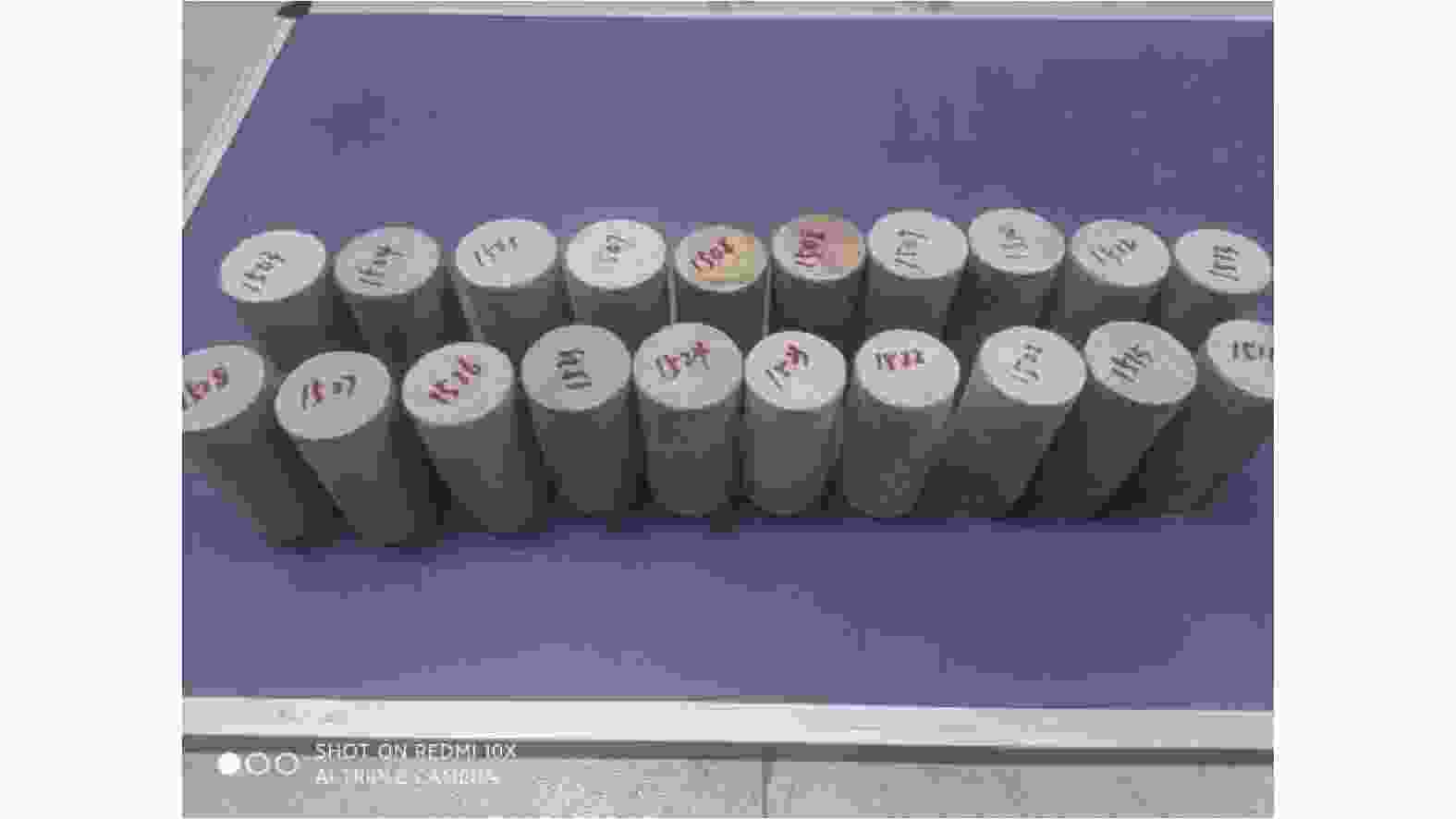

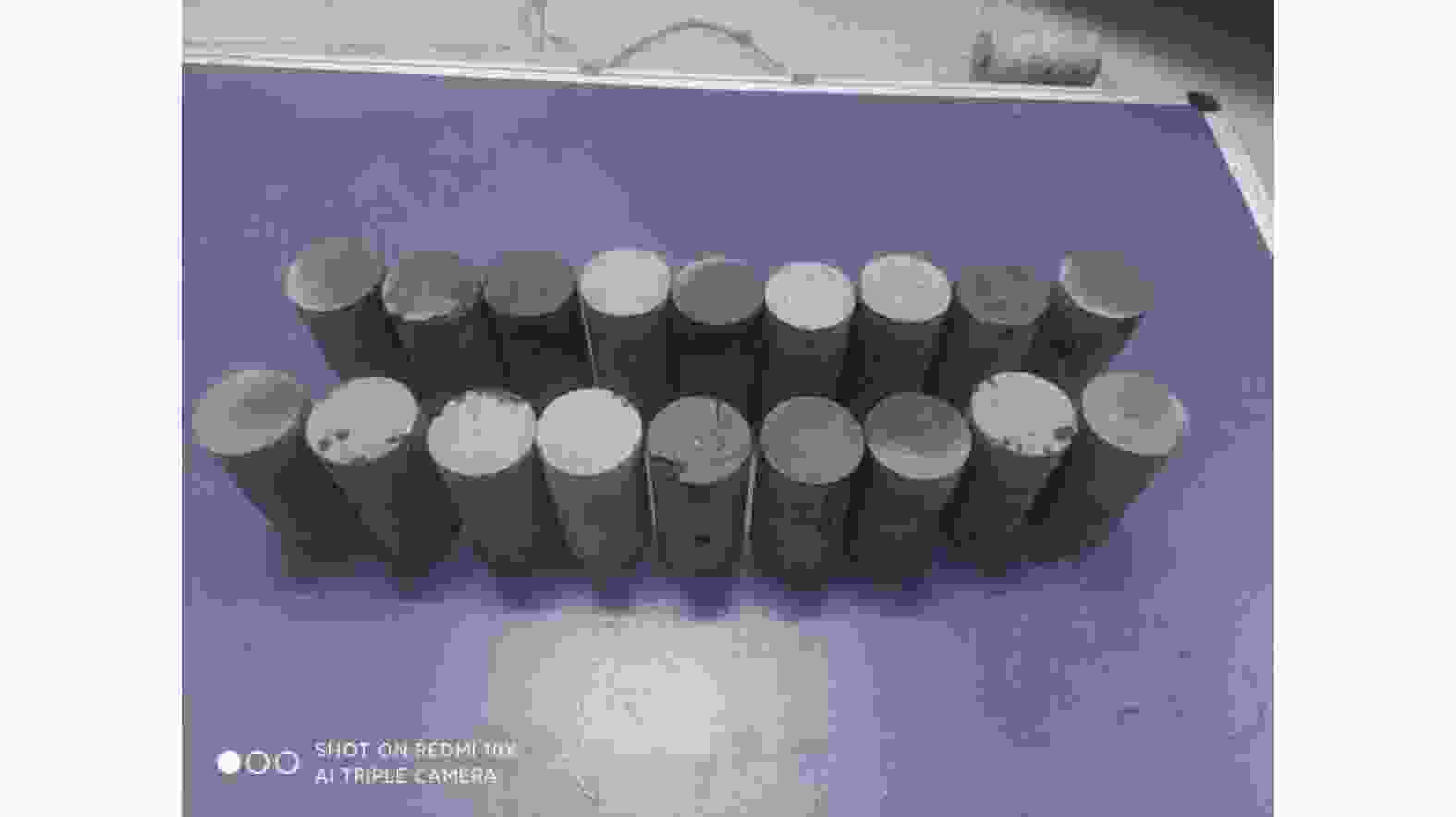

图 4 泥岩样品照片

Figure 4. Photograph of mudstone sample

下载: 全尺寸图片幻灯片

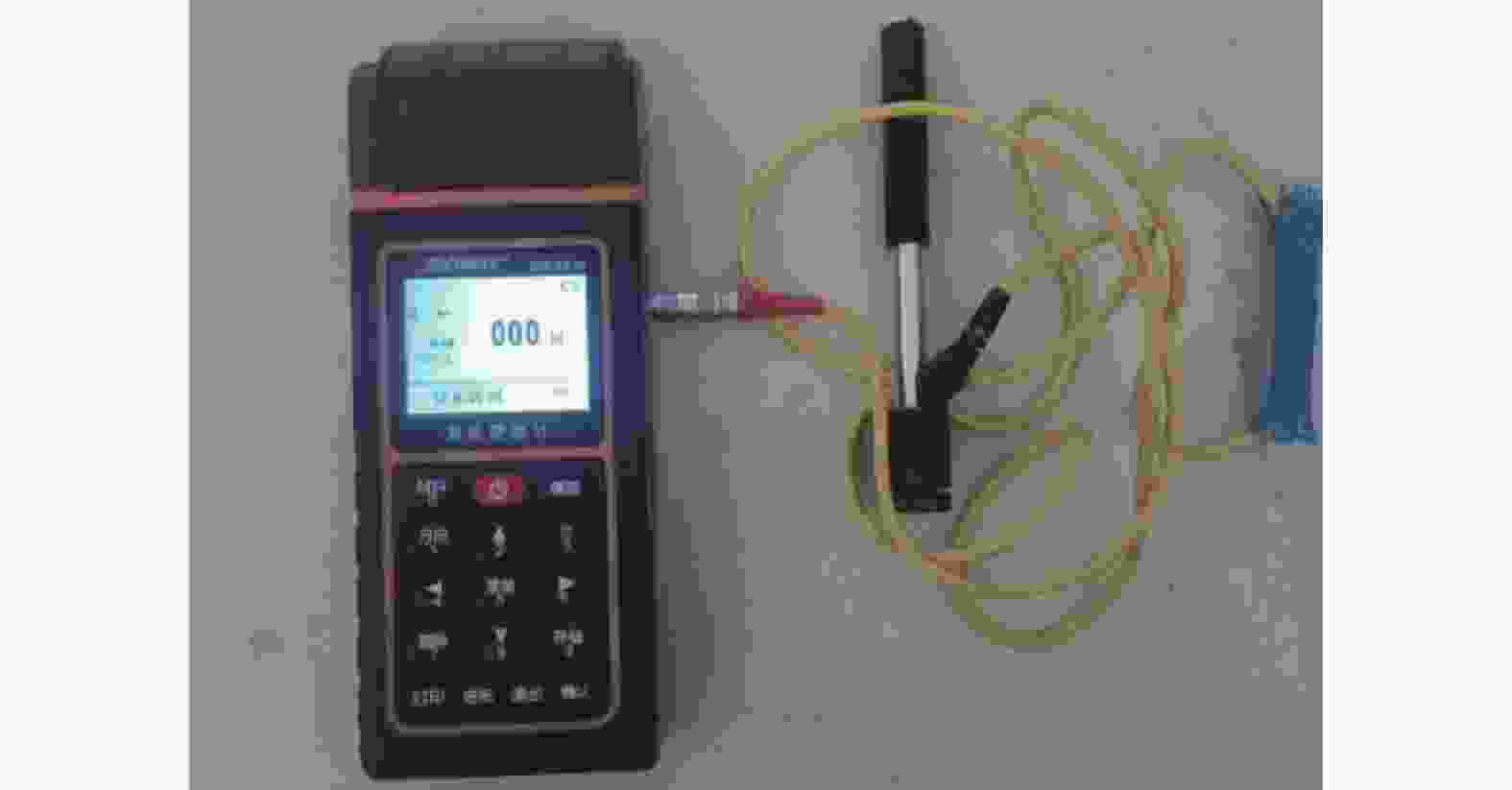

图 5 里氏硬度计照片

Figure 5. Photograph of Leeb hardness tester

下载: 全尺寸图片幻灯片

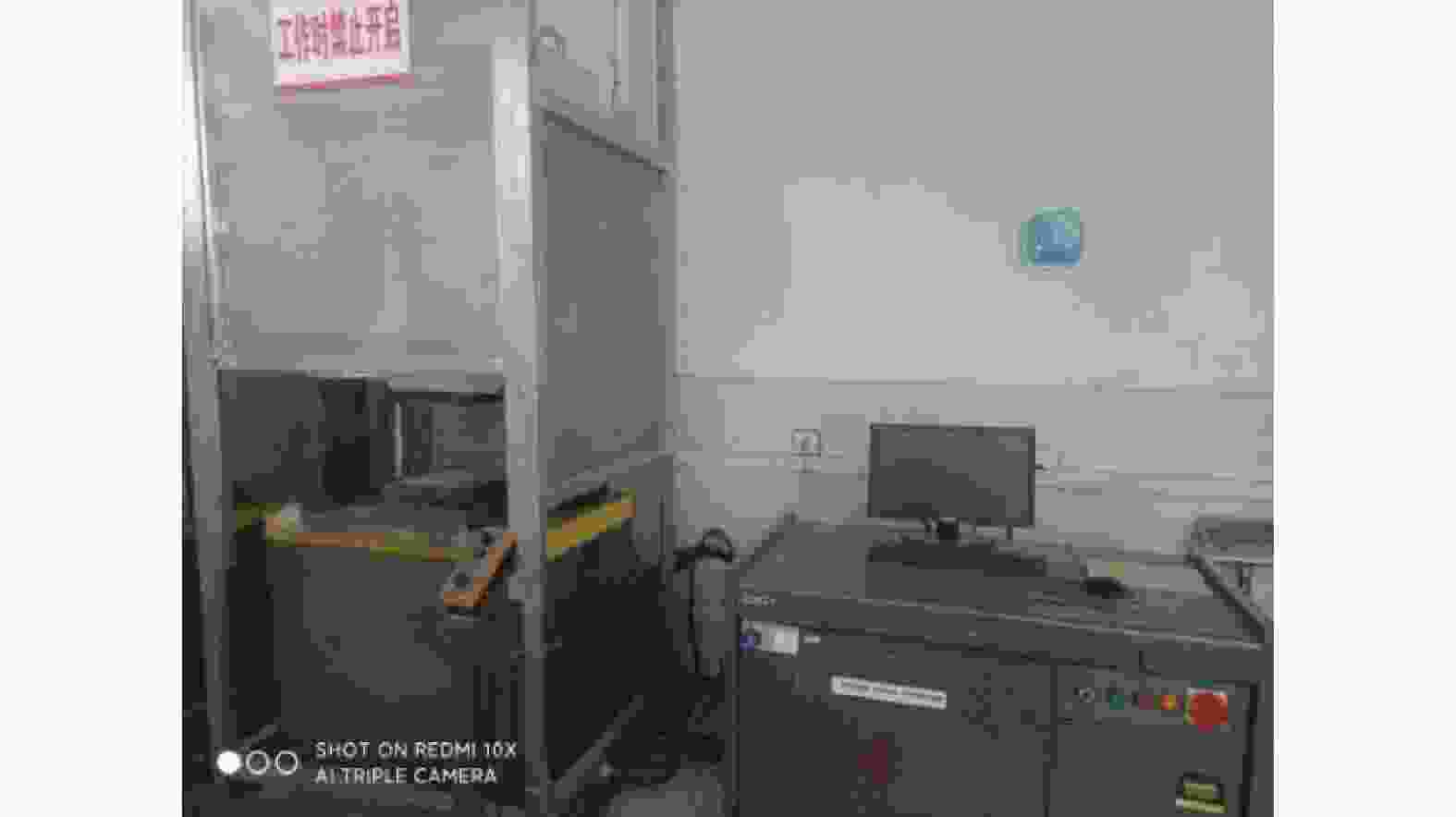

图 6 万能试验机照片

Figure 6. Photograph of universal testing machine

下载: 全尺寸图片幻灯片

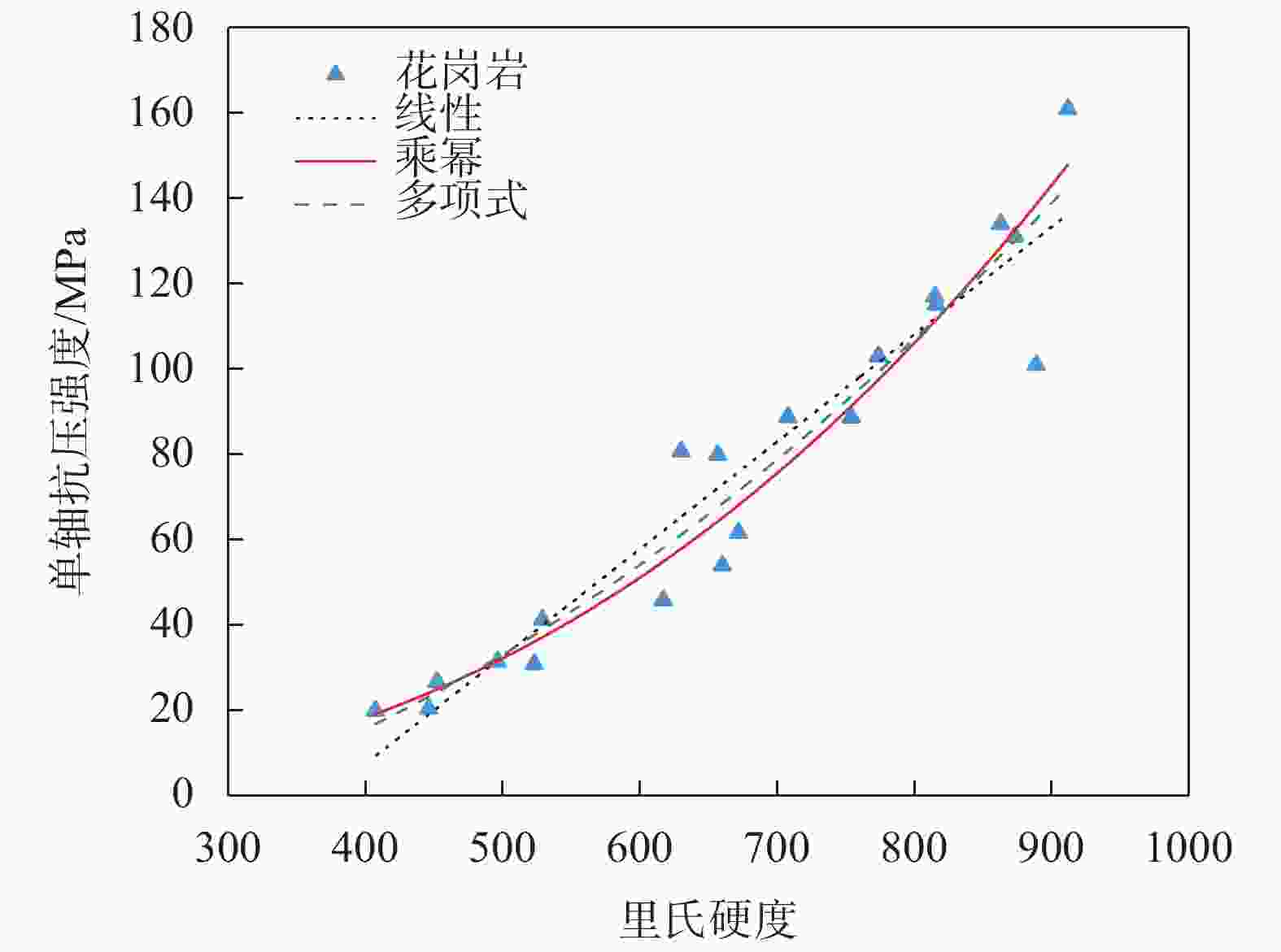

图 7 花岗岩单轴抗压强度和里氏硬度拟合

Figure 7. Fitting relationship between uniaxial compressive strength and Leeb hardness for granite

下载: 全尺寸图片幻灯片

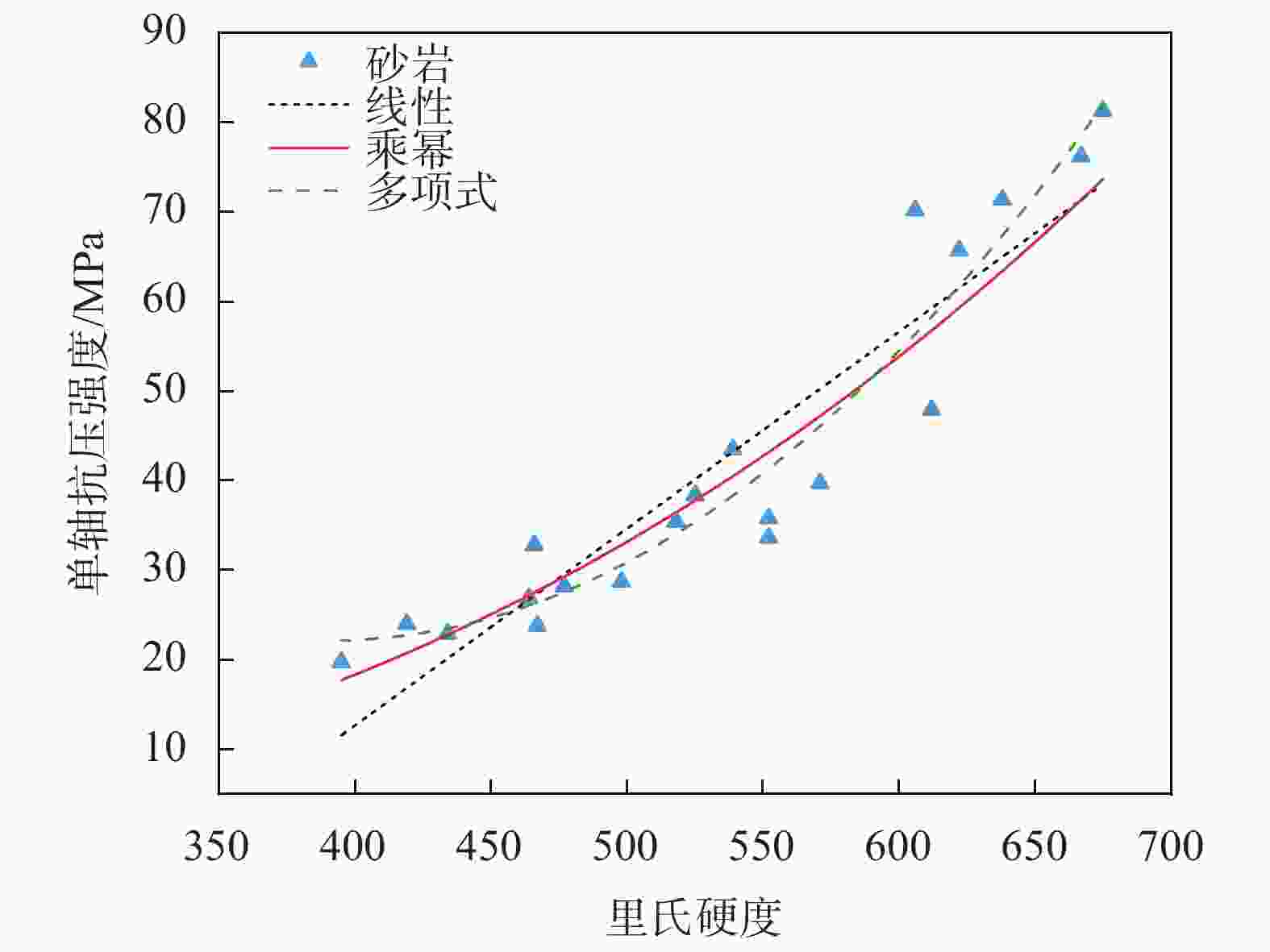

图 8 砂岩单轴抗压强度和里氏硬度拟合

Figure 8. Fitting relationship between uniaxial compressive strength and Leeb hardness for sandstone

下载: 全尺寸图片幻灯片

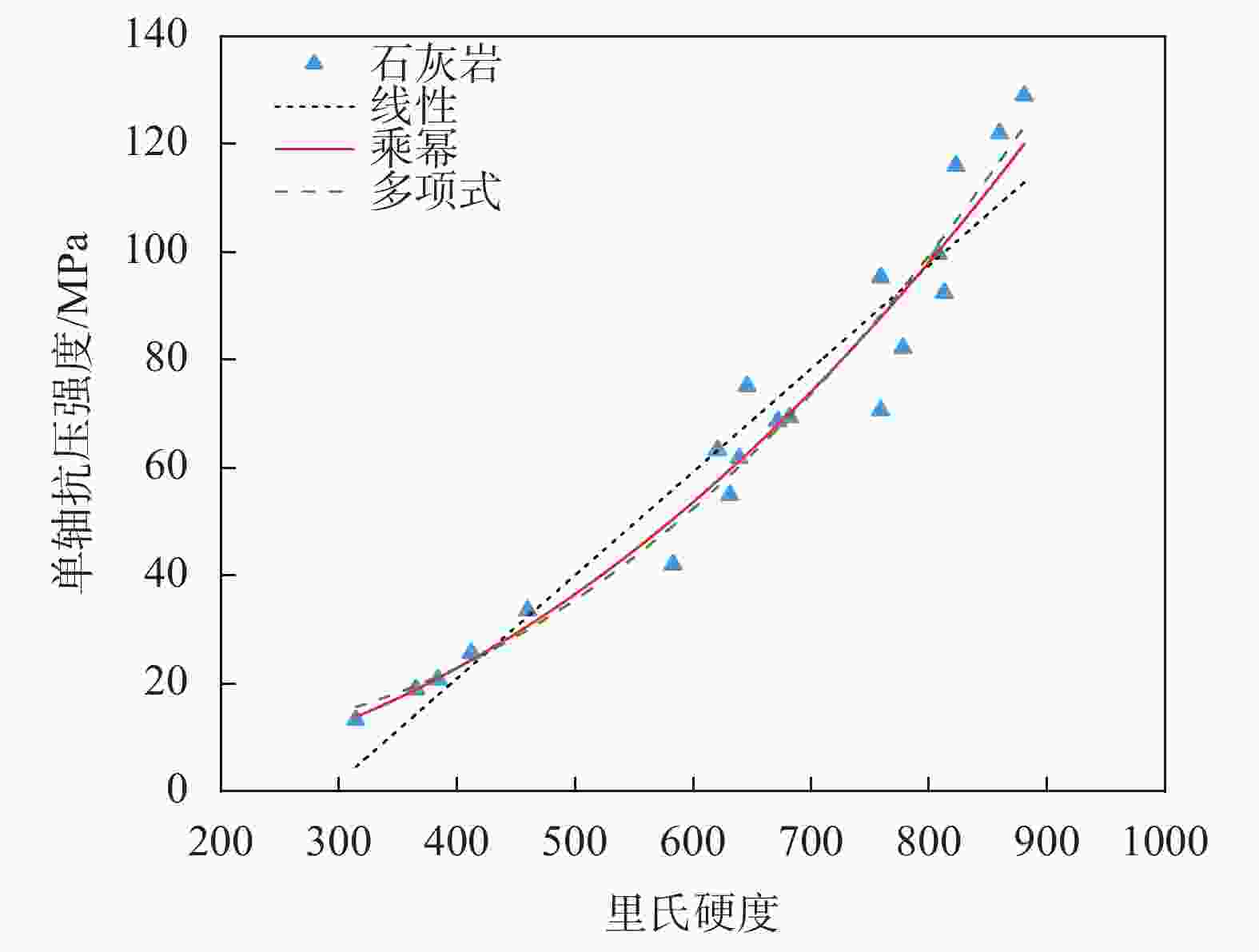

图 9 石灰岩单轴抗压强度和里氏硬度拟合

Figure 9. Fitting relationship between uniaxial compressive strength and Leeb hardness for limestone

下载: 全尺寸图片幻灯片

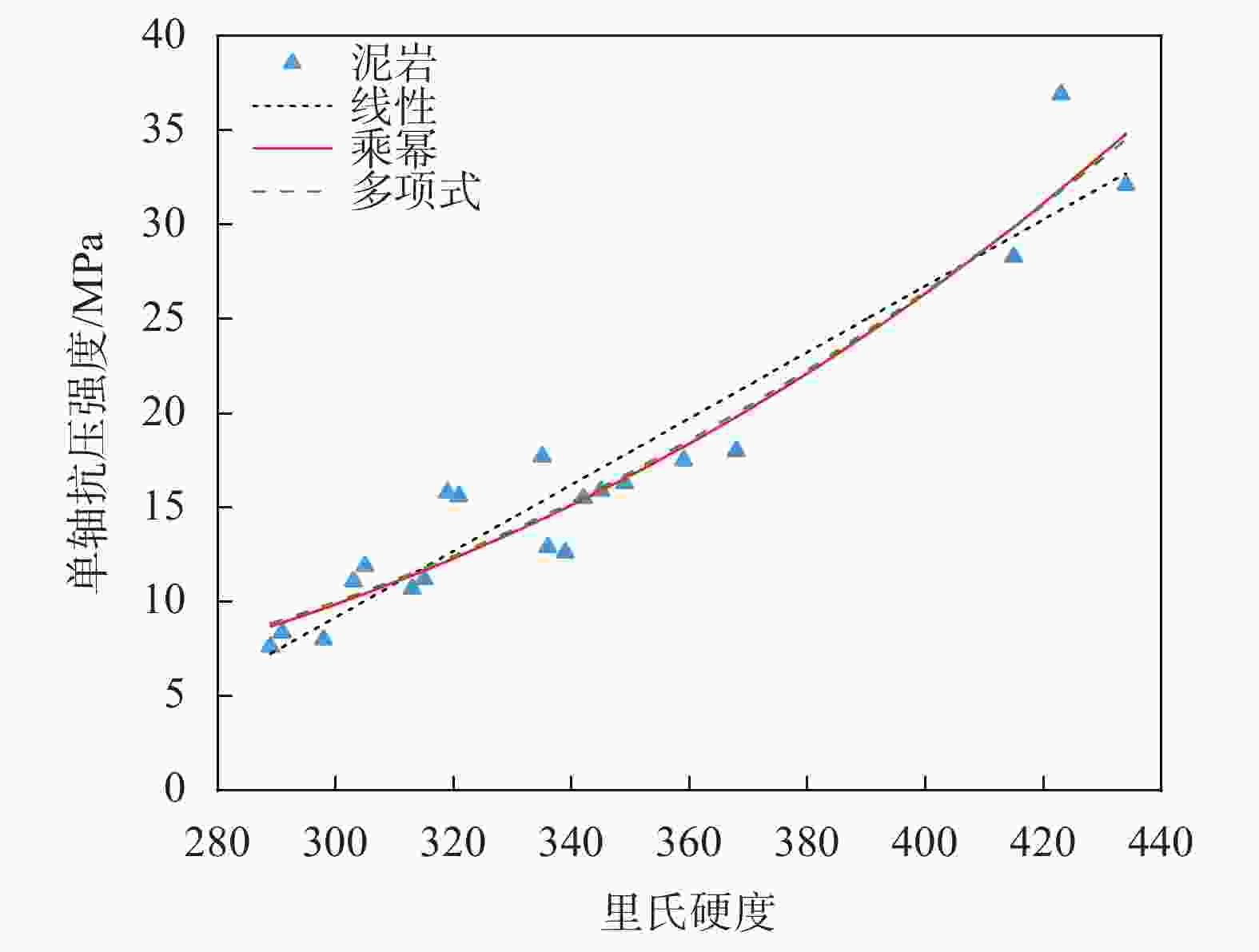

图 10 泥岩单轴抗压强度和里氏硬度拟合

Figure 10. Fitting relationship between uniaxial compressive strength and Leeb hardness for mudstone

下载: 全尺寸图片幻灯片

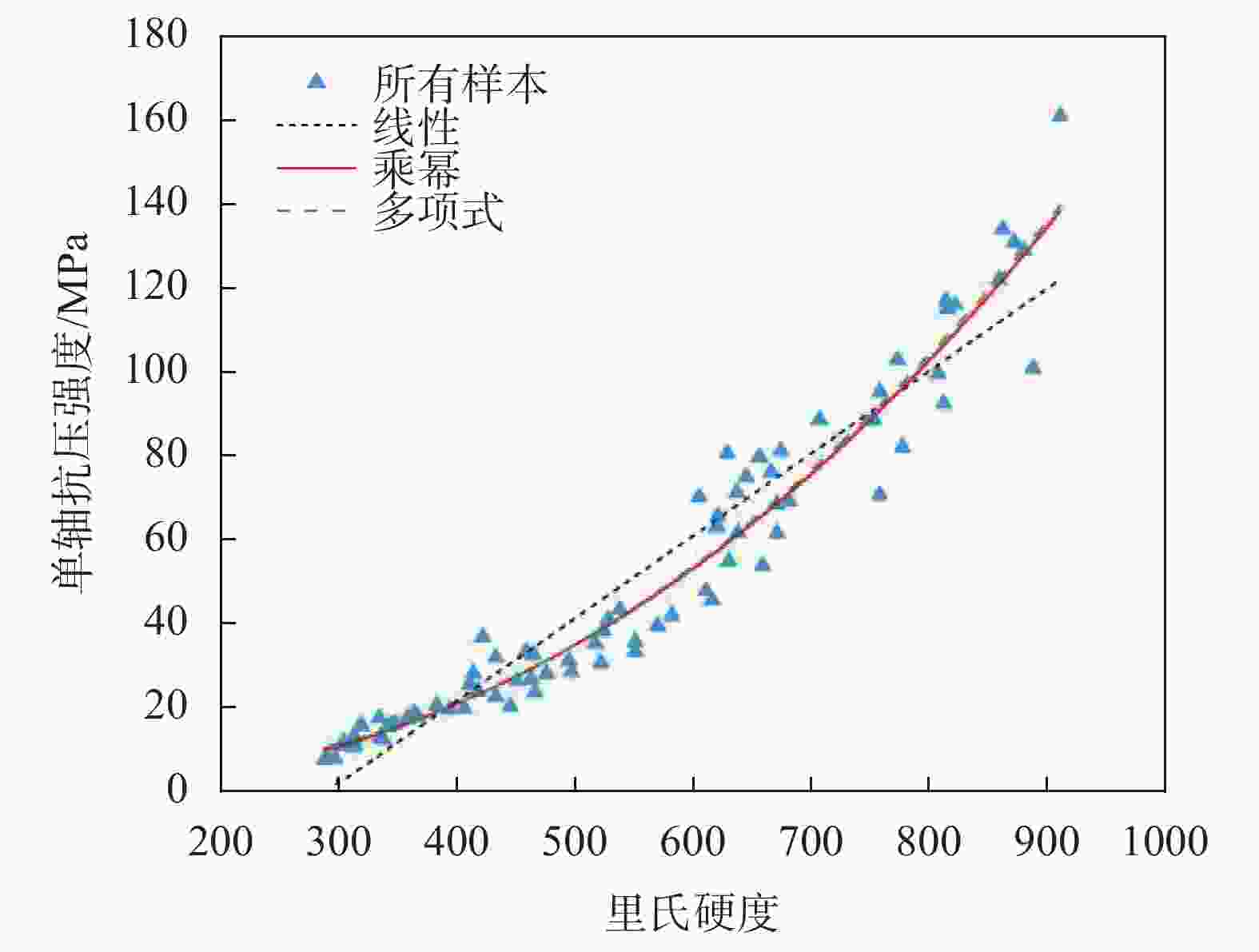

图 11 岩石单轴抗压强度和里氏硬度拟合

Figure 11. Fitting relationship between uniaxial compressive strength and Leeb hardness for rock

下载: 全尺寸图片幻灯片

表 1 测试选取的岩石类型及状态

Table 1. Rock types and states selected for testing

序号	岩石名称	含水状态	结构	外观描述
1	花岗岩	自然含水	细晶、粗晶结构	无明显节理裂隙
2	石灰岩	自然含水	晶粒结构	无明显节理裂隙
3	砂岩	自然含水	粉粒、细粒、中粒、粗粒结构	无明显节理裂隙
4	泥岩	自然含水	泥粒、粉粒结构	无明显节理裂隙

下载: 导出CSV

表 2 不同冲击方向岩石里氏硬度值

Table 2. Leeb hardness values of rocks under different impact directions

岩石类型	冲击方向	里氏硬度值
坚硬岩Ⅰ	垂直表面竖直向下	685
坚硬岩Ⅰ	垂直表面水平	698
坚硬岩Ⅱ	垂直表面竖直向下	692
坚硬岩Ⅱ	垂直表面水平	690
坚硬岩 Ⅲ	垂直表面竖直向下	717
坚硬岩 Ⅲ	垂直表面水平	709
较硬岩Ⅰ	垂直表面竖直向下	589
较硬岩Ⅰ	垂直表面水平	585
较硬岩Ⅱ	垂直表面竖直向下	552
较硬岩Ⅱ	垂直表面水平	543
较硬岩 Ⅲ	垂直表面竖直向下	475
较硬岩 Ⅲ	垂直表面水平	488
软岩Ⅰ	垂直表面竖直向下	385
软岩Ⅰ	垂直表面水平	398
软岩 Ⅱ	垂直表面竖直向下	390
软岩 Ⅱ	垂直表面水平	386
软岩 Ⅲ	垂直表面竖直向下	378
软岩 Ⅲ	垂直表面水平	383

下载: 导出CSV

表 3 不同岩石里氏硬度值与对应单轴抗压强度值

Table 3. Leeb hardness values and corresponding uniaxial compressive strength values of different rocks

岩石名称	样品数 /组	单轴抗压强度/MPa	里氏硬度值
花岗岩	20	19.9～161	407～912
砂岩	20	19.7～81.3	395～675
石灰岩	20	13.2～129	314～881
泥岩	20	7.63～36.9	289～423

下载: 导出CSV

表 4 不同岩石里氏硬度和单轴抗压强度回归公式及其对应的相关系数、强度相对误差、强度相对标准差

Table 4. Regression equations between Leeb hardness and uniaxial compressive strength of different rocks with correlation coefficients, relative strength errors, and relative standard deviations

岩石名称	回归公式	相关系数	强度相对误差/%	强度相对标准差/%
花岗岩	Y=0.2516X−93.204	0.9102	15.50	21.54
	Y=(5×10⁻⁶)X^2.5389	0.9463	15.37	21.05
	Y=0.0002X²+0.0121X−18.047	0.9190	17.58	24.15
砂岩	Y=0.2198X−75.25	0.8614	15.99	20.26
	Y=(2×10⁻⁶)X^2.6575	0.9005	13.81	16.00
	Y=0.0007X²−0.5839X+136.53	0.9225	31.98	34.18
石灰岩	Y=0.1913X−55.581	0.9251	14.54	20.97
	Y=(8×10⁻⁵)X^2.1002	0.9769	8.10	10.86
	Y=0.0002X²−0.0712X+16.475	0.9534	12.76	15.09
泥岩	Y=0.1756X−43.498	0.9073	11.93	13.90
	Y=(3×10⁻⁸)X^3.4125	0.9041	13.65	17.33
	Y=0.0005X²−0.2127X+25.31	0.9232	28.92	31.27

下载: 导出CSV

表 5 各回归类型对应的岩石里氏硬度和单轴抗压强度回归公式及其对应的相关系数、强度相对误差、强度相对标准差

Table 5. Regression equations between Leeb hardness and uniaxial compressive strength for different rock types with corresponding correlation coefficients, relative strength errors, and relative standard deviations

曲线类型	回归公式	相关系数	强度相对误差/%	强度相对标准差/%
线性	Y=0.1965X−57.085	0.9174	26.45	35.30
乘幂	Y=(2×10^–5)X^2.2931	0.9616	14.74	17.41
二次多项式	Y=0.0002X²−0.0601X+9.3751	0.9498	16.56	19.49

下载: 导出CSV
