Response characteristics of ground penetrating radar (GPR) for pipeline detection
-
摘要: 探地雷达是广泛应用于市政管线探测的浅部探测技术。为了提高对雷达探测地下管线雷达图像特征的认识，细化不同工况下雷达探测识别效果，提高雷达资料的解释精度，从雷达探测原理、时域有限差分模拟和管道探测现场工况出发，基于正演模拟软件gprMax建立不同材质、不同形态、不同管径、不同埋深、不同充水程度和不均匀介质等不同要素的模型，总结正演模拟剖面的特征，分析形成相应响应特征的因素，梳理不同参数对探测效果的影响。模拟与实测效果对比表明，可通过正演分析为工程实测提供参考。Abstract: Ground Penetrating Radar (GPR) is a shallow detection technology widely used in municipal pipeline detection. To enhance the understanding of GPR image characteristics for underground pipeline detection, refine the identification effects of GPR under different working conditions, and improve the interpretation accuracy of radar data, this research starts from the principles of GPR detection, finite-difference time-domain (FDTD) simulation, and on-site pipeline detection scenarios. Using the forward modeling software gprMax, models with different factors were established, including various materials, shapes, pipe diameters, burial depths, water-filling degrees, and heterogeneous media. The characteristics of forward modeling profiles were summarized, the forming factors of corresponding response characteristics were analyzed, and the impacts of different parameters on detection effects were sorted out. Through the comparison between simulation and field measurement results, it is proven that forward modeling analysis can provide references for engineering field measurements.
-
Key words:
- GPR /
- pipeline survey /
- response characteristics
-

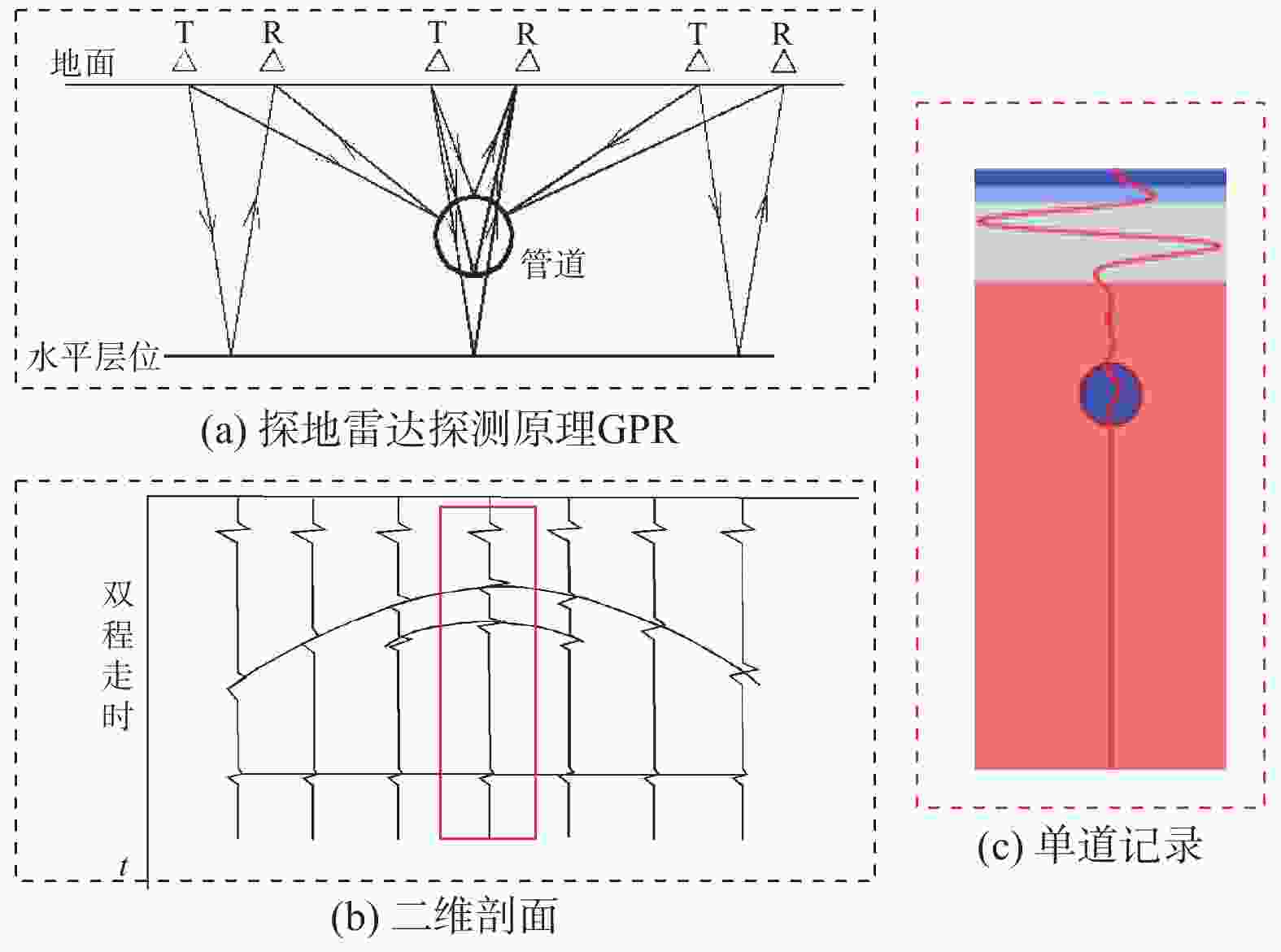

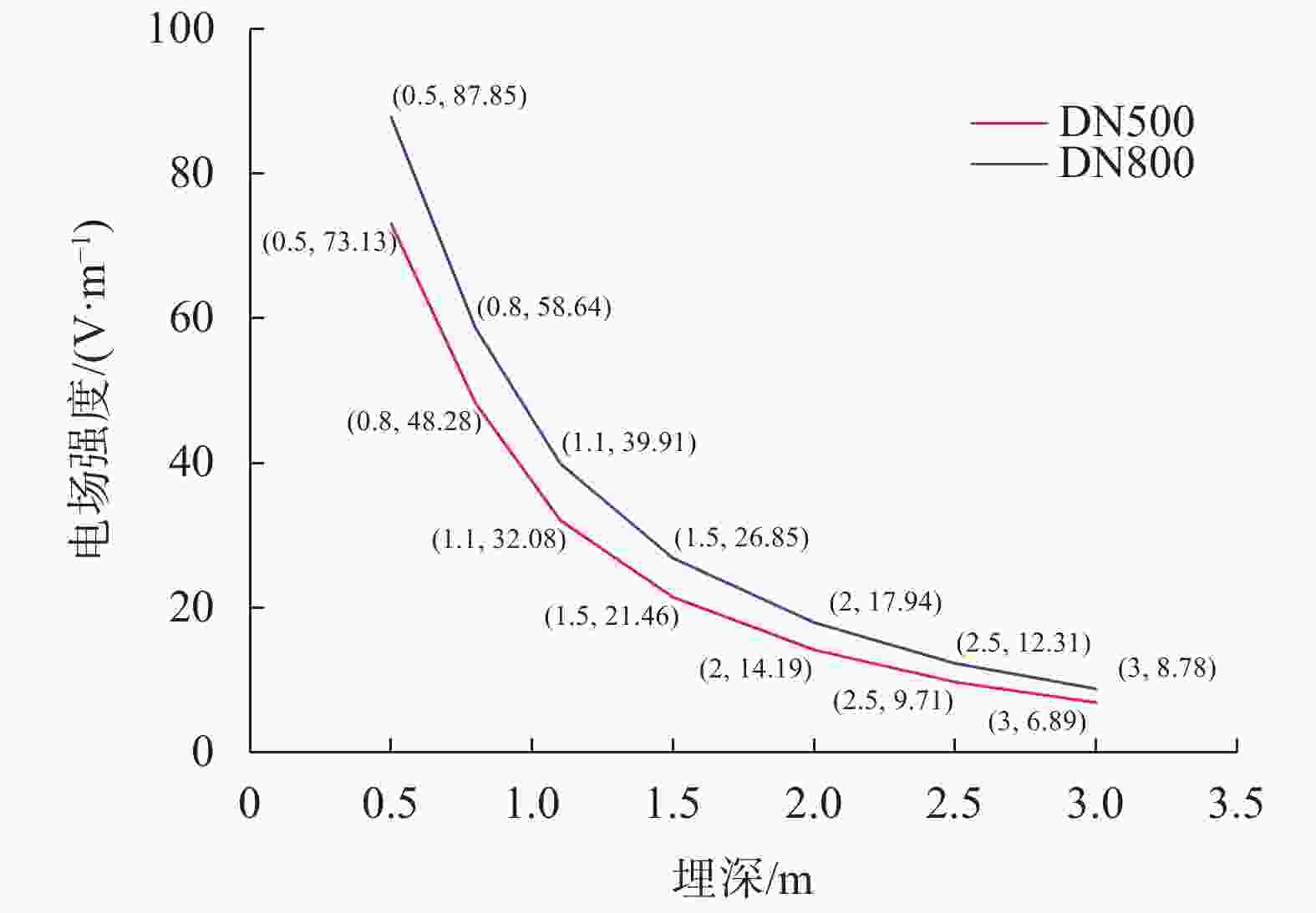

图 2 数值模拟270 MHz天线对DN500/DN800混凝土管反射波Ez随深度变化曲线
注：括号内数据为深度和接收到反射波峰值能量。
Figure 2. Curves of reflected wave Ez varying with depth for 270 MHz antenna on DN500/DN800 concrete pipes by numerical simulation

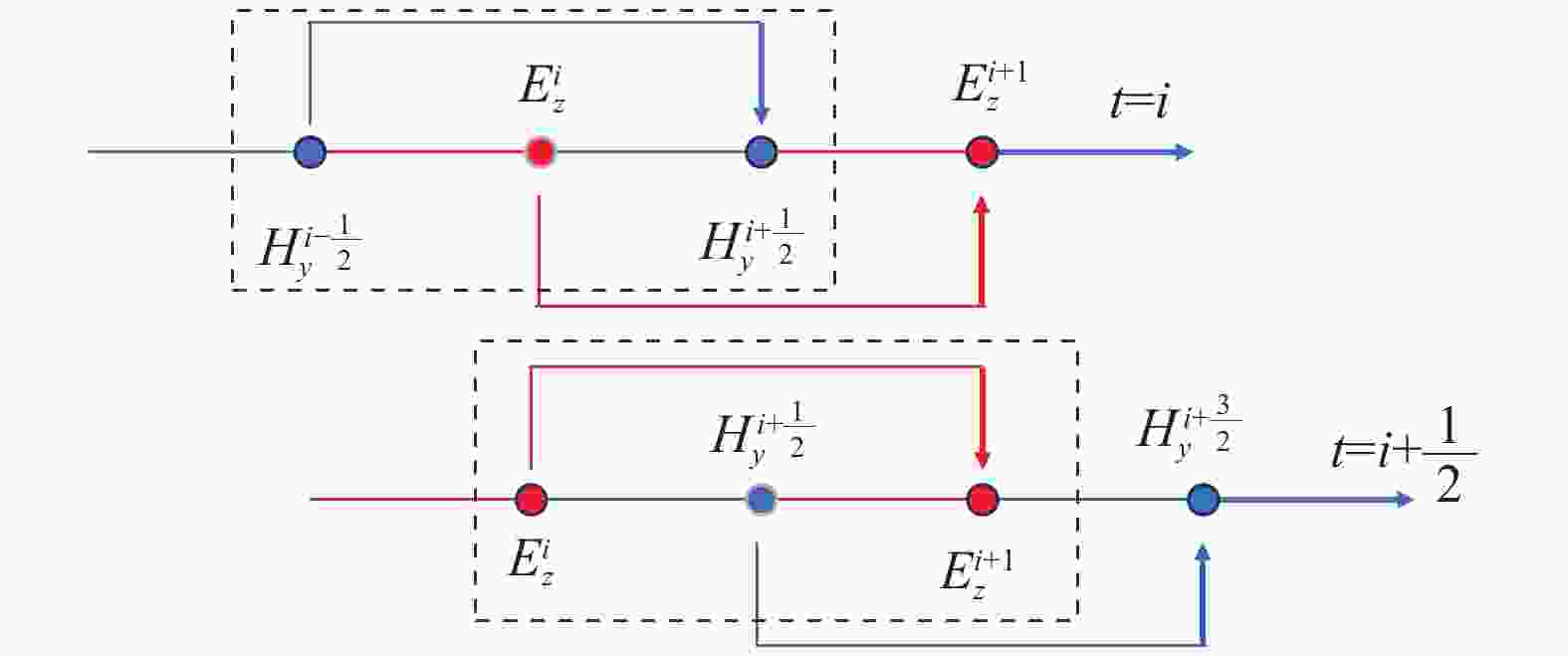

图 3 一维FDTD电磁场随时间递推过程
Figure 3. One-dimensional FDTD electromagnetic field recursive process over times

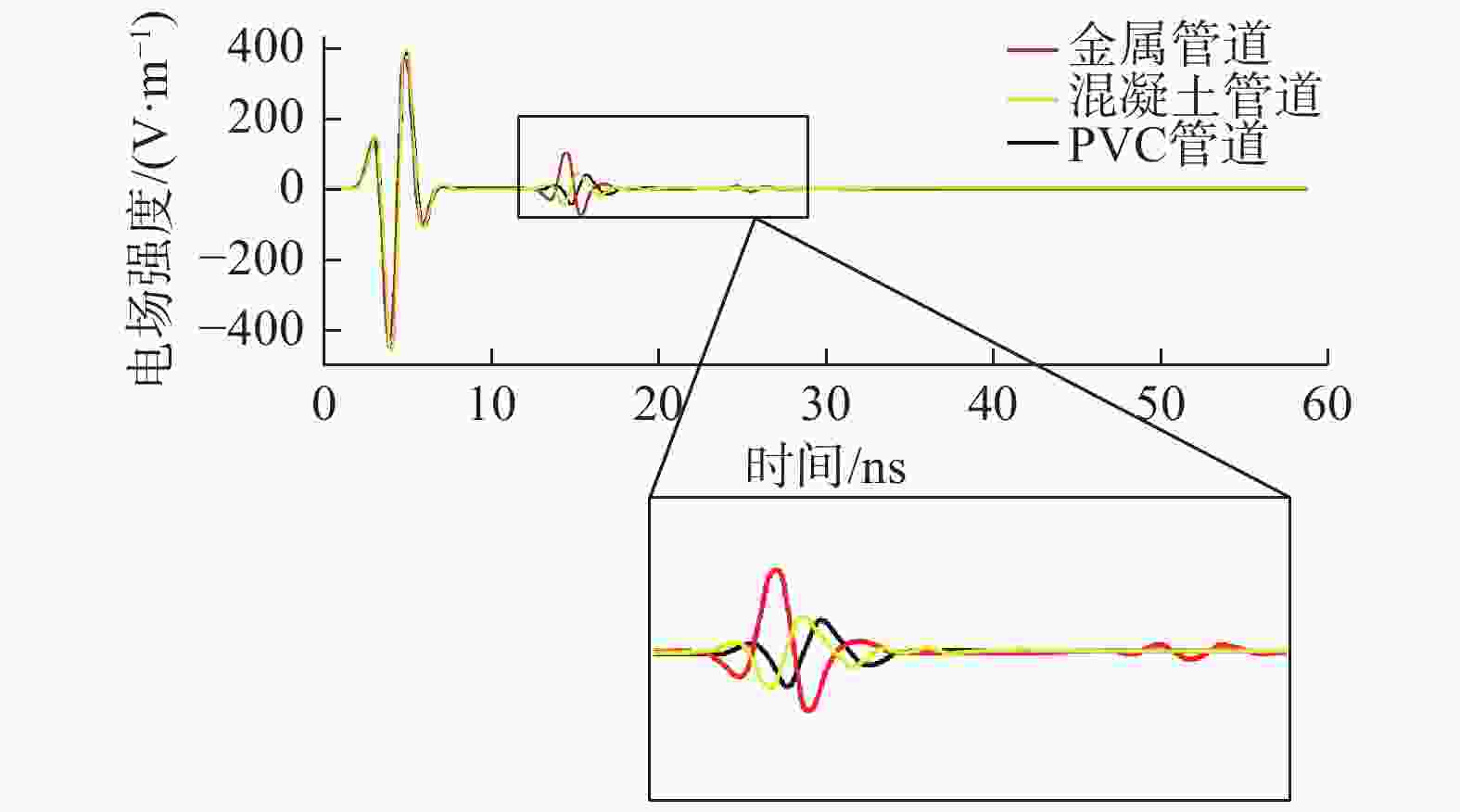

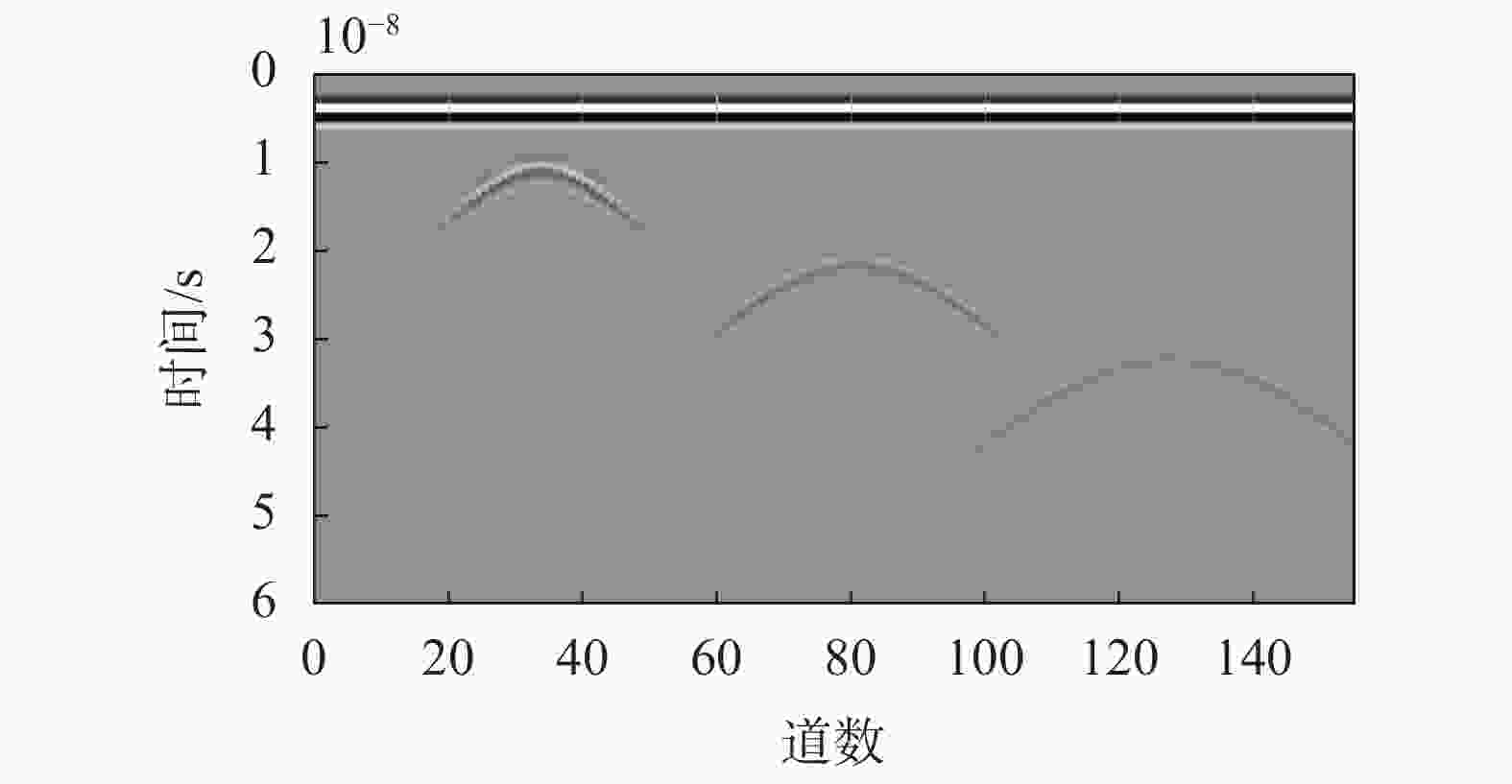

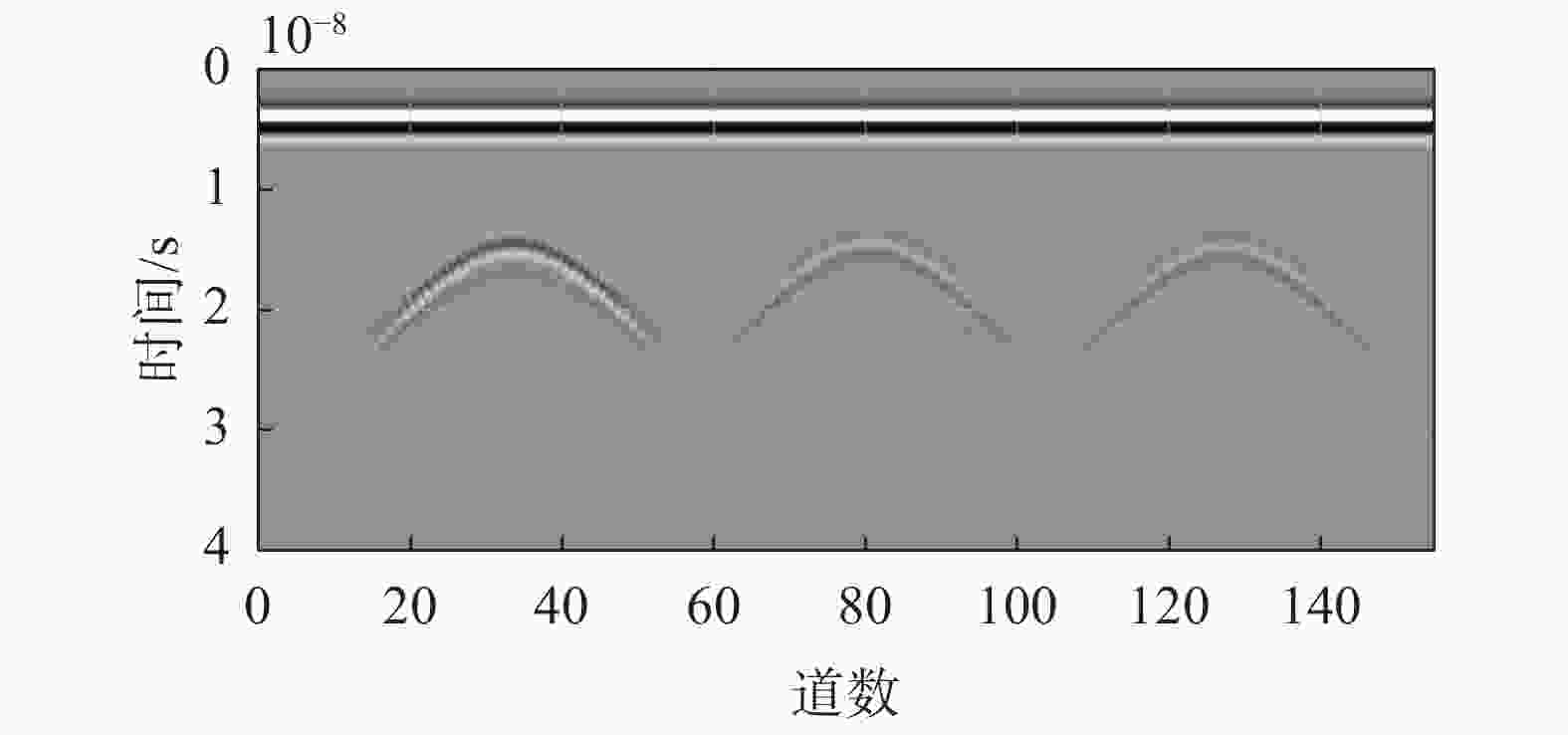

图 6 三种材质管线正上方反射波单道曲线
Figure 6. Single-trace reflection curves directly above pipelines of three materials

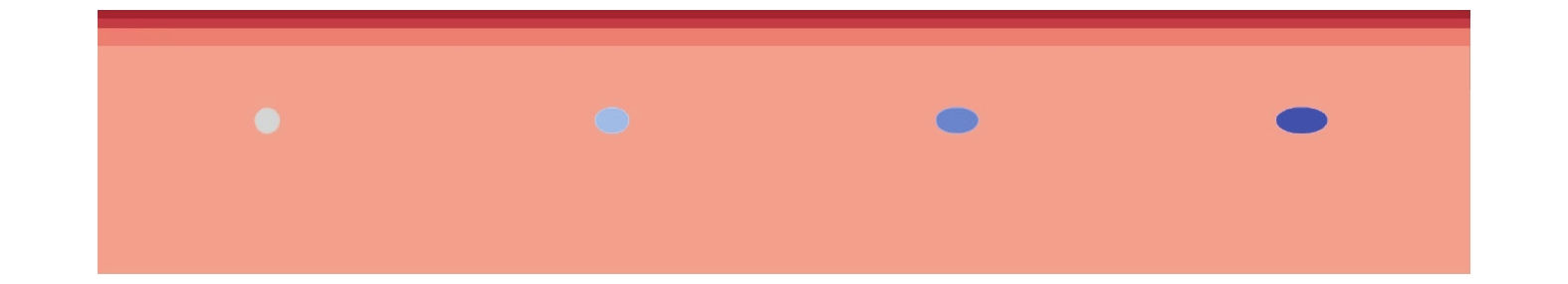

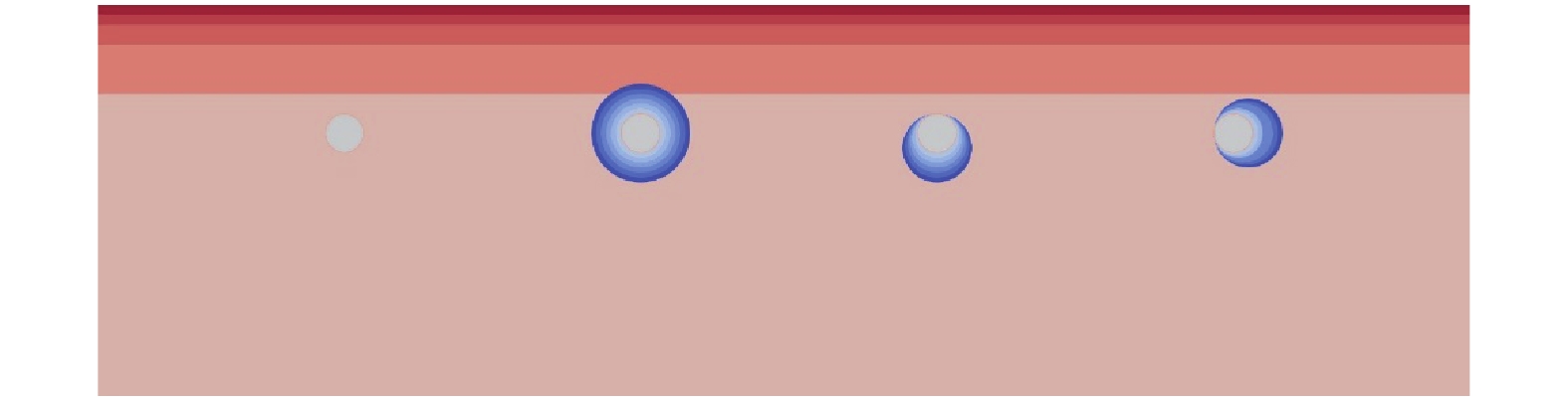

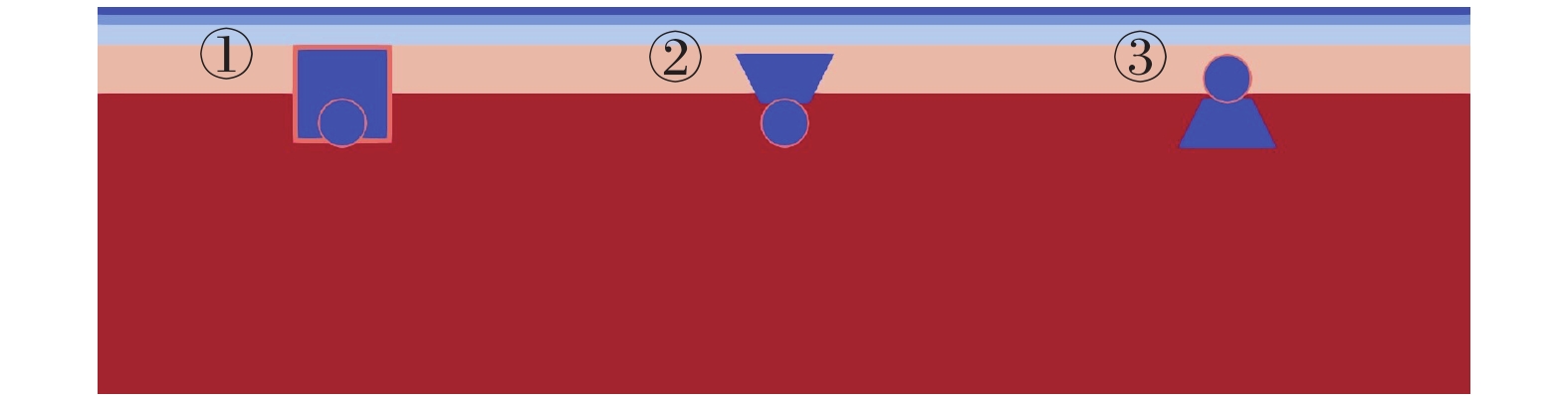

图 9 洞室内管线与管线脱空正演模型
Figure 9. Forward modeling of pipelines and pipeline voids inside the cavity

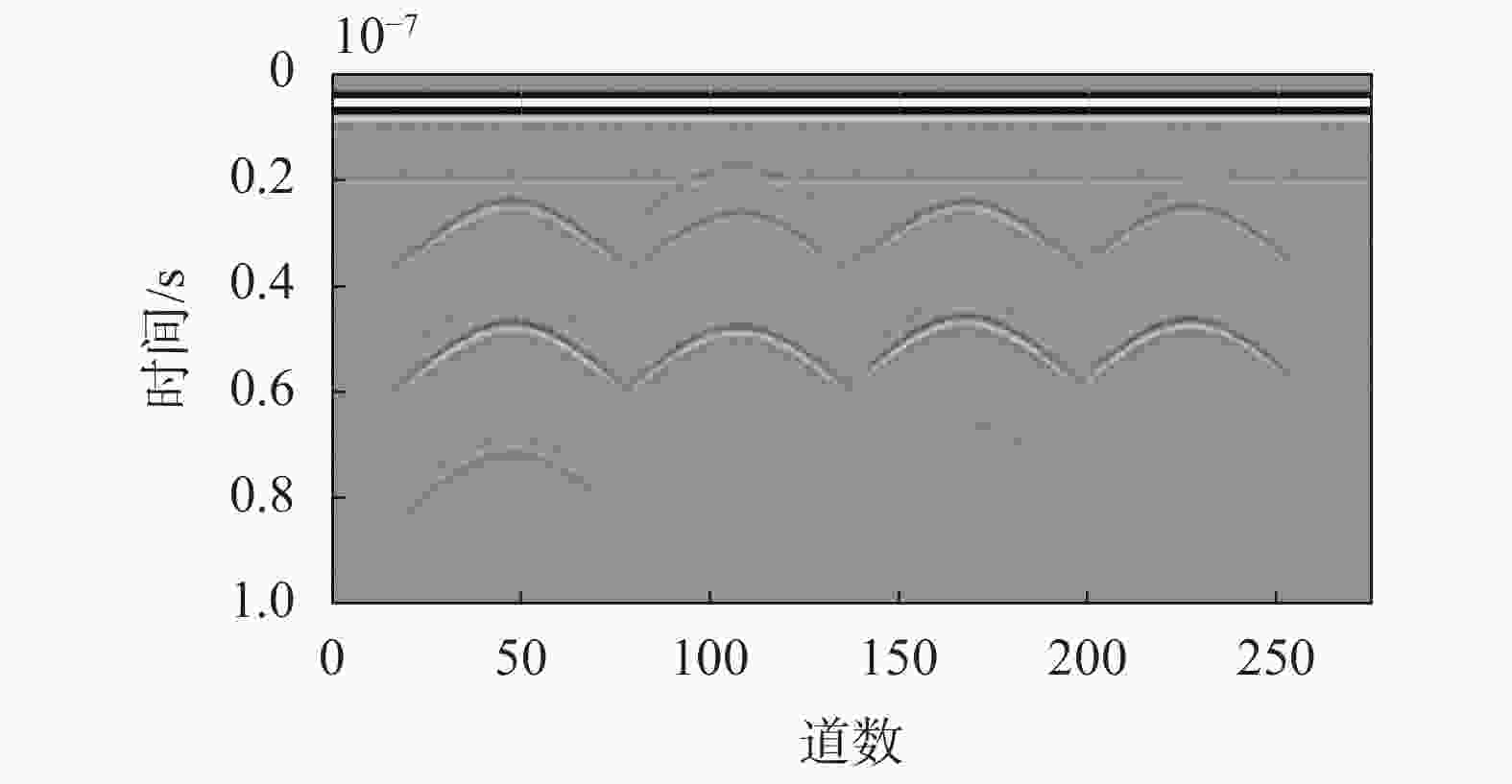

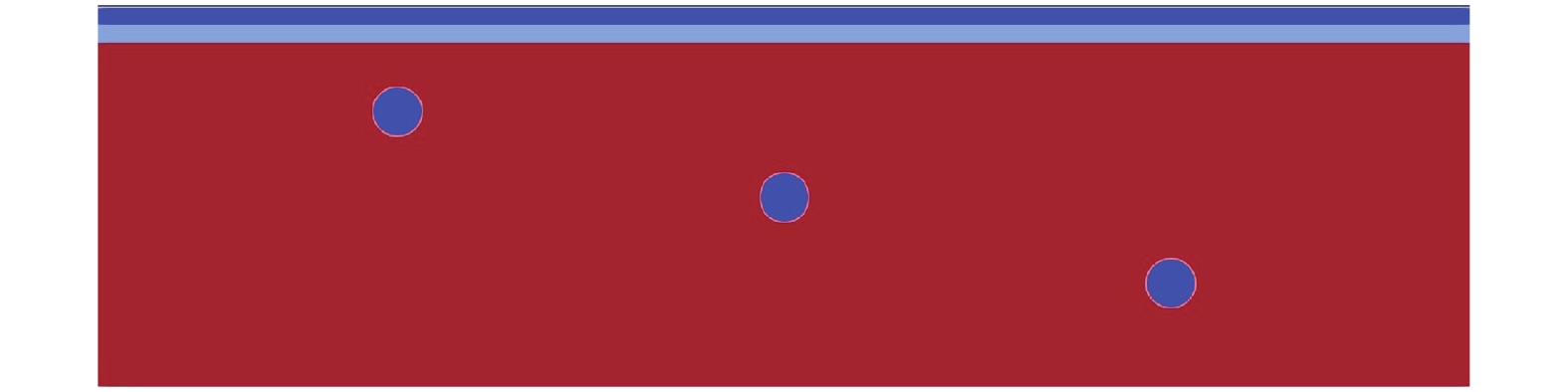

图 11 测线与管线斜交正演模型
Figure 11. Forward modeling of survey line obliquely intersecting with pipeline

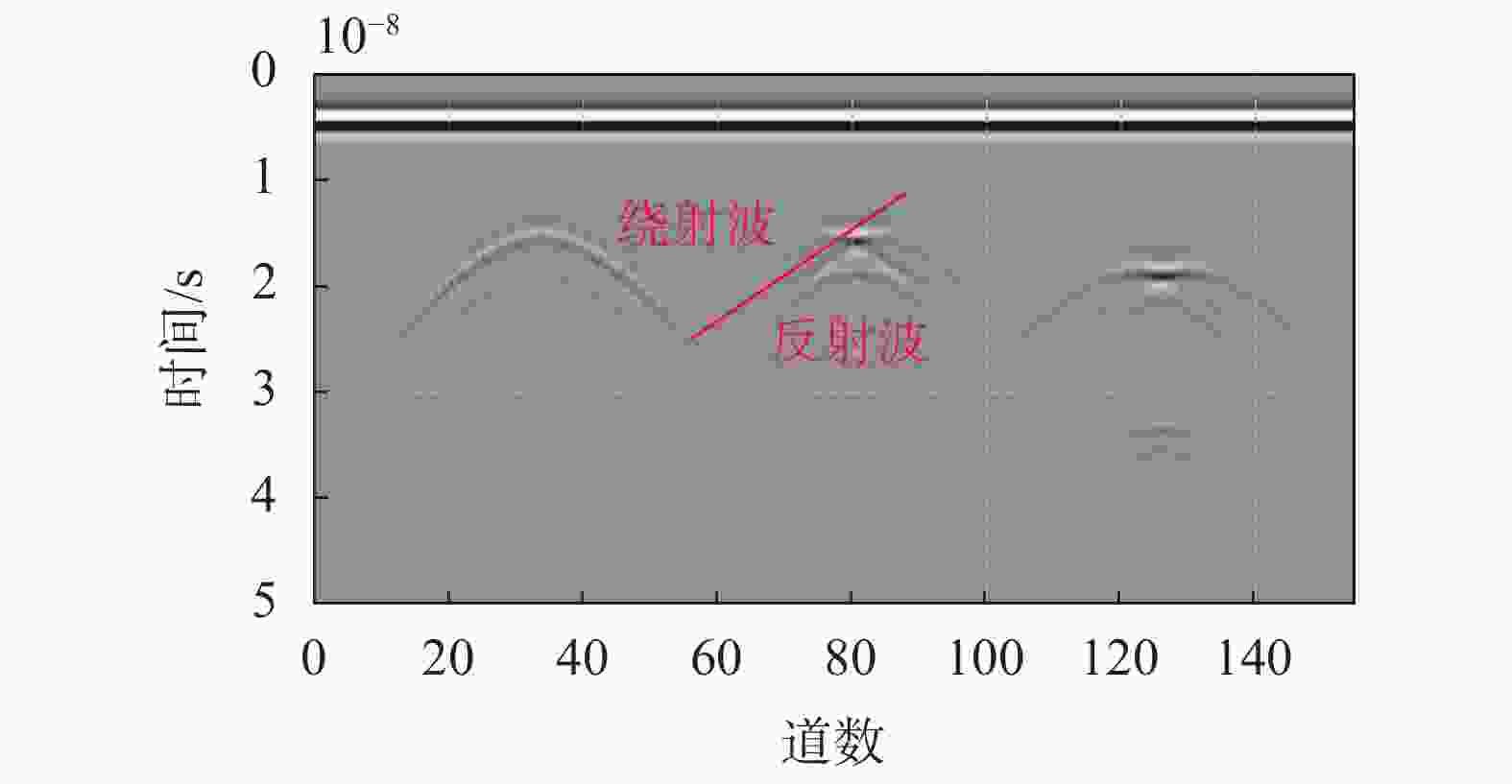

图 12 测线与管线斜交正演剖面
Figure 12. Forward profile of survey line obliquely intersecting with pipeline

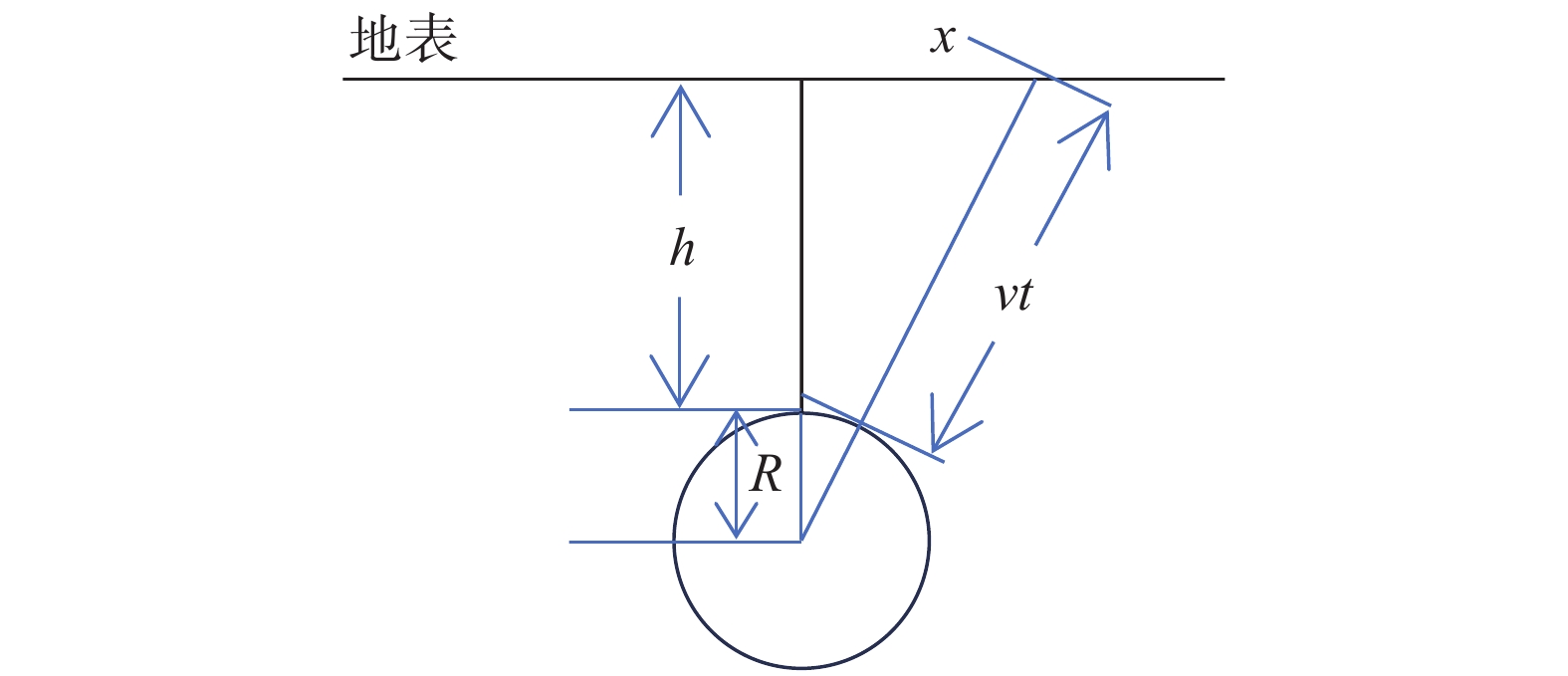

图 13 地埋管线时距关系示意图
Figure 13. Schematic diagram of time–distance relationship for buried pipelines

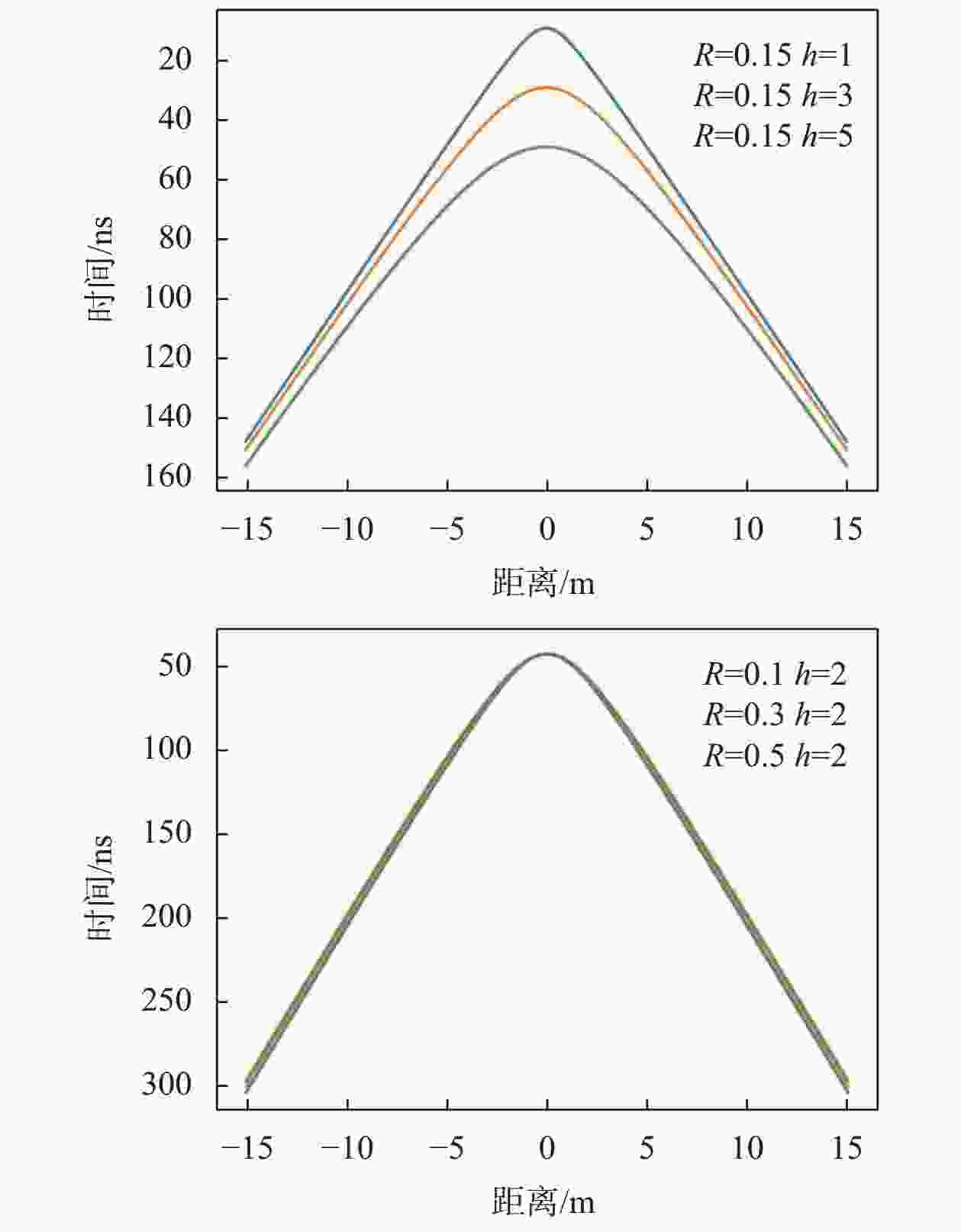

图 14 射线理论下管线响应时距曲线形态
Figure 14. Morphology of time–distance curve of pipeline response under ray theory

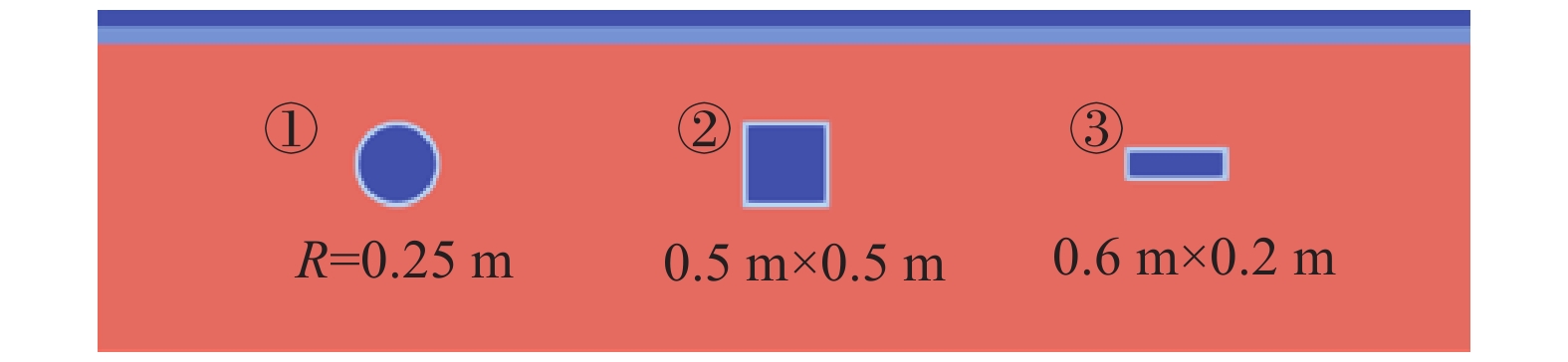

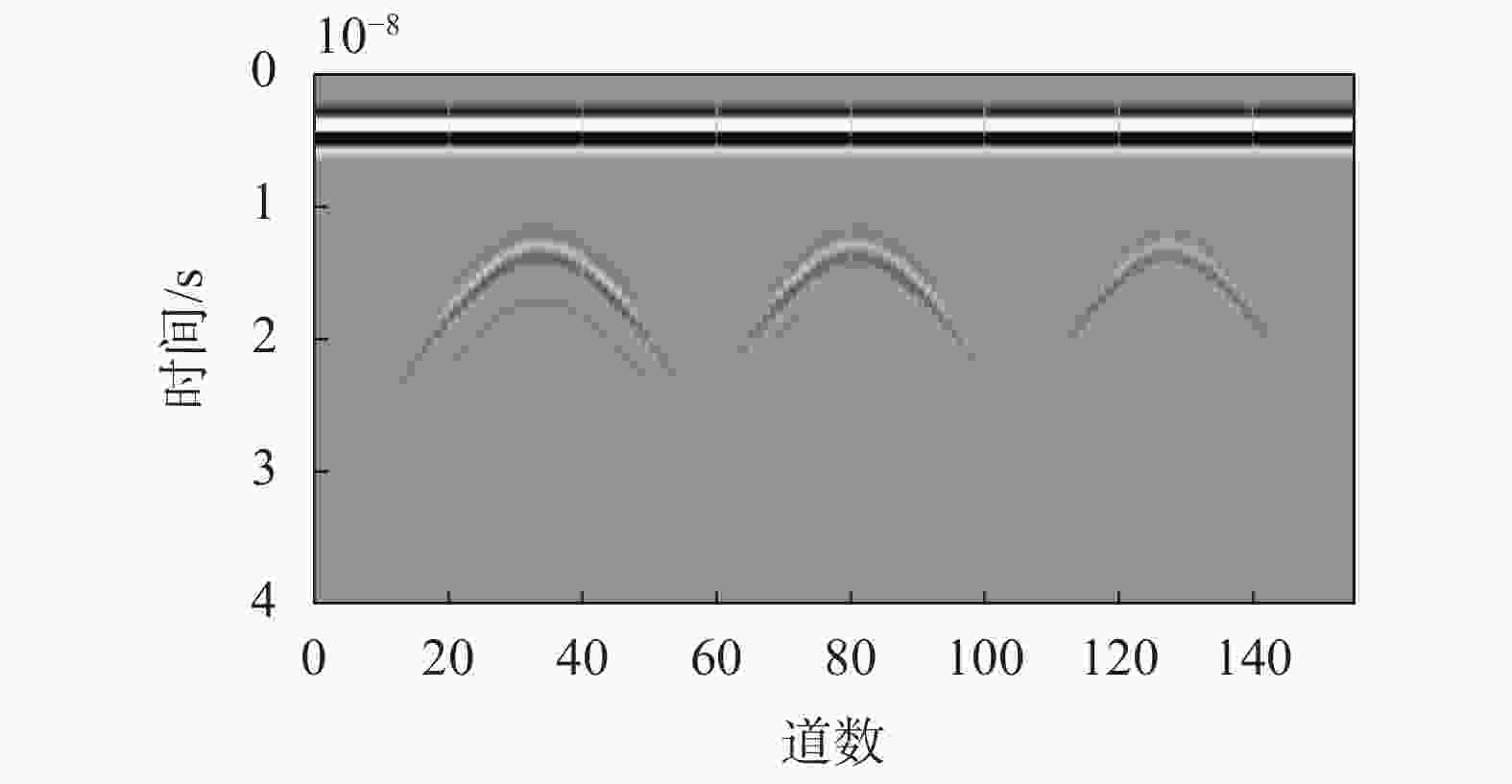

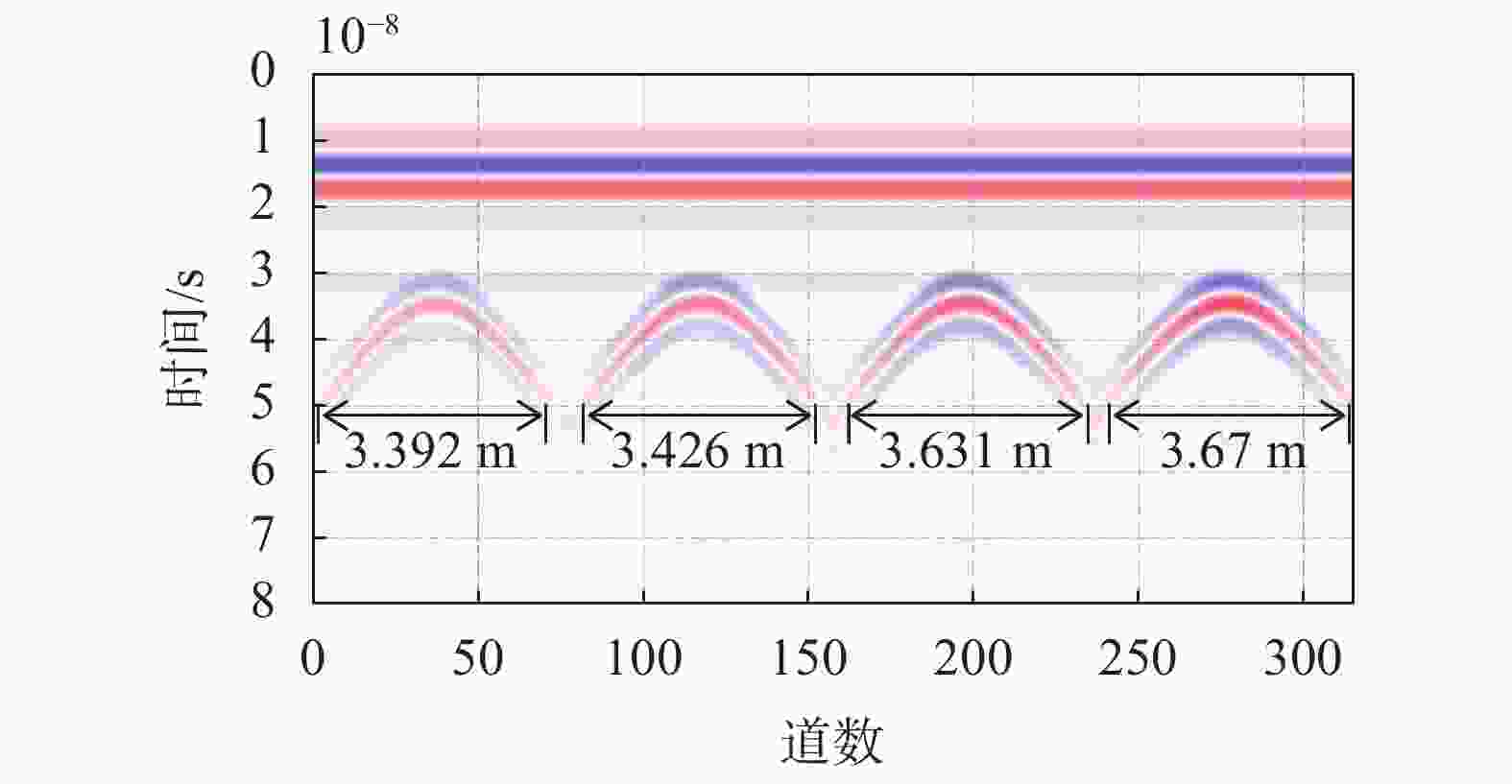

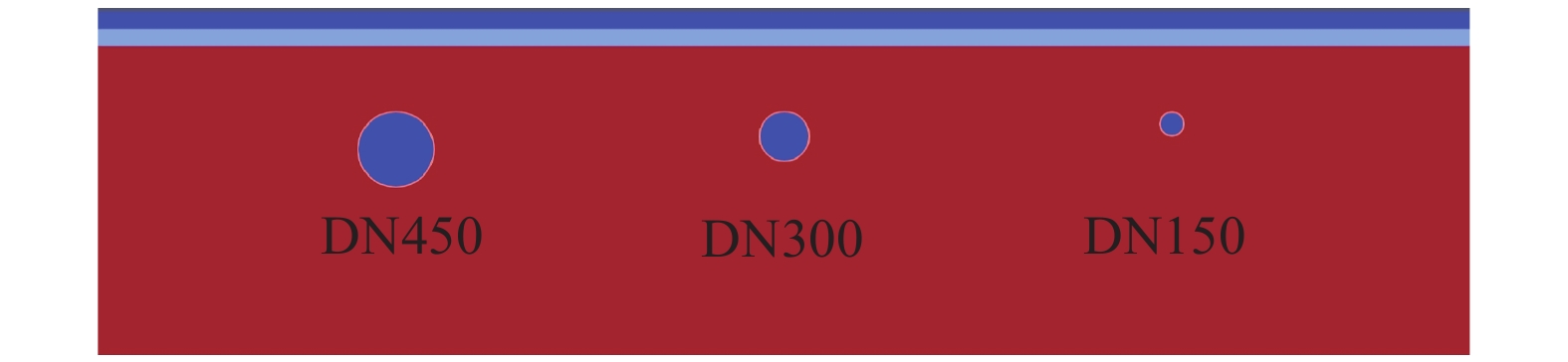

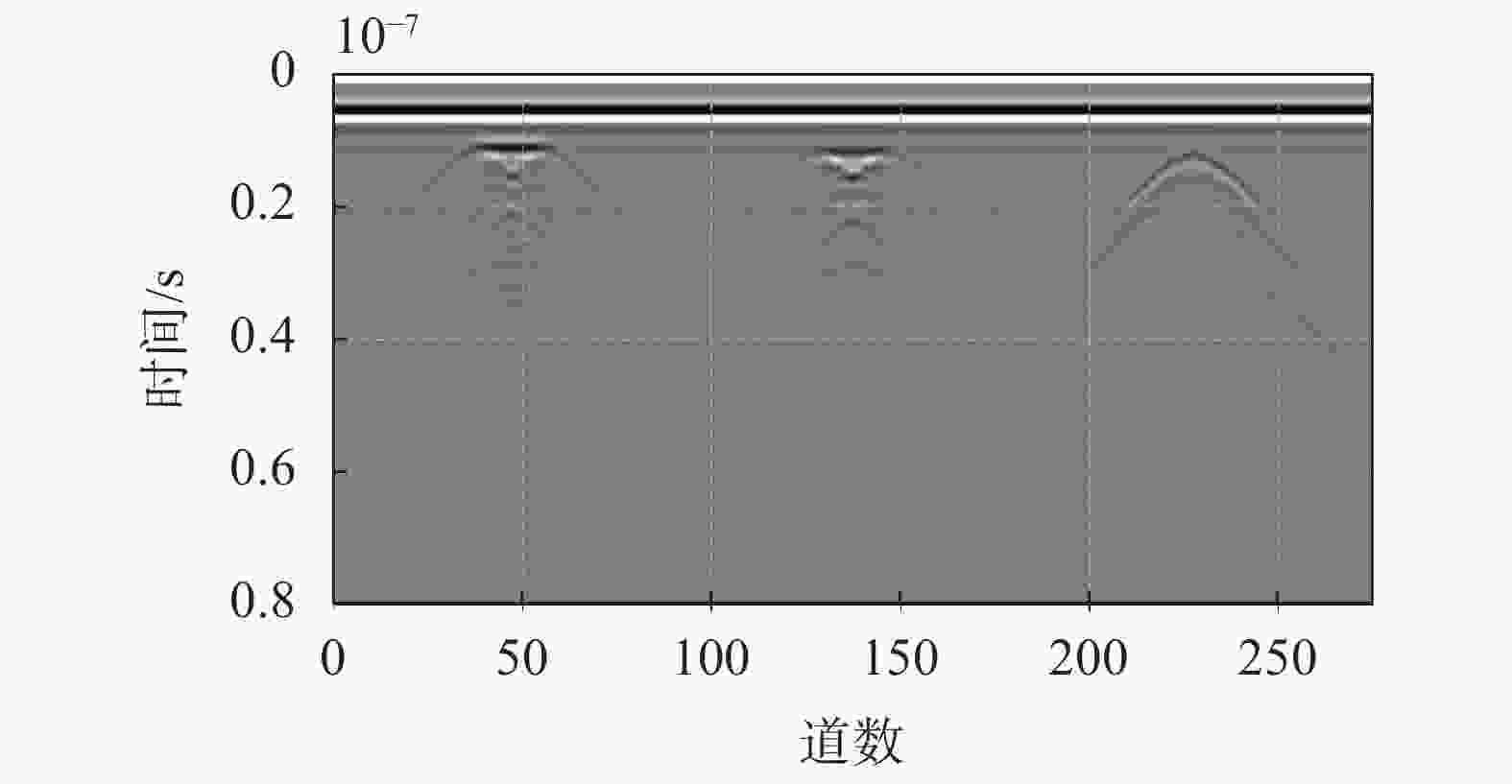

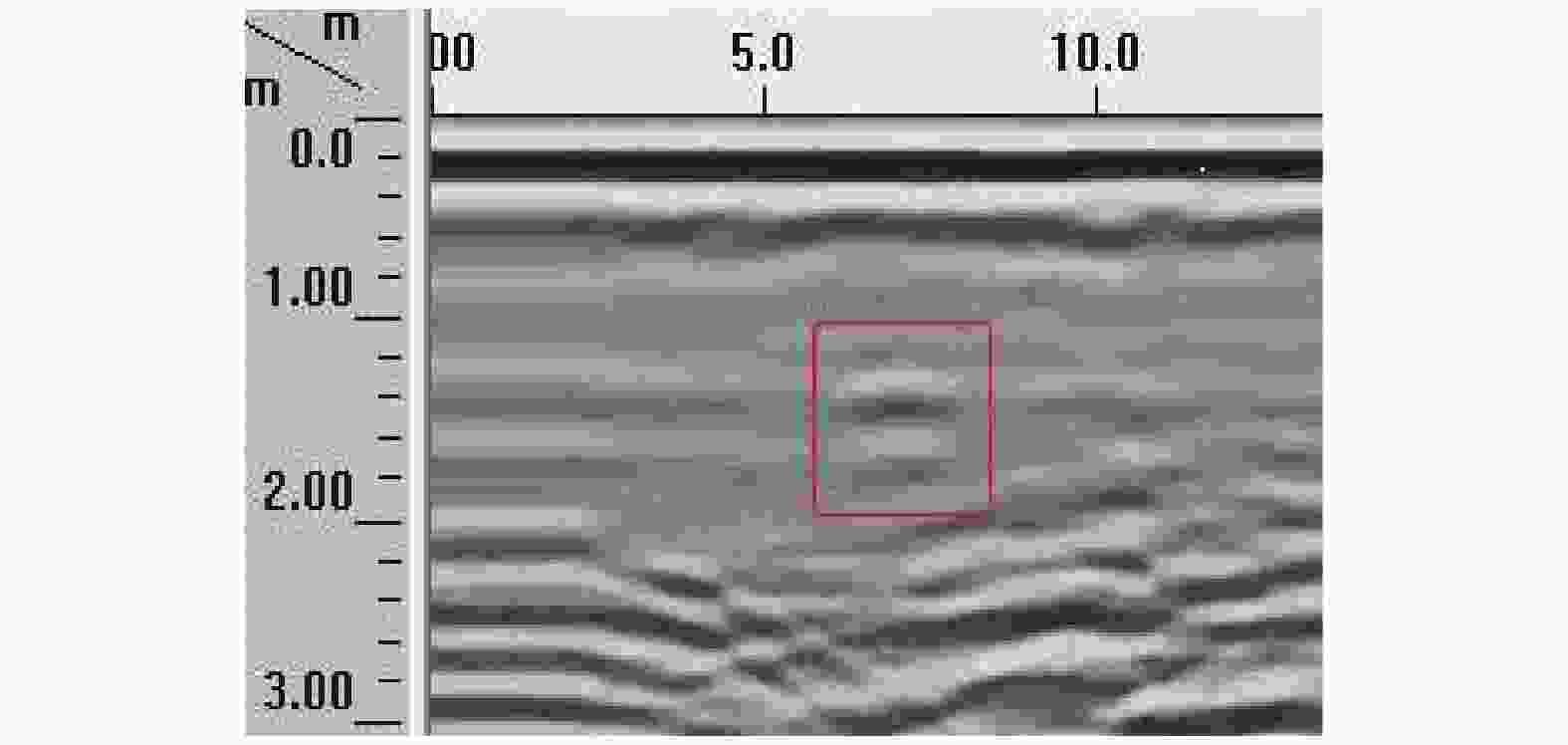

图 19 270 MHz天线实测1.2 m埋深、DN500混凝土管响应
Figure 19. Measured response of DN500 concrete pipe at 1.2 m burial depth using 270 MHz antenna

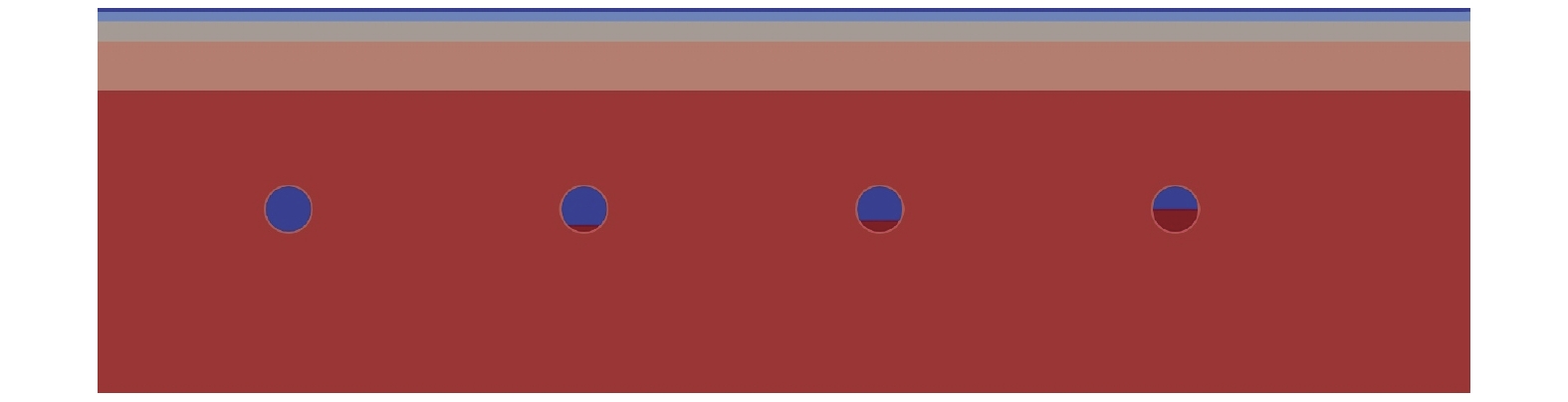

图 20 管线中水不同填充程度正演模型
Figure 20. Forward modeling of pipelines with different water filling degrees

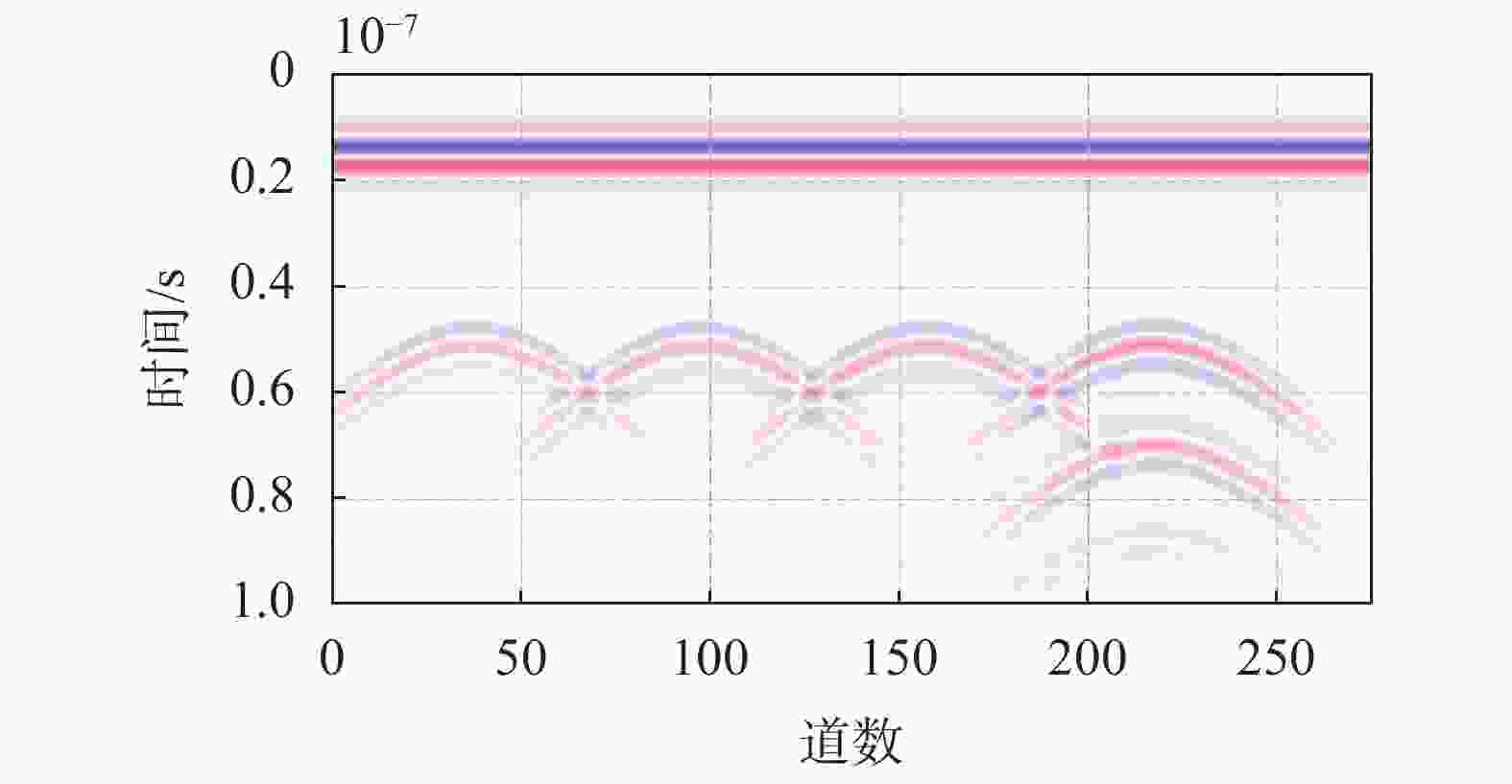

图 21 管线中水不同填充程度正演剖面
Figure 21. Forward profiles of pipelines with different water filling degrees

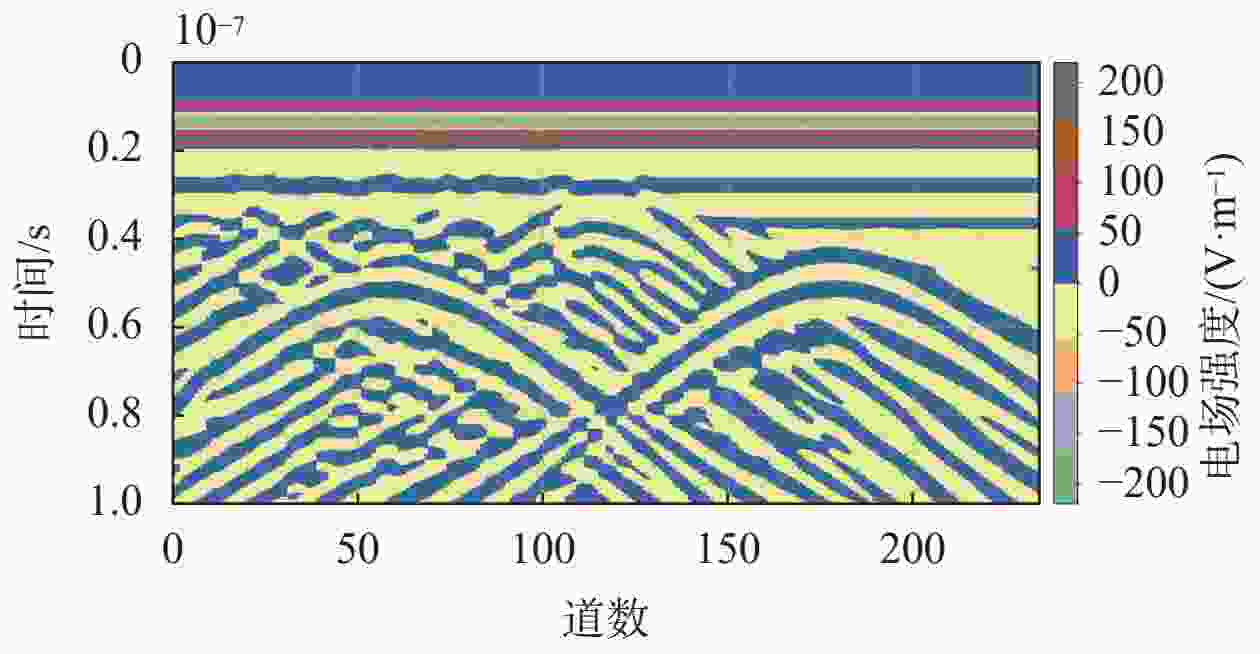

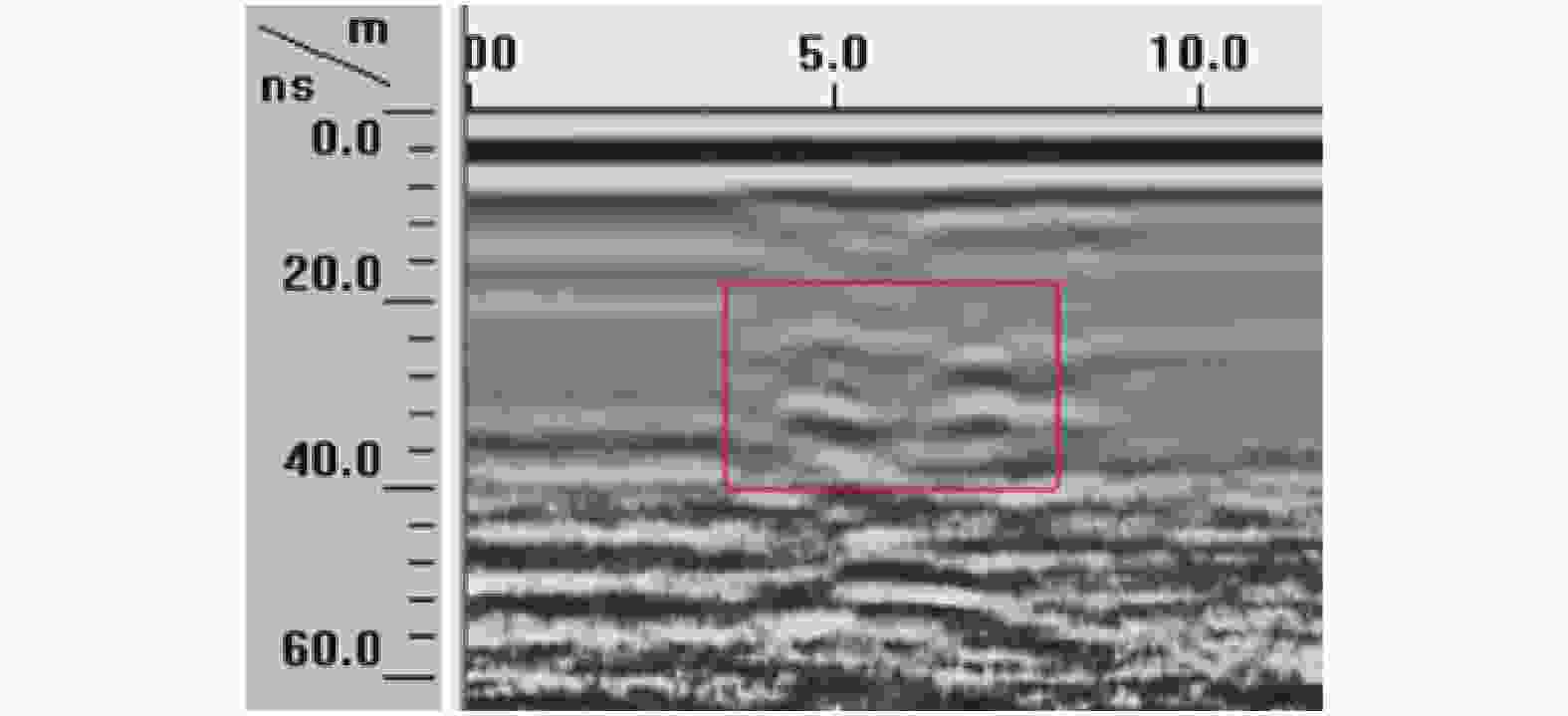

图 24 典型雨污水管线存在渗漏不密实实测剖面
Figure 24. Typical profile of rainwater and sewage pipelines with leakage and compaction defects
表 1 正演模拟物性参数表
Table 1. Physical property parameters for forward modeling
介质 相对介电常数 电导率/（S·m−1） 水 81 0.01 土体 10 0.003 混凝土 7.5 0.001 PVC 3 0 沥青 6 0.001
下载: 导出CSV
-
[1] 曹宏宇. 基于电磁法的地下金属管线探测系统研究[D]. 石家庄: 河北科技大学, 2023. (CAO H Y. Research on underground metal pipeline detection system based on electromagnetic method[D]. Shijiazhuang: Hebei University of Science and Technology, 2023, doi: 10.27107/d.cnki.ghbku.2022.000207.(in Chinese)CAO H Y. Research on underground metal pipeline detection system based on electromagnetic method[D]. Shijiazhuang: Hebei University of Science and Technology, 2023, doi: 10.27107/d.cnki.ghbku.2022.000207.(in Chinese) [2] YEE K S. Numerical solution of initial boundary value problems involving Maxwell’s equations in isotropic media[J]. IEEE Transactions on Antennas and Propagation, 1966, 14(3): 302-307. [3] GIANNOPOULOS A. Modelling ground penetrating radar by GprMax[J]. Construction and Building Materials, 2005, 19(10): 755-762. [4] 曾昭发, 霍祉君, 李文奔, 等. 任意各向异性介质三维有限元航空电磁响应模拟[J]. 吉林大学学报(地球科学版), 2018, 48(2): 433-444. (ZENG Z F, HUO Z J, LI W B, et al. 3D vector finite-element airborne electromagnetic modelling in an arbitrary anisotropic medium[J]. Journal of Jilin University (Earth Science Edition), 2018, 48(2): 433-444, (in Chinese) doi: 10.13278/j.cnki.jjuese.20170243ZENG Z F, HUO Z J, LI W B, et al. 3D vector finite-element airborne electromagnetic modelling in an arbitrary anisotropic medium[J]. Journal of Jilin University (Earth Science Edition), 2018, 48（2）: 433-444, doi: 10.13278/j.cnki.jjuese.20170243 [5] 刘四新, 佐藤源之. 井中雷达的数值模拟[C]//中国地球物理学会年刊2002——中国地球物理学会第十八届年会论文集. 北海: 中国地球物理学会, 2002: 219. (LIU S X, SATO G. Numerical simulation of borehole radar[C]//Annual Report of the Chinese Geophysical Society 2002-Proceedings of the 18th Annual Meeting of the Chinese Geophysical Society. Beihai: Chinese Geophysical Society, 2002: 219. (in Chinese)LIU S X, SATO G. Numerical simulation of borehole radar[C]//Annual Report of the Chinese Geophysical Society 2002-Proceedings of the 18th Annual Meeting of the Chinese Geophysical Society. Beihai: Chinese Geophysical Society, 2002: 219. (in Chinese) [6] 刘四新, 宋梓豪, 程建远, 等. 利用钻孔雷达探测煤矿井下顶底板界面的数值模拟研究[J]. 世界地质, 2021, 40(3): 711-720. (LIU S X, SONG Z H, CHENG J Y, et al. Numerical simulation research on detecting underground coal mine roof and floor using borehole radar[J]. Global Geology, 2021, 40(3): 711-720, (in Chinese) doi: 10.3969/j.issn.1004-5589.2021.03.024LIU S X, SONG Z H, CHENG J Y, et al. Numerical simulation research on detecting underground coal mine roof and floor using borehole radar[J]. Global Geology, 2021, 40（3）: 711-720, doi: 10.3969/j.issn.1004-5589.2021.03.024 [7] 梁小强, 杨道学, 张可能, 等. FDTD数值模拟在GPR管线探测中的应用[J]. 地球物理学进展, 2017, 32(4): 1803-1807. (LIANG X Q, YANG D X, ZHANG K N, et al. Application of FDTD numerical simulation of Ground Penetrating Radar inpipeline detection[J]. Progress in Geophysics, 2017, 32(4): 1803-1807. (in Chinese)LIANG X Q, YANG D X, ZHANG K N, et al. Application of FDTD numerical simulation of Ground Penetrating Radar inpipeline detection[J]. Progress in Geophysics, 2017, 32（4）: 1803-1807. (in Chinese) [8] 赵 欣, 王希良, 刘珍岩, 等. 复杂条件下的地下管线探测模拟[J]. 物探与化探, 2014, 38(6): 1307-1312. (ZHAO X, WANG X L, LIU Z Y, et al. Simulation of underground pipelines under complicated condition[J]. Geophysical and Geochemical Exploration, 2014, 38(6): 1307-1312. (in Chinese)ZHAO X, WANG X L, LIU Z Y, et al. Simulation of underground pipelines under complicated condition[J]. Geophysical and Geochemical Exploration, 2014, 38（6）: 1307-1312. (in Chinese) [9] 罗小龙. 基于GPRMAX的地下管线探地雷达图像正演模拟[D]. 荆州: 长江大学, 2018. (LUO X L. Forward modeling of ground penetrating radar image based on GPRMAX[D]. Jingzhou: Yangtze University, 2018. (in Chinese)LUO X L. Forward modeling of ground penetrating radar image based on GPRMAX[D]. Jingzhou: Yangtze University, 2018. (in Chinese) [10] 秦 镇. 基于探地雷达的城市地下非金属管线探测识别研究[D]. 淮南: 安徽理工大学, 2019. (QIN Z. Research on detection and recognition of urban underground nonmetallic pipelines based on GPR[D]. Huainan: Anhui University of Science & Technology, 2019. (in Chinese)QIN Z. Research on detection and recognition of urban underground nonmetallic pipelines based on GPR[D]. Huainan: Anhui University of Science & Technology, 2019. (in Chinese) [11] SHIHAB S, AL-NUAIMY W, ERIKSEN A. Radius estimation for subsurface cylindrical objects detected by ground penetrating radar[C]//Proceedings of the Tenth International Conference on Grounds Penetrating Radar, 2004. GPR 2004. Delft: IEEE, 2004: 319-322. [12] 孙 伟. 地下管线探测数据处理及可视化技术研究[D]. 郑州: 网络空间部队信息工程大学, 2012. (SUN W. Research on detection data processing and visualization of underground pipeline[D]. Zhengzhou: Information Engineering University of Cyberspace Forces, 2012. (in Chinese)SUN W. Research on detection data processing and visualization of underground pipeline[D]. Zhengzhou: Information Engineering University of Cyberspace Forces, 2012. (in Chinese) [13] 李靖翔, 赵 明, 赖 皓, 等. 地下电缆的探地雷达图像特征与识别技术[J]. 物探与化探, 2020, 44(6): 1482-1489. (LI J X, ZHAO M, LAI H, et al. Imaging detection and recognition technology of underground cable based on ground penetrating radar[J]. Geophysical and Geochemical Exploration, 2020, 44(6): 1482-1489, (in Chinese) doi: 10.11720/wtyht.2020.1339LI J X, ZHAO M, LAI H, et al. Imaging detection and recognition technology of underground cable based on ground penetrating radar[J]. Geophysical and Geochemical Exploration, 2020, 44（6）: 1482-1489, doi: 10.11720/wtyht.2020.1339 [14] 黄哲骢. 基于探地雷达的管道漏损检测研究[D]. 杭州: 浙江大学, 2019. (HUANG Z C. Study on leak detection of pipeline based on ground-penetrating radar[D]. Hangzhou: Zhejiang University, 2019. (in Chinese)HUANG Z C. Study on leak detection of pipeline based on ground-penetrating radar[D]. Hangzhou: Zhejiang University, 2019. (in Chinese) [15] 杨 军, 李 婷, 袁忠明, 等. 管线模型的探地雷达物理模拟实验[J]. 地球物理学进展, 2023, 38(2): 912-927. (YANG J, LI T, YUAN Z M, et al. Ground penetrating radar physical simulation experiment of pipeline model[J]. Progress in Geophysics, 2023, 38(2): 912-927. (in Chinese)YANG J, LI T, YUAN Z M, et al. Ground penetrating radar physical simulation experiment of pipeline model[J]. Progress in Geophysics, 2023, 38（2）: 912-927. (in Chinese) [16] 许献磊, 杨 峰, 夏云海, 等. 矿井超深探测地质雷达天线的开发及应用[J]. 煤炭科学技术, 2016, 44(4): 124-129. (XU X L, YANG F, XIA Y H, et al. Development and application of mine geological radar antenna for mine ultra-deep detection[J]. Coal Science and Technology, 2016, 44(4): 124-129, (in Chinese) doi: 10.13199/j.cnki.cst.2016.04.025XU X L, YANG F, XIA Y H, et al. Development and application of mine geological radar antenna for mine ultra-deep detection[J]. Coal Science and Technology, 2016, 44（4）: 124-129, doi: 10.13199/j.cnki.cst.2016.04.025 [17] 石宗源. 地下非金属管线雷达探测研究[D]. 郑州: 华北水利水电大学, 2022. (SHI Z Y. Research on GPR detection of underground nonmetallic pipelines[D]. Zhengzhou: North China University of Water Resources and Electric Power, 2022. (in Chinese)SHI Z Y. Research on GPR detection of underground nonmetallic pipelines[D]. Zhengzhou: North China University of Water Resources and Electric Power, 2022. (in Chinese) [18] SARKAR D. FDTD analysis of guided electromagnetic wave interaction with time-modulated dielectric medium[M]. Singapore: Springer, 2022 [19] 黎 霞, 高燕希, 宁黎磊, 等. 隧道衬砌介电常数试验与理论分析[J]. 中国公路学报, 2008, 21(5): 70-74. (LI X, GAO Y X, NING L L, et al. Experimental and theoretical analysis on permittivity of tunnel lining[J]. China Journal of Highway and Transport, 2008, 21(5): 70-74, (in Chinese) doi: 10.19721/j.cnki.1001-7372.2008.05.013LI X, GAO Y X, NING L L, et al. Experimental and theoretical analysis on permittivity of tunnel lining[J]. China Journal of Highway and Transport, 2008, 21（5）: 70-74, doi: 10.19721/j.cnki.1001-7372.2008.05.013 [20] 王天琪, 李 静, 白利舸, 等. 基于速度分析的探地雷达阻抗介电常数反演[J]. 吉林大学学报(地球科学版), 2021, 51(2): 561-570. (WANG T Q, LI J, BAI L G, et al. GPR impedance inversion of permittivity based on velocity analysis[J]. Journal of Jilin University (Earth Science Edition), 2021, 51(2): 561-570, (in Chinese) doi: 10.13278/j.cnki.jjuese.20200038WANG T Q, LI J, BAI L G, et al. GPR impedance inversion of permittivity based on velocity analysis[J]. Journal of Jilin University (Earth Science Edition), 2021, 51（2）: 561-570, doi: 10.13278/j.cnki.jjuese.20200038 [21] 王 伟. 基于雷达技术的大埋深管线探测应用研究[J]. 地球科学前沿, 2022, 12(9): 1221-1234. (WANG W. Study on the application of radar technology in the detection of deep buried pipelines[J]. Advances in Geosciences, 2022, 12(9): 1221-1234, (in Chinese) doi: 10.12677/AG.2022.129118WANG W. Study on the application of radar technology in the detection of deep buried pipelines[J]. Advances in Geosciences, 2022, 12（9）: 1221-1234, doi: 10.12677/AG.2022.129118 [22] 朱盛延, 李飞飞, 陈春阳, 等. 基于gprMax探地雷达管线探测径深比正演研究[J]. 中华建设, 2020(27): 151-153. (ZHU S Y, LI F F, CHEN C Y, et al. Forward modeling research on the ratio relationship between pipe diameter and burial depth in ground penetrating radar pipeline detection based on gprMax[J]. China Construction, 2020(27): 151-153. (in Chinese)ZHU S Y, LI F F, CHEN C Y, et al. Forward modeling research on the ratio relationship between pipe diameter and burial depth in ground penetrating radar pipeline detection based on gprMax[J]. China Construction, 2020(27): 151-153. (in Chinese) -
