Ground and structural deformation characteristics of metro stations constructed by the PBM method
-
摘要: 沈阳某地铁车站采用PBM工法开挖，以该暗挖工程为背景，介绍了PBM工法现场施工关键技术及措施，通过现场监测和数据分析，研究了PBM工法车站开挖过程引起的地表沉降、结构变形和应变的变化规律。研究结果表明：该车站PBM工法施工引起地表最终沉降最大值约25 mm，沉降控制水平较好；整体结构变形及应变处于安全范围，表明PBM工法整体结构布置合理。在负一层的开挖及结构浇筑中，应减小开挖步距和顶板注浆的速度，以减小对上覆管线的扰动；当负一层开挖施工到中部横梁时应适当减缓开挖速度，加强临时支护，从而更好地控制横梁竖向变形。Abstract: Using the underground excavation section of a metro station in Shenyang as a case study, this research introduces the key technologies and measures for on-site construction of the PBM method. Through on-site monitoring tests, the variation laws of surface settlement, structural deformation and strain caused by the excavation process of the PBM method were studied. The findings demonstrate that the maximum final settlement of the PBM method is about 25 mm, and indicating an acceptable settlement control level. The overall structural deformation and strain are within the safe range, indicating that the overall structural layout of the PBM method station is reasonable. During the excavation and structure pouring of the negative first floor, the excavation step distance and the speed of top plate grouting should be reduced to minimize the disturbance to the overlying pipelines. When the excavation of the negative first floor reaches the central crossbeam, the excavation speed should be appropriately slowed down and temporary support should be strengthened to better control the vertical deformation of the crossbeam.
-

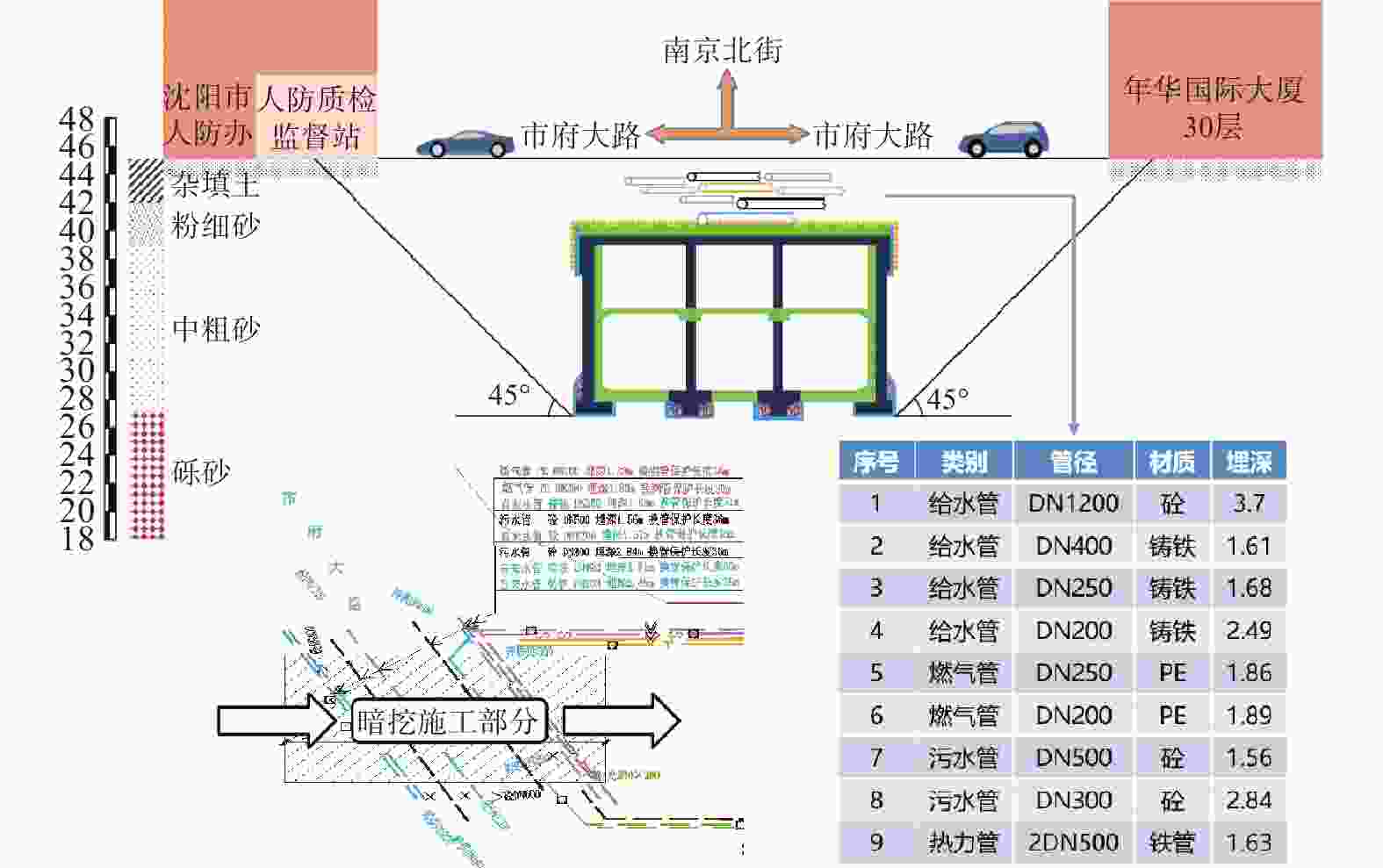

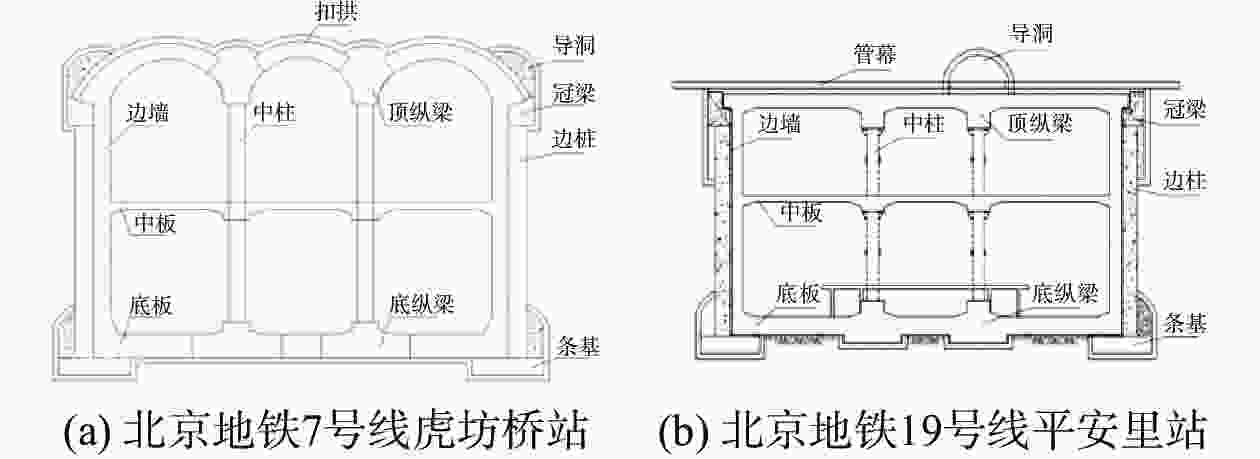

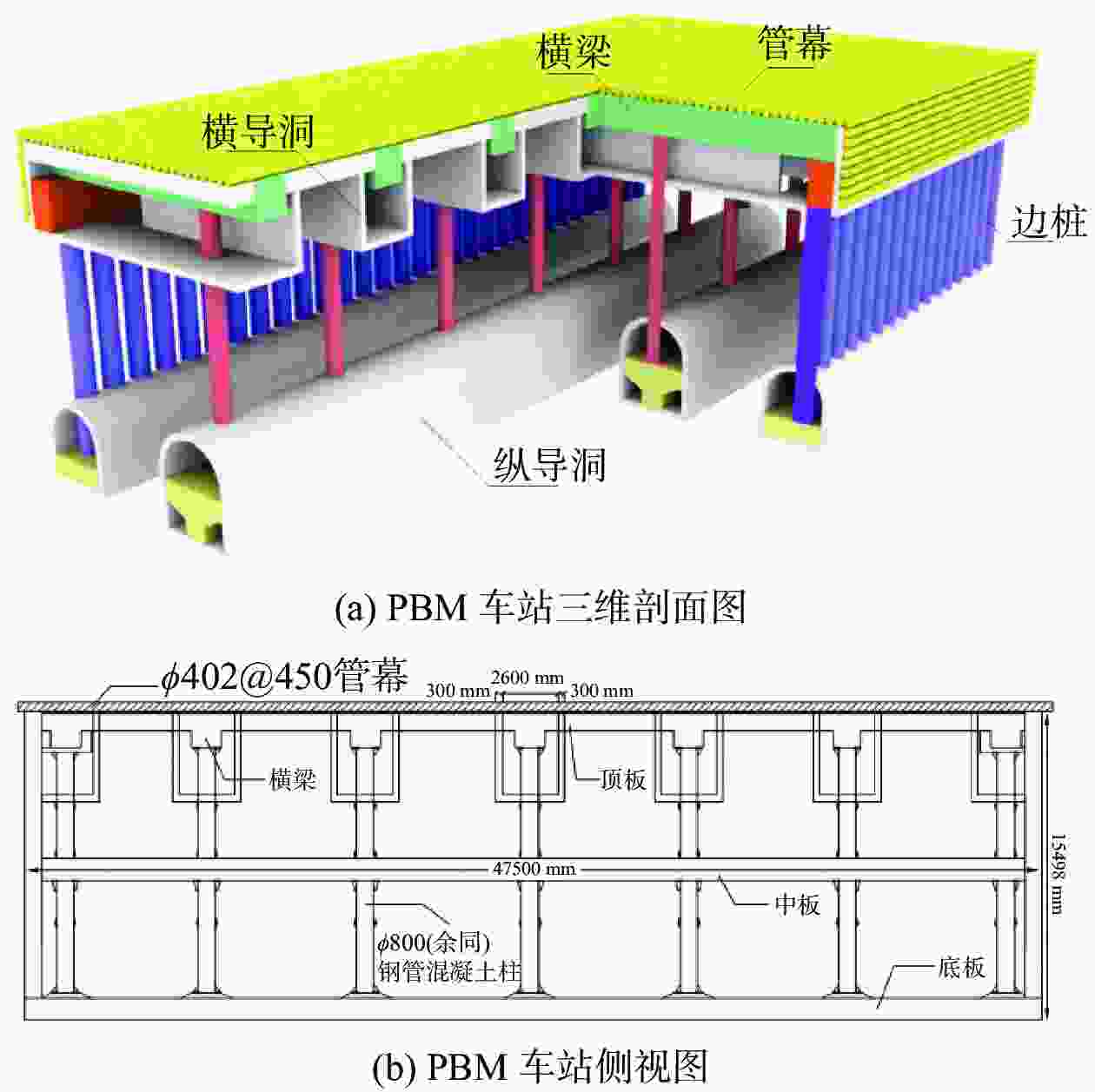

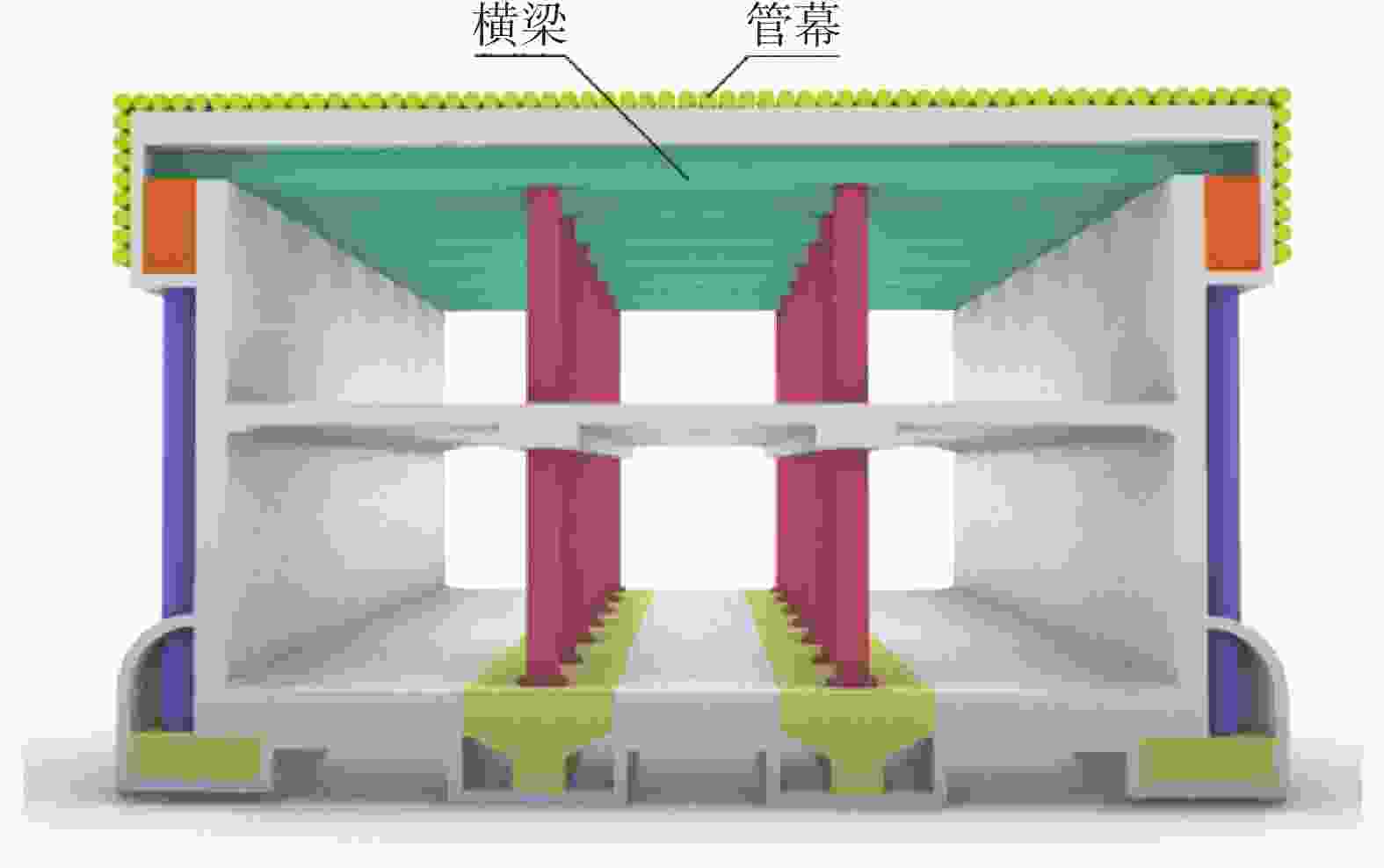

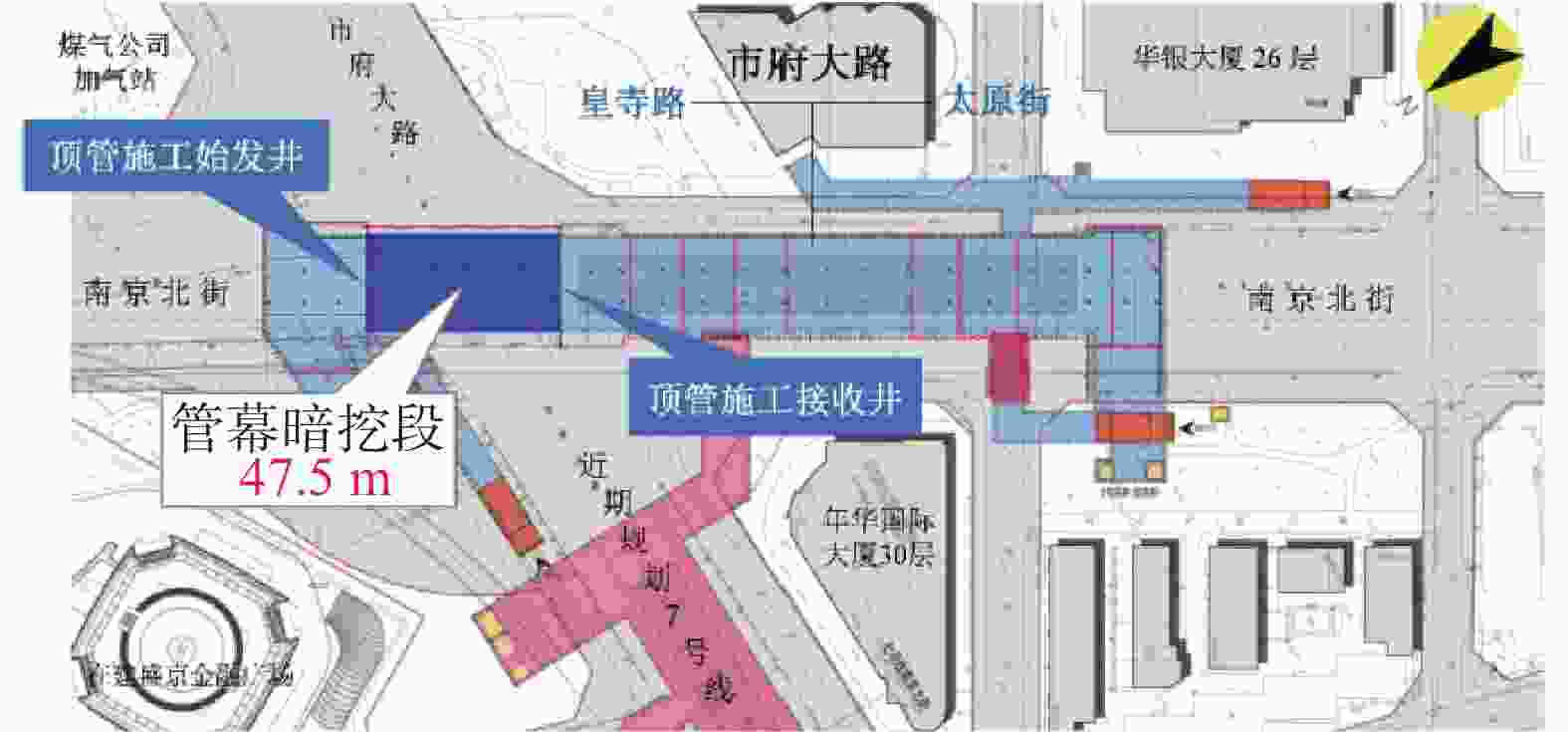

图 4 市府大路站暗挖段主体结构布置图
Figure 4. Layout diagram of the main structure of the underground section of the metro station

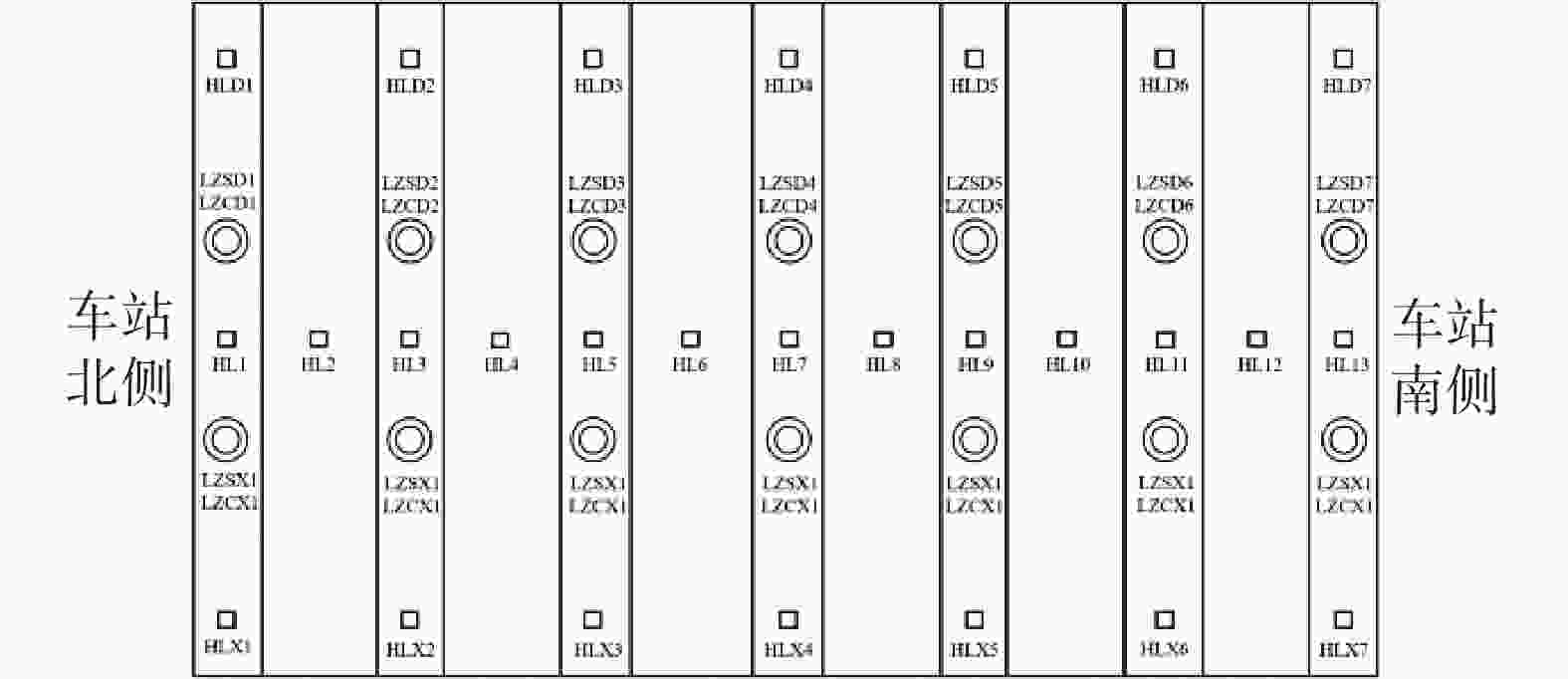

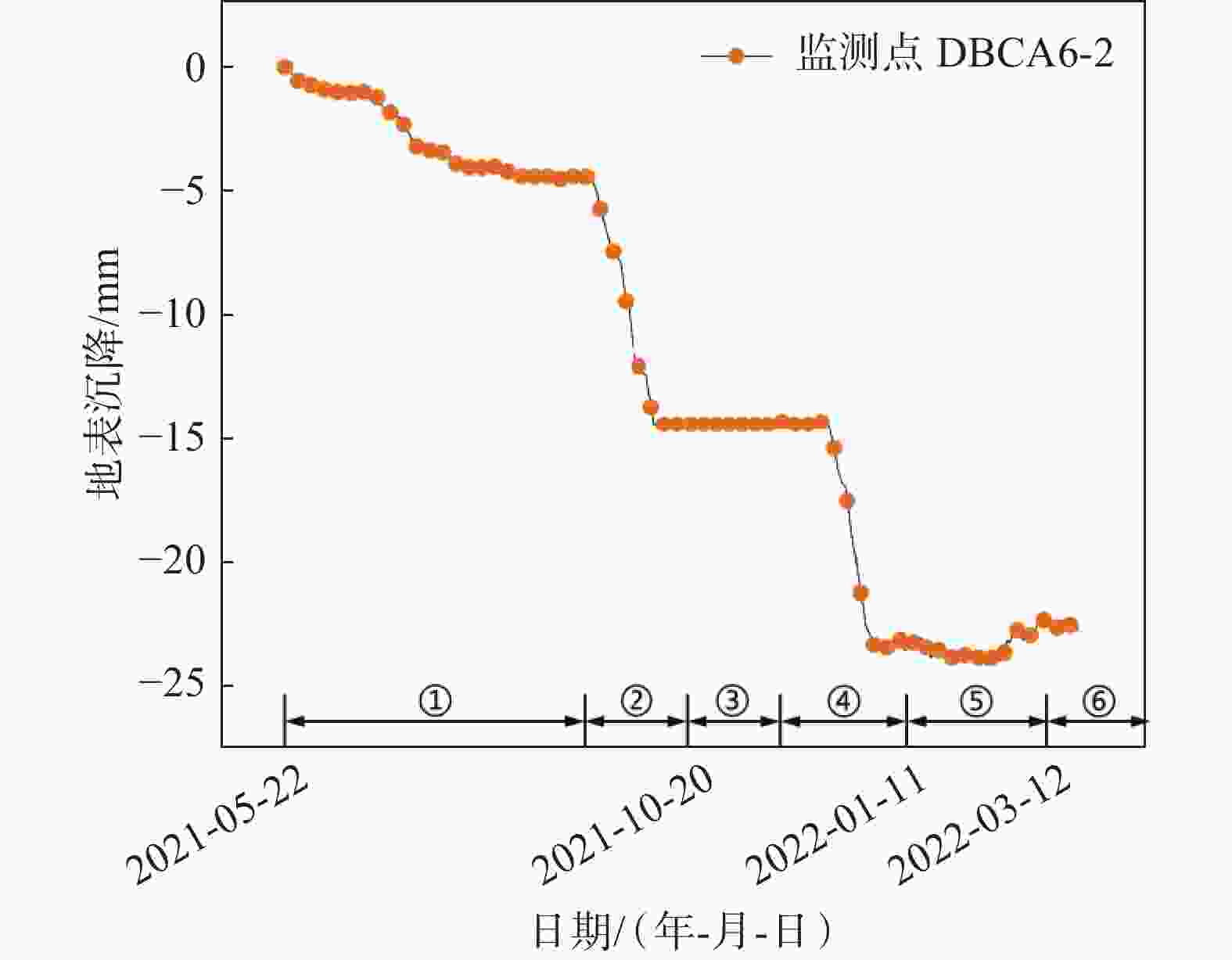

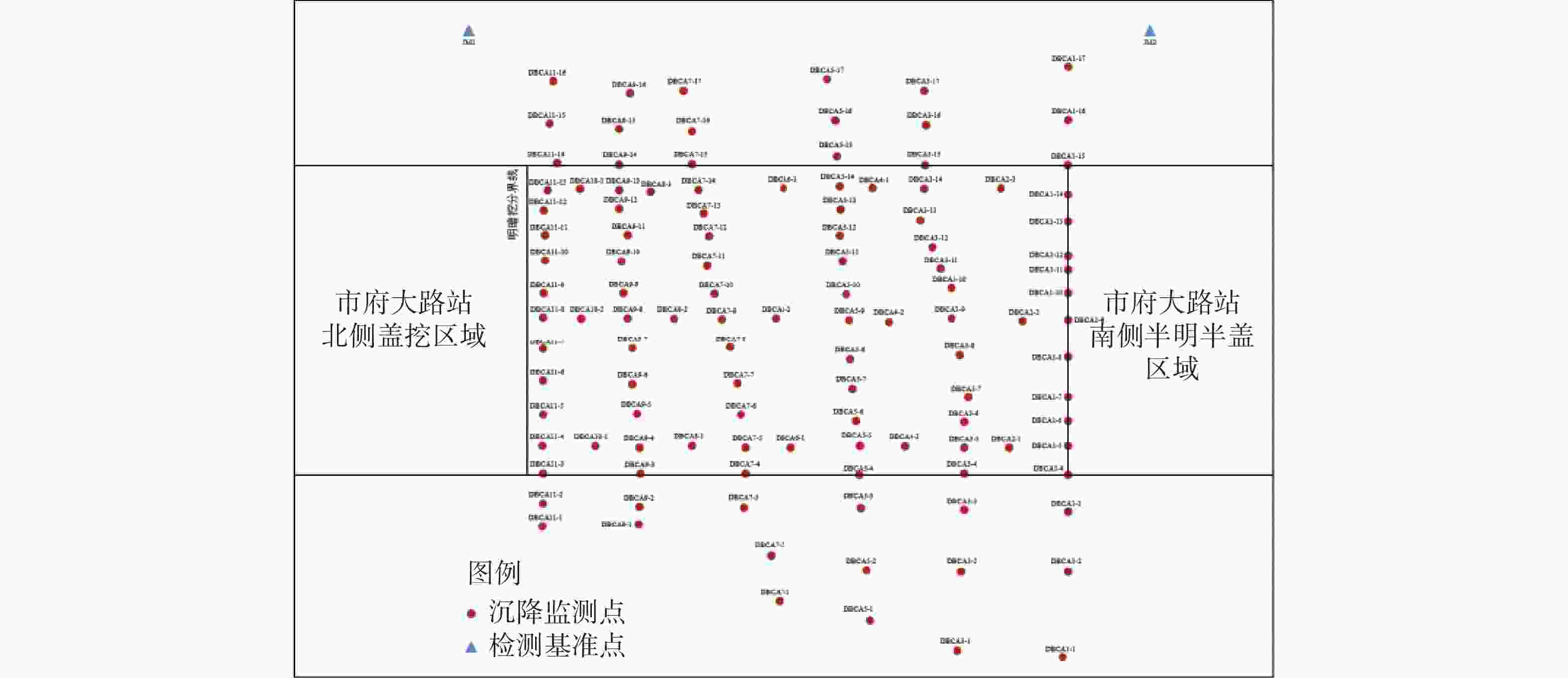

图 8 地表沉降历时曲线
注：由于点分布较密，图中每5点仅显示1点，其余点跳过，由曲线代替连接。
Figure 8. Time-history curve of ground settlement
图 10 地表沉降横断面监测值对比图
Figure 10. Comparison chart of surface subsidence cross-sectional monitoring values

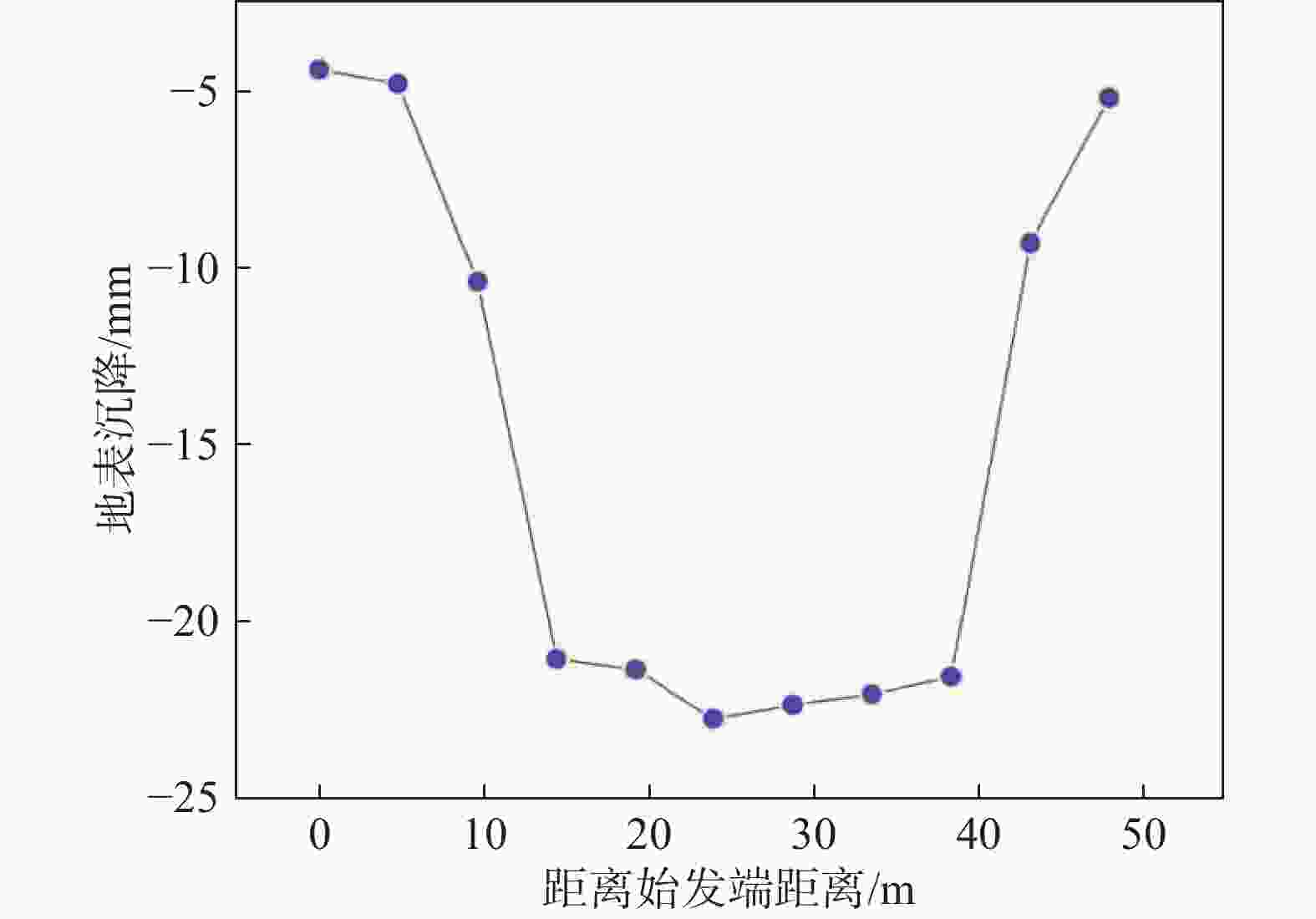

图 11 地表沉降纵断面监测值分布图
Figure 11. Distribution map of longitudinal section monitoring values of surface subsidence
-

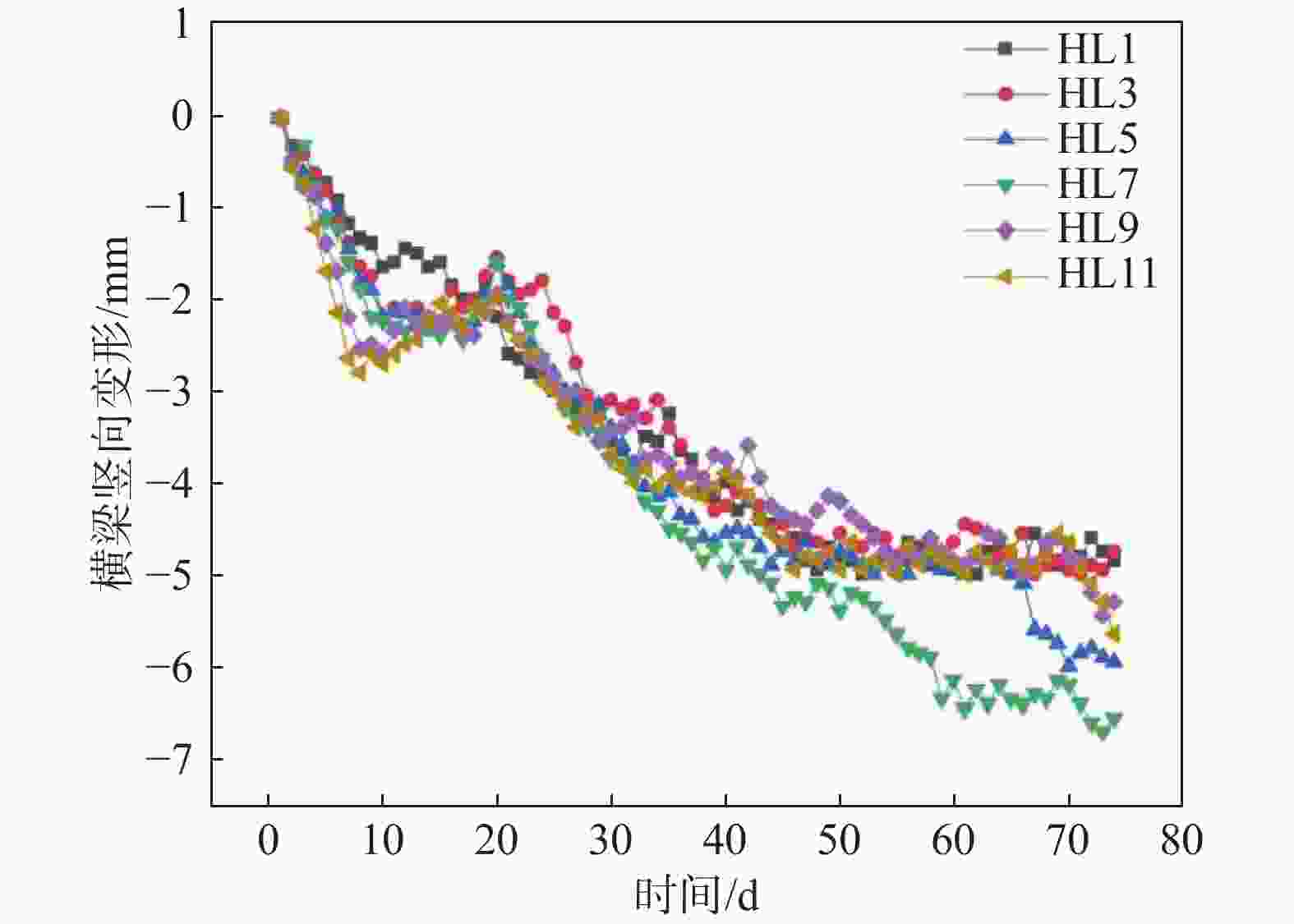

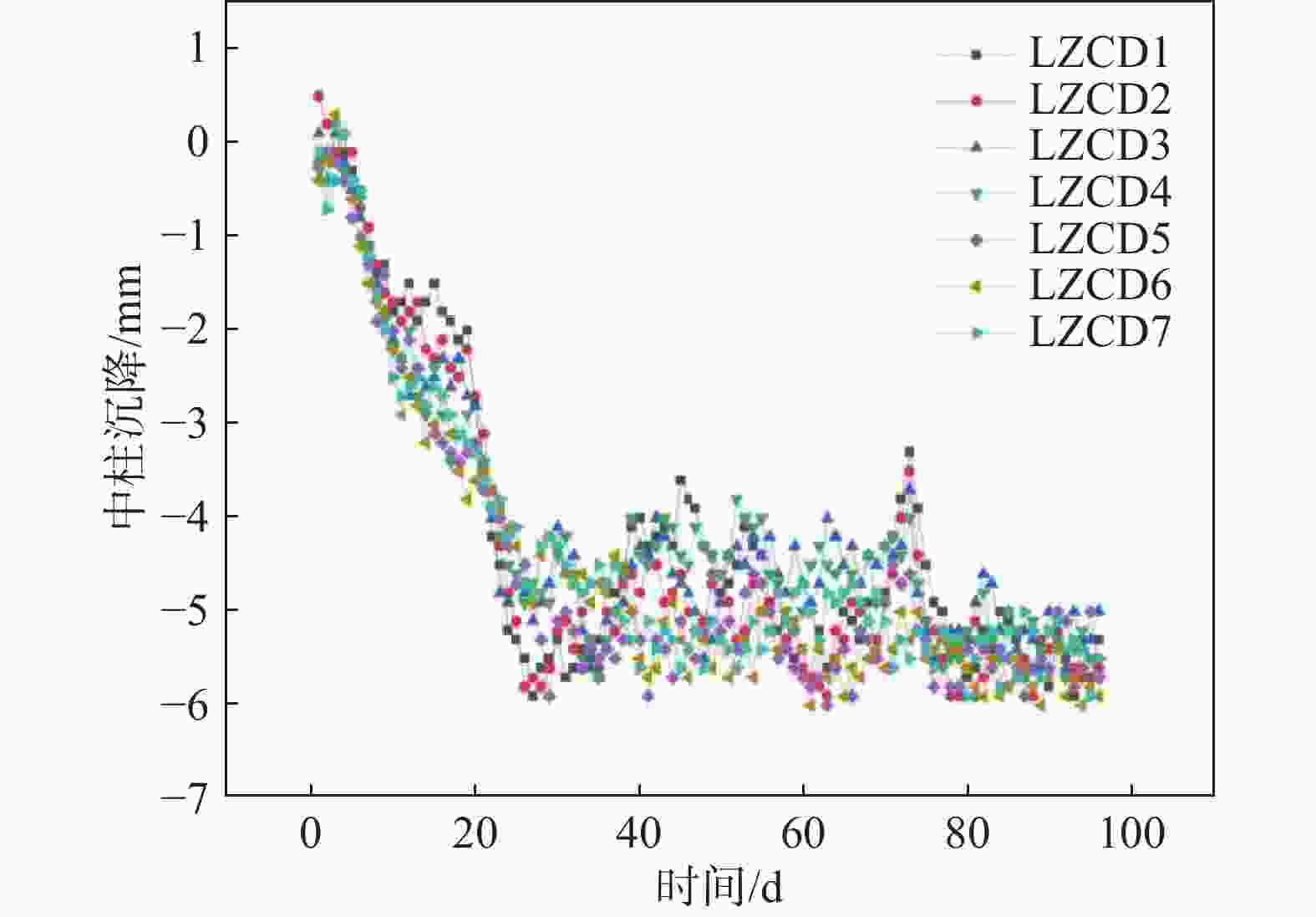

[1] 朱合华, 闫治国, 李向阳, 等. 饱和软土地层中管幕法隧道施工风险分析[J]. 岩石力学与工程学报, 2005, 25(S2): 5549-5554. (ZHU H H, YAN Z G, LI X Y, et al. Analysis of construction risks for pipe-roofing tunnel in saturated soft soil[J]. Chinese Journal of Rock Mechanics and Engineering, 2005, 25(S2): 5549-5554. (in Chinese)ZHU H H, YAN Z G, LI X Y, et al. Analysis of construction risks for pipe-roofing tunnel in saturated soft soil[J]. Chinese Journal of Rock Mechanics and Engineering, 2005, 25（S2）: 5549-5554. (in Chinese) [2] 朱合华, 李向阳, 肖世国, 等. 软土地层管幕–箱涵顶进工具管网格自平衡设计理论研究[J]. 岩石力学与工程学报, 2005, 24(13): 2242-2247. (ZHU H H, LI X Y, XIAO S G, et al. Study on self-balance design theory of culvert grid advanced in pipe-roof in saturated soft soil layers[J]. Chinese Journal of Rock Mechanics and Engineering, 2005, 24(13): 2242-2247. (in Chinese) doi: 10.3321/j.issn:1000-6915.2005.13.007ZHU H H, LI X Y, XIAO S G, et al. Study on self-balance design theory of culvert grid advanced in pipe-roof in saturated soft soil layers[J]. Chinese Journal of Rock Mechanics and Engineering, 2005, 24（13）: 2242-2247. (in Chinese) doi: 10.3321/j.issn:1000-6915.2005.13.007 [3] 张可能, 彭环云, 许庆伟, 等. 管幕预筑法竖井开挖与顶管施工过程数值模拟分析[J]. 中国有色金属学报, 2012, 22(3): 985-990. (ZHANG K N, PENG H Y, XU Q W, et al. Numerical simulation on construction process of working well and pipe jacking by pipe-roof pre-construction method[J]. The Chinese Journal of Nonferrous Metals, 2012, 22(3): 985-990. (in Chinese)ZHANG K N, PENG H Y, XU Q W, et al. Numerical simulation on construction process of working well and pipe jacking by pipe-roof pre-construction method[J]. The Chinese Journal of Nonferrous Metals, 2012, 22（3）: 985-990. (in Chinese) [4] 阎 石, 张占军, 金春福, 等. 开挖过程中新管幕结构内力数值分析[J]. 沈阳建筑大学学报(自然科学版), 2011, 27(6): 1064-1069. (YAN S, ZHANG Z J, JIN C F, et al. Numerical analysis on inner forces of underground new tubular roof structure during excavation[J]. Journal of Shenyang Jianzhu University (Natural Science), 2011, 27(6): 1064-1069. (in Chinese)YAN S, ZHANG Z J, JIN C F, et al. Numerical analysis on inner forces of underground new tubular roof structure during excavation[J]. Journal of Shenyang Jianzhu University (Natural Science), 2011, 27（6）: 1064-1069. (in Chinese) [5] 胡向东, 邓声君, 汪 洋. 拱北隧道“钢管–冻土”复合结构承载力试验研究[J]. 岩土工程学报, 2018, 40(8): 1481-1490. (HU X D, DENG S J, WANG Y. Mechanical tests on bearing capacity of steel pipe-frozen soil composite structure applied in Gongbei Tunnel[J]. Chinese Journal of Geotechnical Engineering, 2018, 40(8): 1481-1490. (in Chinese) doi: 10.11779/CJGE201808014HU X D, DENG S J, WANG Y. Mechanical tests on bearing capacity of steel pipe-frozen soil composite structure applied in Gongbei Tunnel[J]. Chinese Journal of Geotechnical Engineering, 2018, 40（8）: 1481-1490. (in Chinese) doi: 10.11779/CJGE201808014 [6] 张 鹏, 王翔宇, 曾 聪, 等. 深埋曲线钢顶管受力特性现场监测试验研究[J]. 岩土工程学报, 2016, 38(10): 1842-1848. (ZHANG P, WANG X Y, ZENG C, et al. Site monitoring of mechanical characteristics of pipes during steel curved pipe jacking under large buried depth[J]. Chinese Journal of Geotechnical Engineering, 2016, 38(10): 1842-1848. (in Chinese) doi: 10.11779/CJGE201610013ZHANG P, WANG X Y, ZENG C, et al. Site monitoring of mechanical characteristics of pipes during steel curved pipe jacking under large buried depth[J]. Chinese Journal of Geotechnical Engineering, 2016, 38（10）: 1842-1848. (in Chinese) doi: 10.11779/CJGE201610013 [7] 刘 杨, 史培新, 潘建立, 等. 拱北隧道超大管幕顶进横向地面沉降及管间作用分析[J]. 隧道建设(中英文), 2018, 38(10): 1680-1687. (LIU Y, SHI P X, PAN J L, et al. Analysis of transverse ground settlement and pipe interaction of super-large pipe roofing in Gongbei Tunnel[J]. Tunnel Construction, 2018, 38(10): 1680-1687. (in Chinese)LIU Y, SHI P X, PAN J L, et al. Analysis of transverse ground settlement and pipe interaction of super-large pipe roofing in Gongbei Tunnel[J]. Tunnel Construction, 2018, 38（10）: 1680-1687. (in Chinese) [8] 赵 文, 贾鹏蛟, 王连广, 等. 地铁车站STS新管幕构件抗弯承载力试验研究[J]. 工程力学, 2016, 33(8): 167-176. (ZHAO W, JIA P J, WANG L G, et al. Experimental study on the flexural capacity of steel tube slab members of subway station[J]. Engineering Mechanics, 2016, 33(8): 167-176. (in Chinese) doi: 10.6052/j.issn.1000-4750.2015.01.0065ZHAO W, JIA P J, WANG L G, et al. Experimental study on the flexural capacity of steel tube slab members of subway station[J]. Engineering Mechanics, 2016, 33（8）: 167-176. (in Chinese) doi: 10.6052/j.issn.1000-4750.2015.01.0065 [9] 赵 文, 姜宝峰, 贾鹏蛟, 等. 带翼缘板圆形钢管顶进土体扰动规律研究[J]. 地下空间与工程学报, 2019, 15(6): 1734-1740. (ZHAO W, JIANG B F, JIA P J, et al. Theoretical analysis on soil disturbance induced by densely packed circular pipes with fringes[J]. Chinese Journal of Underground Space and Engineering, 2019, 15(6): 1734-1740. (in Chinese)ZHAO W, JIANG B F, JIA P J, et al. Theoretical analysis on soil disturbance induced by densely packed circular pipes with fringes[J]. Chinese Journal of Underground Space and Engineering, 2019, 15（6）: 1734-1740. (in Chinese) [10] 严 威.超浅埋地铁车站棚盖暗筑法的变形控制机理研究[D]. 北京: 北京交通大学, 2019. (YAN W. Mechanism research on deformation control of a shallow subway station by using pre-built pipe umbrellas and PBA excavation method[D]. Beijing: Beijing Jiaotong University, 2019. (in Chinese)YAN W. Mechanism research on deformation control of a shallow subway station by using pre-built pipe umbrellas and PBA excavation method[D]. Beijing: Beijing Jiaotong University, 2019. [11] 邱 建, 赵 文, 路 博, 等. 新型管幕工法修建地铁车站地层变形特性及参数优化[J]. 东北大学学报(自然科学版), 2024, 45(11): 1645-1655. (QIU J, ZHAO W, LU B, et al. Ground deformation characteristics and parameter optimization of metro stations constructed by novel pipe roofing method[J]. Journal of Northeastern University (Natural Science), 2024, 45(11): 1645-1655. (in Chinese) doi: 10.12068/j.issn.1005-3026.2024.11.016QIU J, ZHAO W, LU B, et al. Ground deformation characteristics and parameter optimization of metro stations constructed by novel pipe roofing method[J]. Journal of Northeastern University (Natural Science), 2024, 45（11）: 1645-1655. (in Chinese) doi: 10.12068/j.issn.1005-3026.2024.11.016 [12] 张坤勇, 李丹阳, 张 梦, 等. 大断面管幕箱涵顶进引起地表变形的解析解答[J]. 岩土工程学报, 2025, 7(1): 184-191. (ZHANG K Y, LI D Y, ZHANG M, et al. Analytical solutions for surface deformation induced by jacking large-section pipe curtain box culvert[J]. Chinese Journal of Geotechnical Engineering, 2025, 7(1): 184-191. (in Chinese)ZHANG K Y, LI D Y, ZHANG M, et al. Analytical solutions for surface deformation induced by jacking large-section pipe curtain box culvert[J]. Chinese Journal of Geotechnical Engineering, 2025, 7（1）: 184-191. (in Chinese) -
