Deformation and stress characteristics of bent-type h-piles in high fill slopes
-
摘要: 以青岛某生态修复边坡支护工程为背景，通过理论模型分析、数值模拟计算，结合监测数据分析，对排架式h型桩（设置多道横向约束的h型桩）在土岩双元地层高填方边坡中的变形及受力特性进行研究。结果表明：排架式h型桩具有更合理的内力分布和更强的控制变形能力，实测桩顶最大水平位移8.1 mm，单位计算宽度上桩身最大弯矩1423.2 kN·m；排架式h型桩较悬臂桩具有更大的抗弯刚度，桩身正负弯矩交变，受力更为合理；排架式h型桩主要由前后排桩及第二道连梁组成的刚架结构发挥抗弯刚度，桩身内力主要分布在第二道连梁以下，从而可优化上部结构配筋；排架式h型桩桩间土全长加固对优化结构内力变形并不明显；排架式h型桩连梁与后排桩节点处按固接设计，可使前后排桩更好地协同发挥抗弯作用，其受力及变形特性优于铰接设计。研究成果可为排架式h型桩在土岩双元地层高填方边坡工程中的设计与施工提供参考。Abstract: Taking the ecological restoration slope support project of a tributary in Qingdao as the engineering background, the deformation and mechanical characteristics of bent-type h-piles (h-piles with multiple transverse constraints) in high-fill slopes of soil-rock dual strata were investigated through theoretical model analysis, numerical simulation, and monitored data analysis. The results show that bent-type h-piles present a more reasonable internal force distribution and stronger deformation control capacity. The measured maximum horizontal displacement at the pile top is 8.1 mm, and the maximum bending moment of the pile shaft per unit calculated width is 1423.2 kN·m. Compared with cantilever piles, bent-type h-piles possess higher flexural stiffness, and the alternating positive and negative bending moments along the pile shaft lead to a more rational mechanical state. The flexural stiffness of bent-type h-piles is mainly provided by the rigid frame structure composed of the front and rear piles and the second coupling beam. The internal forces of the piles are mainly distributed below the second coupling beam, which allows the optimization of reinforcement in the upper structure. The full-length reinforcement of the soil between bent-type h-piles has no significant effect on optimizing the internal force and deformation of the structure. When the joints between the coupling beams and the rear piles are designed as fixed connections, the front and rear piles can work together more effectively in bending, and the mechanical and deformation performance is superior to that of hinged connections. The research results can provide a reference for the design and construction of bent-type h-piles in high-fill slope projects with soil-rock dual strata.
-

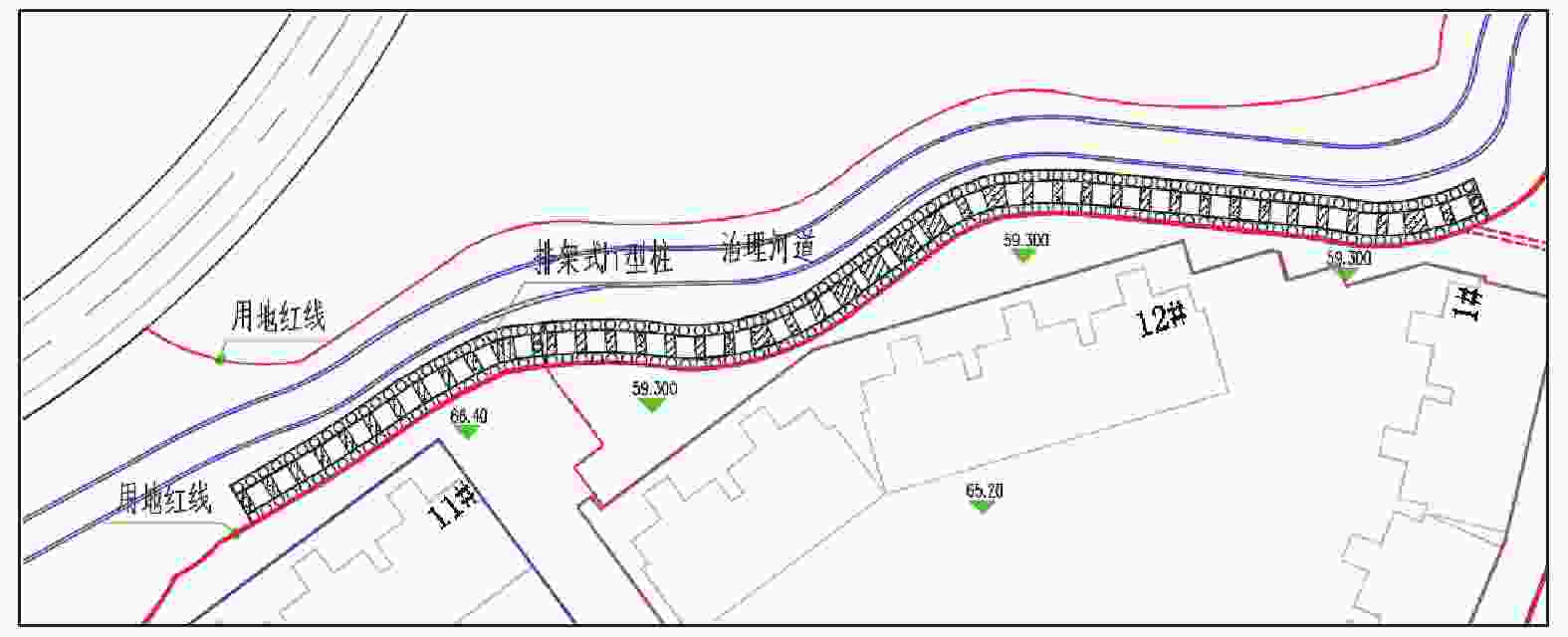

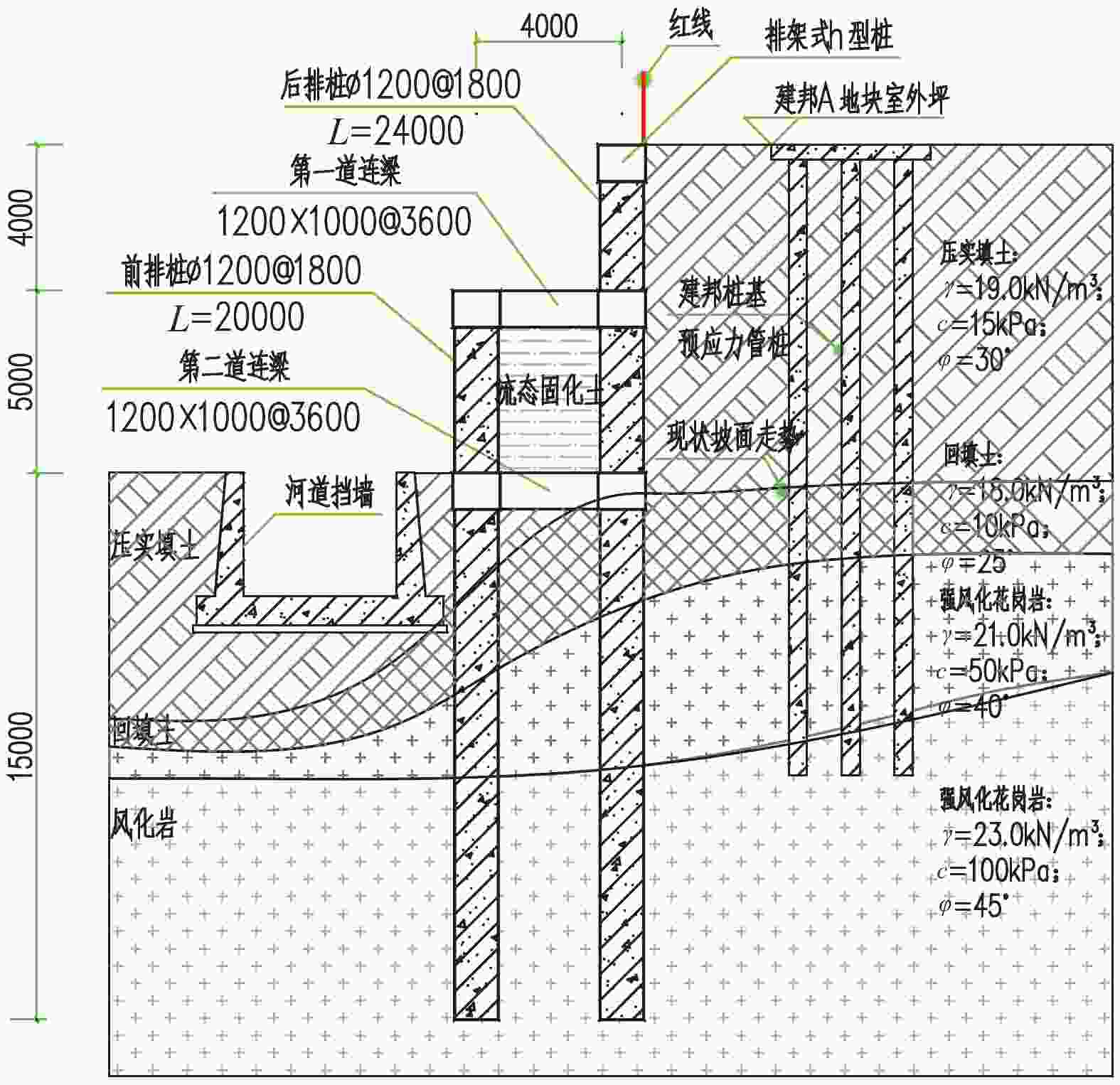

图 2 排架式h型桩典型剖面图（单位：mm）
Figure 2. Typical sectional view of bent-type h-piles (Unit: mm)

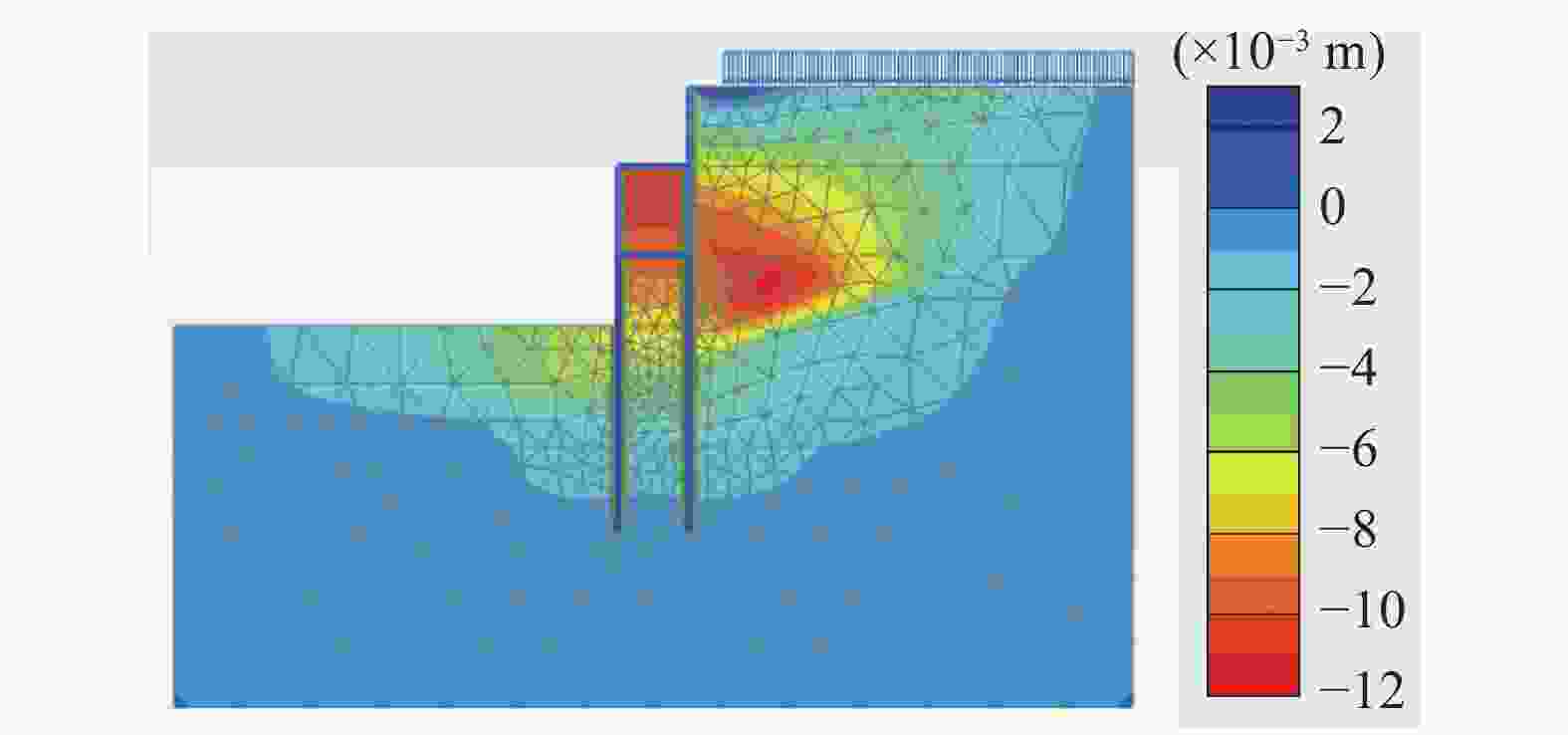

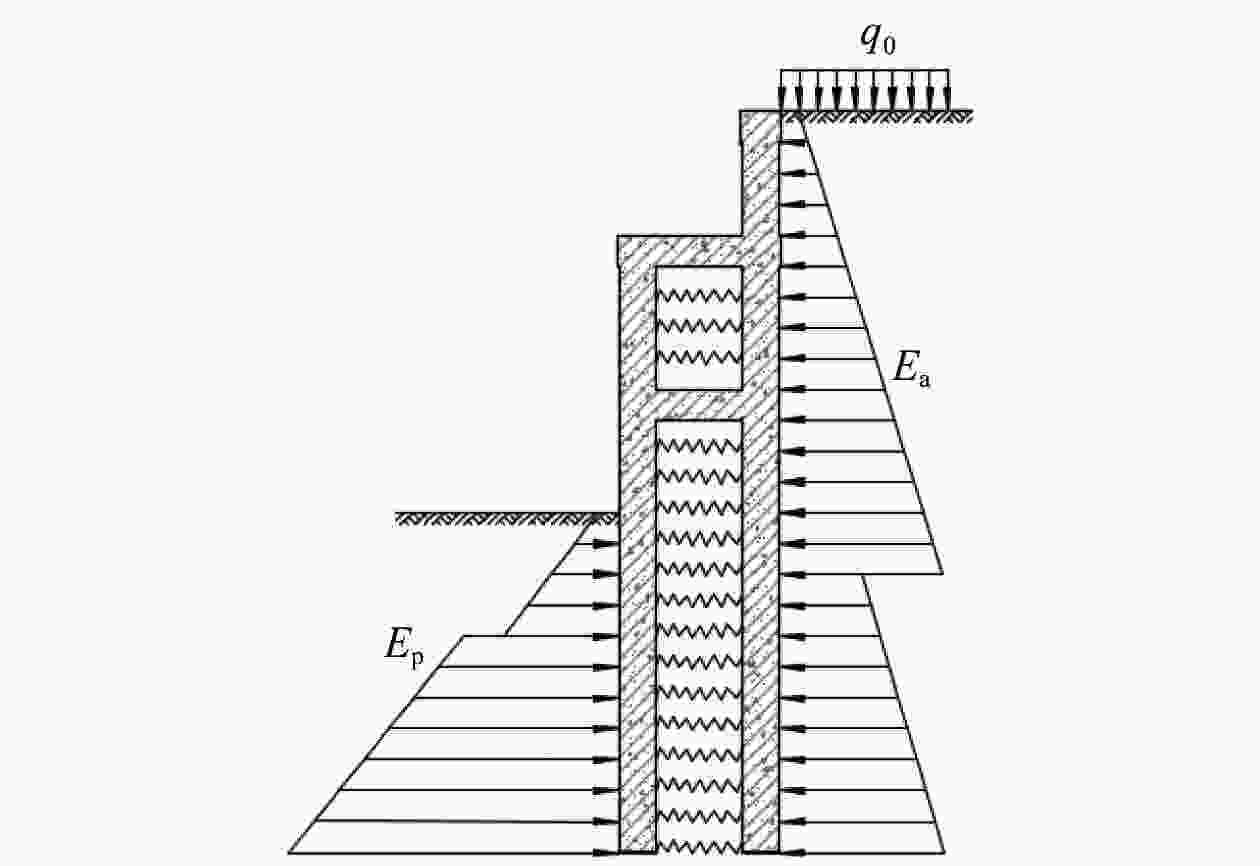

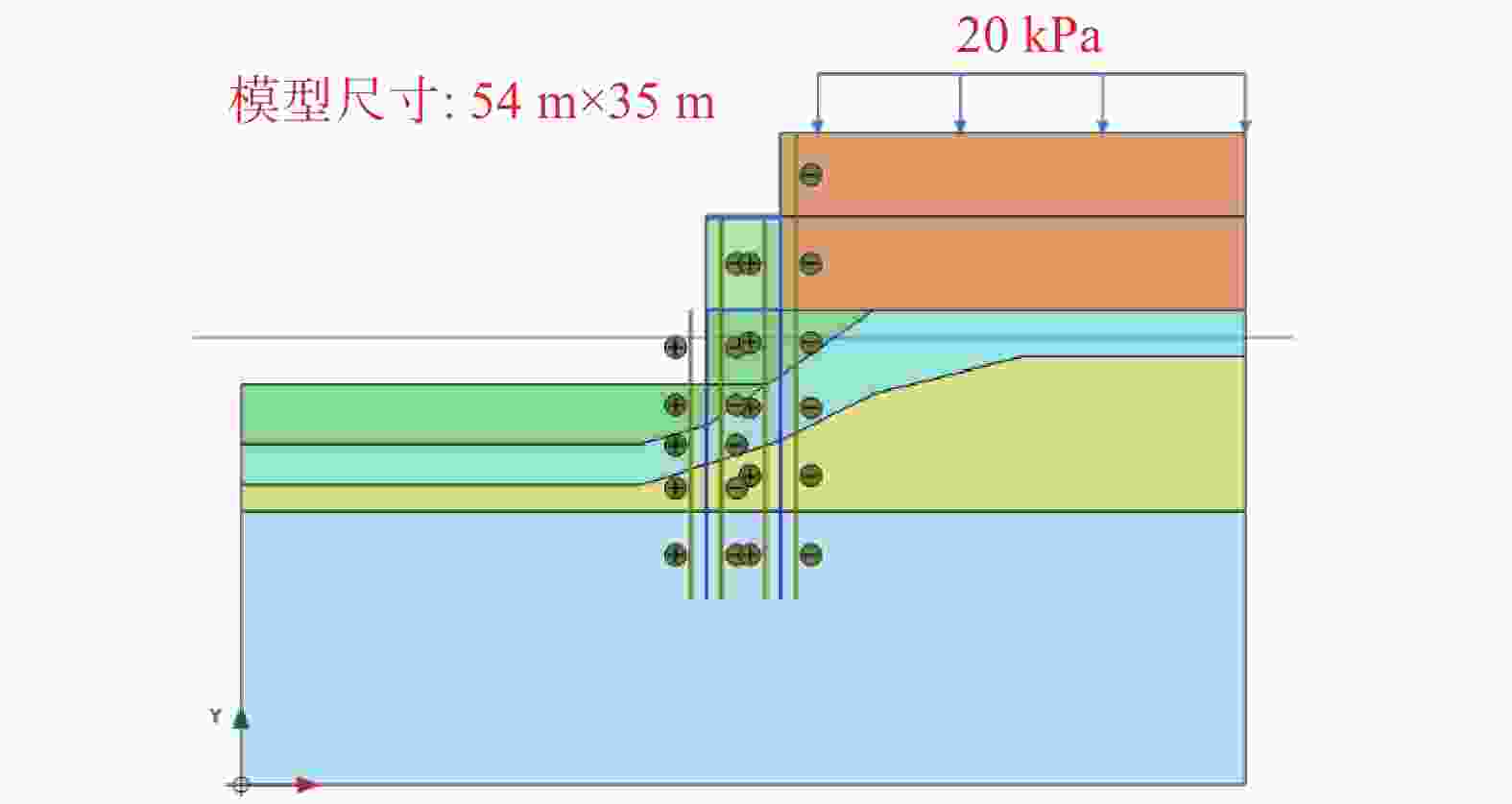

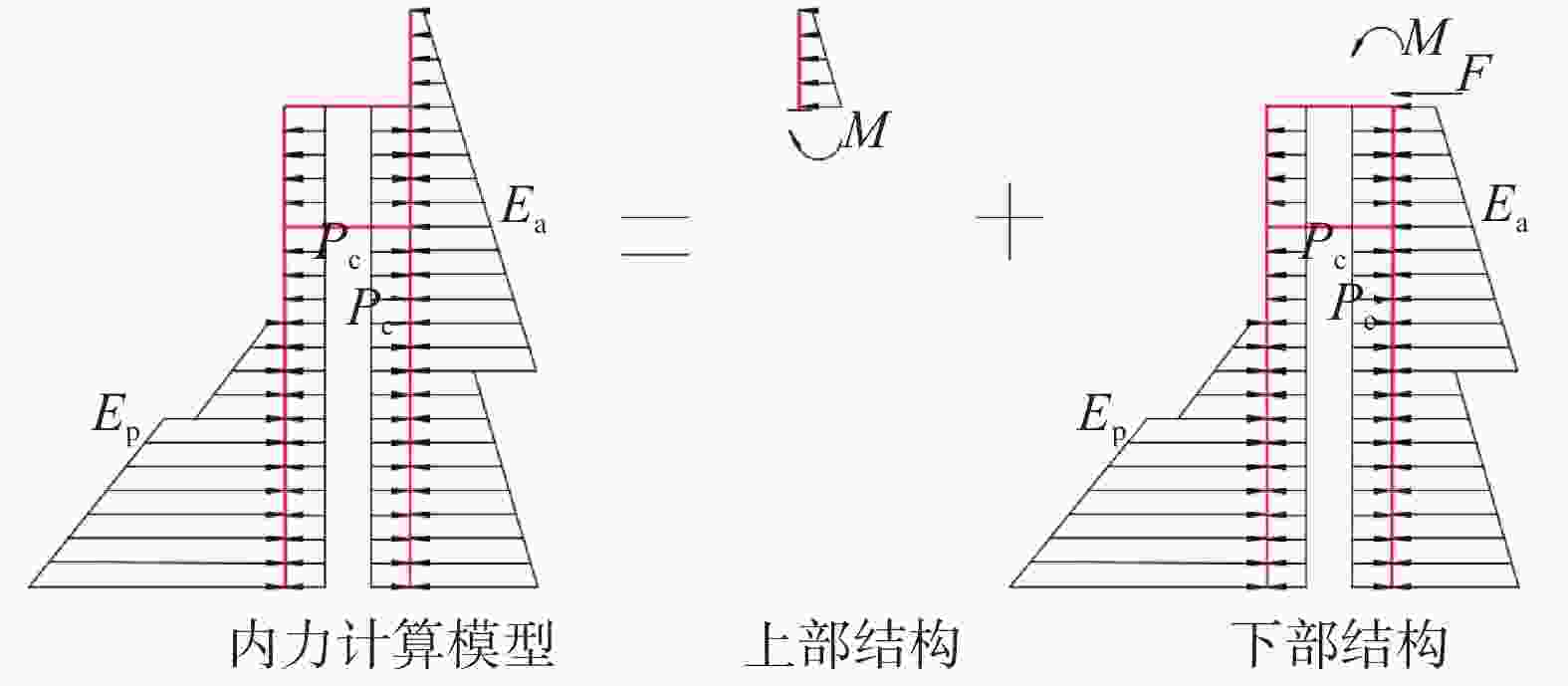

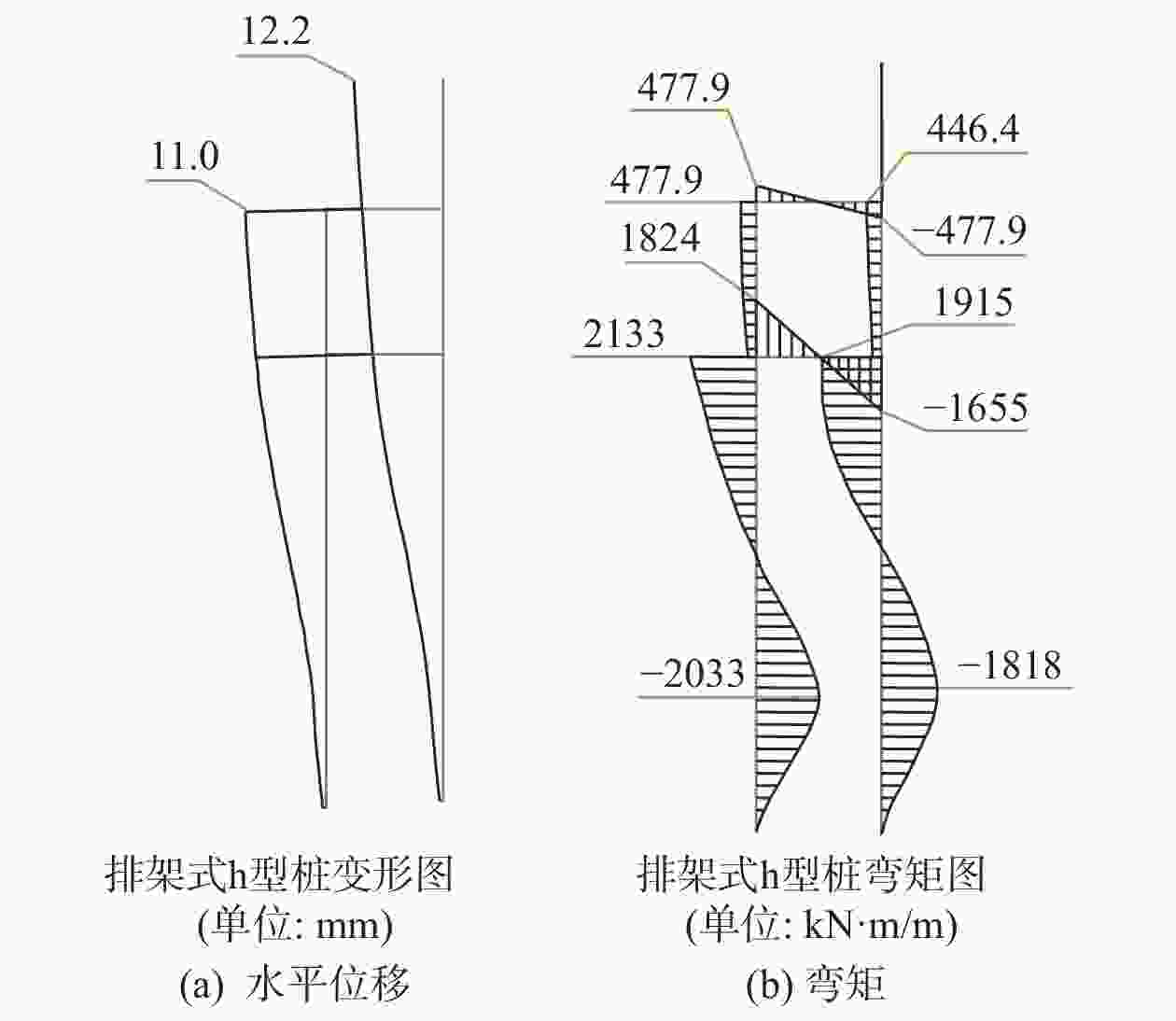

图 7 排架式h型桩结构水平位移及弯矩分布图
Figure 7. Horizontal displacement (left) and bending moment (right) of the bent-type h-piles

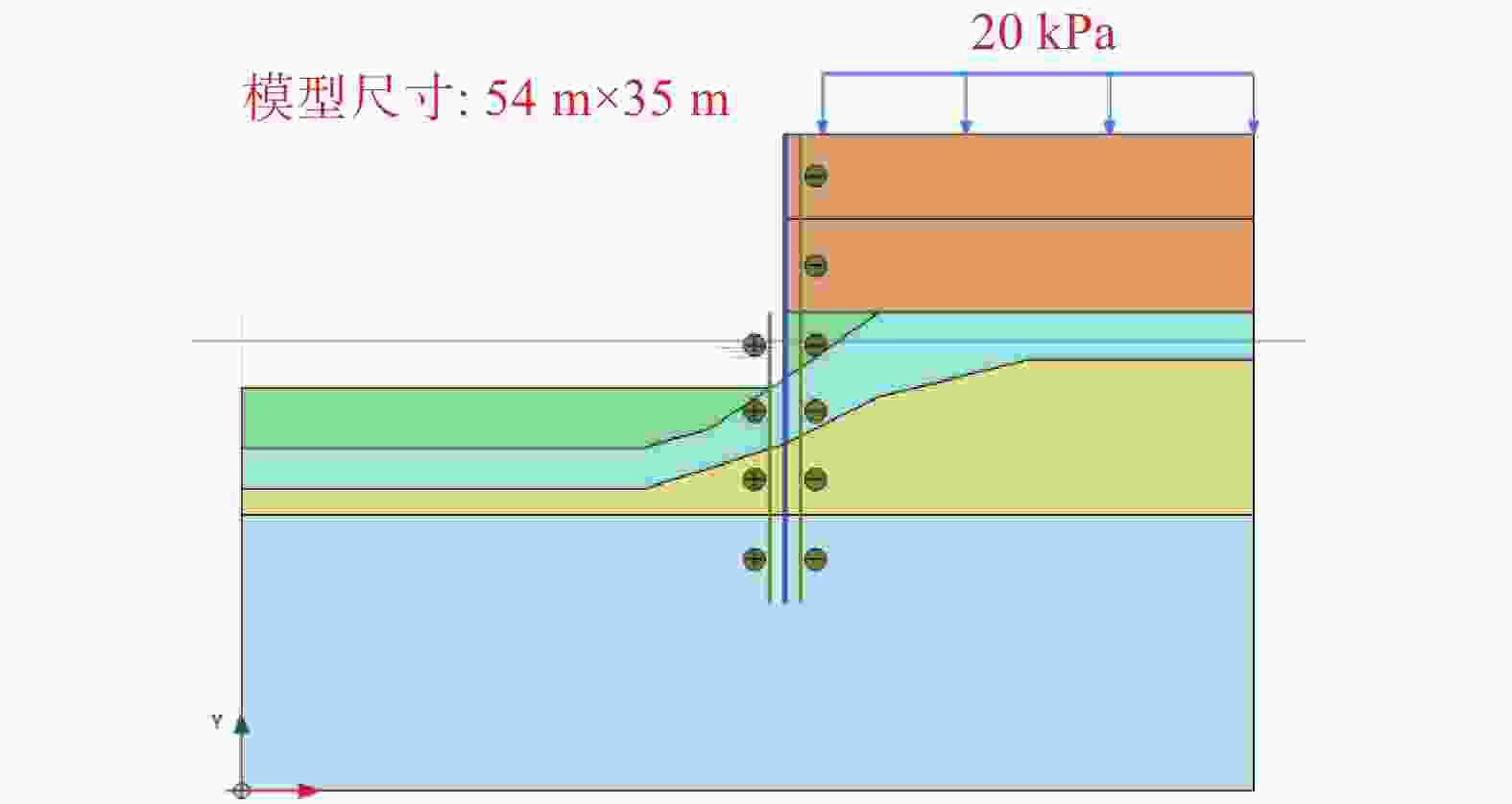

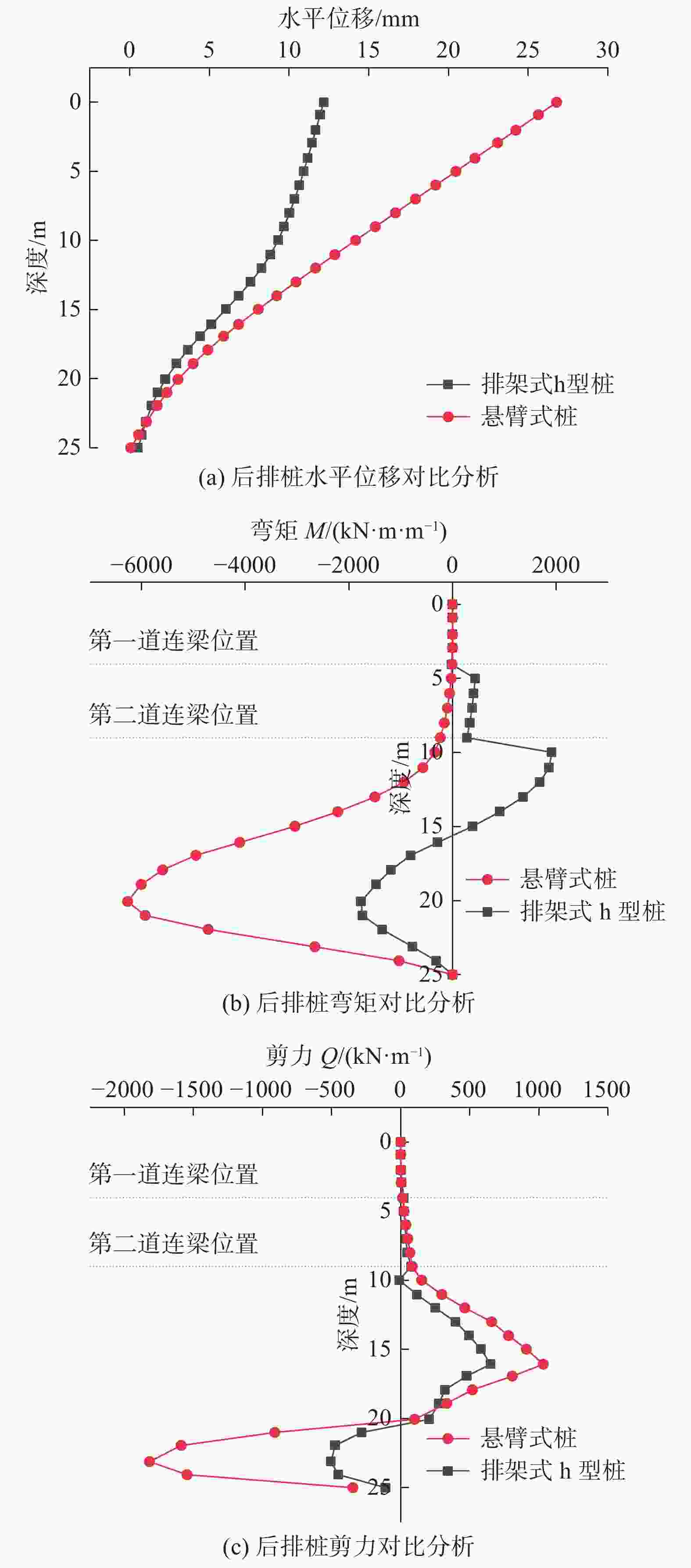

图 9 排架式h型桩与悬臂桩变形及内力对比
Figure 9. Comparison of deformation and internal forces between bent-type h-piles and cantilever piles

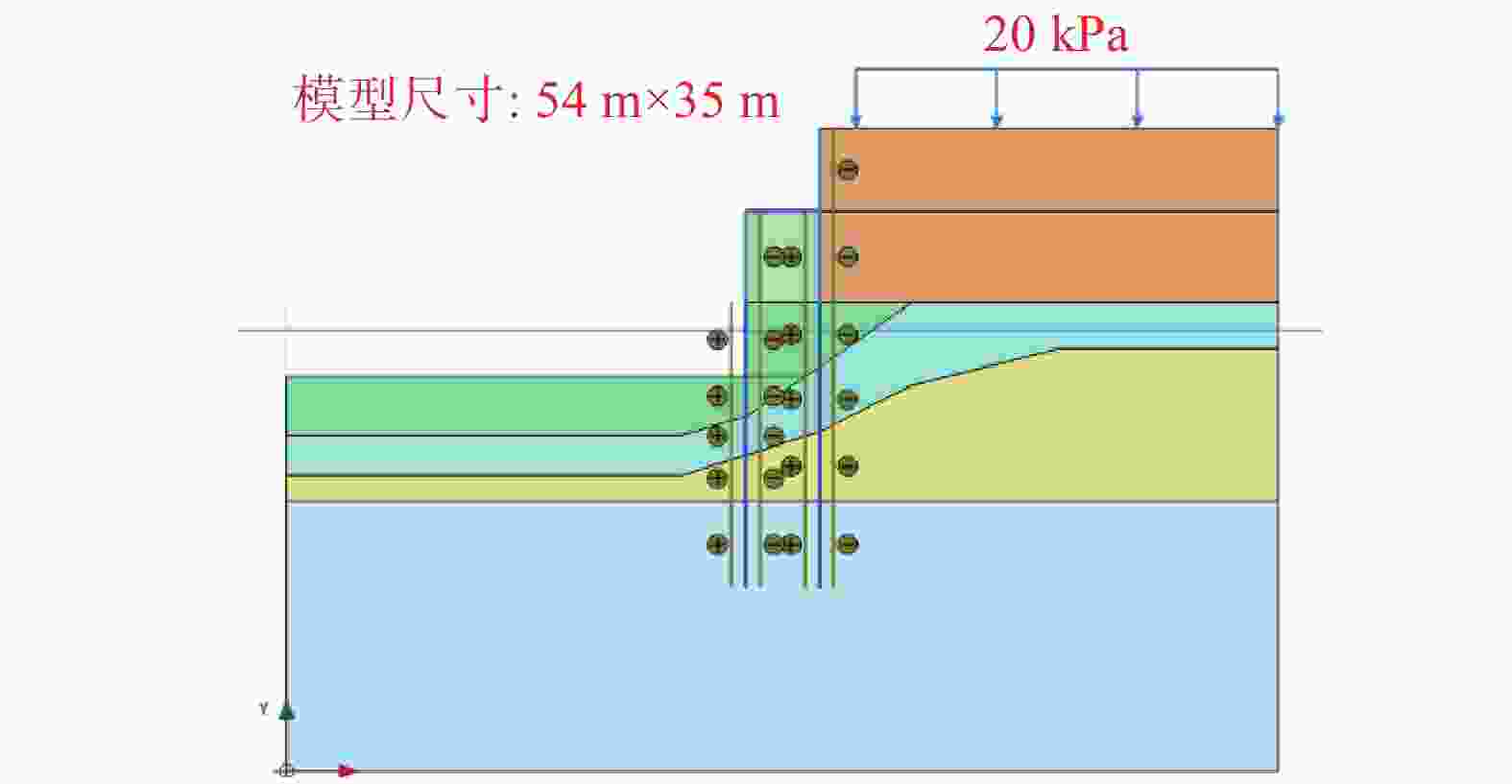

图 10 设置一道连梁的普通h型桩数值模型
Figure 10. Modeling of a common h-shaped pile with a connecting beam

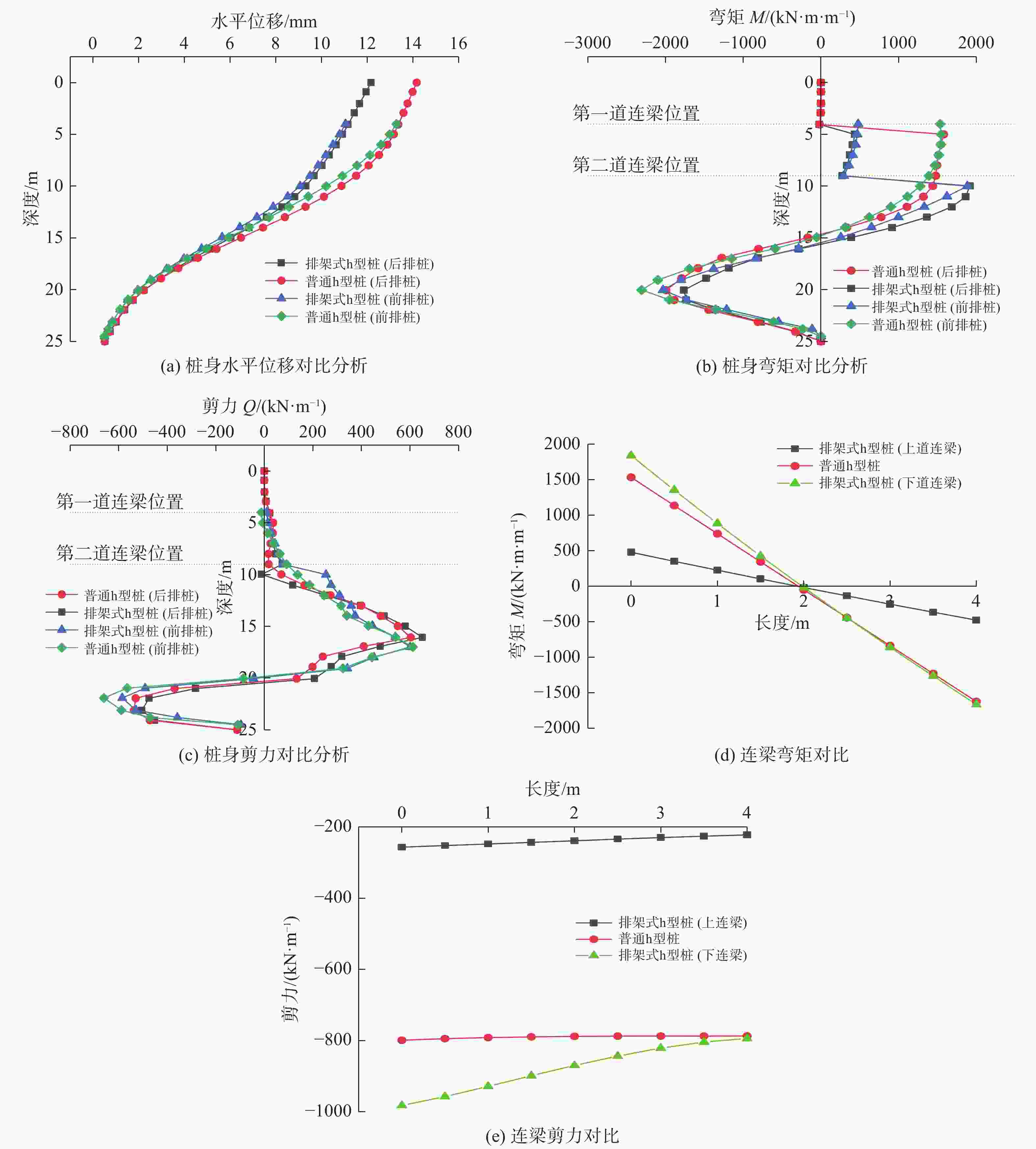

图 11 排架式h型桩与普通h型桩变形及内力对比
Figure 11. Comparison of deformation and internal forces between bent-type h-piles and ordinary h-piles

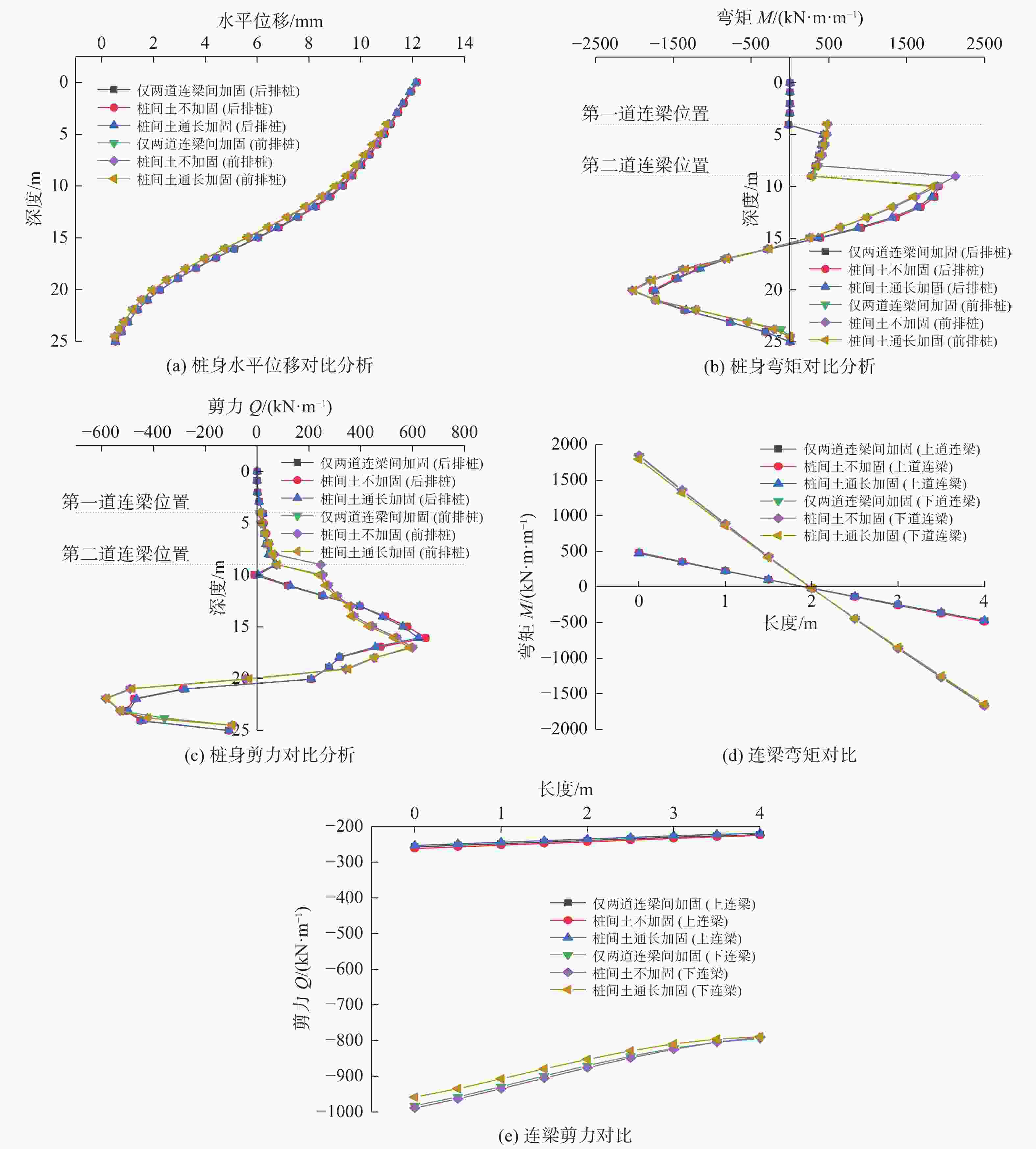

图 12 排架式h型桩间土加固的变形及内力对比
Figure 12. Comparison of deformation and internal forces of soil reinforcement between bent-type h-piles in a row structure

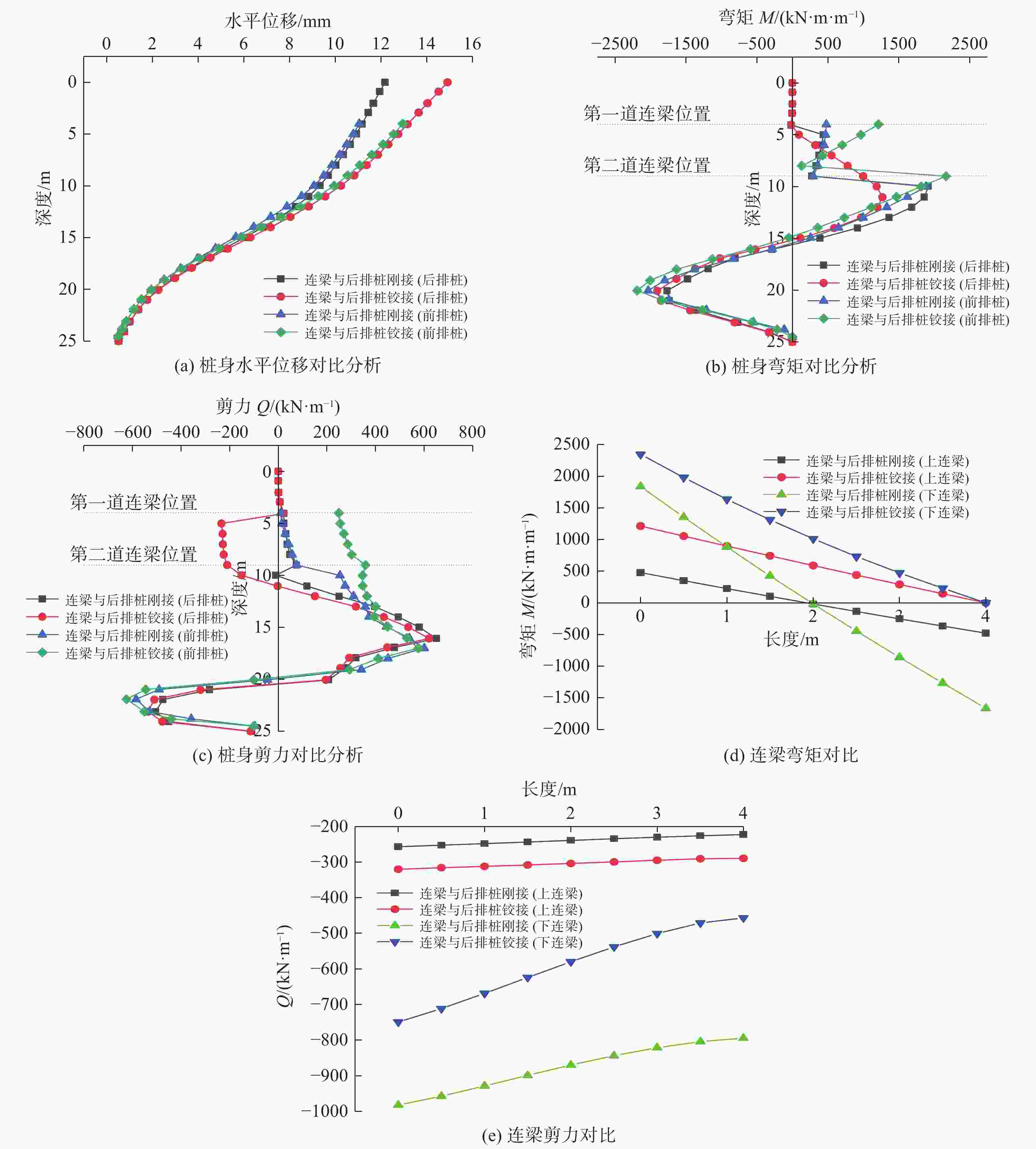

图 13 连梁与后排桩刚接或铰接变形及内力特性
Figure 13. Deformation and internal force characteristics of rigid or hinged connection between connecting beam and rear pile

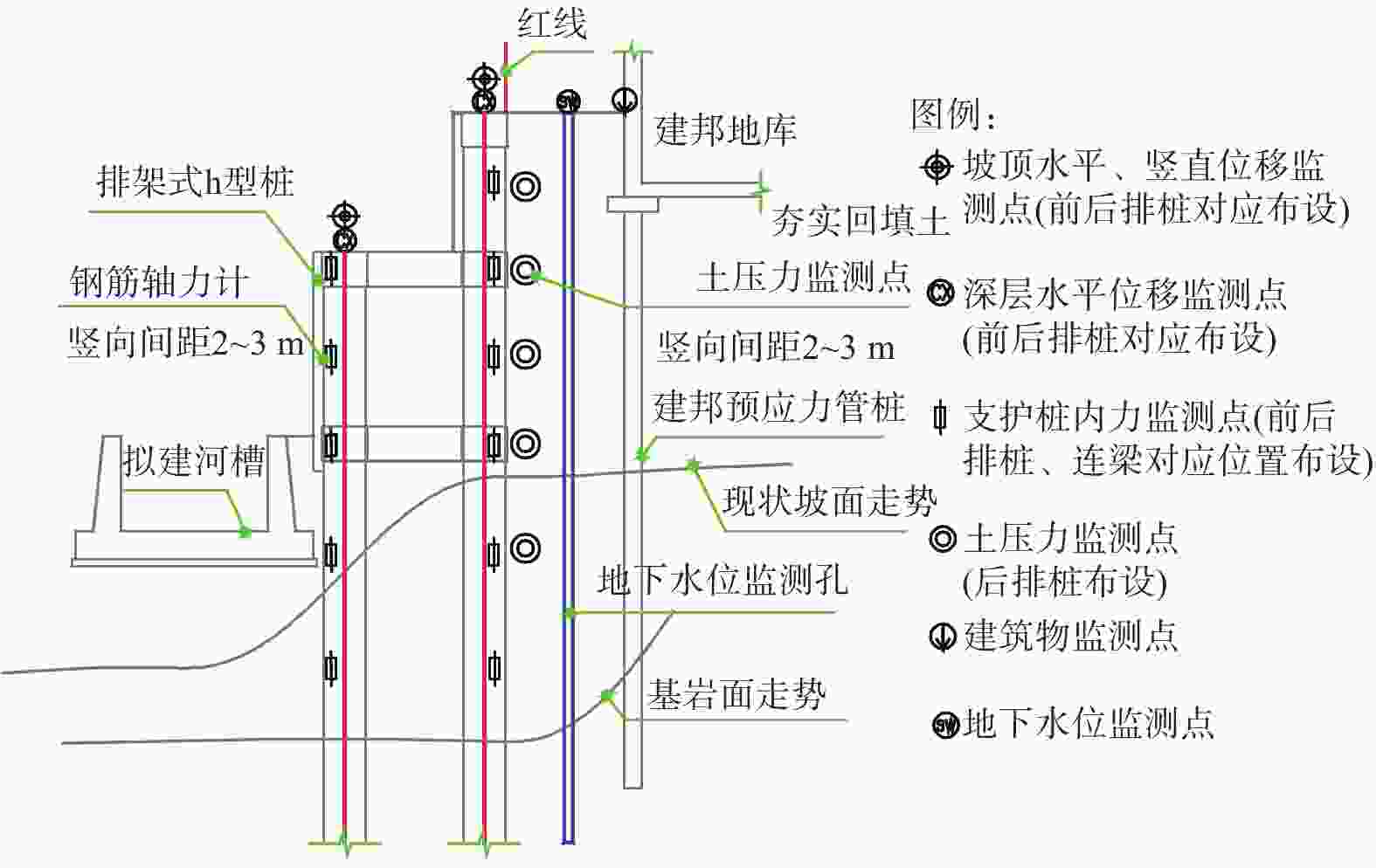

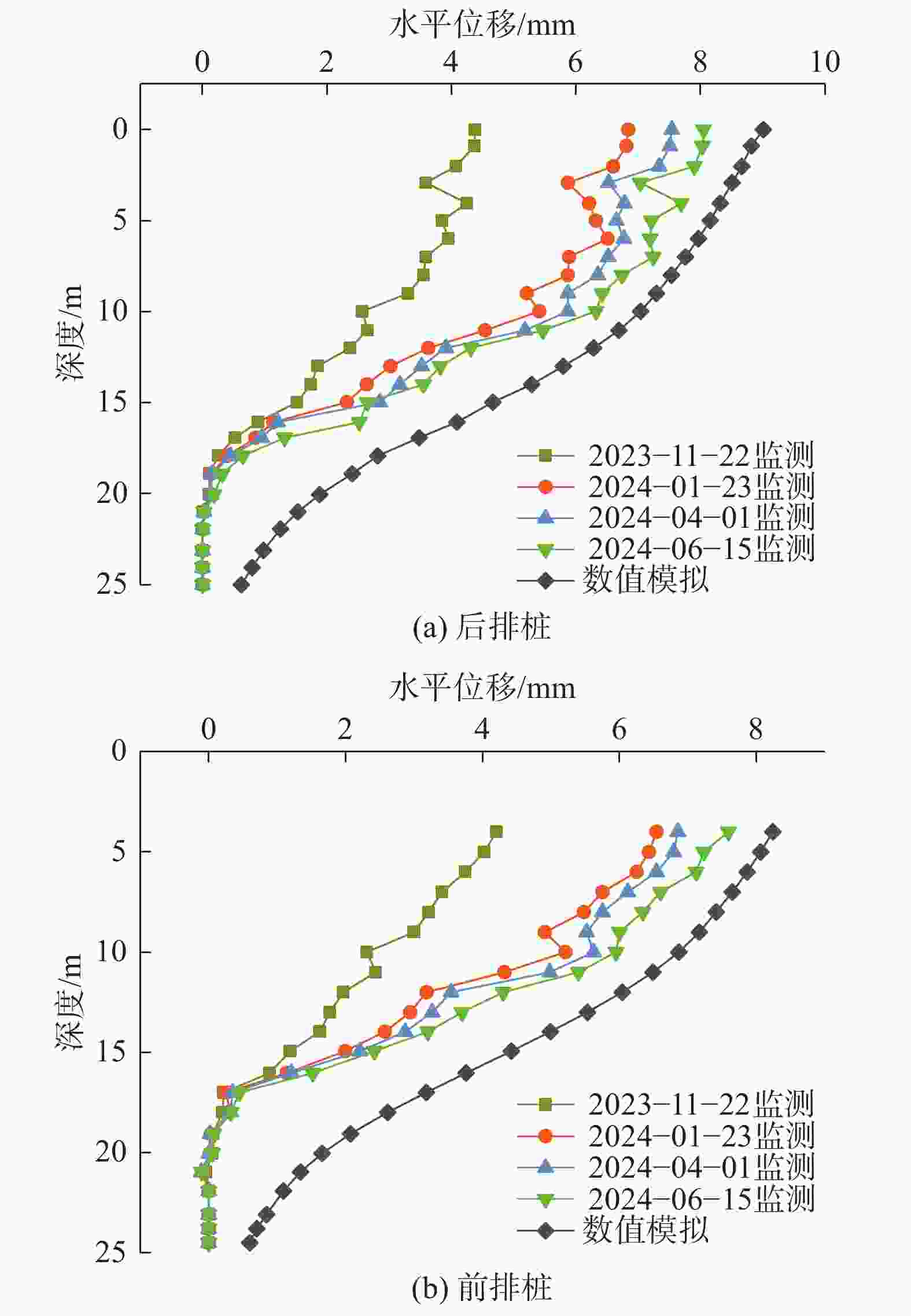

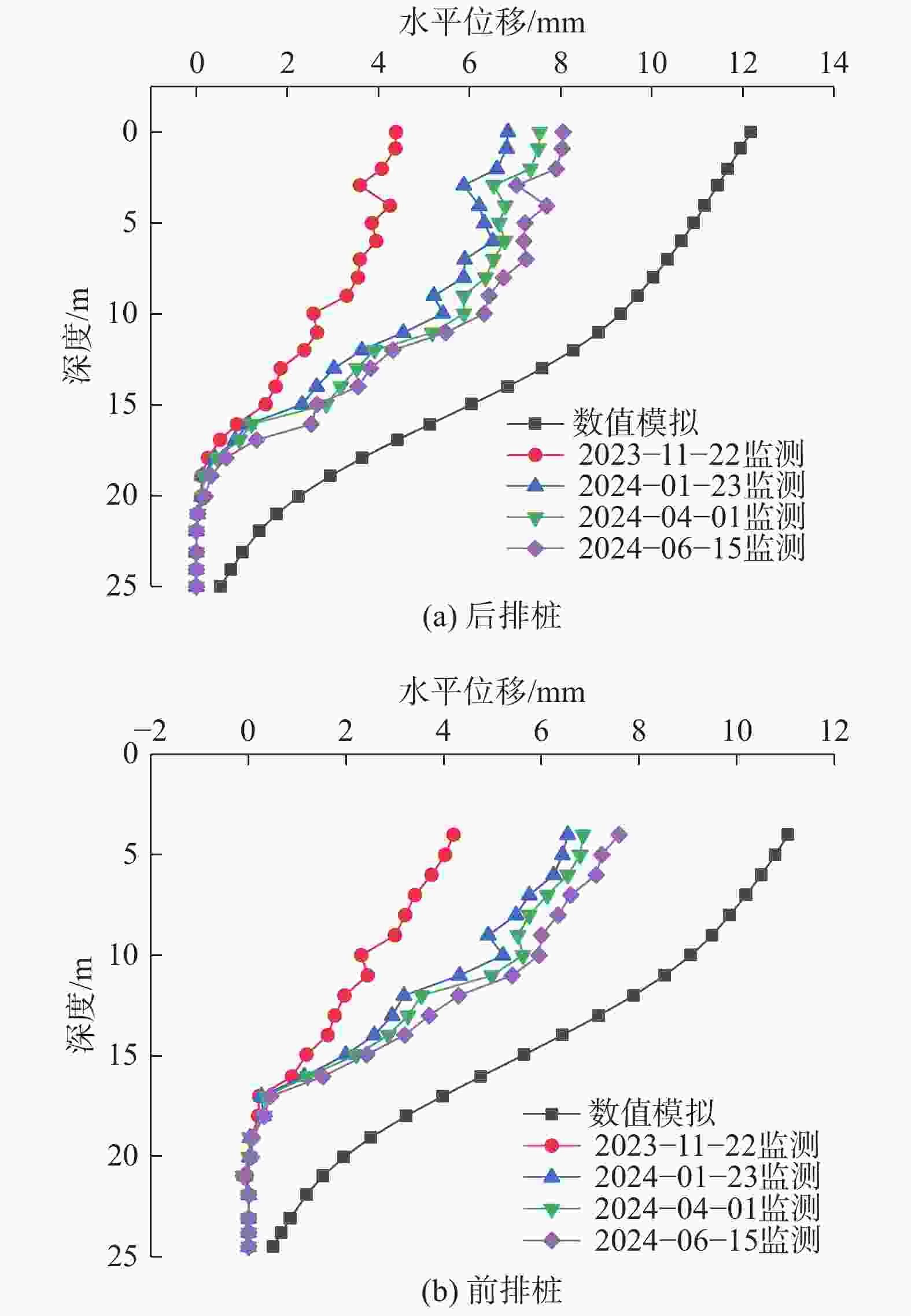

图 15 桩身位移数值模拟与工程监测对比
Figure 15. Comparison between numerical simulation of pile displacement and engineering monitoring

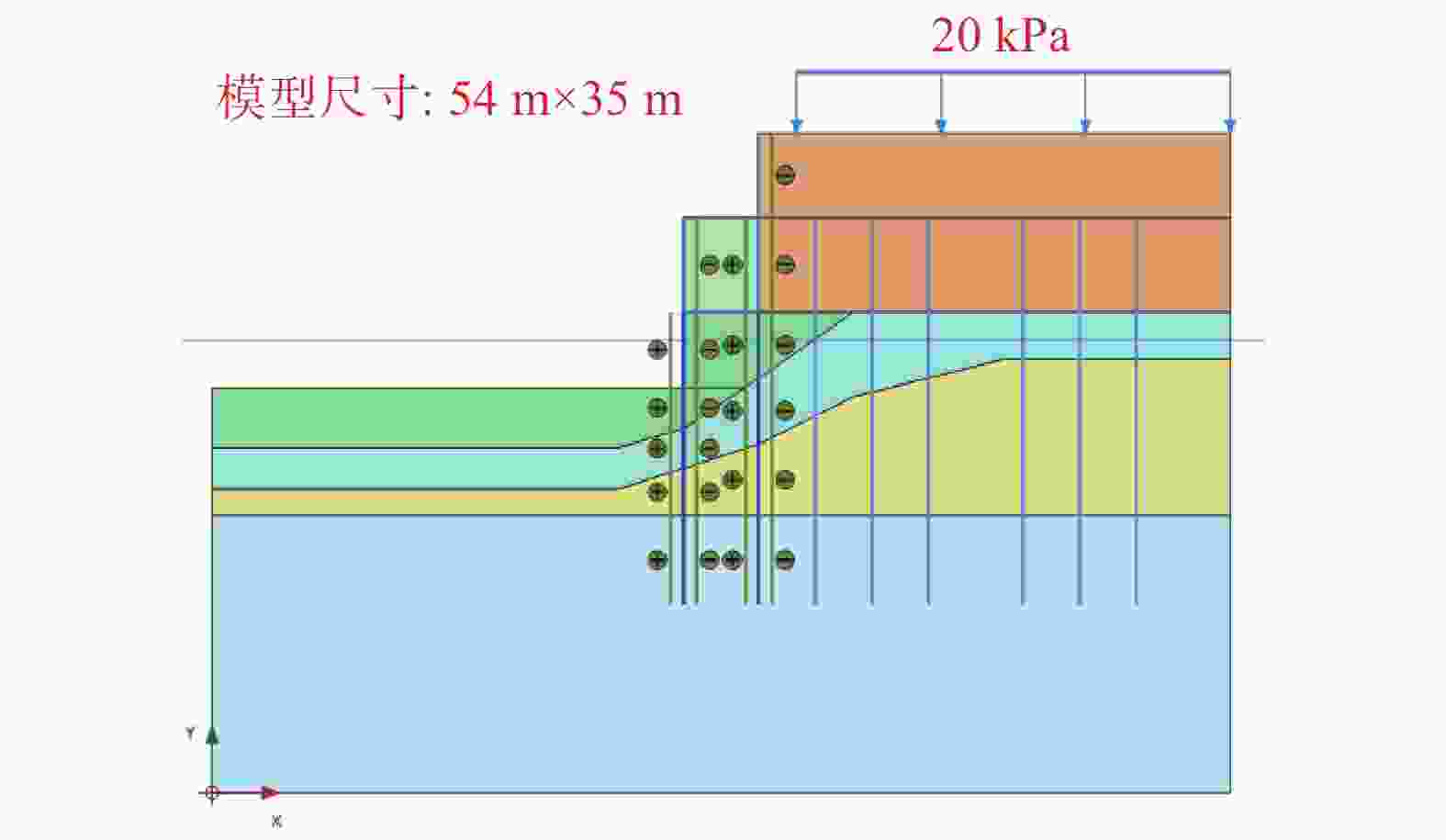

图 16 补充坡顶管桩基础后的排架式h型桩数值模型
Figure 16. Modeling of bent-type h-piles after supplementing pipe pile foundation at slope top
图 17 考虑坡顶管桩基础时的排桩水平位移实测与模拟对比分析
Figure 17. Comparative analysis of measured and simulated horizontal displacement of piled walls considering the foundation of pipe piles at the top of the slope

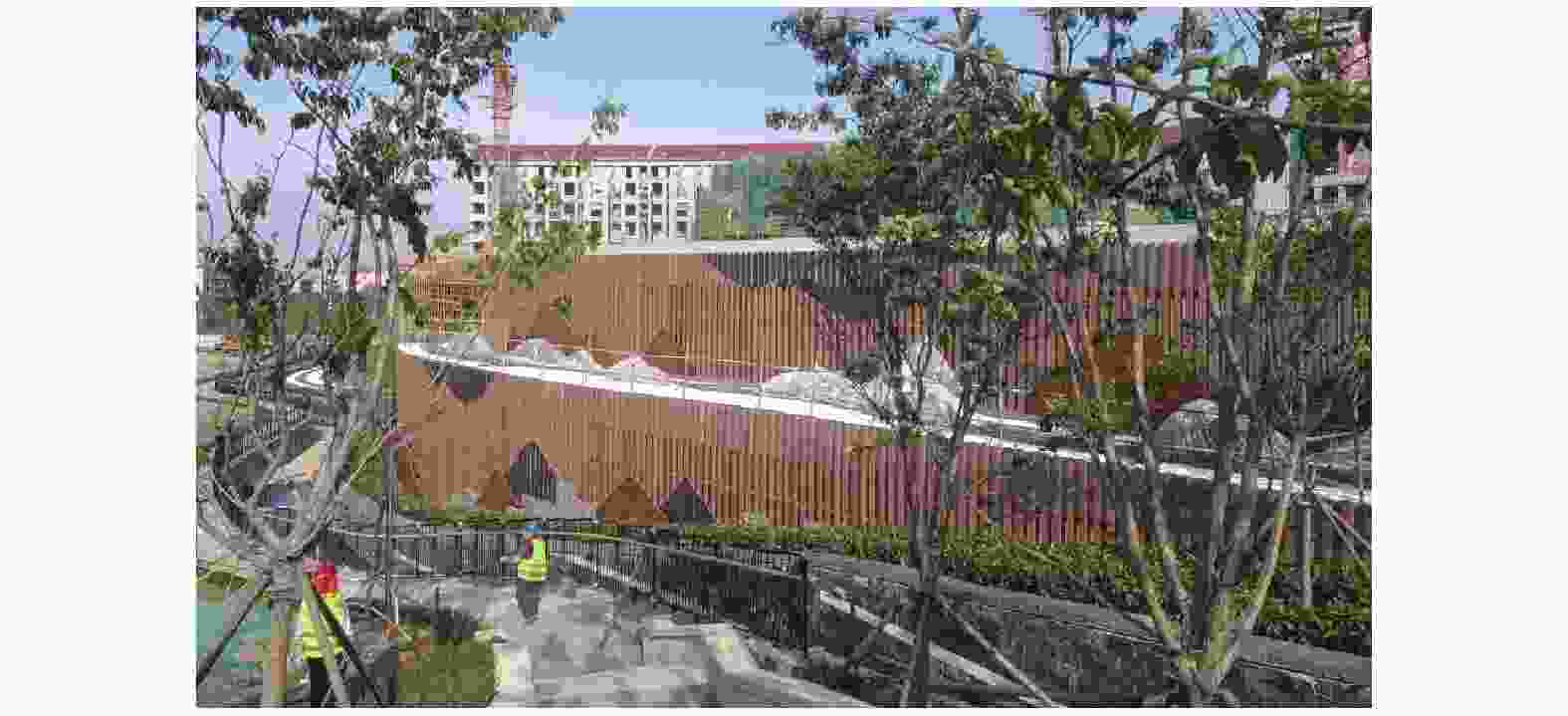

图 18 九曲河边坡支护工程竣工效果
Figure 18. Completion drawing of Jiuqu Riverside slope support project
表 1 岩土体参数取值选取表
Table 1. Selection of rock and soil parameters
岩土体 重度γ
/（kN·m−3）泊松比
μ弹性模量
E/MPa抗剪强度 黏聚力
c/kPa内摩擦角
φ/ （°）回填土 18.0 0.33 10 10 25 压实填土 19.0 0.28 20 15 30 强风化岩 21.0 0.23 200 50 40 中等风化岩 23.0 0.20 2000 100 45 支护桩 25.0 0.15 30000
下载: 导出CSV
表 2 桩间土加固前后岩土体参数取值表
Table 2. Values of geotechnical parameters before and after reinforcement of soil between piles
岩土体(桩间土) 重度γ/ （kN·m−3） 泊松比μ 弹性模量E/ MPa 抗剪强度 黏聚力c/ kPa 内摩擦角φ/ （°） 不加固 回填土 18.0 0.33 10 10 25 压实填土 19.0 0.28 20 15 30 上下两道连梁间加固 回填土 19.0 0.30 15 30 30 压实填土 19.0 0.28 20 15 30 桩间土全长加固 回填土 19.0 0.30 15 30 30 压实填土 20.0 0.25 25 40 33
下载: 导出CSV
-
[1] 罗 勇, 姜 波, 李春峰, 等. h型抗滑桩滑坡治理中的变形特性及内力研究[J]. 地下空间与工程学报, 2017, 13(6): 1702-1710. (LUO Y, JIANG B, LI C F, et al. Research on the deformation and internal force characteristics of h-type anti-slide piles in landslide treatment[J]. Chinese Journal of Underground Space and Engineering, 2017, 13(6): 1702-1710. (in Chinese)LUO Y, JIANG B, LI C F, et al. Research on the deformation and internal force characteristics of h-type anti-slide piles in landslide treatment[J]. Chinese Journal of Underground Space and Engineering, 2017, 13（6）: 1702-1710. (in Chinese) [2] 李永辉, 张 信, 张鼎浩, 等. 曲面滑坡条件下h型抗滑桩受力性状模型试验研究[J]. 工程力学, 2024, 41(7): 134-146. (LI Y H, ZHANG X, ZHANG D H, et al. Model test on mechanical behavior of h-type anti-slide pile under curved landslide[J]. Engineering Mechanics, 2024, 41(7): 134-146. (in Chinese) doi: 10.6052/j.issn.1000-4750.2022.05.0498LI Y H, ZHANG X, ZHANG D H, et al. Model test on mechanical behavior of h-type anti-slide pile under curved landslide[J]. Engineering Mechanics, 2024, 41（7）: 134-146. (in Chinese) doi: 10.6052/j.issn.1000-4750.2022.05.0498 [3] 李 兵, 赵如雄, 马洪生, 等. 圆截面h型抗滑桩受力与变形分析[J]. 地下空间与工程学报, 2021, 17(S2): 1023-1027. (LI B, ZHAO R X, MA H S, et al. Analysis on the stress and deformation of circular section h-type anti-slide piles[J]. Chinese Journal of Underground Space and Engineering, 2021, 17(S2): 1023-1027. (in Chinese) doi: 10.20174/j.juse.2021.s2.069LI B, ZHAO R X, MA H S, et al. Analysis on the stress and deformation of circular section h-type anti-slide piles[J]. Chinese Journal of Underground Space and Engineering, 2021, 17（S2）: 1023-1027. (in Chinese) doi: 10.20174/j.juse.2021.s2.069 [4] 肖世国. 边(滑)坡治理中h型组合抗滑桩的分析方法及工程应用[J]. 岩土力学, 2010, 31(7): 2146-2152. (XIAO S G. Analytical method for h-type combined anti-sliding pile retaining landslide or excavated slope and its application to practical projects[J]. Rock and Soil Mechanics, 2010, 31(7): 2146-2152. (in Chinese)XIAO S G. Analytical method for h-type combined anti-sliding pile retaining landslide or excavated slope and its application to practical projects[J]. Rock and Soil Mechanics, 2010, 31（7）: 2146-2152. (in Chinese) [5] 蒋楚生. 椅式抗滑桩的内力计算[J]. 路基工程, 2004(1): 57-59. (JIANG C S. Internal force computation of chair type slide-resistant pile[J]. Subgrade Engineering, 2004(1): 57-59. (in Chinese) doi: 10.3969/j.issn.1003-8825.2004.01.024JIANG C S. Internal force computation of chair type slide-resistant pile[J]. Subgrade Engineering, 2004（1）: 57-59. (in Chinese) doi: 10.3969/j.issn.1003-8825.2004.01.024 [6] 张永杰, 周 欢, 冯夏庭, 等. h型抗滑桩简化计算方法及其影响因素分析[J]. 岩石力学与工程学报, 2016, 35(S1): 2935-2943. (ZHANG Y J, ZHOU H, FENG X T, et al. Simplified calculation method and affecting factors analysis of h-type anti-slide pile[J]. Chinese Journal of Rock Mechanics and Engineering, 2016, 35(S1): 2935-2943. (in Chinese) doi: 10.13722/j.cnki.jrme.2015.0701ZHANG Y J, ZHOU H, FENG X T, et al. Simplified calculation method and affecting factors analysis of h-type anti-slide pile[J]. Chinese Journal of Rock Mechanics and Engineering, 2016, 35（S1）: 2935-2943. (in Chinese) doi: 10.13722/j.cnki.jrme.2015.0701 [7] 应宏伟, 初振环. 深基坑带撑双排桩支护结构有限元分析[J]. 岩石力学与工程学报, 2007, 26(S2): 4325-4331. (YING H W, CHU Z H. Finite element analysis of deep excavation with braced retaining structure of double-row piles[J]. Chinese Journal of Rock Mechanics and Engineering, 2007, 26(S2): 4325-4331. (in Chinese)YING H W, CHU Z H. Finite element analysis of deep excavation with braced retaining structure of double-row piles[J]. Chinese Journal of Rock Mechanics and Engineering, 2007, 26（S2）: 4325-4331. (in Chinese) [8] 欧孝夺, 唐迎春, 崔 伟, 等. h型抗滑桩模型试验及数值模拟[J]. 岩石力学与工程学报, 2012, 31(9): 1936-1943. (OU X D, TANG Y C, CUI W, et al. Model test and numerical simulation of h-shaped anti-sliding pile[J]. Chinese Journal of Rock Mechanics and Engineering, 2012, 31(9): 1936-1943. (in Chinese)OU X D, TANG Y C, CUI W, et al. Model test and numerical simulation of h-shaped anti-sliding pile[J]. Chinese Journal of Rock Mechanics and Engineering, 2012, 31（9）: 1936-1943. (in Chinese) [9] 王继晟, 熊传祥. h型抗滑桩工作性状有限元分析[J]. 土工基础, 2014, 28(1): 53-56. (WANG J S, XIONG C X. Finite element analysis of h-type piles for landslide mitigations[J]. Soil Engineering and Foundation, 2014, 28(1): 53-56. (in Chinese)WANG J S, XIONG C X. Finite element analysis of h-type piles for landslide mitigations[J]. Soil Engineering and Foundation, 2014, 28（1）: 53-56. (in Chinese) [10] 詹智麒, 徐光黎. 不同布桩方式对h型双排桩支护结构影响的数值模拟[J]. 安全与环境工程, 2020, 27(3): 193-199. (ZHAN Z Q, XU G L. Numerical simulation of the impact of different pile arrangement on the supporting structure of h-shaped double-row piles[J]. Safety and Environmental Engineering, 2020, 27(3): 193-199. (in Chinese) doi: 10.13578/j.cnki.issn.1671-1556.2020.03.027ZHAN Z Q, XU G L. Numerical simulation of the impact of different pile arrangement on the supporting structure of h-shaped double-row piles[J]. Safety and Environmental Engineering, 2020, 27（3）: 193-199. (in Chinese) doi: 10.13578/j.cnki.issn.1671-1556.2020.03.027 [11] 王 羽, 赵 波. h型抗滑桩结构机理与工程数值分析研究[J]. 公路工程, 2015, 40(6): 5-9. (WANG Y, ZHAO B. The structural mechanism and numerical simulation of h-type anti-sliding pile[J]. Highway Engineering, 2015, 40(6): 5-9. (in Chinese)WANG Y, ZHAO B. The structural mechanism and numerical simulation of h-type anti-sliding pile[J]. Highway Engineering, 2015, 40（6）: 5-9. (in Chinese) [12] 柳治国. ANSYS在h形抗滑桩设计中的应用[J]. 公路工程, 2013, 38(3): 144-147,154. (LIU Z G. Application of ANSYS on the design of h form anti-slide pile[J]. Highway Engineering, 2013, 38(3): 144-147,154. (in Chinese)LIU Z G. Application of ANSYS on the design of h form anti-slide pile[J]. Highway Engineering, 2013, 38（3）: 144-147,154. (in Chinese) [13] 邓友生, 杨 彪, 姚志刚, 等. h型抗滑桩受力性能模型试验研究[J]. 大连交通大学学报, 2024, 45(1): 73-77. (DENG Y S, YANG B, YAO Z G, et al. Model tests on mechanical behavior of h-type anti-slide pile[J]. Journal of Dalian Jiaotong University, 2024, 45(1): 73-77. (in Chinese) doi: 10.13291/j.cnki.djdxac.2024.01.012DENG Y S, YANG B, YAO Z G, et al. Model tests on mechanical behavior of h-type anti-slide pile[J]. Journal of Dalian Jiaotong University, 2024, 45（1）: 73-77. (in Chinese) doi: 10.13291/j.cnki.djdxac.2024.01.012 [14] 姚裕春, 魏永幸, 李安洪. 椅式桩板结构变形破坏特征模型试验研究分析[J]. 高速铁路技术, 2019, 10(1): 6-10. (YAO Y C, WEI Y X, LI A H. Model test study on deformation and failure characteristics of chair-shaped pile-sheet structure[J]. High Speed Railway Technology, 2019, 10(1): 6-10. (in Chinese) doi: 10.12098/j.issn.1674-8247.2019.01.002YAO Y C, WEI Y X, LI A H. Model test study on deformation and failure characteristics of chair-shaped pile-sheet structure[J]. High Speed Railway Technology, 2019, 10（1）: 6-10. (in Chinese) doi: 10.12098/j.issn.1674-8247.2019.01.002 [15] 杨佳桦, 王 凯, 邓丽华, 等. 桁架式抗滑桩与两种抗滑桩结构内力分析对比[J]. 地下空间与工程学报, 2015, 11(S2): 607-610. (YANG J H, WANG K, DENG L H, et al. Comparison and analysis of internal force of trussed slide resistant pile’s structure with two kinds of anti-slide pile’s[J]. Chinese Journal of Underground Space and Engineering, 2015, 11(S2): 607-610. (in Chinese) doi: 10.20174/j.juse.2015.s2.042YANG J H, WANG K, DENG L H, et al. Comparison and analysis of internal force of trussed slide resistant pile’s structure with two kinds of anti-slide pile’s[J]. Chinese Journal of Underground Space and Engineering, 2015, 11（S2）: 607-610. (in Chinese) doi: 10.20174/j.juse.2015.s2.042 -
