Application research of microtremor exploration in void detection
-
摘要: 针对郑州市三环内老城区地下人防工程分布广泛、年代久远且资料缺失的问题，采用天然源微动探测技术进行地下空间探测。以某中学已知地下人防工程为地质模型，通过对比圆形、菱形、十字形及直线形等多种观测系统的探测效果，评估了该技术的适用性。结果表明，二维观测装置（尤其是多重圆形和菱形装置）较一维直线形装置具有更优的探测效果，其平面定位精度高，深度误差小，能够有效识别地下防空洞的空间分布特征。该方法具有操作简便、效率高、无损检测等优势，为城市地下空间探测提供了可靠的技术手段，对微动探测技术的推广应用具有实践意义。Abstract: Aiming at the problems of wide distribution, long service life and lack of data of underground civil air defense projects in the old urban areas within the third ring road of Zhengzhou City, this study adopts the natural-source microtremor exploration technology for urban underground space detection. Taking the known underground civil air defense project of a middle school as the geological model, the applicability of this technology is evaluated by comparing the detection effects of various observation arrays including circular, rhombus, cross and linear arrays. The results show that two-dimensional observation arrays, especially multi-circular and rhombus arrays, have better detection performance than one-dimensional linear arrays, with high planar positioning accuracy and small depth error, which can effectively identify the spatial distribution characteristics of underground air-raid shelters. This method has the advantages of simple operation, high efficiency and non-destructive testing. It provides a reliable technical means for urban underground space detection and is of great practical significance for the popularization and application of microtremor exploration technology.
-

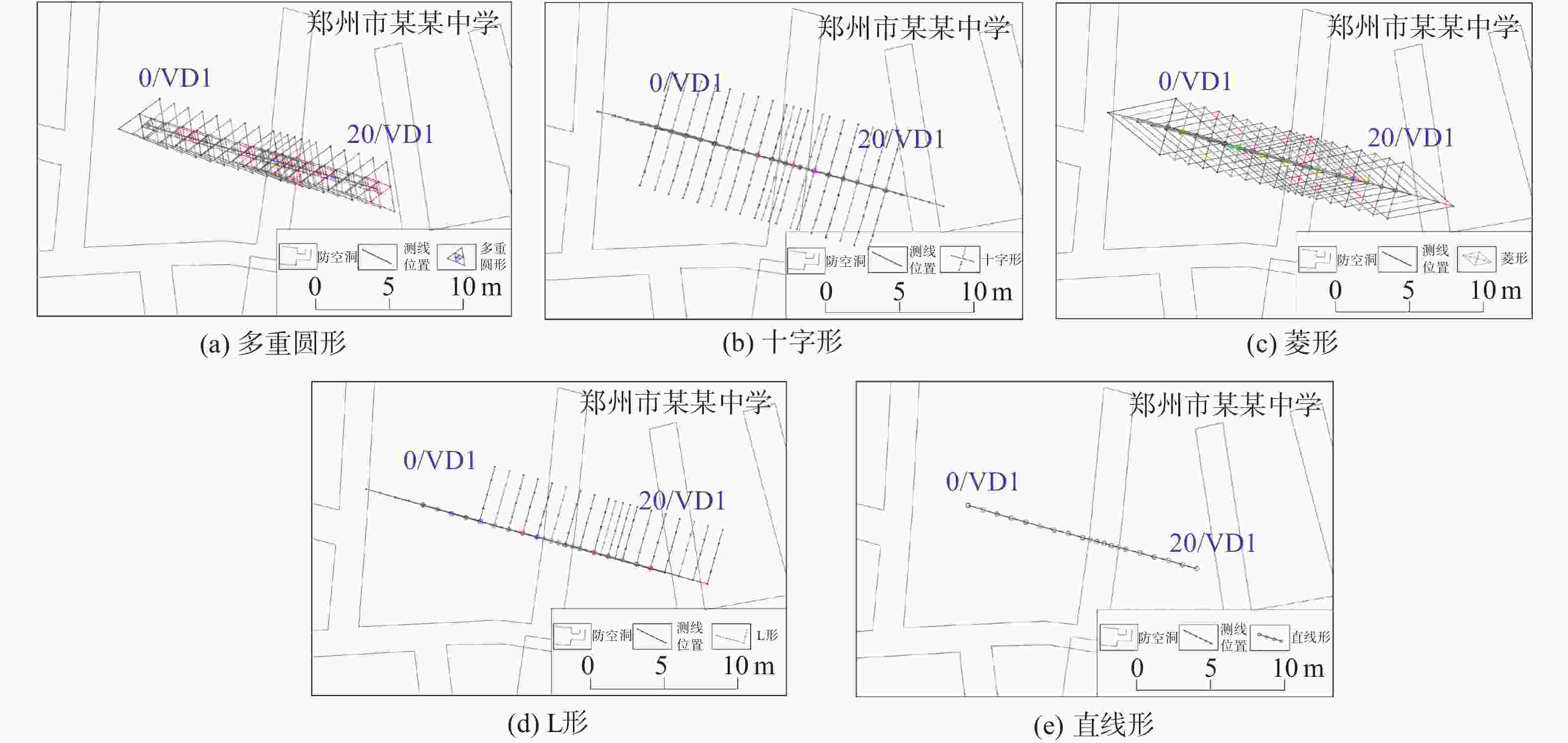

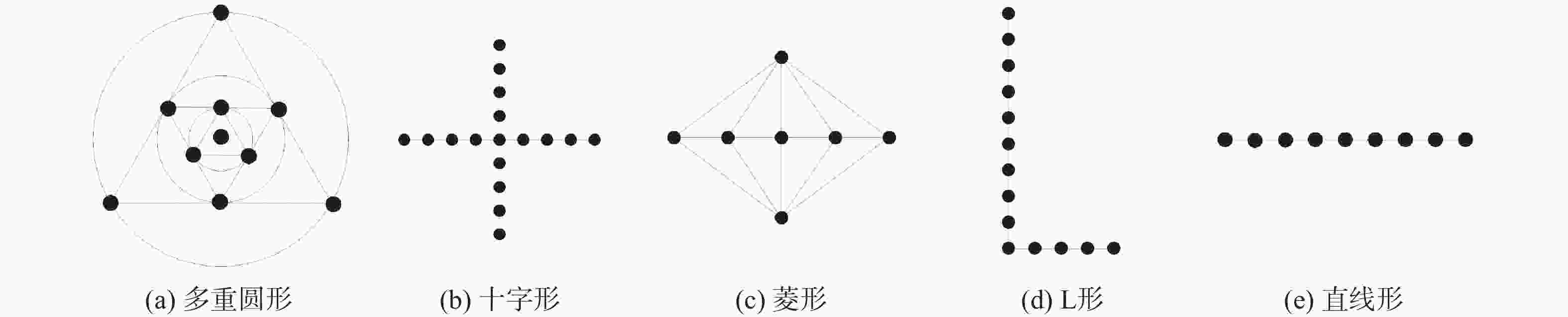

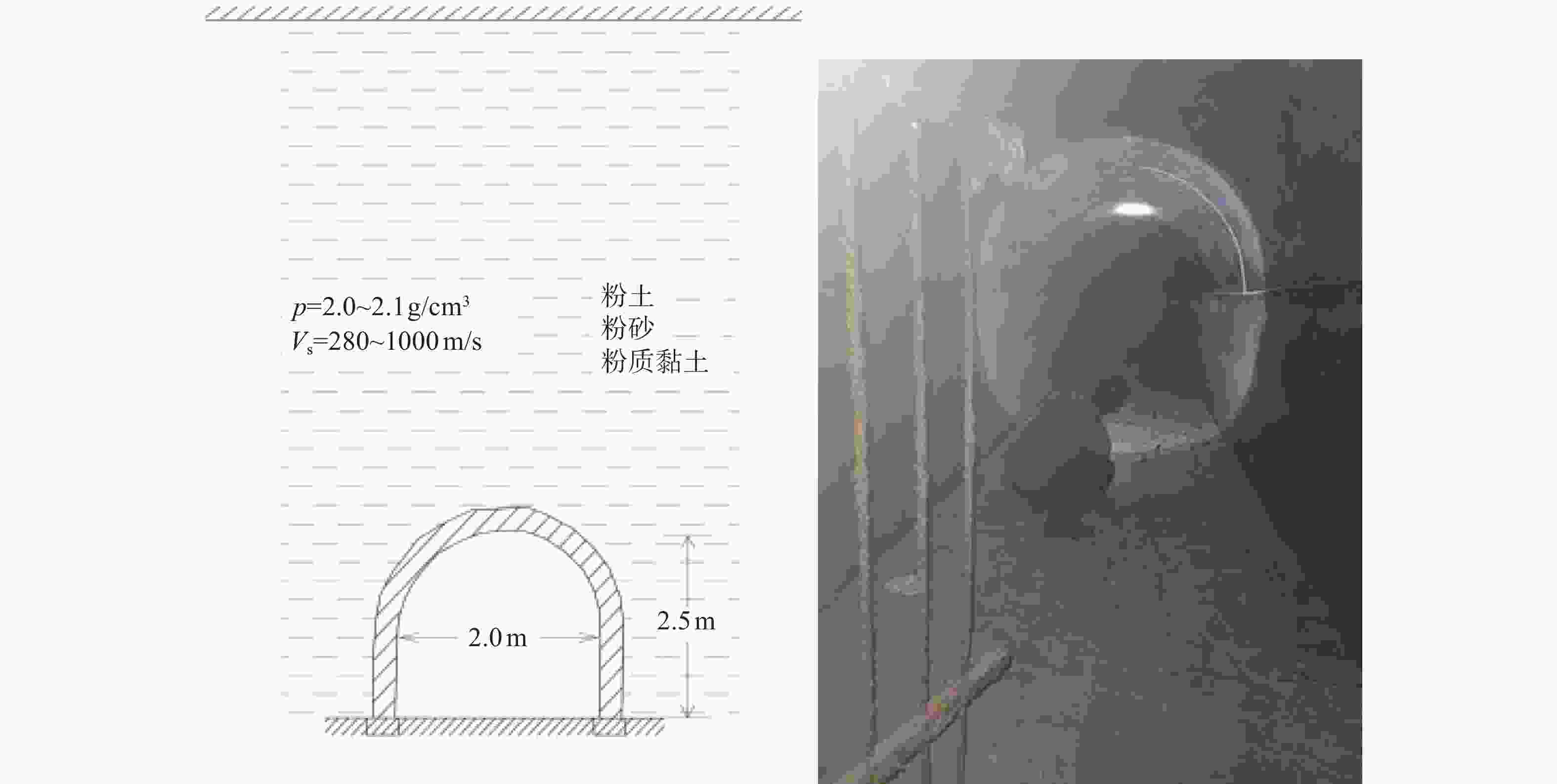

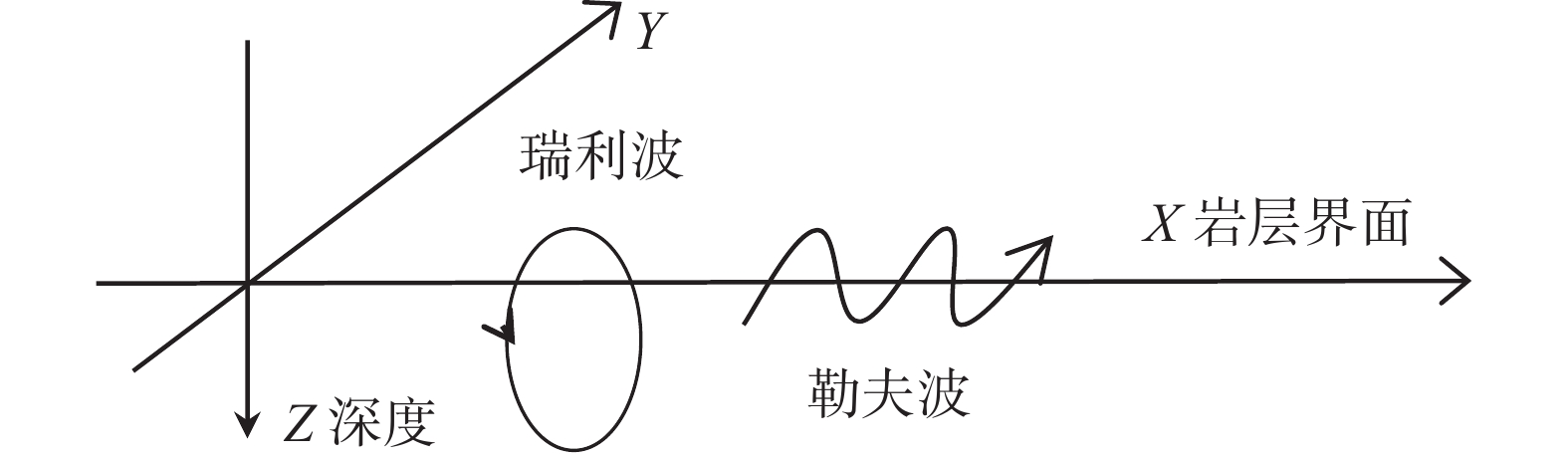

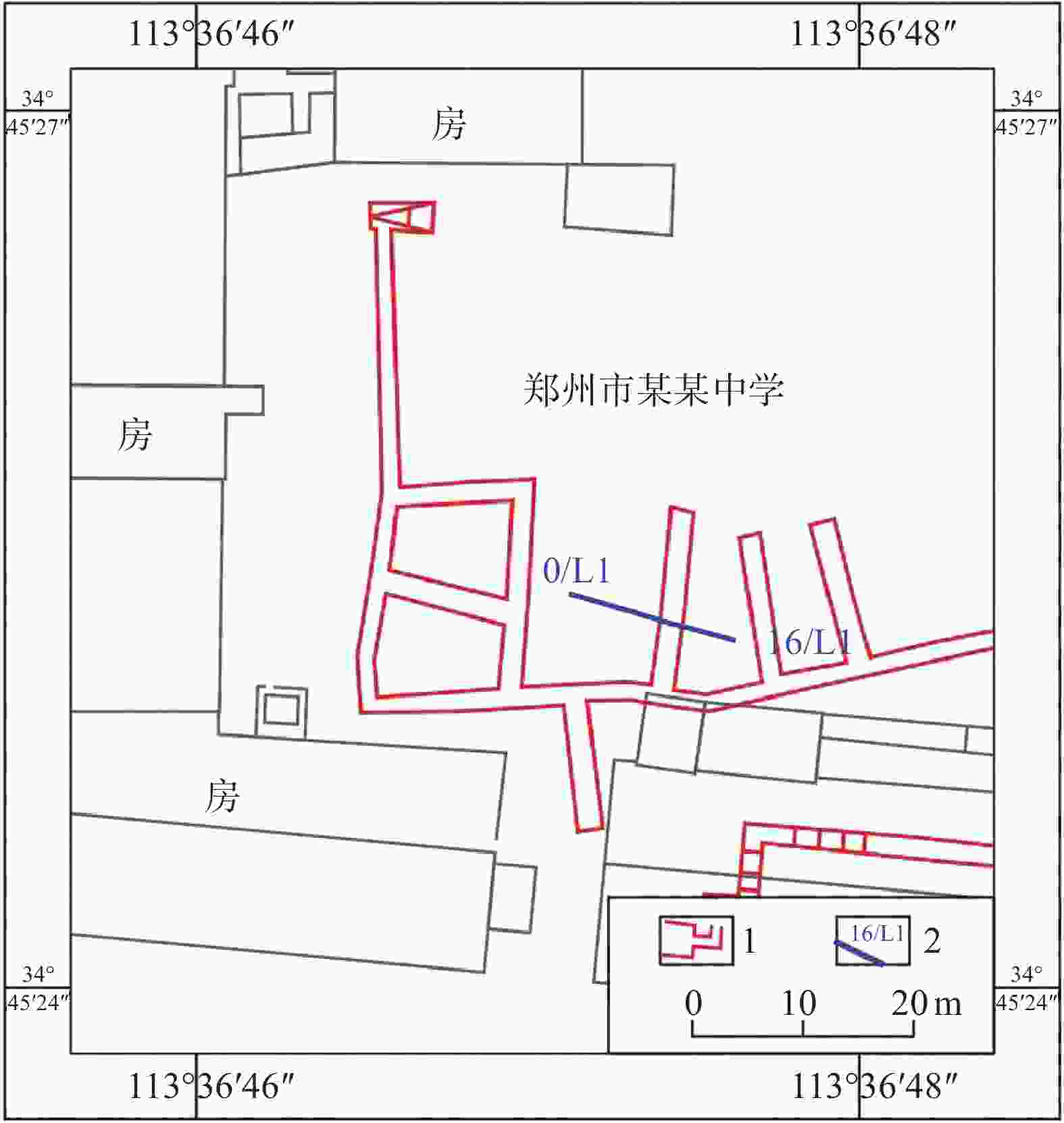

图 2 某中学微动测线位置图（1-防空洞位置；2-微动测线编号及桩号）
Figure 2. Microtremor survey line location map of a middle school (1 - Air - raid shelter location; 2 - Microtremor survey line number and pile number)

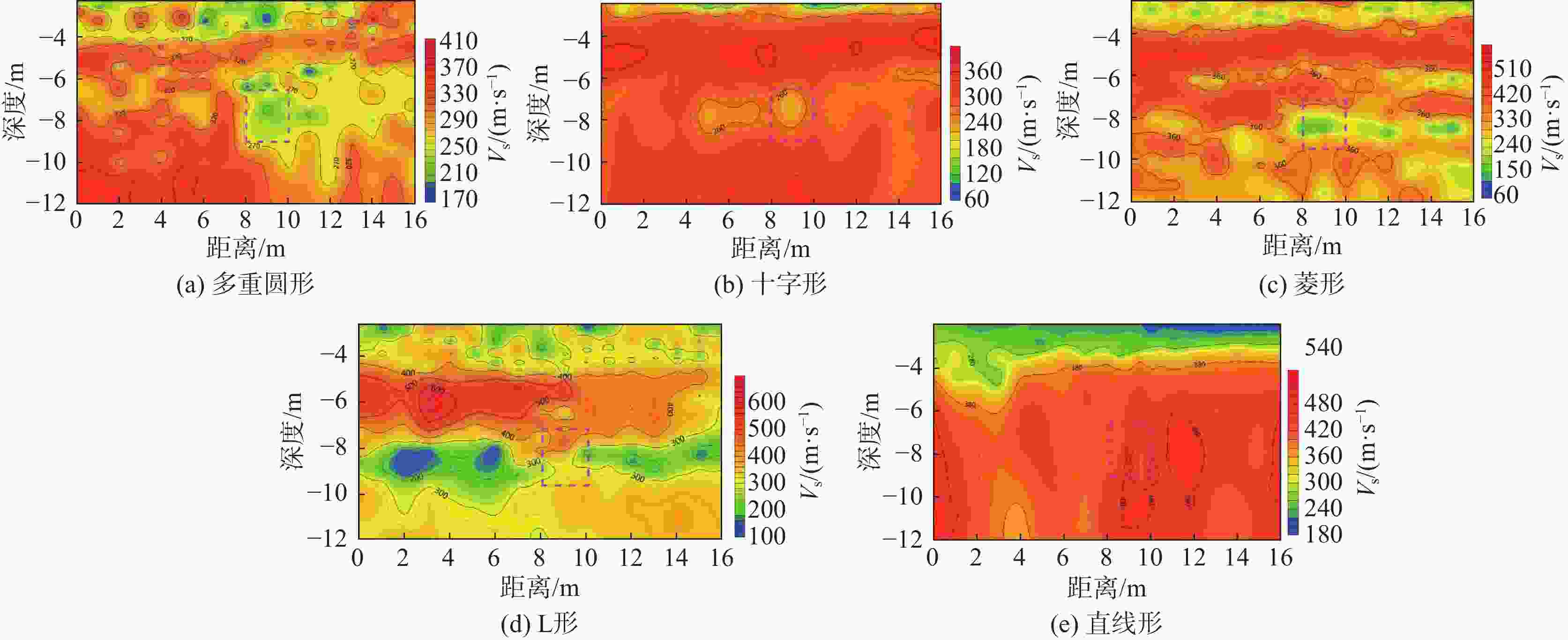

图 6 不同台阵微动视横波速度剖面图
Figure 6. Microtremor apparent S-wave velocity profiles of different arrays
表 1 对比台阵效能评价表
Table 1. Comparative array effectiveness evaluation table
台阵类形 信噪比SNR /dB 均方根误差RMSE/m 数据利用率/% 多重圆形 12.3 0.38 92.5 十字形 10.7 0.52 88.2 菱形 9.8 0.61 85.4 L形 6.2 1.24 73.6 直线形 5.8 1.45 68.9
下载: 导出CSV
-
[1] 沈 阳, 张慧利, 巩一帆, 等. 天然源面波法在城市道路应急检测中的应用[J]. 工程地球物理学报, 2024, 21(6): 1006-1013. (SHEN Y, ZHANG H L, GONG Y F, et al. Application of natural source surface wave in urban road emergency detection[J]. Chinese Journal of Engineering Geophysics, 2024, 21(6): 1006-1013. (in Chinese) doi: 10.3969/j.issn.1672-7940.2024.06.010SHEN Y, ZHANG H L, GONG Y F, et al. Application of natural source surface wave in urban road emergency detection[J]. Chinese Journal of Engineering Geophysics, 2024, 21（6）: 1006-1013. (in Chinese) doi: 10.3969/j.issn.1672-7940.2024.06.010 [2] 王阳玲, 肖 扬, 郑革辉, 等. 微动探测方法在矿山采空区调查中的应用[J]. 地质找矿论丛, 2024, 39(3): 445-450. (WANG Y L, XIAO Y, ZHENG G H, et al. Application of microdynamic survey to mined-out area[J]. Contributions to Geology and Mineral Resources Research, 2024, 39(3): 445-450. (in Chinese)WANG Y L, XIAO Y, ZHENG G H, et al. Application of microdynamic survey to mined-out area[J]. Contributions to Geology and Mineral Resources Research, 2024, 39（3）: 445-450. (in Chinese) [3] 董 耀, 李光辉, 高鹏举, 等. 微动勘查技术在地热勘探中的应用[J]. 物探与化探, 2020, 44(6): 1345-1351. (DONG Y, LI G H, GAO P J, et al. The application of fretting exploration technology in the exploration of middle and deep clean energy[J]. Geophysical and Geochemical Exploration, 2020, 44(6): 1345-1351. (in Chinese)DONG Y, LI G H, GAO P J, et al. The application of fretting exploration technology in the exploration of middle and deep clean energy[J]. Geophysical and Geochemical Exploration, 2020, 44（6）: 1345-1351. (in Chinese) [4] 刘皓铭, 宋青山, 苏 栋, 等. 繁华城区盾构工程孤石微动探测方法及爆破技术研究[J]. 岩土工程技术, 2024, 38(3): 273-278. (LIU H M, SONG Q S, SU D, et al. Research on micro-motion detection method and blasting technology for isolated rocks in shield construction in prosperous urban areas[J]. Geotechnical Engineering Technique, 2024, 38(3): 273-278. (in Chinese) doi: 10.3969/j.issn.1007-2993.2024.03.003LIU H M, SONG Q S, SU D, et al. Research on micro-motion detection method and blasting technology for isolated rocks in shield construction in prosperous urban areas[J]. Geotechnical Engineering Technique, 2024, 38（3）: 273-278. (in Chinese) doi: 10.3969/j.issn.1007-2993.2024.03.003 [5] 卓启亮, 于 强. 微动探测方法在城市工程地质勘察中的应用[J]. 工程地球物理学报, 2020, 17(5): 658-664. (ZHUO Q L, YU Q. The application of microtremor survey method in urban engineering geological investigation[J]. Chinese Journal of Engineering Geophysics, 2020, 17(5): 658-664. (in Chinese) doi: 10.3969/j.issn.1672-7940.2020.05.017ZHUO Q L, YU Q. The application of microtremor survey method in urban engineering geological investigation[J]. Chinese Journal of Engineering Geophysics, 2020, 17（5）: 658-664. (in Chinese) doi: 10.3969/j.issn.1672-7940.2020.05.017 [6] 张云琦, 黄新武, 齐 坤, 等. 综合物探方法在豫北某区地热资源勘探与评价中的应用[C]//中国地球物理学会. 2022年中国地球科学联合学术年会论文集——专题二十五: 浅地表地球物理进展、专题二十六: 应用地球物理前沿. 2022: 714-717. (ZHANG Y Q, HUANG X W, QI K, et al. Application of comprehensive geophysical methods in geothermal resource exploration and evaluation in a certain area of northern Henan[C]//Chinese Geophysical Society. Proceedings of 2022 Chinese Geoscience Union Annual Meeting—Topic 25: Progress in Shallow Surface Geophysics, Topic 26: Frontiers of Applied Geophysics. 2022: 714-717. (in Chinese)ZHANG Y Q, HUANG X W, QI K, et al. Application of comprehensive geophysical methods in geothermal resource exploration and evaluation in a certain area of northern Henan[C]//Chinese Geophysical Society. Proceedings of 2022 Chinese Geoscience Union Annual Meeting—Topic 25: Progress in Shallow Surface Geophysics, Topic 26: Frontiers of Applied Geophysics. 2022: 714-717. (in Chinese) [7] 张 星, 丁志军, 连伟章. 微动探测在矿山采空区勘查中的应用[J]. 世界有色金属, 2021(12): 110-112. (ZHANG X, DING Z J, LIAN W Z. Application of micro motion detection in mine goaf exploration[J]. World Nonferrous Metals, 2021(12): 110-112. (in Chinese)ZHANG X, DING Z J, LIAN W Z. Application of micro motion detection in mine goaf exploration[J]. World Nonferrous Metals, 2021（12）: 110-112. (in Chinese) [8] 张 波, 刘国波, 张书香, 等. 微动探测技术在城市地铁地表沉降风险防控中的应用[C]//《施工技术》杂志社, 亚太建设科技信息研究院有限公司. 2021年全国土木工程施工技术交流会论文集(上册). 2021: 181-184. (ZHANG B, LIU G B, ZHANG S X, et al. Application of micromotion detection technology in the risk prevention and control of urban subway surface subsidence[C]//Construction Technology Magazine, Asia-Pacific Construction Science and Technology Information Research Institute Co. , Ltd. Proceedings of 2021 National Civil Engineering Construction Technology Exchange Conference (Volume 1). 2021: 181-184. (in Chinese)ZHANG B, LIU G B, ZHANG S X, et al. Application of micromotion detection technology in the risk prevention and control of urban subway surface subsidence[C]//Construction Technology Magazine, Asia-Pacific Construction Science and Technology Information Research Institute Co. , Ltd. Proceedings of 2021 National Civil Engineering Construction Technology Exchange Conference (Volume 1). 2021: 181-184. (in Chinese) [9] 董 耀, 高鹏举, 金 路, 等. 微动探测在城市地质勘查中的应用研究[J]. 能源与环保, 2019, 41(12): 88-92. (DONG Y, GAO P J, JIN L, et al. Application research of micro-motion detection in urban geological survey[J]. China Energy and Environmental Protection, 2019, 41(12): 88-92. (in Chinese) doi: 10.19389/j.cnki.1003-0506.2019.12.017DONG Y, GAO P J, JIN L, et al. Application research of micro-motion detection in urban geological survey[J]. China Energy and Environmental Protection, 2019, 41（12）: 88-92. (in Chinese) doi: 10.19389/j.cnki.1003-0506.2019.12.017 [10] 张 雯, 张 磊, 朱尚明. 新型微动探测技术在砂卵石复合地层盾构隧道中的应用[J]. 兰州工业学院学报, 2023, 30(6): 74-79. (ZHANG W, ZHANG L, ZHU S M. Application of new micromotion detection technology in shield tunnel of sandy cobble composite stratum[J]. Journal of Lanzhou Institute of Technology, 2023, 30(6): 74-79. (in Chinese) doi: 10.3969/j.issn.1009-2269.2023.06.015ZHANG W, ZHANG L, ZHU S M. Application of new micromotion detection technology in shield tunnel of sandy cobble composite stratum[J]. Journal of Lanzhou Institute of Technology, 2023, 30（6）: 74-79. (in Chinese) doi: 10.3969/j.issn.1009-2269.2023.06.015 [11] 郭亚军, 聂伟荣, 朱继南, 等. 基于3个传感器的管道泄漏相关定位算法[J]. 南京理工大学学报, 2003, 27(6): 682-685. (GUO Y J, NIE W R, ZHU J N, et al. Correlation locating algorithm based on three sensors for detecting a leaking spot[J]. Journal of Nanjing University of Science and Technology, 2003, 27(6): 682-685. (in Chinese)GUO Y J, NIE W R, ZHU J N, et al. Correlation locating algorithm based on three sensors for detecting a leaking spot[J]. Journal of Nanjing University of Science and Technology, 2003, 27（6）: 682-685. (in Chinese) [12] 曹雪峰. 微动勘察方法中的数学方法研究与应用[D]. 北京: 中国地质大学(北京), 2011. (CAO X F. The examination and application of mathematics in microtremor survey[D]. Beijing: China University of Geosciences (Beijing), 2011. (in Chinese)CAO X F. The examination and application of mathematics in microtremor survey[D]. Beijing: China University of Geosciences (Beijing), 2011. (in Chinese) [13] 卢 川, 王肃静, 张 妍, 等. 用于微动探测的低成本自存储式数字地震检波器[J]. 地球物理学报, 2015, 58(6): 2148-2159. (LU C, WANG S J, ZHANG Y, et al. A new low-cost no-cable digital geophone for microtremor survey[J]. Chinese Journal of Geophysics, 2015, 58(6): 2148-2159. (in Chinese)LU C, WANG S J, ZHANG Y, et al. A new low-cost no-cable digital geophone for microtremor survey[J]. Chinese Journal of Geophysics, 2015, 58（6）: 2148-2159. (in Chinese) [14] 雷锋国. 二维微动探测技术在广州地铁十八号线番南区间的应用研究[J]. 国防交通工程与技术, 2020, 18(4): 62-65. (LEI F G. On the application of the 2-D fretting detection technology to the Fannan section of the Guangzhou Metro[J]. Traffic Engineering and Technology for National Defence, 2020, 18(4): 62-65. (in Chinese) doi: 10.13219/j.gjgyat.2020.04.016LEI F G. On the application of the 2-D fretting detection technology to the Fannan section of the Guangzhou Metro[J]. Traffic Engineering and Technology for National Defence, 2020, 18（4）: 62-65. (in Chinese) doi: 10.13219/j.gjgyat.2020.04.016 [15] 张 卓, 裴森龙, 赵修军, 等. 郑州市隐伏构造精细探测技术应用研究[J]. 矿产勘查, 2024, 15(S1): 364-370. (ZHANG Z, PEI S L, ZHAO X J, et al. Research on the application of fine detection technology of hidden structure in Zhengzhou City[J]. Mineral Exploration, 2024, 15(S1): 364-370. (in Chinese) doi: 10.20008/j.kckc.2024s1053ZHANG Z, PEI S L, ZHAO X J, et al. Research on the application of fine detection technology of hidden structure in Zhengzhou City[J]. Mineral Exploration, 2024, 15（S1）: 364-370. (in Chinese) doi: 10.20008/j.kckc.2024s1053 [16] 杨丽娜, 戴彦雄. 浅析瞬态面波测试在工程勘察工作中的应用[J]. 岩土工程技术, 2018, 32(6): 303-305. (YANG L N, DAI Y X. A brief analysis of the transient surface wave test in engineering investigation[J]. Geotechnical Engineering Technique, 2018, 32(6): 303-305. (in Chinese) doi: 10.3969/j.issn.1007-2993.2018.06.007YANG L N, DAI Y X. A brief analysis of the transient surface wave test in engineering investigation[J]. Geotechnical Engineering Technique, 2018, 32（6）: 303-305. (in Chinese) doi: 10.3969/j.issn.1007-2993.2018.06.007 -
图(6) / 表(1)
