Field tests on the effects of diameter of drill pipe on number N of SPT in Xi’an
-
摘要: 目前西安地区进行标准贯入试验（SPT）大多使用ϕ50型钻杆，与规范规定的ϕ42型钻杆有所差异。选取西安地区三处工程场地，分别在砂土和黄土状粉土地层中进行两种钻杆直径标贯击数N值对比试验，统计分析了两种杆径测得标贯击数的相互关系及对液化判定的影响。结果表明，钻杆直径对标贯试验击数N值的影响，在不同地层和不同试验深度下结果不同。10 m深度范围内，ϕ50钻杆和ϕ42钻杆测得标贯击数N值较为接近，砂土层中比值N50/N42介于0.98～1.02，黄土状粉土层中比值N50/N42介于1.01～1.05；10～20 m范围内，两种杆径测得标贯击数N值偏差较大，两类土层中比值N50/N42分别介于1.03～1.05和1.05～1.10。此外，采用ϕ50钻杆和ϕ42钻杆数据进行砂土和黄土状粉土地基土液化判定时整体上均为不液化，但在液化边界线附近局部区域，ϕ42钻杆标贯数据判别为液化时，ϕ50钻杆标贯数据判别结果为不液化。Abstract: Currently the application of ϕ50 drill pipe used in the Xi’an for standard penetration test (SPT) is wide, which is different from the code that ϕ42 drill pipe is specified. Based on the three projects in Xi’an, the results of the N values of SPT with drill pipes of ϕ50 and ϕ42 were compared in sand and loess-like silt layer, and the relations beteeen them were statistically analyzed, as well as the effects of diameters on liquefaction. The results show that the diameters of drill pipes have a certain influence on the number N of SPT, and the effects are different due to different strata and test depths. Within the test depth from 0 to 10 m, the number N of SPT with drill pipes of ϕ50 and ϕ42 is close, and the ratio N50/N42 is between 0.98～1.02 in sand and 1.01～1.05 in loess-like silt. When the test depth is from 10 to 20 m, the number N of SPT with both diameters has larger deviation with the ratio N50/N42 between 1.03～1.05 in sand and 1.05～1.10 in loess-like silt. Furthermore, it is generally in non liquefaction state when using ϕ50 and ϕ42 drill pipes for liquefaction discrimination in sand and loess-like silt foundation soil. However, the number N of ϕ42 is evaluated to be in liquefied state in local areas around the liquefaction boundary line, the discrimination result of the ϕ50 drill pipe is non liquefaction.
-
Key words:
- standard penetration test /
- drill pipe /
- diameter /
- penetration number /
- liquefaction
-

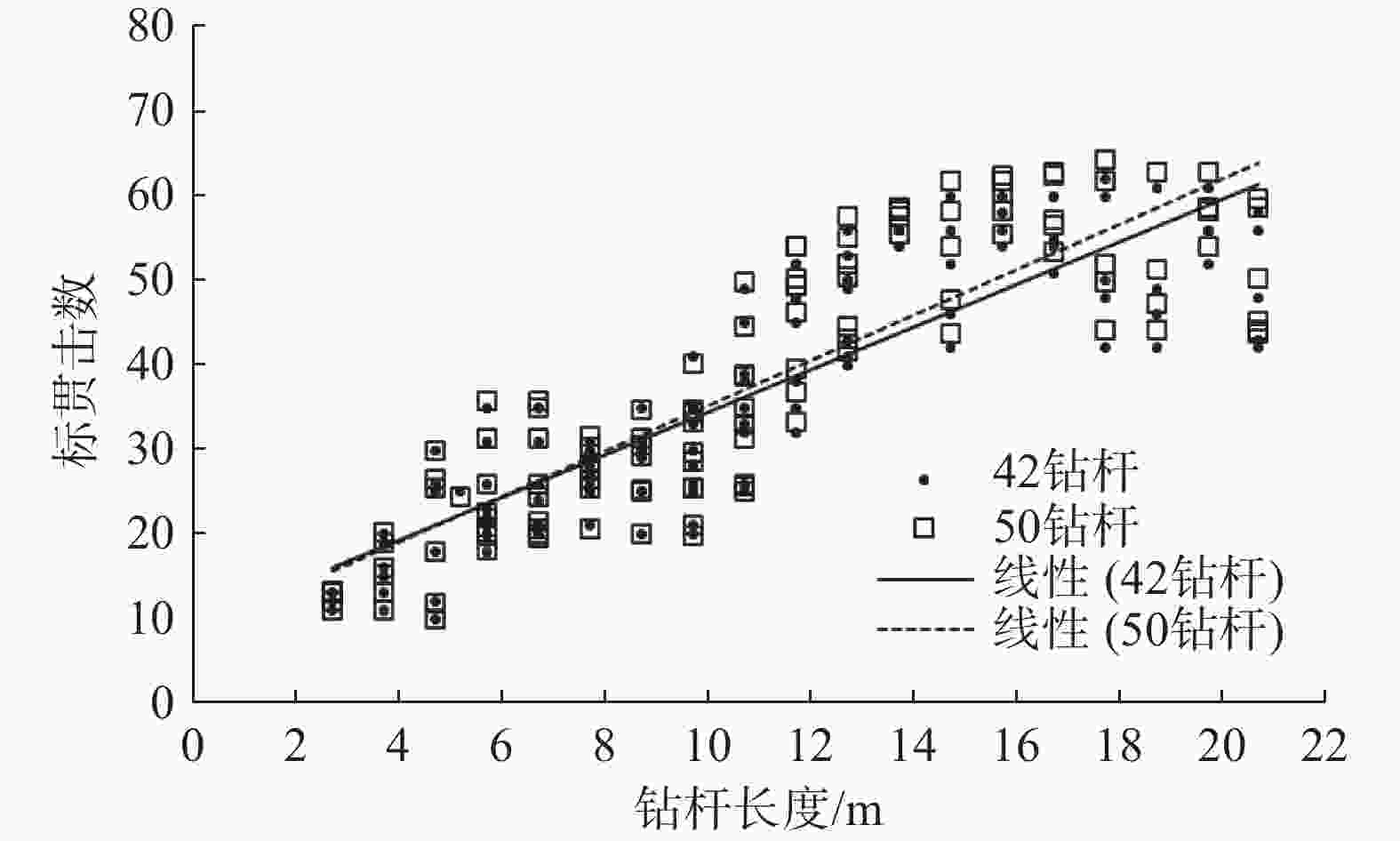

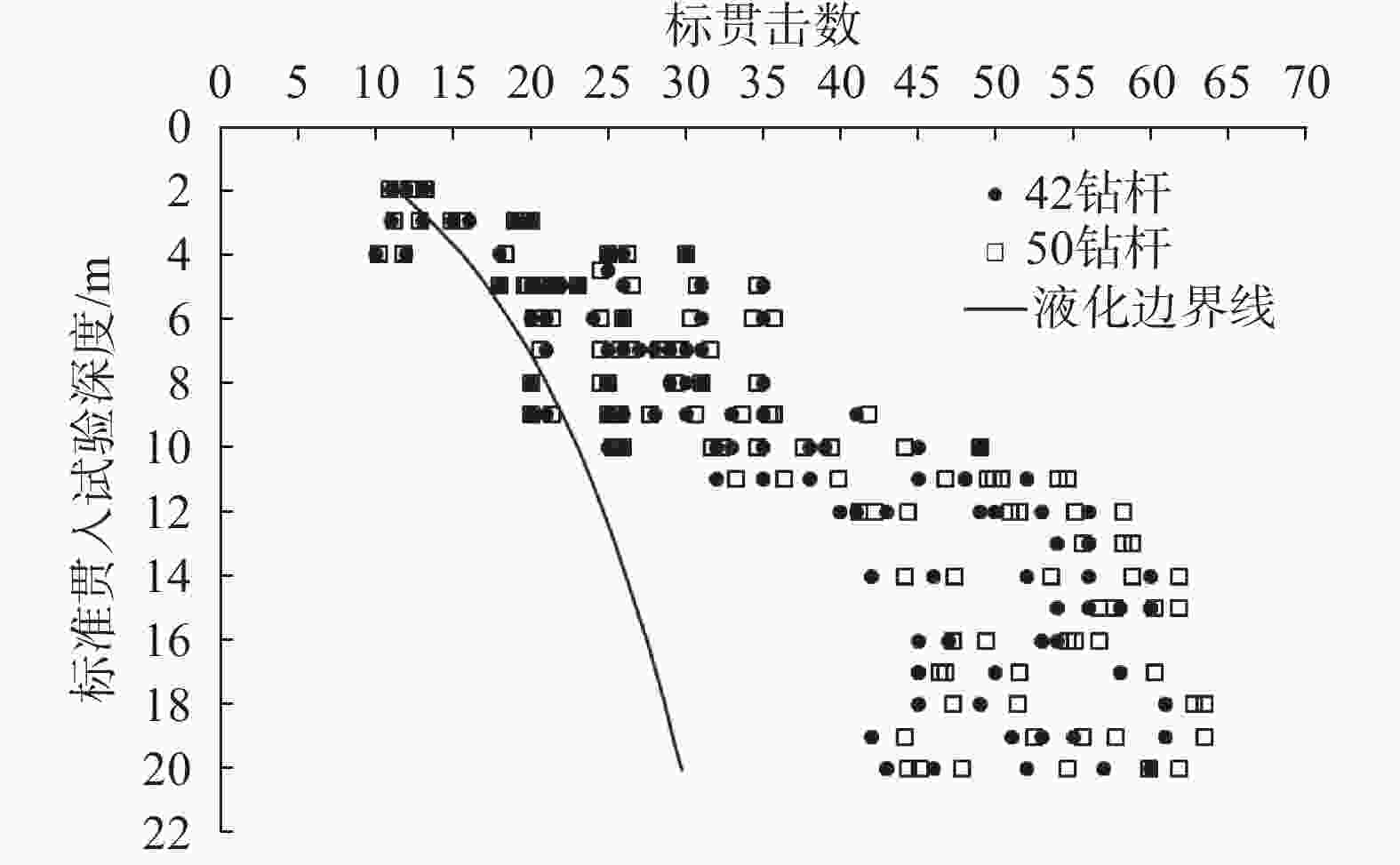

图 1 两种杆径试验标贯击数分布图
Figure 1. Distribution of SPT blow counts of two kinds of drill pipes

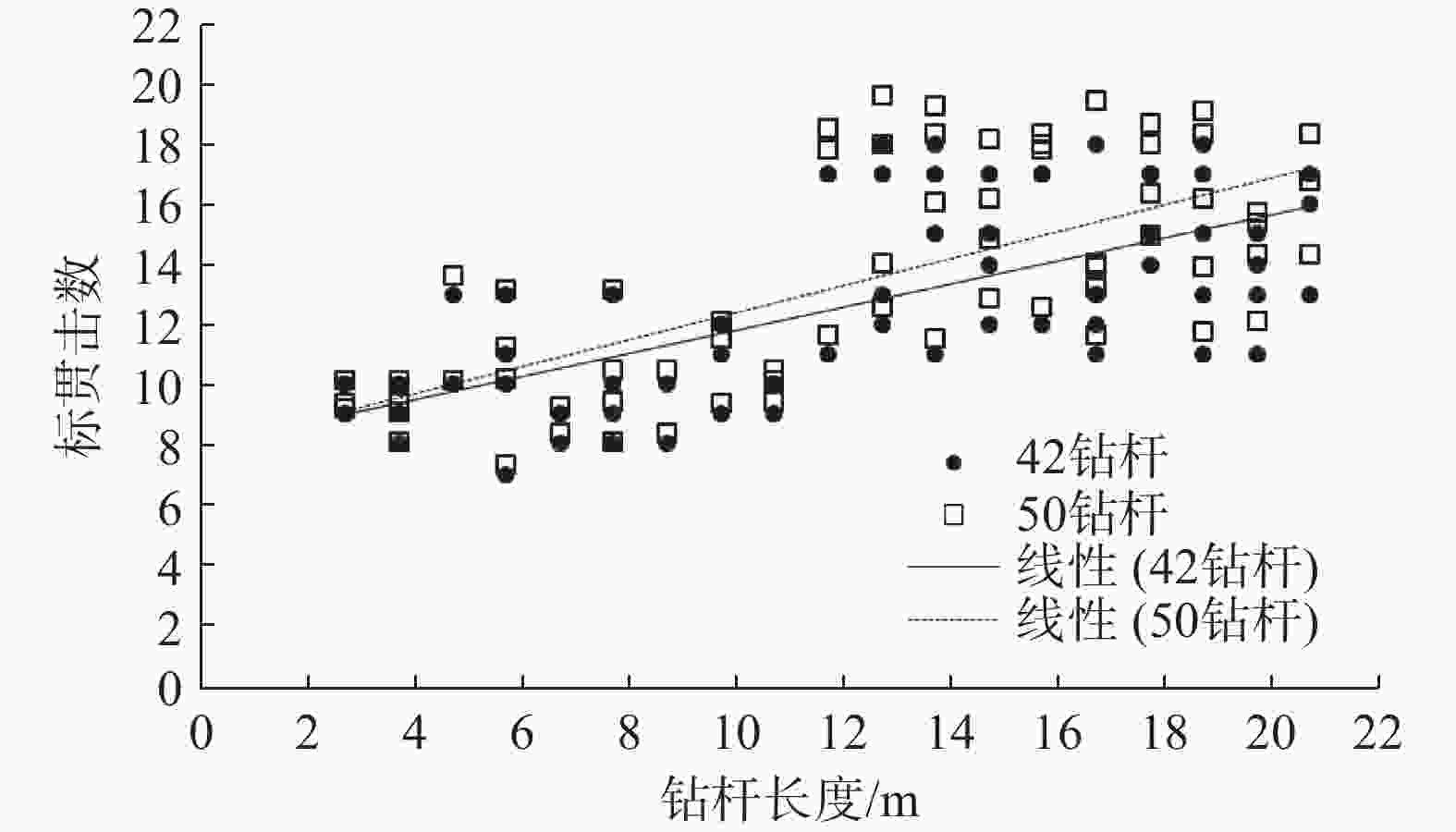

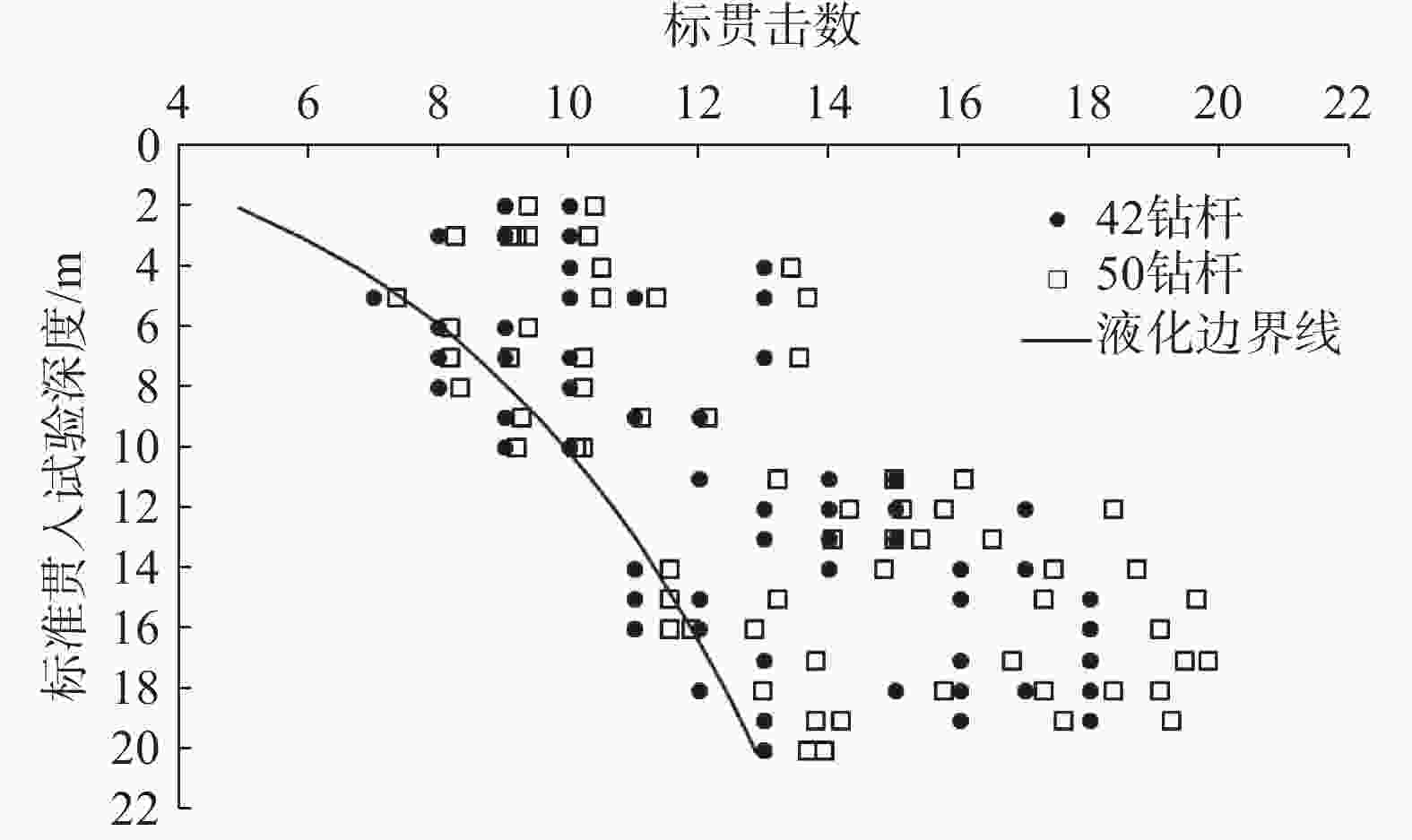

图 3 两种杆径试验标贯击数分布图
Figure 3. Distribution of SPT blow counts of two kinds of drill pipes
-
[1] 贺瑞霞, 任德生, 曹洪亮. 工程地质勘察中的标准贯入试验[J]. 铁道建筑, 2010(3): 60-62. (HE R X, REN D S, CAO H L. Standard penetration test in engineering geological investigation and survey[J]. Railway Engineering, 2010(3): 60-62. (in Chinese)HE R X, REN D S, CAO H L. Standard penetration test in engineering geological investigation and survey[J]. Railway Engineering, 2010（3）: 60-62. (in Chinese) [2] AMERATUNGA J, SIVAKUGAN N, DAS B M. Standard penetration test[M]//AMERATUNGA J, SIVAKUGAN N, DAS B M. Correlations of Soil and Rock Properties in Geotechnical Engineering. New Delhi: Springer, 2015: 87-113. [3] 杨文卫, 岳中琦. 世界各地标准贯入试验比较和共同问题[J]. 工程勘察, 2008(1): 5-15,52. (YANG W W, YUE Z Q. Current status and common issues in standard penetration tests for soil classifications around the world[J]. Geotechnical Investigation & Surveying, 2008(1): 5-15,52. (in Chinese)YANG W W, YUE Z Q. Current status and common issues in standard penetration tests for soil classifications around the world[J]. Geotechnical Investigation & Surveying, 2008（1）: 5-15,52. (in Chinese) [4] 中华人民共和国建设部, 中华人民共和国国家质量监督检验检疫总局. 岩土工程勘察规范(2009年版): GB 50021—2001[S]. 北京: 中国建筑工业出版社, 2024. (Ministry of Construction of the People’s Republic of China, General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China. Code for investigation of geotechnical engineering: GB 50021—2001[S]. Beijing: China Architecture & Building Press, 2024. (in Chinese)Ministry of Construction of the People’s Republic of China, General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China. Code for investigation of geotechnical engineering: GB 50021—2001[S]. Beijing: China Architecture & Building Press, 2024. (in Chinese) [5] 《工程地质手册》编委会. 工程地质手册[M]. 5版. 北京: 中国建筑工业出版社, 2018. (Engineering Geology Handbook Editorial Committee. Geological Engineering Handbook[M]. 5th ed. Beijing: China Architecture & Building Press, 2018. (in Chinese)Engineering Geology Handbook Editorial Committee. Geological Engineering Handbook[M]. 5th ed. Beijing: China Architecture & Building Press, 2018. (in Chinese) [6] 中华人民共和国住房和城乡建设部. 建筑地基基础设计规范: GB 50007—2011[S]. 北京: 中国计划出版社, 2012. (Ministry of Housing and Urban-Rural Development of the People’s Republic of China. Code for design of building foundation: GB 50007—2011[S]. Beijing: China Planning Press, 2012. (in Chinese)Ministry of Housing and Urban-Rural Development of the People’s Republic of China. Code for design of building foundation: GB 50007—2011[S]. Beijing: China Planning Press, 2012. (in Chinese) [7] 姜仁利, 王国敬, 谭海军. 标准贯入试验操作中影响因素的探讨[J]. 港工技术, 2010, 47(4): 55-57. (JIANG R L, WANG G J, TAN H J. Discussion on affecting factors of standard penetration test[J]. Port Engineering Technology, 2010, 47(4): 55-57. (in Chinese)JIANG R L, WANG G J, TAN H J. Discussion on affecting factors of standard penetration test[J]. Port Engineering Technology, 2010, 47（4）: 55-57. (in Chinese) [8] 裴 文, 彭功勋, 李承海. 广州某工程标准贯入击数与钻杆杆径关系的研究[J]. 广东土木与建筑, 2008(11): 26-27,25. (PEI W, PENG G X, LI C H. Research for relationship between standard penetration number and drill pipe diameter of the engineering in Guangzhou[J]. Guangdong Architecture Civil Engineering, 2008(11): 26-27,25. (in Chinese)PEI W, PENG G X, LI C H. Research for relationship between standard penetration number and drill pipe diameter of the engineering in Guangzhou[J]. Guangdong Architecture Civil Engineering, 2008（11）: 26-27,25. (in Chinese) [9] SCHMERTMANN J H, PALACIOS A. Energy dynamics of SPT[J]. Journal of the Geotechnical Engineering Division, 1979, 105(8): 909-926. doi: 10.1061/AJGEB6.0000839 [10] 刘 坦, 韩 非, 王瑞永. 北京地区钻杆直径对标准贯入试验击数的影响研究[J]. 工程勘察, 2023, 51(4): 25-30. (LIU T, HAN F, WANG R Y. Study on the influence of drill pipe diameter to blow number of SPT in Beijing area[J]. Geotechnical Investigation & Surveying, 2023, 51(4): 25-30. (in Chinese)LIU T, HAN F, WANG R Y. Study on the influence of drill pipe diameter to blow number of SPT in Beijing area[J]. Geotechnical Investigation & Surveying, 2023, 51（4）: 25-30. (in Chinese) [11] 张智敏. 黄土地区标准贯入试验研究[J]. 工程技术研究, 2024, 9(3): 17-19. (ZHANG Z M. Research on standard penetration test in loess regions[J]. Engineering and Technological Research, 2024, 9(3): 17-19. (in Chinese)ZHANG Z M. Research on standard penetration test in loess regions[J]. Engineering and Technological Research, 2024, 9（3）: 17-19. (in Chinese) [12] 董 林, 王 峻, 夏 坤, 等. 我国标贯液化判别方法对黄土适用性研究[J]. 地震工程与工程振动, 2013, 33(2): 209-213. (DONG L, WANG J, XIA K, et al. Study on applicability of method for estimating liquefaction in Chinese seismic design code for loess[J]. Earthquake Engineering and Engineering Vibration, 2013, 33(2): 209-213. (in Chinese)DONG L, WANG J, XIA K, et al. Study on applicability of method for estimating liquefaction in Chinese seismic design code for loess[J]. Earthquake Engineering and Engineering Vibration, 2013, 33（2）: 209-213. (in Chinese) [13] 郝 兵, 任志善, 李从昀. 几种地震液化判别方法的对比[J]. 岩土工程技术, 2019, 33(5): 278-283. (HAO B, REN Z S, LI C Y. Comparison of several discrimination criteria for seismic soil liquefaction[J]. Geotechnical Engineering Technique, 2019, 33(5): 278-283. (in Chinese)HAO B, REN Z S, LI C Y. Comparison of several discrimination criteria for seismic soil liquefaction[J]. Geotechnical Engineering Technique, 2019, 33（5）: 278-283. (in Chinese) [14] 刘晓静. 两种杆径对砂层标准贯入试验击数的影响[J]. 城市勘测, 2013(6): 174-176. (LIU X J. The influence of two kinds of stem diameters on the Standard Pentration Test (SPT) hit-numbers[J]. Urban Geotechnical Investigation & Surveying, 2013(6): 174-176. (in Chinese)LIU X J. The influence of two kinds of stem diameters on the Standard Pentration Test (SPT) hit-numbers[J]. Urban Geotechnical Investigation & Surveying, 2013（6）: 174-176. (in Chinese) [15] 范建好. 对标贯击数杆径换算的探讨[C]//2014全国工程勘察学术大会论文集. 呼和浩特: 全国建筑工程勘察科技情报网, 内蒙古自治区勘察设计协会岩土分会, 全国建筑工程勘察科技情报网华北情报站, 中国建筑学会工程勘察分会, 2014. (FAN J H. Discussion on the conversion of standard penetration count and rod diameter[C]//Proceedings of 2014 National Engineering Survey Academic Conference. Hohhot, 2014. (in Chinese)FAN J H. Discussion on the conversion of standard penetration count and rod diameter[C]//Proceedings of 2014 National Engineering Survey Academic Conference. Hohhot, 2014. (in Chinese) [16] 聂庆科, 贾向新, 秦禄盛, 等. 钻杆直径对标准贯入试验N值影响的试验研究[J]. 岩土工程学报, 2017, 39(S1): 53-58. (NIE Q K, JIA X X, QIN L S, et al. Field tests on the effects of diameter of drill pipe on number N of SPT[J]. Chinese Journal of Geotechnical Engineering, 2017, 39(S1): 53-58. (in Chinese)NIE Q K, JIA X X, QIN L S, et al. Field tests on the effects of diameter of drill pipe on number N of SPT[J]. Chinese Journal of Geotechnical Engineering, 2017, 39（S1）: 53-58. (in Chinese) [17] 贾端阳, 陈龙伟, 谢旺青, 等. 基于标准贯入试验的土壤液化判别公式锤击数基准值研究[J]. 岩土力学, 2023, 44(10): 3031-3038. (JIA D Y, CHEN L W, XIE W Q, et al. Reference blow counts of standard penetration tests used in soil liquefaction evaluation formulae[J]. Rock and Soil Mechanics, 2023, 44(10): 3031-3038. (in Chinese)JIA D Y, CHEN L W, XIE W Q, et al. Reference blow counts of standard penetration tests used in soil liquefaction evaluation formulae[J]. Rock and Soil Mechanics, 2023, 44（10）: 3031-3038. (in Chinese) [18] 王维铭, 陈龙伟, 郭婷婷, 等. 基于中国砂土液化数据库的标准贯入试验液化判别方法研究[J]. 岩土力学, 2023, 44(1): 279-288. (WANG W M, CHEN L W, GUO T T, et al. Analysis of standard penetration test-based liquefaction evaluation methods using Chinese liquefaction database[J]. Rock and Soil Mechanics, 2023, 44(1): 279-288. (in Chinese)WANG W M, CHEN L W, GUO T T, et al. Analysis of standard penetration test-based liquefaction evaluation methods using Chinese liquefaction database[J]. Rock and Soil Mechanics, 2023, 44（1）: 279-288. (in Chinese) [19] 杨振茂, 赵成刚, 王兰民. 饱和黄土液化的试验研究[J]. 岩石力学与工程学报, 2005, 24(5): 864-871. (YANG Z M, ZHAO C G, WANG L M. Testing study on saturated loess liquefaction[J]. Chinese Journal of Rock Mechanics and Engineering, 2005, 24(5): 864-871. (in Chinese)YANG Z M, ZHAO C G, WANG L M. Testing study on saturated loess liquefaction[J]. Chinese Journal of Rock Mechanics and Engineering, 2005, 24（5）: 864-871. (in Chinese) [20] 何开明, 曾国熙, 王兰民, 等. 黄土液化与砂土液化的差异浅析[J]. 地震研究, 2001, 24(2): 146-149. (HE K M, ZENG G X, WANG L M, et al. Initial analysis on the difference between sand liquefaction and loess liquefaction[J]. Journal of Seismological Research, 2001, 24(2): 146-149. (in Chinese)HE K M, ZENG G X, WANG L M, et al. Initial analysis on the difference between sand liquefaction and loess liquefaction[J]. Journal of Seismological Research, 2001, 24（2）: 146-149. (in Chinese) [21] 中华人民共和国住房和城乡建设部, 中华人民共和国国家质量监督检验检疫总局. 建筑抗震设计标准(2024年版): GB/T 50011—2010[S]. 北京: 中国建筑工业出版社, 2010. (Ministry of Housing and Urban-Rural Development of the People’s Republic of China, General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China. Code for seismic design of buildings: GB/T 50011—2010[S]. Beijing: China Architecture & Building Press, 2010. (in Chinese)Ministry of Housing and Urban-Rural Development of the People’s Republic of China, General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China. Code for seismic design of buildings: GB/T 50011—2010[S]. Beijing: China Architecture & Building Press, 2010. (in Chinese) [22] 甘肃省住房和城乡建设厅, 甘肃省质量技术监督局. 建筑抗震设计规程: DB 62/T25—3055—2011[S]. 兰州, 2012. (Department of Housing and Urban-Rural Development of Gansu Province, Gansu Provincial Administration of Quality and Technical Supervision. Specification for seismic design of buildings: DB 62/T25—3055—2011[S]. Lanzhou, 2012. (in Chinese)Department of Housing and Urban-Rural Development of Gansu Province, Gansu Provincial Administration of Quality and Technical Supervision. Specification for seismic design of buildings: DB 62/T25—3055—2011[S]. Lanzhou, 2012. (in Chinese) -
