干湿循环作用下泥质粉砂岩力学劣化规律与损伤本构模型

李智; 韩磊; 何晓芸; 侯召旭

doi:10.20265/j.cnki.issn.1007-2993.2025-0159

干湿循环作用下泥质粉砂岩力学劣化规律与损伤本构模型

doi: 10.20265/j.cnki.issn.1007-2993.2025-0159

李智^1,,
韩磊^1, ,,
何晓芸^2,,
侯召旭²

1.
中交路桥华南工程有限公司，广东中山　528405
2.
西南交通大学土木工程学院，四川成都　610031

基金项目: 中交路桥华南工程有限公司资助项目（R110124H01094）

详细信息

作者简介:
李　智，男，1983年生，硕士，高级工程师，主要从事公路工程的建设管理工作。E-mail：185965302@qq.com

通讯作者:
韩　磊，男，1995年生，工程师，主要从事公路工程的建设管理工作。E-mail：2313144534@qq.com

中图分类号: TU452
计量
- 文章访问数: 44
- HTML全文浏览量: 20
- PDF下载量: 5
- 被引次数: 0
出版历程
- 收稿日期: 2025-04-08
- 修回日期: 2025-06-30
- 录用日期: 2025-08-25
- 网络出版日期: 2026-10-08
- 刊出日期: 2026-10-08

Mechanical degradation behavior and damage constitutive model of muddy siltstone under cyclic wetting and drying conditions

LI Zhi^1
,,
HAN Lei^{1
, ,},
HE Xiaoyun^2
,,
HOU Zhaoxu²

1.
China Communications Road and Bridge South China Engineering Co., Ltd., Zhongshan 528405, Guangdong, China
2.
School of Civil Engineering, Southwest Jiaotong University, Chengdu 610031, Sichuan, China

摘要

摘要: 针对桂北地区泥质粉砂岩在干湿循环作用下的力学性能劣化问题，开展不同干湿循环次数的单轴抗压强度试验与SEM试验，并基于能量演化规律确定了泥质粉砂岩的完全压密点，构建了泥质粉砂岩分段损伤本构模型。研究结果表明：（1）在经历5次干湿循环后，泥质粉砂岩单轴抗压强度和弹性模量分别下降了90.7%和81.5%，破坏模式由剪切破坏转变为拉−剪复合破坏。（2）确定耗散能等于弹性应变能的点为完全压密点，压密应变随干湿循环次数增加呈线性增大。（3）分段损伤本构模型拟合结果与试验数据的匹配度较好，可更准确地描述干湿循环作用下泥质粉砂岩的变形破坏特性。研究结果为桂北地区历经降雨−曝晒循环的边坡稳定性提供了数据支持和理论参考。
- 泥质粉砂岩 /
- 干湿循环 /
- 单轴抗压试验 /
- 力学性能劣化 /
- 岩石压密段 /
- 损伤本构模型
Abstract: Aiming at the deterioration of the mechanical properties of mud siltstone in northern Guangxi Province under the action of wet and dry cycles, uniaxial compressive strength tests and SEM tests with different numbers of wet and dry cycles were carried out, and based on the law of energy evolution, the complete compaction point of mud siltstone was determined, and the segmental damage constitutive model of mud siltstone was constructed. The results show that: (1) After five dry and wet cycles, the uniaxial compressive strength and modulus of elasticity of the siltstone decreased by 90.7% and 81.5%, respectively, and the damage mode changed from shear damage to tensile-shear composite damage. (2) The point where the dissipated energy is equal to the elastic strain energy is determined as the complete compaction point, and the compaction strain increases linearly with the increase of the number of dry-wet cycles. (3) The fitting results of the segmental damage constitutive model match well with the experimental data, which can more accurately describe the deformation and damage characteristics of muddy siltstone under the action of wet and dry cycles. The results of the study provide data support and theoretical reference for the stability of slopes subjected to rainfall-exposure cycles in Northern Guangxi.
- muddy siltstone /
- dry and wet cycling /
- uniaxial compressive strength test /
- mechanical property deterioration /
- rock compaction section /
- damage constitutive model

HTML全文

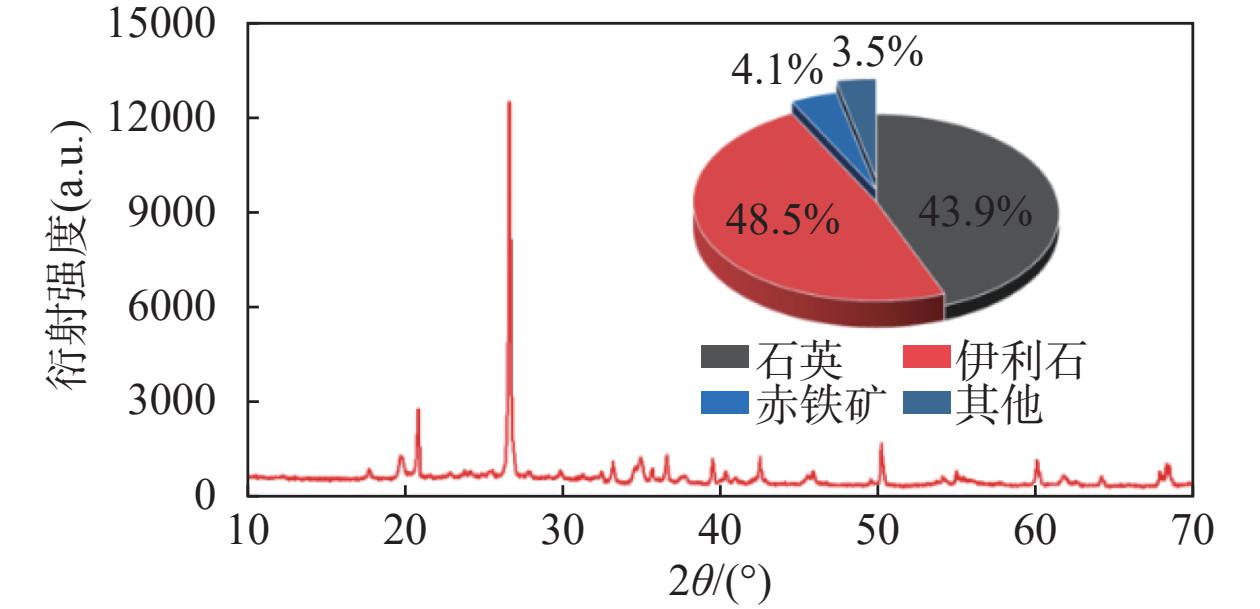

图 1 X-射线衍射图像与矿物成分相对含量

Figure 1. X-ray diffraction pattern and relative mineral content

下载: 全尺寸图片幻灯片

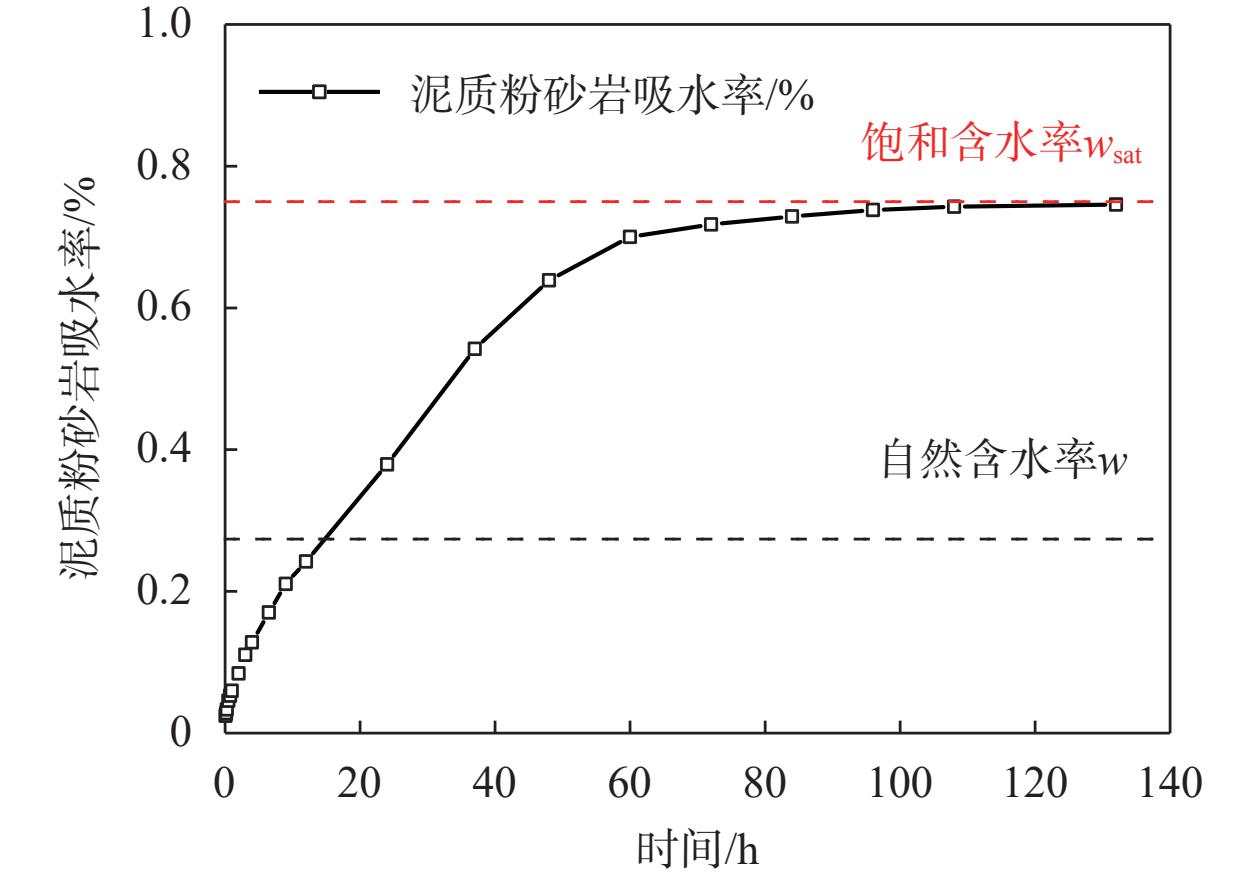

图 2 泥质粉砂岩试样无损浸水试验结果

Figure 2. Results of free soaking test on argillaceous siltstone sample

下载: 全尺寸图片幻灯片

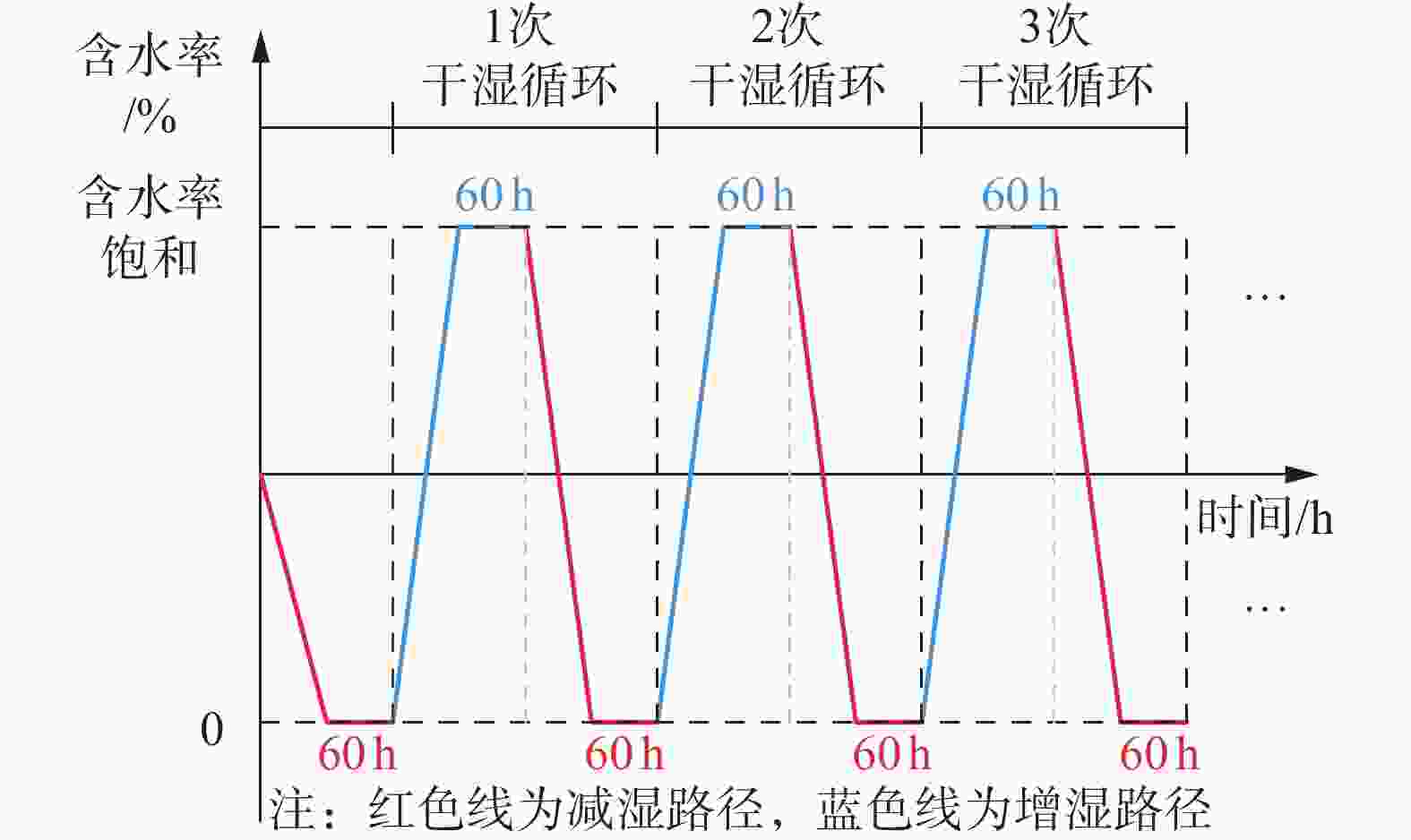

图 3 干湿循环路径图

Figure 3. Path diagram of wet-dry cycles

下载: 全尺寸图片幻灯片

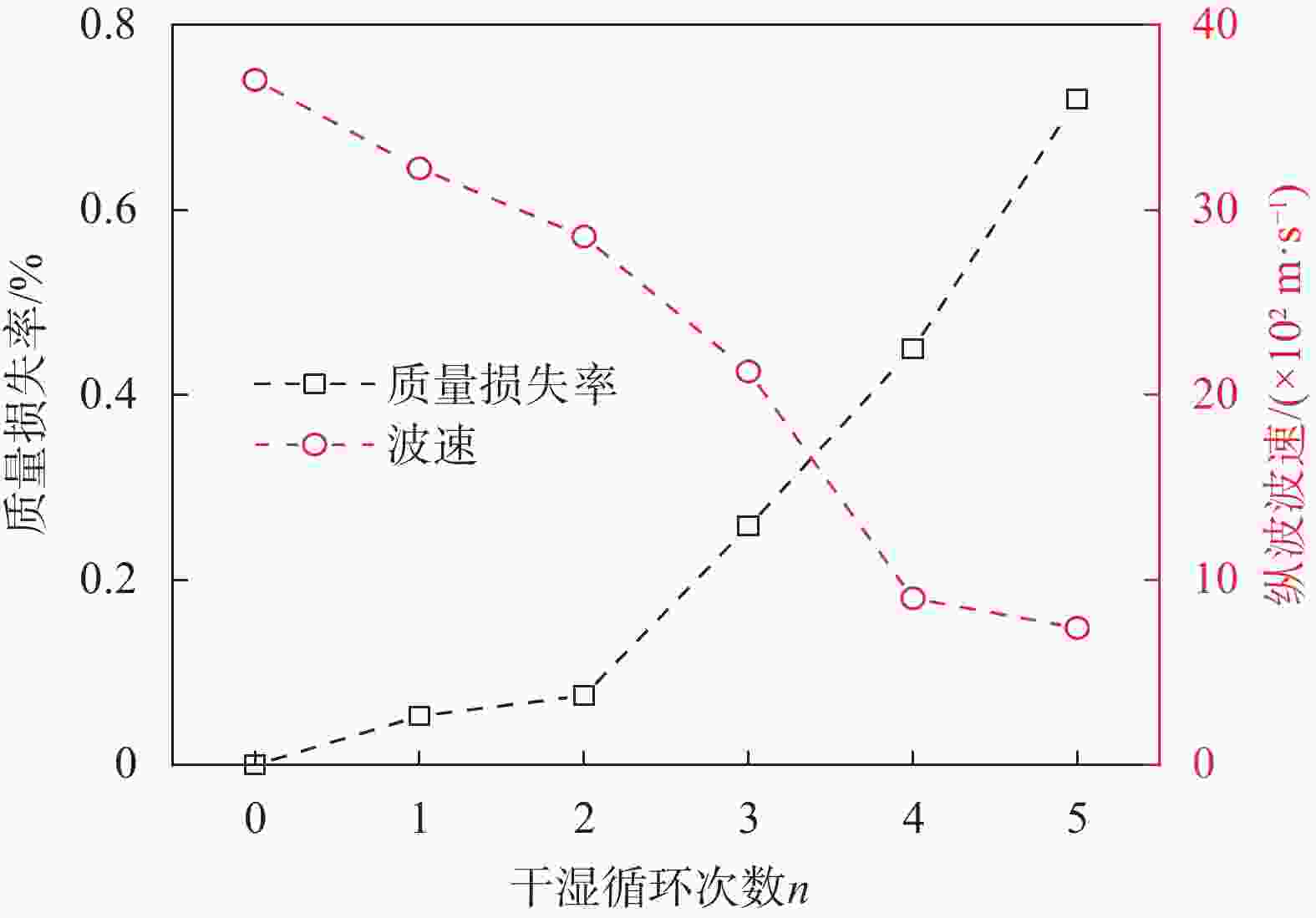

图 4 不同干湿循环次数下泥质粉砂岩质量损失率和纵波波速变化

Figure 4. Variation in mass loss rate and P-wave velocity of argillaceous siltstone with number of wet-dry cycles

下载: 全尺寸图片幻灯片

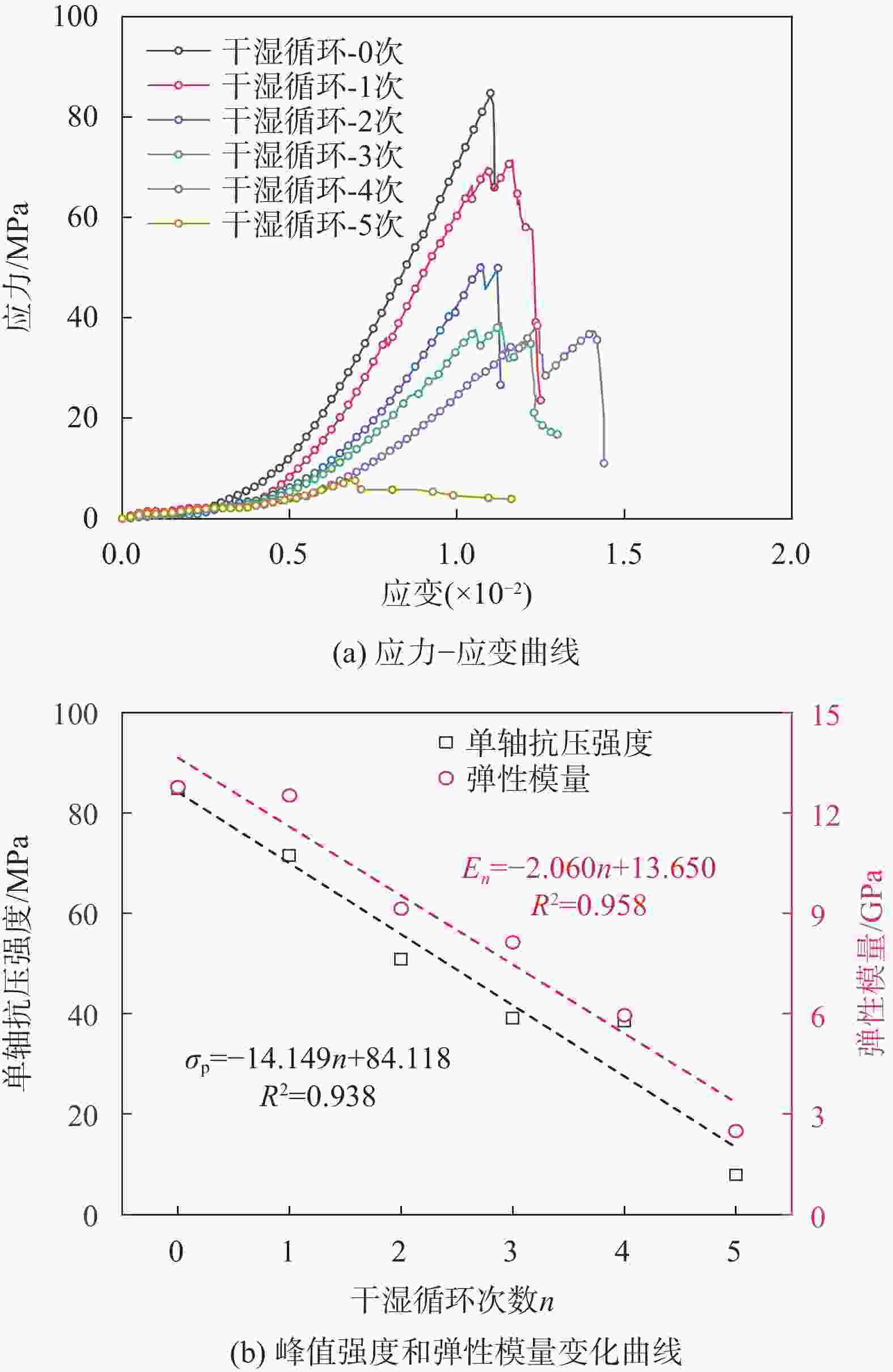

图 5 不同干湿循环次数下泥质粉砂岩单轴压缩试验结果

Figure 5. Results of uniaxial compression tests on argillaceous siltstone under different numbers of wet-dry cycles

下载: 全尺寸图片幻灯片

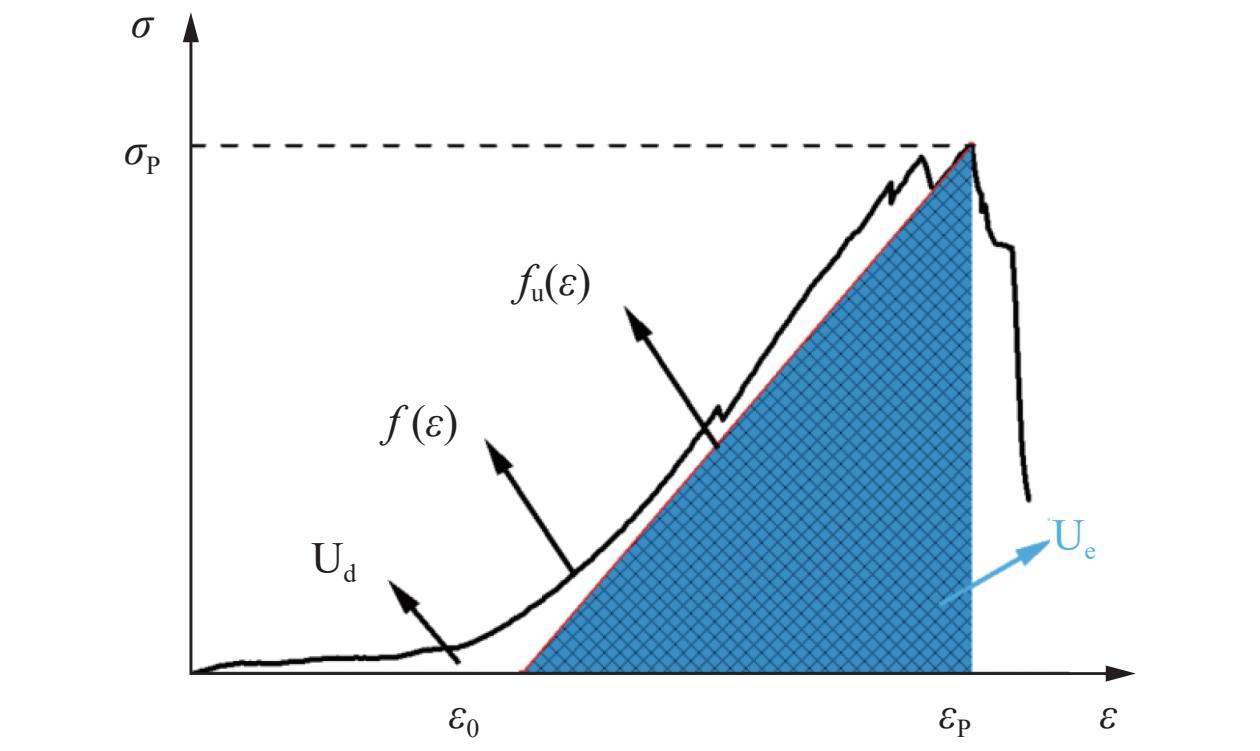

图 6 试样加载过程能量演化示意图

Figure 6. Schematic diagram of energy evolution during sample loading

下载: 全尺寸图片幻灯片

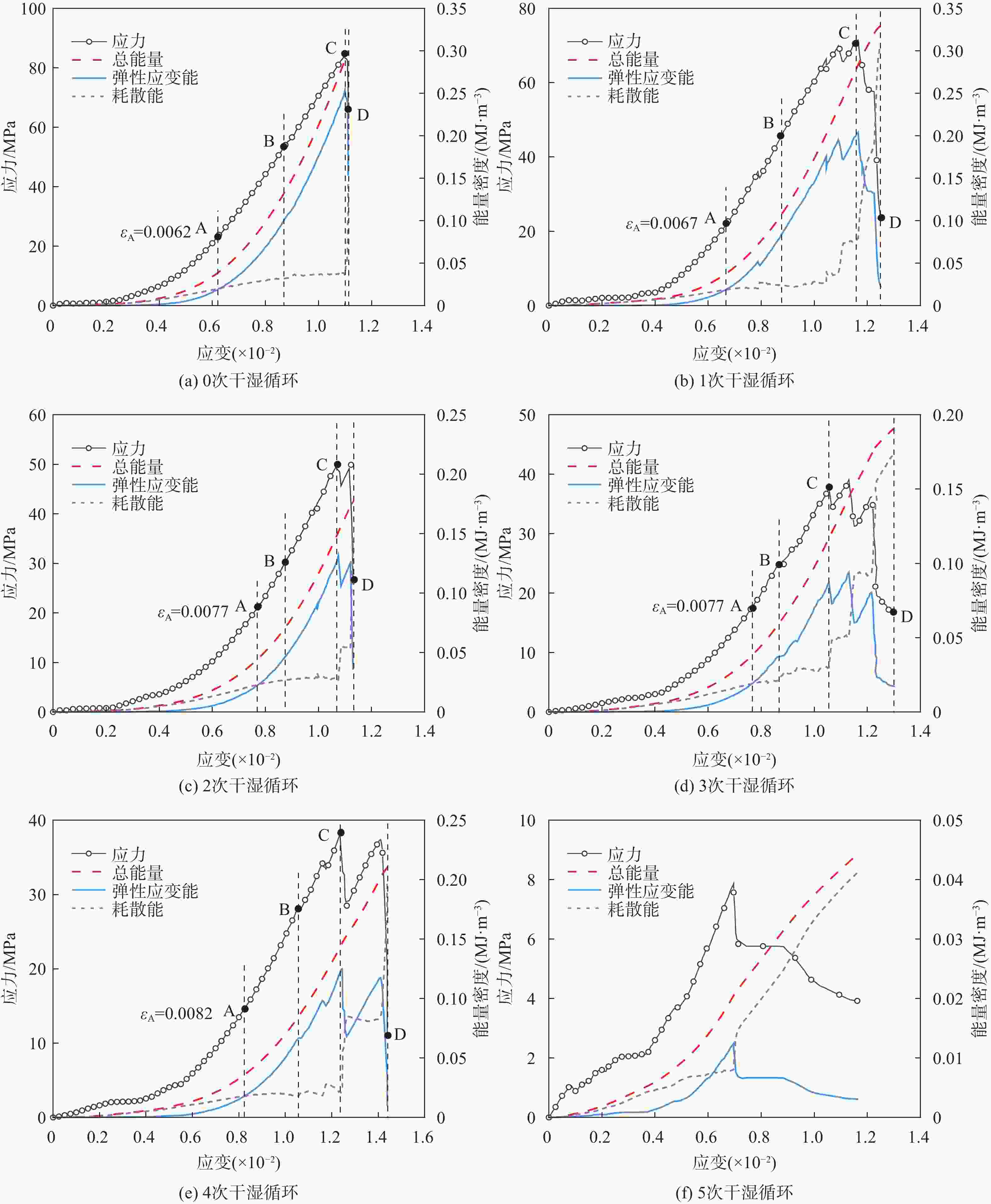

图 7 单轴压缩试验过程泥质粉砂岩试样的能量演化曲线

Figure 7. Energy evolution curves of argillaceous siltstone sample during uniaxial compression test

下载: 全尺寸图片幻灯片

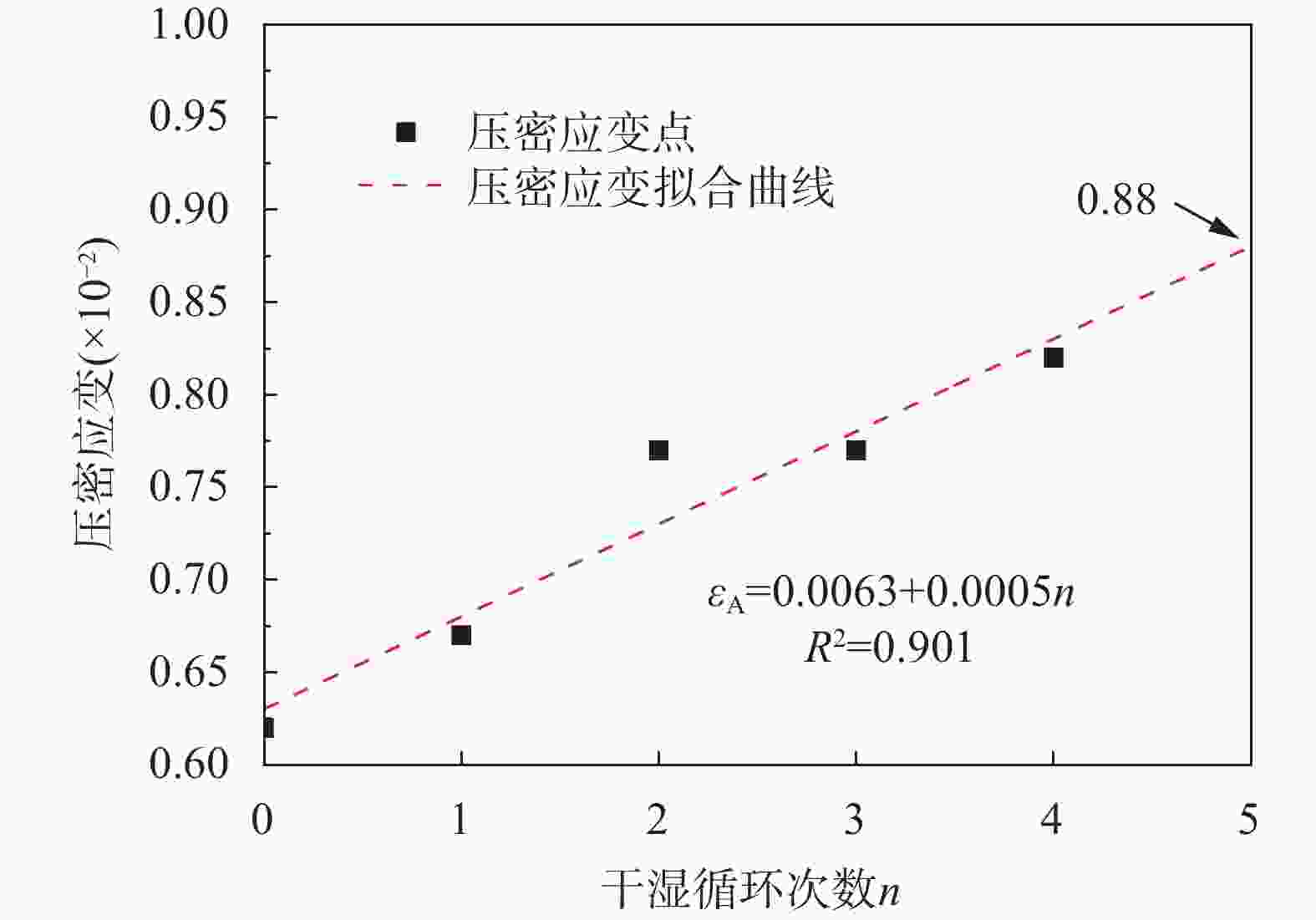

图 8 不同干湿循环次数下压密应变变化曲线

Figure 8. Variation curves of compaction strain with number of wet-dry cycles

下载: 全尺寸图片幻灯片

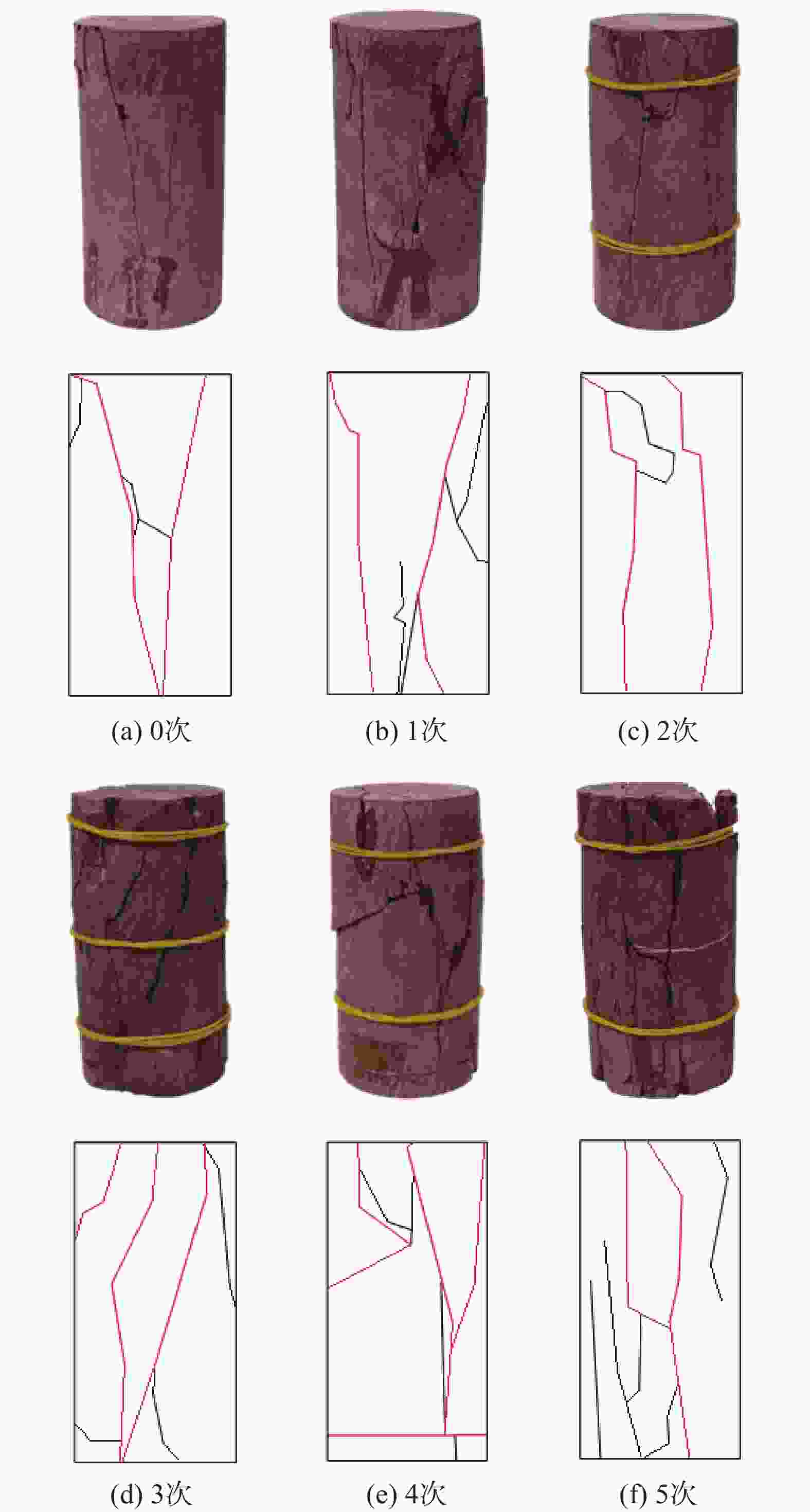

图 9 不同干湿循环次数下单轴压缩试验泥质粉砂岩破坏模式

Figure 9. Failure modes of argillaceous siltstone in uniaxial compression tests under different numbers of wet-dry cycles

下载: 全尺寸图片幻灯片

图 10 不同干湿循环次数下泥质粉砂岩破坏断面的微观形貌（500倍）

Figure 10. Micromorphology of fracture surface of argillaceous siltstone under different numbers of wet-dry cycles (×500)

下载: 全尺寸图片幻灯片

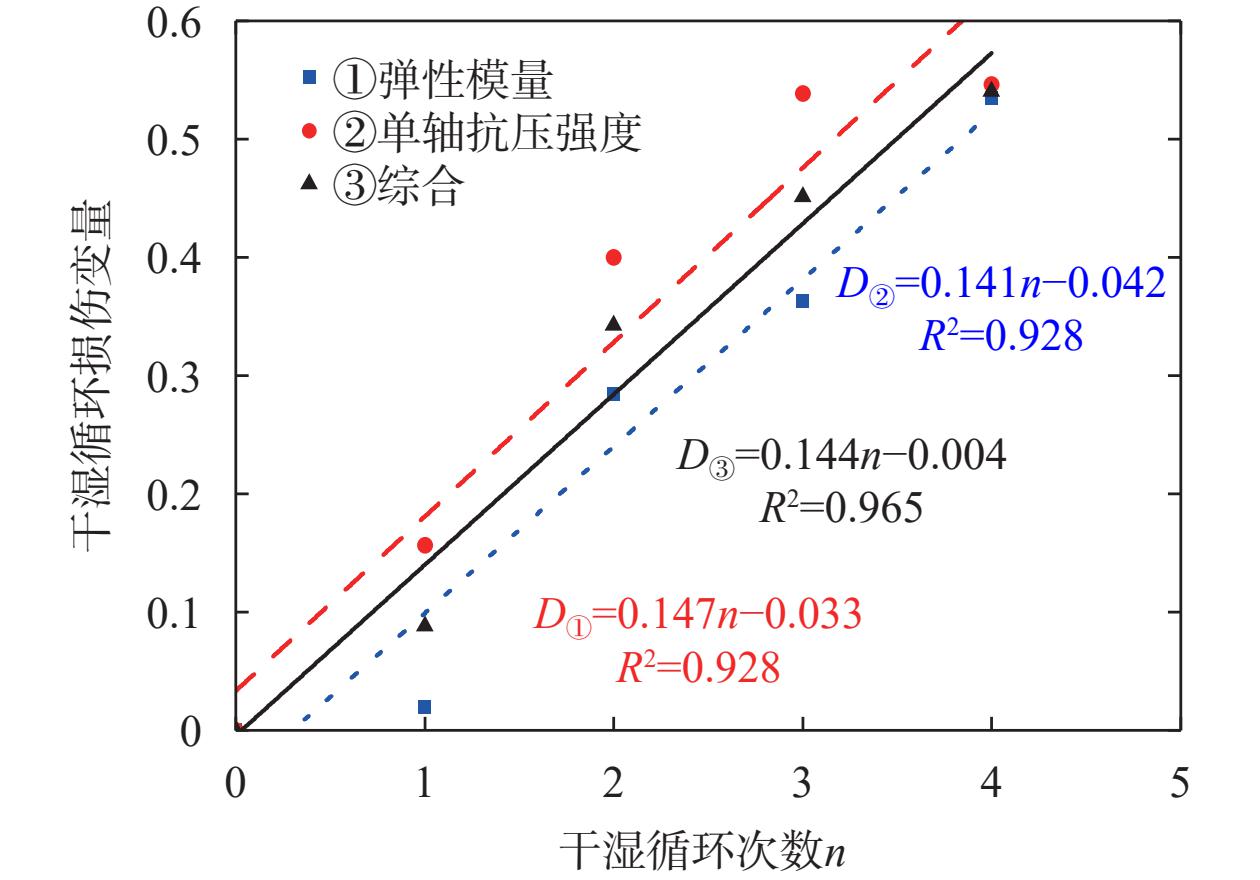

图 11 不同干湿循环次数下泥质粉砂岩的干湿循环损伤变量

Figure 11. Damage variable induced by wet-dry cycles in argillaceous siltstone

下载: 全尺寸图片幻灯片

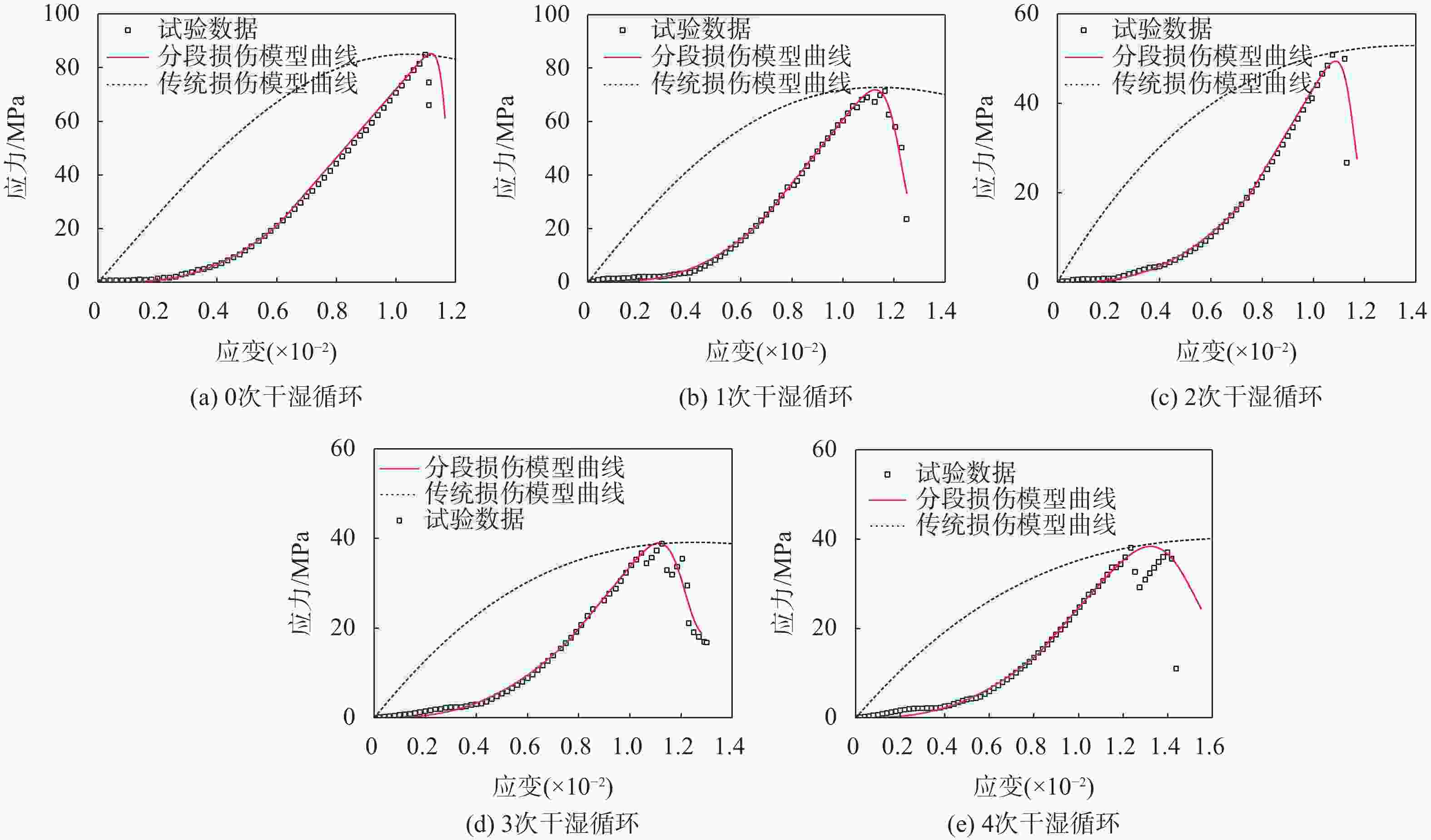

图 12 泥质粉砂岩分段式损伤本构模型验证结果（图中蓝色背景为压密段）

Figure 12. Validation results of the piecewise damage constitutive model for argillaceous siltstone (the blue background in the Fig. indicates the compaction stage)

下载: 全尺寸图片幻灯片

表 1 不同干湿循环次数条件下泥质粉砂岩分段损伤本构模型参数

Table 1. Parameters of the piecewise damage constitutive model for argillaceous siltstone under different numbers of wet-dry cycles

干湿循环次数n	$ {D}_{12} $	$ {\varepsilon }_{\text{A}n} $/10⁻²	$ {\sigma }_{\text{A}n} $/MPa	压密段			非压密段
干湿循环次数n	$ {D}_{12} $	$ {\varepsilon }_{\text{A}n} $/10⁻²	$ {\sigma }_{\text{A}n} $/MPa	$ {m}_{1n} $	$ {F}_{1n} $	R²	$ {m}_{2n} $	$ {F}_{2n} $	R²
0	0.000	0.62	22.153	2.0419	1.0450	0.9943	34.4300	0.5635	0.9983
1	0.088	0.67	22.017	2.0390	1.1716	0.9943	14.0067	0.5581	0.9936
2	0.342	0.77	19.862	1.8300	1.3975	0.9980	13.9500	0.4061	0.9546
3	0.451	0.77	17.847	1.7469	1.2932	0.9967	8.5985	0.4402	0.9770
4	0.540	0.82	14.680	1.7392	1.4533	0.9933	5.5590	0.6791	0.9692

下载: 导出CSV
