基于纤维桥接与钙离子调控的水泥−水玻璃固结体韧性增强机制研究

冯啸; 侯本敖; 孙文; 杨文达; 石振中; 张石磊; 李美玲

doi:10.20265/j.cnki.issn.1007-2993.2025-0202

基于纤维桥接与钙离子调控的水泥−水玻璃固结体韧性增强机制研究

doi: 10.20265/j.cnki.issn.1007-2993.2025-0202

1.
山东建筑大学交通工程学院，山东济南　250101
2.
内蒙古引绰济辽供水有限责任公司，内蒙古兴安盟　137499

基金项目: 国家自然科学青年基金（52009075）；山东省自然科学青年基金（ZR2020QE262）；山东省自然科学面上基金（ZR2024ME119）

详细信息

作者简介:
冯　啸，男，1988年生，博士，副教授，主要从事地下工程灾害防控的研究。E-mail：fengxiao19@sdjzu.edu.cn

中图分类号: TU441
计量
- 文章访问数: 30
- HTML全文浏览量: 11
- PDF下载量: 2
- 被引次数: 0
出版历程
- 收稿日期: 2025-05-05
- 修回日期: 2025-09-16
- 录用日期: 2025-11-11
- 网络出版日期: 2026-10-08
- 刊出日期: 2026-10-08

Toughness enhancement mechanism of cement-sodium silicate composites based on fiber bridging and calcium ion regulation

1.
School of Transportation Engineering, Shandong Jianzhu University, Jinan 250101, Shandong, China
2.
Inner Mongolia Yin Chao Ji Liao Water Supply Co., Ltd., Hinggan League 137499, Nei Mongol, China

摘要

摘要: 在实际工程中，水泥−水玻璃（C-S）固结体因韧性不足，难以有效吸收动态载荷能量。为解决这一问题，提出CaO-EG-PP三元协同改性体系，通过调控钙离子浓度与聚丙烯纤维桥接作用，系统研究不同配比（0%～5%氧化钙（CaO）、0.04%乙二醇（EG）、0%～1%聚丙烯纤维（PP））对C-S固结体力学性能的影响，结合凝结时间、抗压强度、折压比、拉压比及抗冲击试验，揭示其韧性增强机制。结果表明，体积比（V_c∶V_s）由2∶1增至5∶1时，凝结时间缩短41.2%～ 54.2%；CaO（1%）+ EG（0.04%）组在PP掺量0.2%时抗压强度达6.75 MPa（较对照组提升13.4%），且弹性模量同步提高36.1%；CaO（3%）+ EG（0.04%）组拉压比较对照组提升5.4%～104.1%，PP桥接作用使完全开裂冲击耗能提升至147.15 J（对照组39.24 J）。研究表明，钙离子浓度优化平衡硅氧四面体电荷密度以稳定凝胶结构，EG氢键强化界面结合，纤维桥接与拓扑缠绕抑制微裂缝扩展，三者协同实现“离子调控−氢键稳定−纤维增韧”耦合增强。
- 双液浆 /
- 纤维桥接 /
- 拉压比 /
- 抗冲击性能 /
- 韧性 /
- 力学性能
Abstract: Cement-sodium silicate (C-S) grout struggles to effectively absorb dynamic load energy in practical engineering due to insufficient toughness. To address this problem, a ternary synergistic modification system of CaO-EG-PP was proposed. By regulating calcium ion concentration and the bridging effect of polypropylene (PP) fibers, the effects of different mixing ratios (0%~5% calcium oxide (CaO), 0.04% ethylene glycol (EG), 0%~1% PP fibers) on the mechanical properties of C-S consolidates are investigated. Combined with experiments on setting time, compressive strength, flexural-compressive strength ratio, tensile-compressive strength ratio and impact resistance, the toughness enhancement mechanism is revealed. The results show that when the volume ratio (V_c∶V_s) increases from 2∶1 to 5∶1, the setting time is shortened by 41.2%~54.2%. For the group with 1% CaO + 0.04% EG, the compressive strength reaches 6.75 MPa at a PP fiber content of 0.2%, which is 13.4% higher than that of the control group, and the elastic modulus increases by 36.1% simultaneously. The tensile-compressive strength ratio of the group with 3% CaO + 0.04% EG is increased by 5.4%~104.1% compared with the control group, and the PP fiber bridging effect raises the impact energy consumption at complete cracking to 147.15 J (39.24 J for the control group). The study indicates that optimized calcium ion concentration balances the charge density of silicate tetrahedra to stabilize the gel structure, ethylene glycol strengthens interfacial bonding via hydrogen bonds, and fiber bridging together with topological entanglement inhibits microcrack propagation. The three components synergistically realize the coupled enhancement of ion regulation-hydrogen bond stabilization-fiber toughening.
- cement-sodium silicate slurry couple /
- fiber bridging /
- tensile-to-compressive ratio /
- impact resistance test /
- toughness /
- mechanical properties

HTML全文

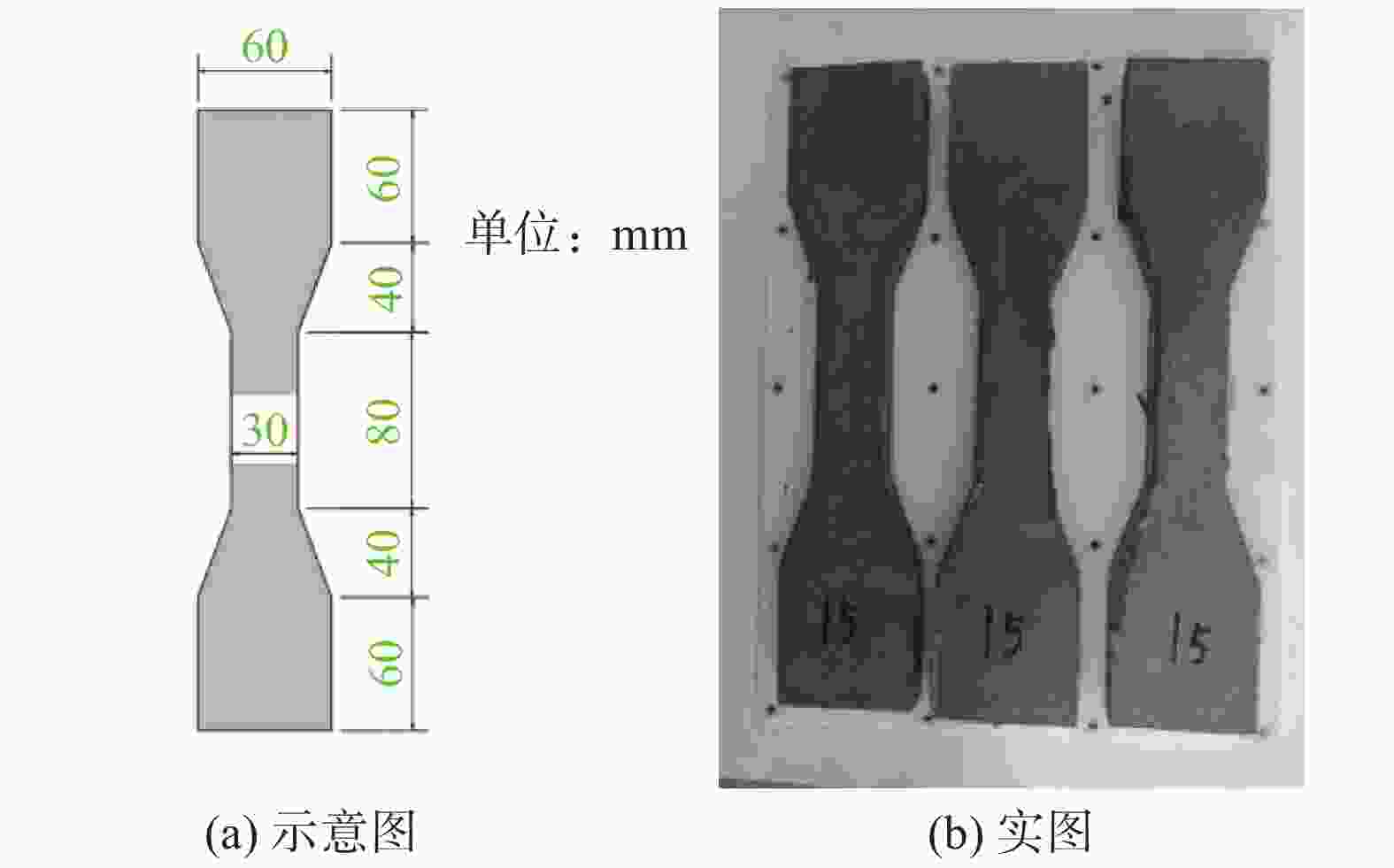

图 1 拉伸试件形状及尺寸

Figure 1. Shape and dimensions of tensile test specimens

下载: 全尺寸图片幻灯片

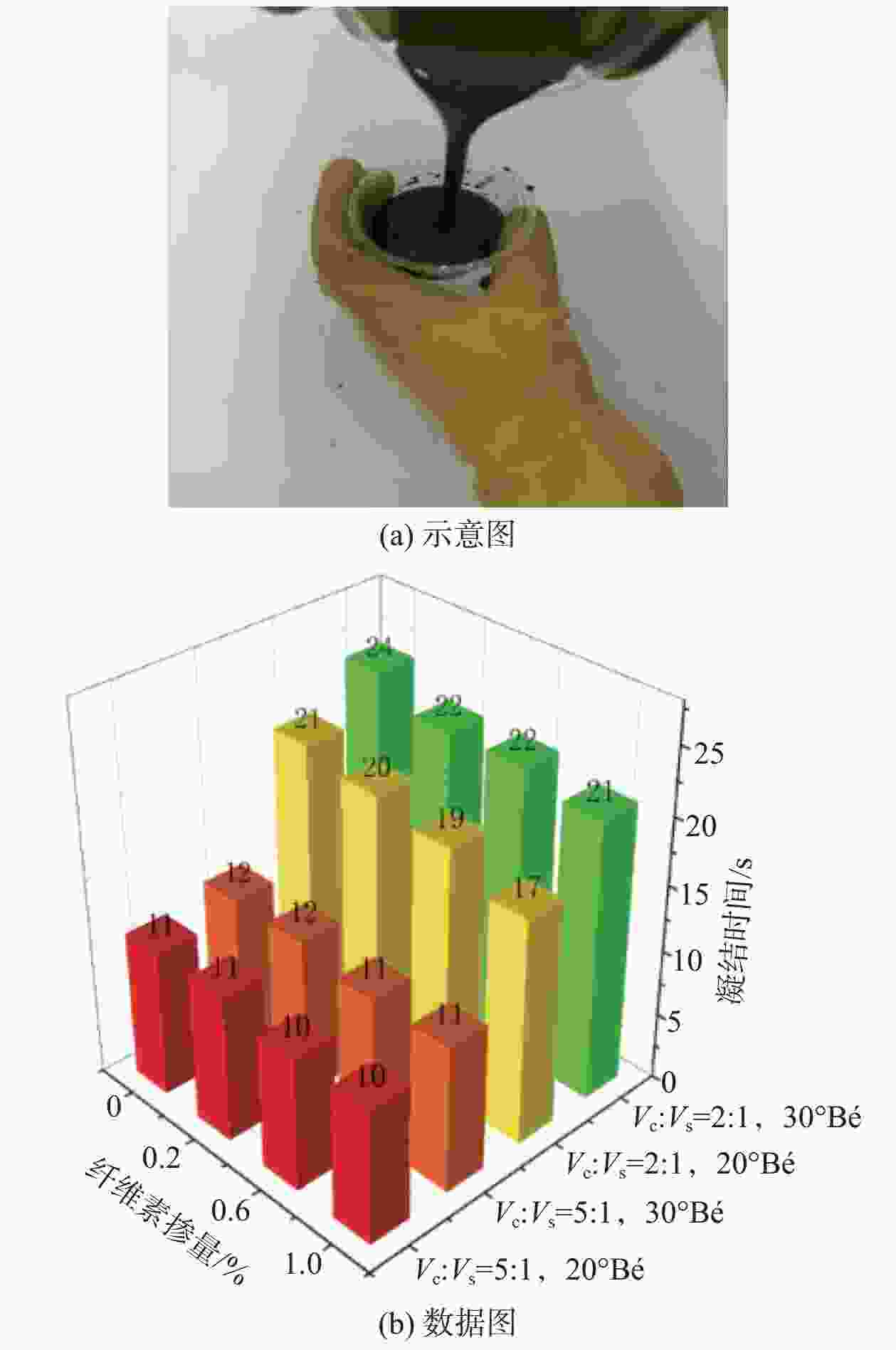

图 2 倒杯法测凝结时间示意及数据图

Figure 2. Schematic diagram and data graph of setting time measured by the pouring cup method

下载: 全尺寸图片幻灯片

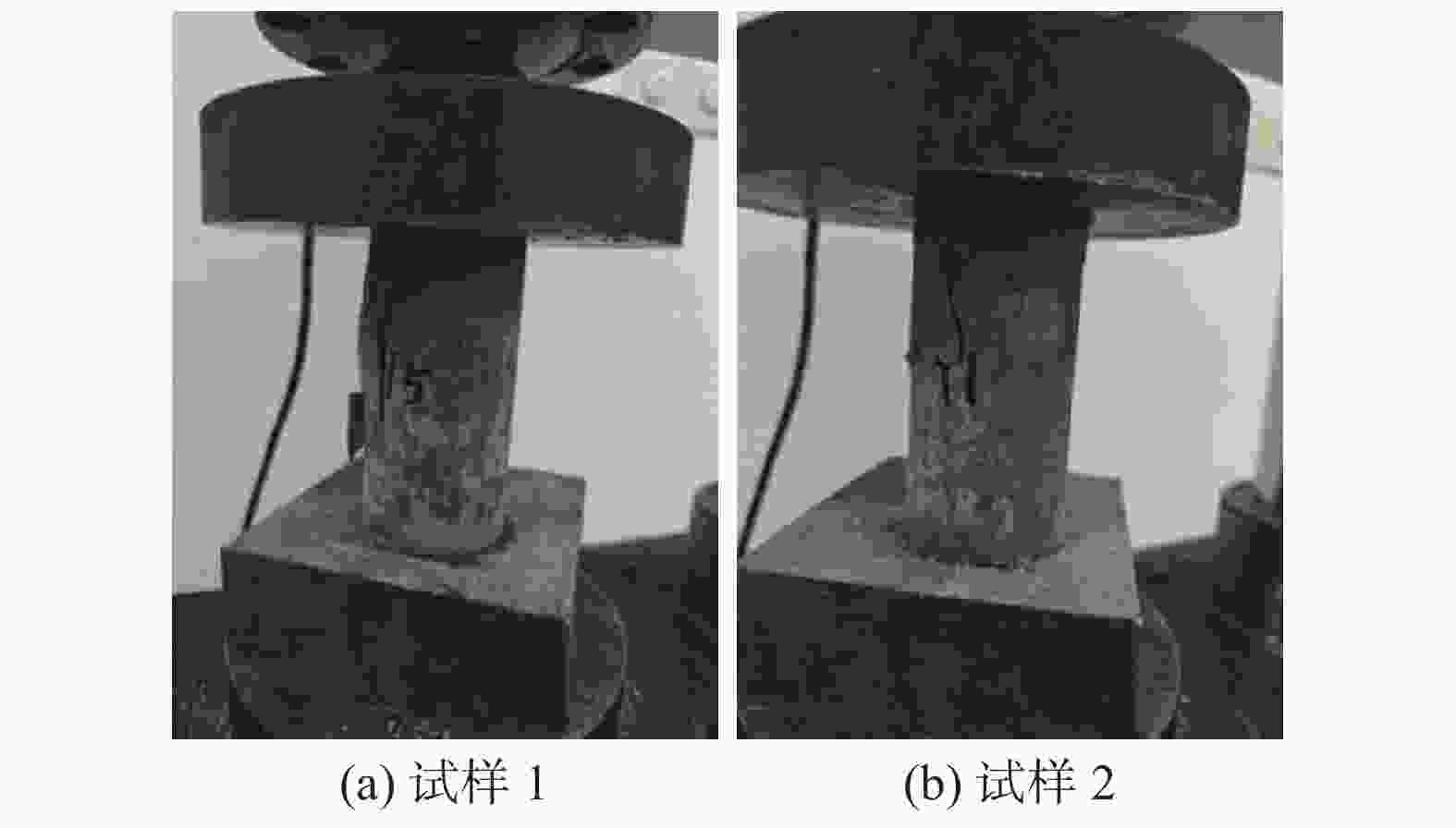

图 3 抗压强度试验示意图

Figure 3. Schematic diagram of compressive strength experiment

下载: 全尺寸图片幻灯片

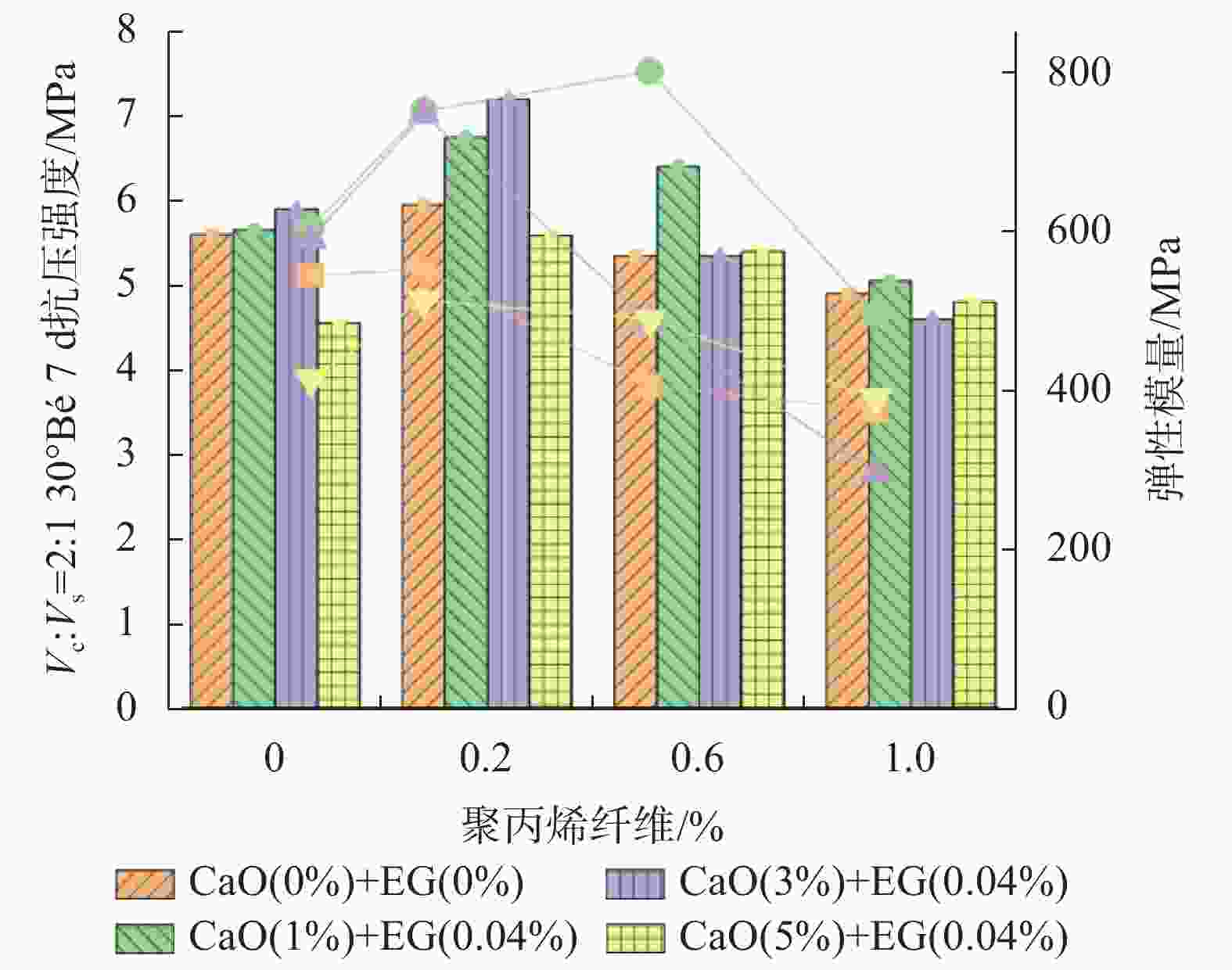

图 4 30°Bé抗压强度及弹性模量数据图

Figure 4. Data graph of compressive strength and elastic modulus at 30°Bé

下载: 全尺寸图片幻灯片

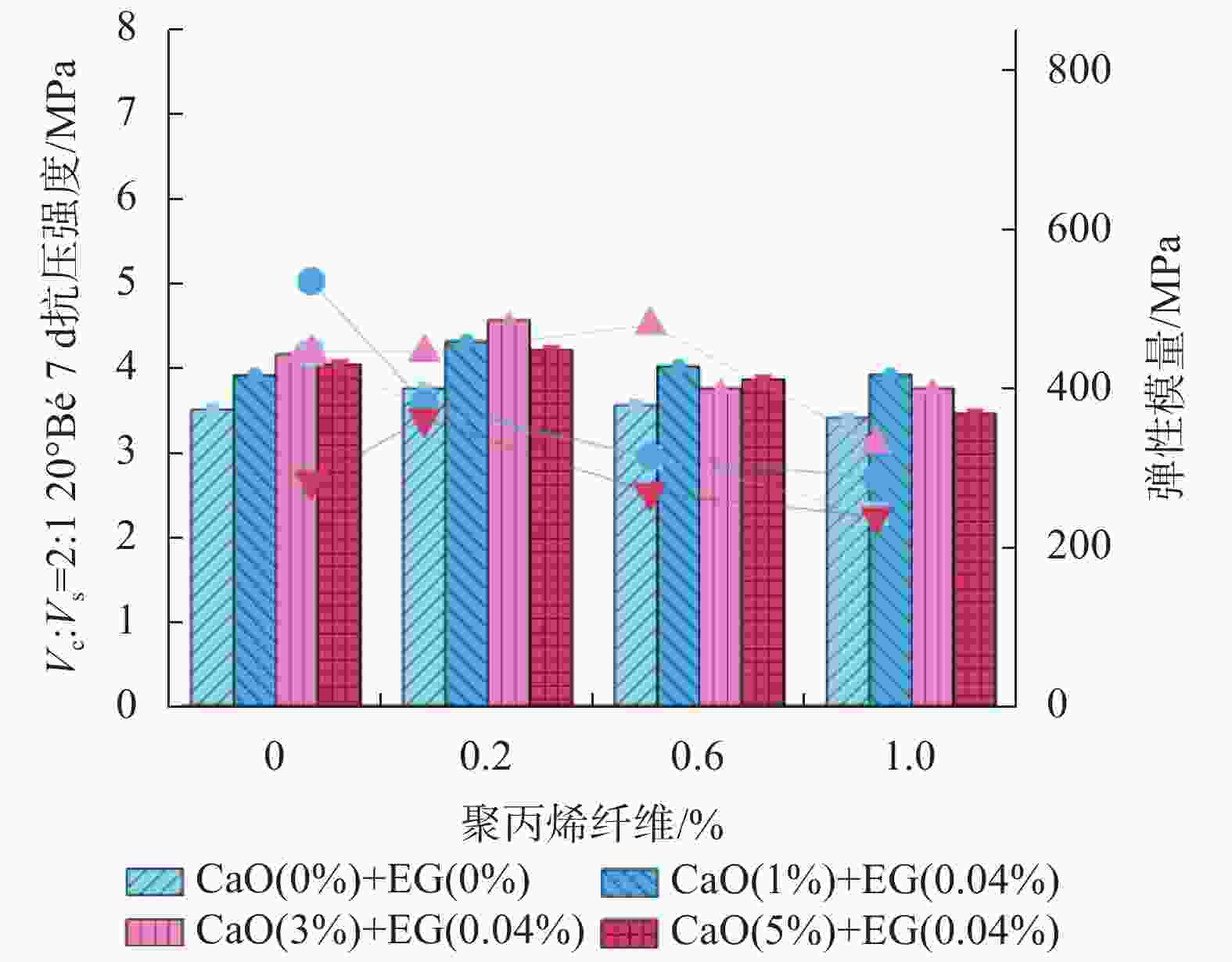

图 5 20°Bé抗压强度及弹性模量数据图

Figure 5. Data graph of compressive strength and elastic modulus at 20°Bé

下载: 全尺寸图片幻灯片

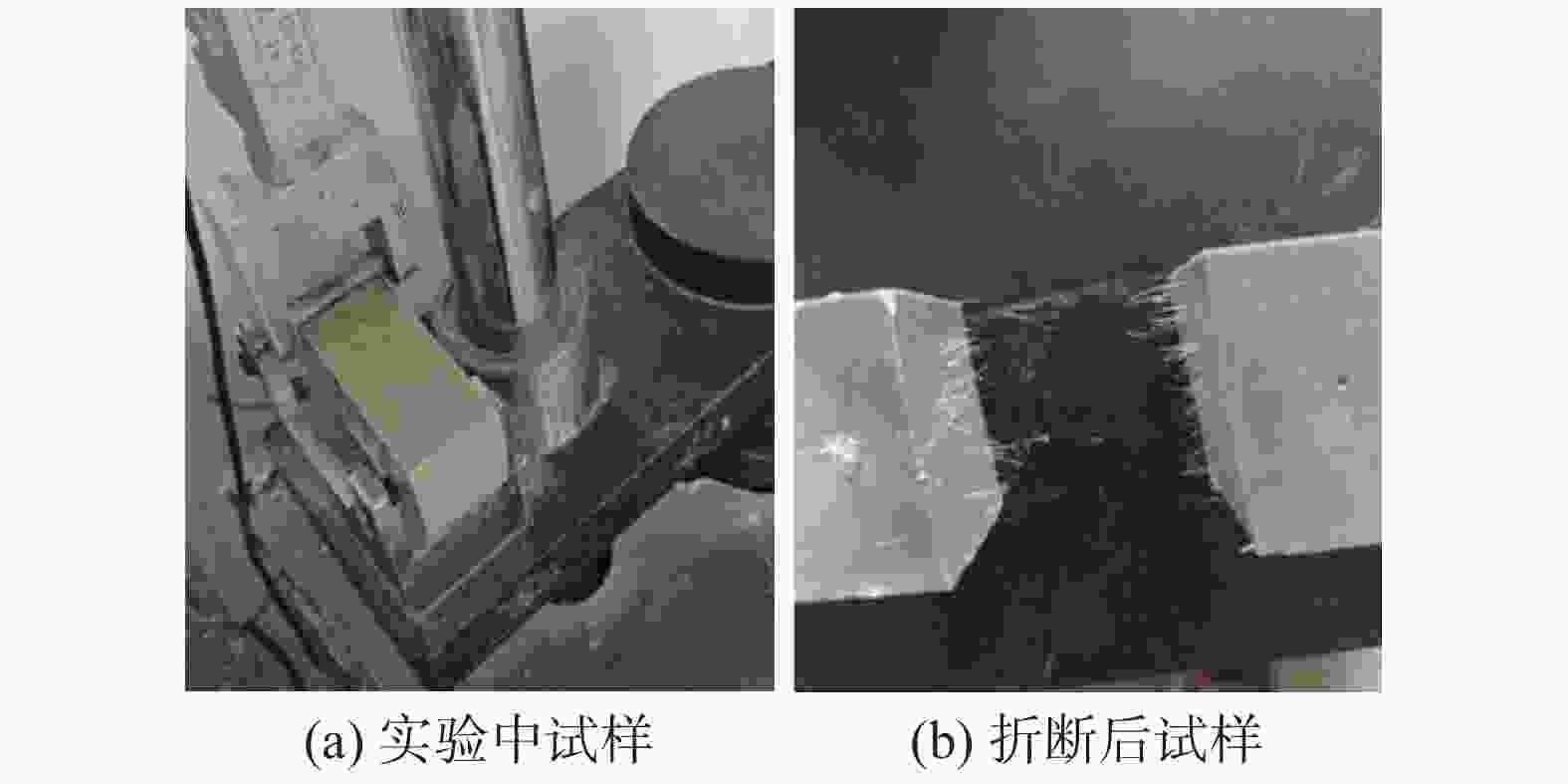

图 6 抗折试验示意图

Figure 6. Schematic diagram of flexural test

下载: 全尺寸图片幻灯片

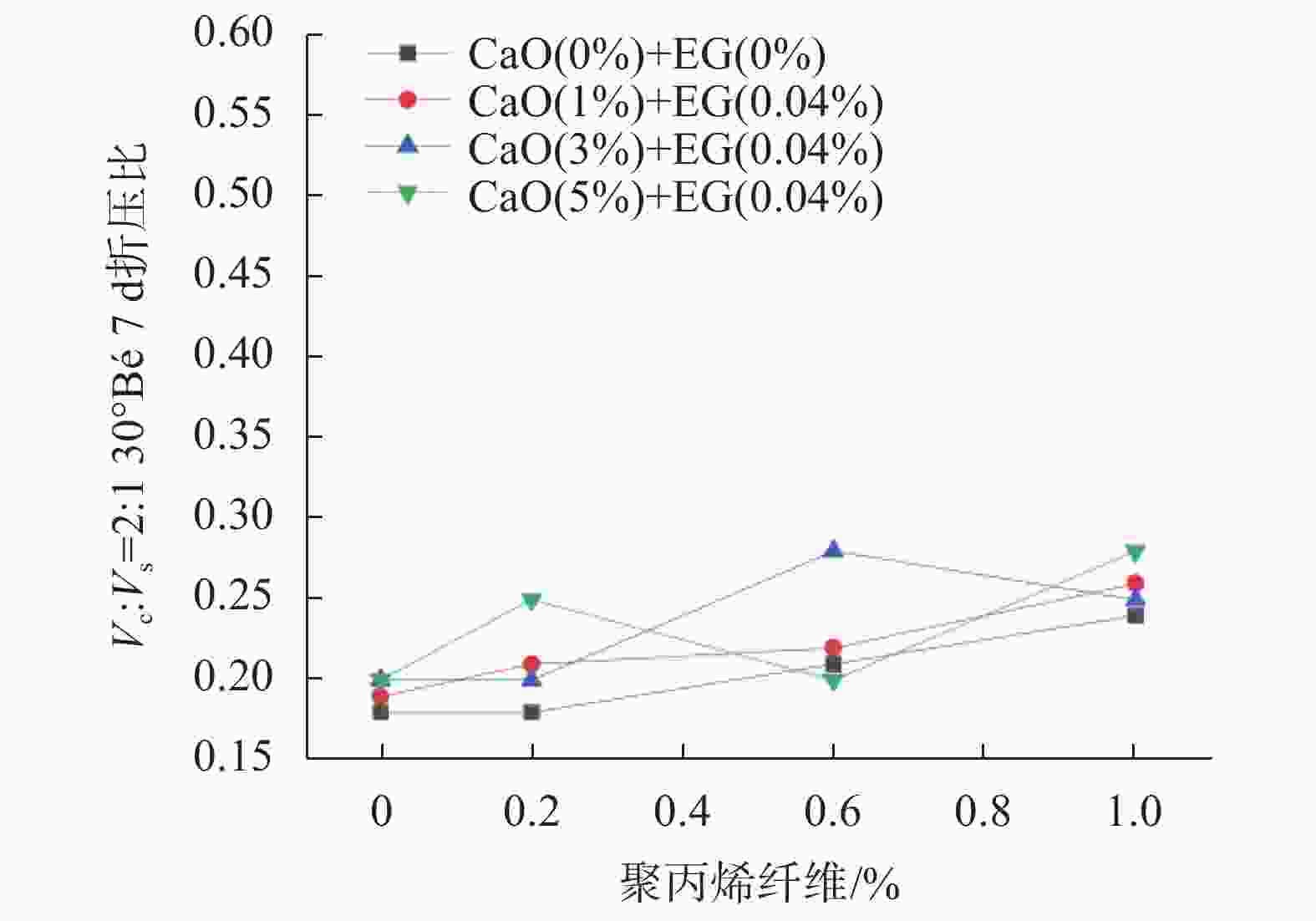

图 7 体积比2∶1 30°Bé 7 d折压比

Figure 7. Volume ratio 2 to 1, 30° Bé, 7 d flexural-compression ratio

下载: 全尺寸图片幻灯片

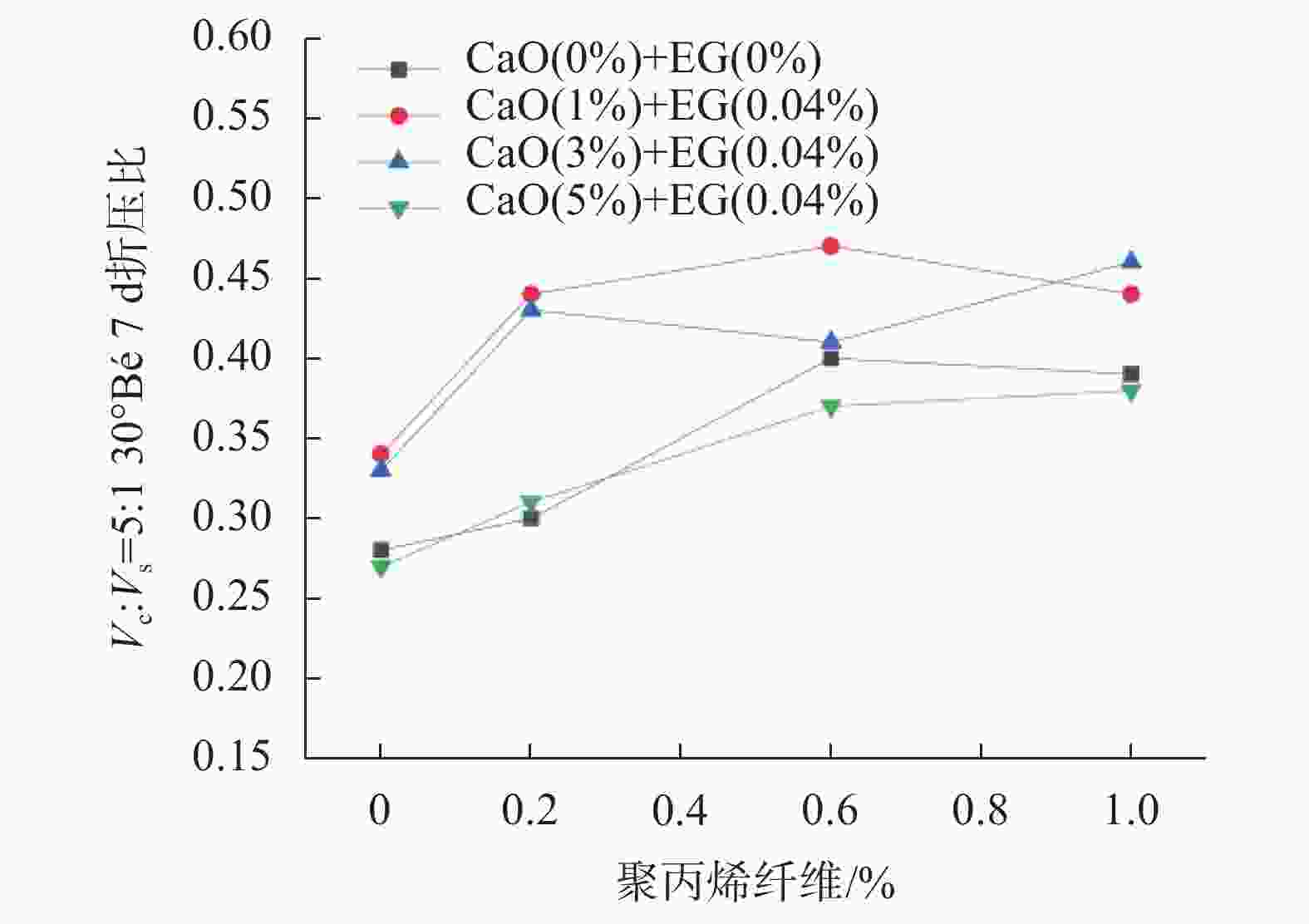

图 8 体积比5∶1 30°Bé 7 d折压比

Figure 8. Volume ratio 5 to 1, 30° Bé, 7 d flexural-compression ratio

下载: 全尺寸图片幻灯片

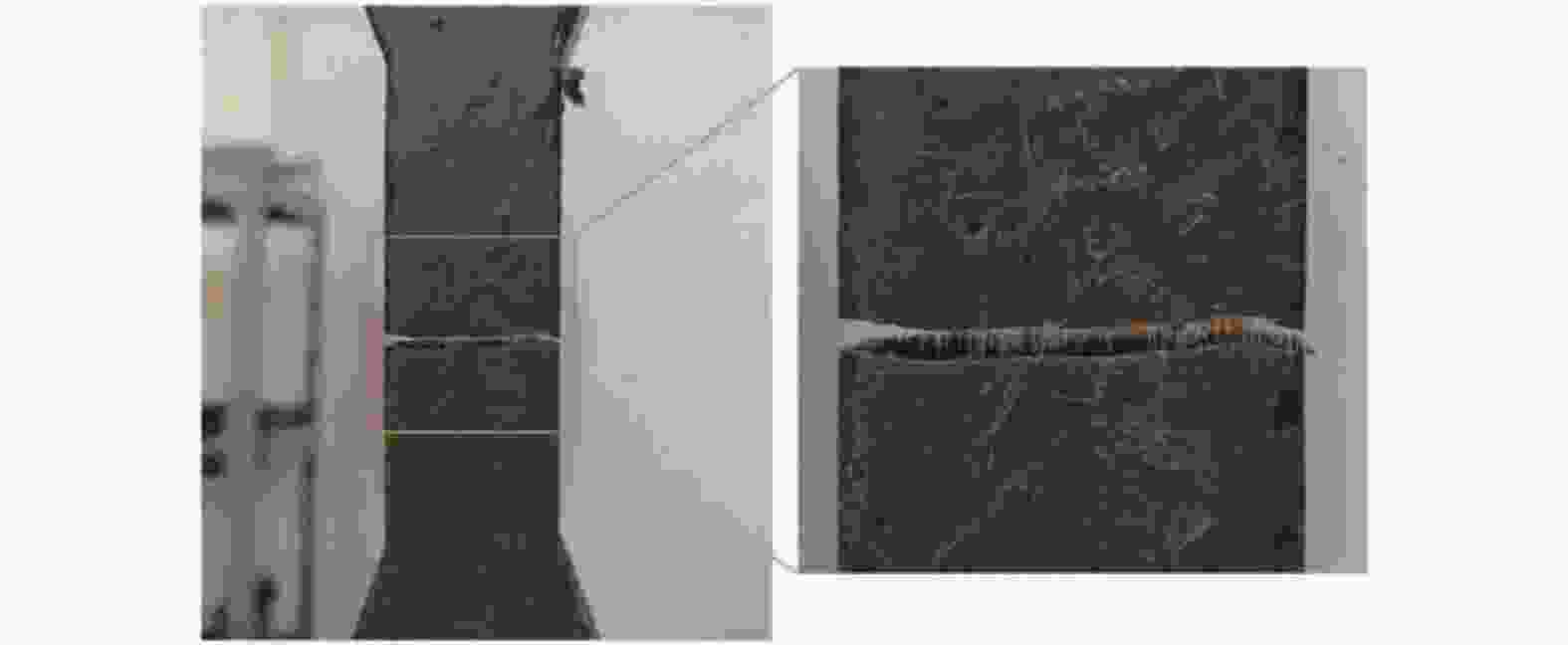

图 9 ECC拉伸试验示意图

Figure 9. Schematic diagram of ECC tensile test

下载: 全尺寸图片幻灯片

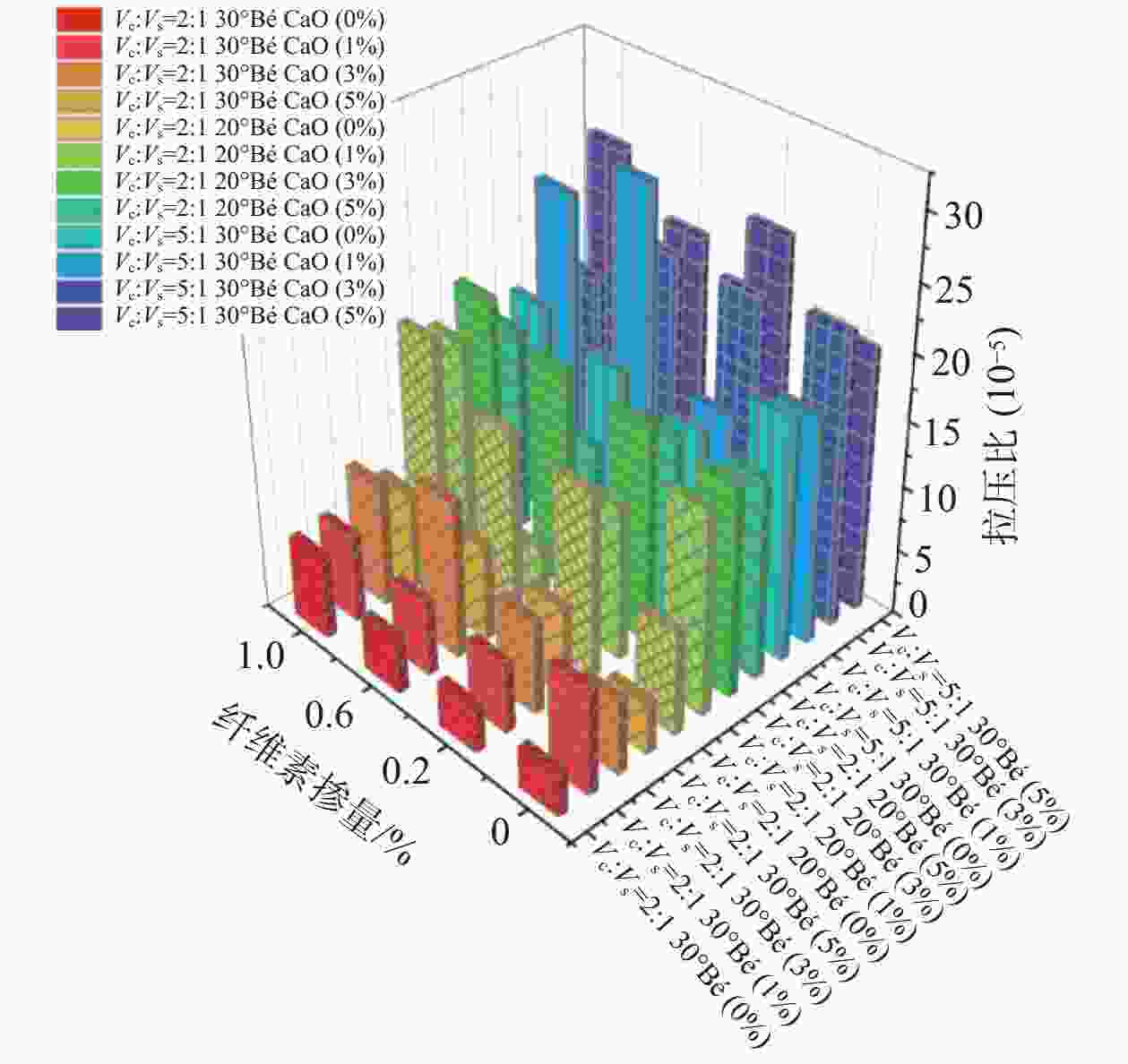

图 10 ECC拉压比数据图

Figure 10. Data graph of tension-compression ratio of ECC

下载: 全尺寸图片幻灯片

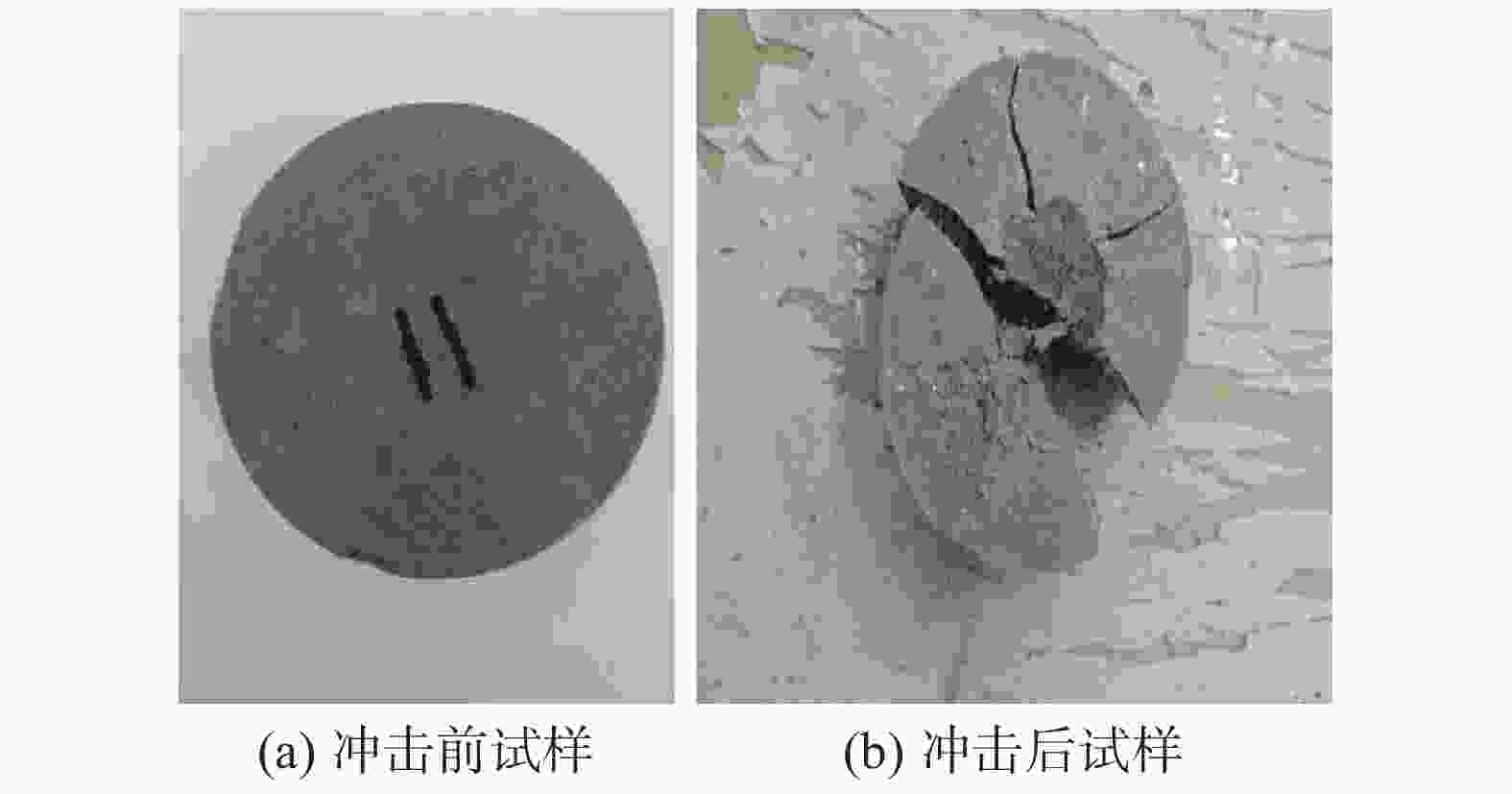

图 11 抗冲击试验示意图

Figure 11. Schematic diagram of impact resistance experiment

下载: 全尺寸图片幻灯片

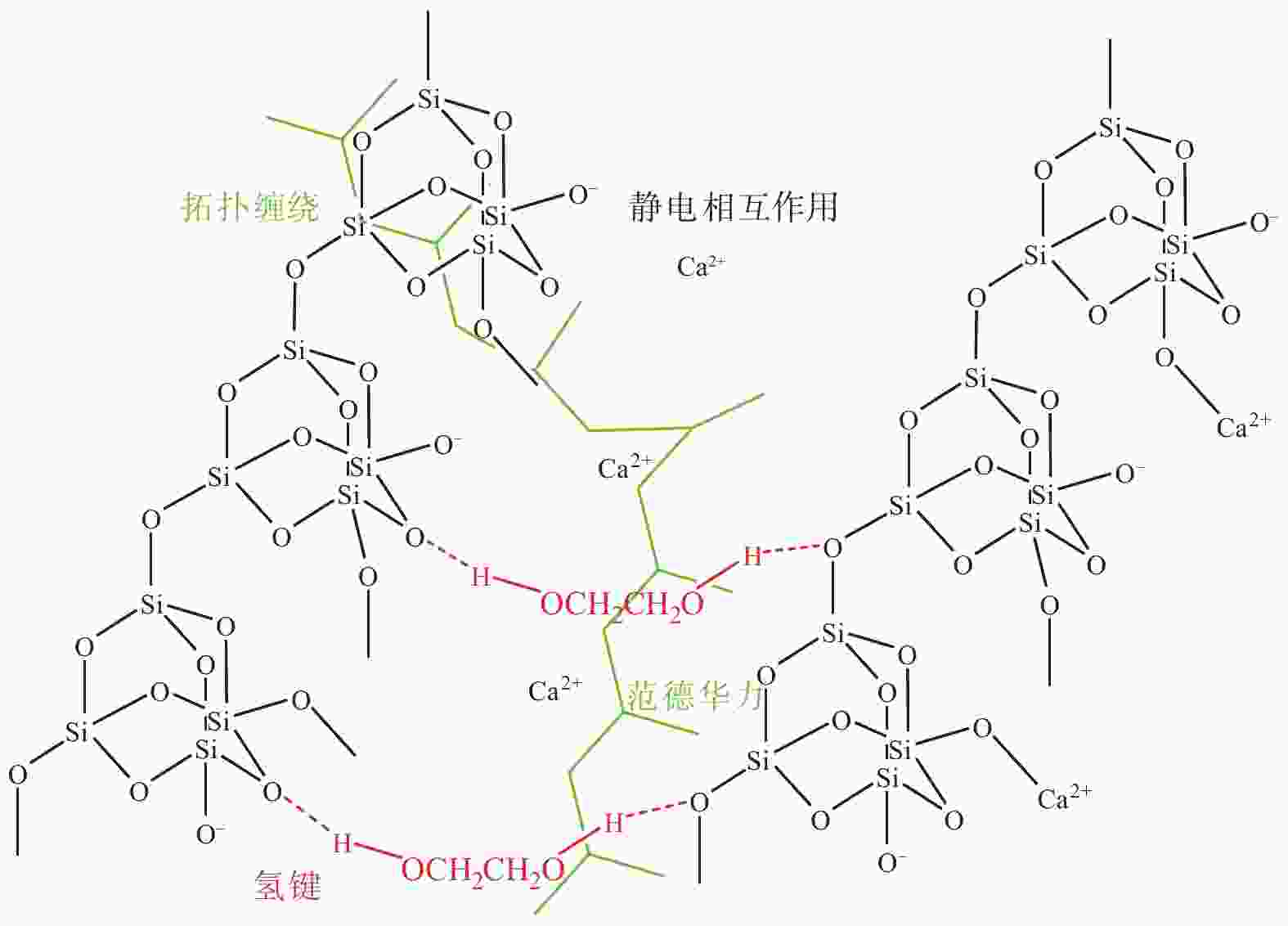

图 12 机理分析示意图

Figure 12. Schematic diagram of mechanism analysis

下载: 全尺寸图片幻灯片

表 1 乙二醇技术指标

Table 1. Technical indicators of ethylene glycol

C₂H₆O₂含量 /%	密度(20 ℃) /(g∙cm⁻³)	相对分子含量	水分/%	灼烧残渣/%	酸度（以H⁺含量计） /(mmol∙g⁻¹)	硫酸盐含量/%
≥99.5	1.112～1.115	62.07	0.2	0.005	0.001	0.002

下载: 导出CSV

表 2 材料配比

Table 2. Material ratio

水平	因素
水平	CaO的掺量/%+EG的掺量/%	PP的掺量/%
1	0.00（0 g）+0.00（0.0 g）	0.0（0 g）
2	1.00（10 g）+0.04（0.4 g）	0.2（2 g）
3	3.00（30 g）+0.04（0.4 g）	0.6（6 g）
4	5.00（50 g）+0.04（0.4 g）	1.0（10 g）

下载: 导出CSV

表 3 试验方案

Table 3. Experimental plan

编号	CaO的掺量/%+ EG的掺量/%	PP的掺量/%	编号	CaO的掺量/%+ EG的掺量/%	PP的掺量/%
1	0+0.00	0.0	9	3+0.04	0.0
2	0+0.00	0.2	10	3+0.04	0.2
3	0+0.00	0.6	11	3+0.04	0.6
4	0+0.00	1.0	12	3+0.04	1.0
5	1+0.04	0.0	13	5+0.04	0.0
6	1+0.04	0.2	14	5+0.04	0.2
7	1+0.04	0.6	15	5+0.04	0.6
8	1+0.04	1.0	16	5+0.04	1.0

下载: 导出CSV

表 4 抗冲击性能

Table 4. Impact resistance

编号	第一条可视裂缝		完全开裂		编号	第一条可视裂缝		完全开裂
编号	次数	W₁冲击耗能/J	次数	W₂冲击耗能/J	编号	次数	W₁冲击耗能/J	次数	W₂冲击耗能/J
1	2	19.62	4	39.24	9	1	9.81	2	19.62
2	2	19.62	5	49.05	10	4	39.24	7	68.67
3	3	29.43	4	39.24	11	1	9.81	2	19.62
4	6	58.86	11	107.91	12	4	39.24	7	68.67
5	9	88.29	10	98.10	13	3	29.43	4	39.24
6	11	107.91	15	147.15	14	1	9.81	3	29.43
7	9	8.29	14	137.34	15	2	19.62	4	39.24
8	3	29.43	5	49.05	16	2	19.62	10	98.10

下载: 导出CSV

参考文献(28)

[1]	张庆松, 张连震, 刘人太, 等. 水泥−水玻璃浆液裂隙注浆扩散的室内试验研究[J]. 岩土力学, 2015, 36(8): 2159-2168. (ZHANG Q S, ZHANG L Z, LIU R T, et al. Laboratory experimental study of cement-silicate slurry diffusion law of crack grouting with dynamic water[J]. Rock and Soil Mechanics, 2015, 36(8): 2159-2168. (in Chinese) doi: 10.16285/j.rsm.2015.08.005 ZHANG Q S, ZHANG L Z, LIU R T, et al. Laboratory experimental study of cement-silicate slurry diffusion law of crack grouting with dynamic water[J]. Rock and Soil Mechanics, 2015, 36（8）: 2159-2168. (in Chinese) doi: 10.16285/j.rsm.2015.08.005
[2]	李术才, 孙子正, 刘人太, 等. 基于裂隙动水注浆的水泥–水玻璃浆液相界面特征研究[J]. 岩石力学与工程学报, 2013, 32(8): 1640-1646. (LI S C, SUN Z Z, LIU R T, et al. Research on phase interface characteristics of cement-silicate grout based on crack grouting with dynamic water[J]. Chinese Journal of Rock Mechanics and Engineering, 2013, 32(8): 1640-1646. (in Chinese) LI S C, SUN Z Z, LIU R T, et al. Research on phase interface characteristics of cement-silicate grout based on crack grouting with dynamic water[J]. Chinese Journal of Rock Mechanics and Engineering, 2013, 32（8）: 1640-1646. (in Chinese)
[3]	杨秀竹, 雷金山, 张屿庆, 等. 岩溶水养护条件下改性水泥−水玻璃浆液性能试验研究[J]. 铁道科学与工程学报, 2019, 16(12): 2999-3004. (YANG X Z, LEI J S, ZHANG Y Q, et al. Study of the orthogonal test of modified cement-water glass grouting material under the curing condition of Karst water[J]. Journal of Railway Science and Engineering, 2019, 16(12): 2999-3004. (in Chinese) YANG X Z, LEI J S, ZHANG Y Q, et al. Study of the orthogonal test of modified cement-water glass grouting material under the curing condition of Karst water[J]. Journal of Railway Science and Engineering, 2019, 16（12）: 2999-3004. (in Chinese)
[4]	夏冲, 李传贵, 冯啸, 等. 水泥粉煤灰−改性水玻璃注浆材料试验研究与应用[J]. 山东大学学报(工学版), 2022, 52(1): 66-73,84. (XIA C, LI C G, FENG X, et al. Experiment study and application of cement fly ash-modified sodium silicate grouting material test[J]. Journal of Shandong University (Engineering Science), 2022, 52(1): 66-73,84. (in Chinese) doi: 10.6040/j.issn.1672-3961.0.2021.106 XIA C, LI C G, FENG X, et al. Experiment study and application of cement fly ash-modified sodium silicate grouting material test[J]. Journal of Shandong University (Engineering Science), 2022, 52（1）: 66-73,84. (in Chinese) doi: 10.6040/j.issn.1672-3961.0.2021.106
[5]	纪荣健, 杨建明, 吴庆, 等. 水玻璃对大流动度的磷酸铵镁水泥浆体性能的影响[J]. 硅酸盐通报, 2020, 39(1): 28-33. (JI R J, YANG J M, WU Q, et al. Effect of water glass on properties of high flowing magnesium ammonium phosphate cement paste[J]. Bulletin of the Chinese Ceramic Society, 2020, 39(1): 28-33. (in Chinese) JI R J, YANG J M, WU Q, et al. Effect of water glass on properties of high flowing magnesium ammonium phosphate cement paste[J]. Bulletin of the Chinese Ceramic Society, 2020, 39（1）: 28-33. (in Chinese)
[6]	宗明明, 李涛, 杨建明, 等. 硫酸盐环境下水玻璃对磷酸钾镁水泥浆体力学的影响[J]. 中国测试, 2023, 49(3): 152-158. (ZONG M M, LI T, LI J M, et al. Effect of sodium silicate in sulfate environment on the mechanics of potassium magnesium phosphate cement slurry[J]. China Measurement & Test, 2023, 49(3): 152-158. (in Chinese) ZONG M M, LI T, LI J M, et al. Effect of sodium silicate in sulfate environment on the mechanics of potassium magnesium phosphate cement slurry[J]. China Measurement & Test, 2023, 49（3）: 152-158. (in Chinese)
[7]	陈鹏, 王先明, 周安琦, 等. 盾构隧道水泥-水玻璃双液同步注浆研究及应用[J]. 铁道科学与工程学报, 2024, 21(12): 5163-5174. (CHEN P, WANG X M, ZHOU A Q, et al. Research and application of cement-sodium silicate two-component synchronous grouting material in shield tunnel[J]. Journal of Railway Science and Engineering, 2024, 21(12): 5163-5174. (in Chinese) doi: 10.19713/j.cnki.43-1423/u.T20240373 CHEN P, WANG X M, ZHOU A Q, et al. Research and application of cement-sodium silicate two-component synchronous grouting material in shield tunnel[J]. Journal of Railway Science and Engineering, 2024, 21（12）: 5163-5174. (in Chinese) doi: 10.19713/j.cnki.43-1423/u.T20240373
[8]	郑昊, 李兆平, 王子元, 等. 超细水泥−水玻璃双液浆性能及注浆止水效果试验研究[J]. 铁道建筑, 2024, 64(1): 95-99. (ZHENG H, LI Z P, WANG Z Y, et al. Experimental study on performance and grouting water plugging effect of ultrafine cement-sodium silicate slurry[J]. Railway Engineering, 2024, 64(1): 95-99. (in Chinese) ZHENG H, LI Z P, WANG Z Y, et al. Experimental study on performance and grouting water plugging effect of ultrafine cement-sodium silicate slurry[J]. Railway Engineering, 2024, 64（1）: 95-99. (in Chinese)
[9]	汤青青, 张丽娟, 孙国文, 等. 三乙醇胺−氢氧化钙对大掺量粉煤灰水泥胶凝体系早期活性激发[J]. 硅酸盐通报, 2018, 37(9): 2737-2742. (TANG Q Q, ZHANG L J, SUN G W, et al. Early activity of triethanolamine-calcium hydroxide activates to high volume fly ash in cement-gel system[J]. Bulletin of the Chinese Ceramic Society, 2018, 37(9): 2737-2742. (in Chinese) doi: 10.16552/j.cnki.issn1001-1625.2018.09.008 TANG Q Q, ZHANG L J, SUN G W, et al. Early activity of triethanolamine-calcium hydroxide activates to high volume fly ash in cement-gel system[J]. Bulletin of the Chinese Ceramic Society, 2018, 37（9）: 2737-2742. (in Chinese) doi: 10.16552/j.cnki.issn1001-1625.2018.09.008
[10]	李祖仲, 毛浩天, 王亮, 等. 混凝土早强修补材料基准水泥配合比优化研究[J]. 硅酸盐通报, 2025, 44(3): 802-810. (LI Z Z, MAO H T, WANG L, et al. Optimization of standard cement mix ratio for concrete early-strength repair materials[J]. Bulletin of the Chinese Ceramic Society, 2025, 44(3): 802-810. (in Chinese) LI Z Z, MAO H T, WANG L, et al. Optimization of standard cement mix ratio for concrete early-strength repair materials[J]. Bulletin of the Chinese Ceramic Society, 2025, 44（3）: 802-810. (in Chinese)
[11]	张轶, 张彪, 邓翔文, 等. LDHs-NO₂对水泥砂浆性能及钢筋锈蚀的影响[J]. 硅酸盐通报, 2025, 44(1): 1-10. (ZHANG Y, ZHANG B, DENG X W, et al. Effect of LDHs-NO₂ on properties of cement mortar and corrosion of steel bar[J]. Bulletin of the Chinese Ceramic Society, 2025, 44(1): 1-10. (in Chinese) doi: 10.16552/j.cnki.issn1001-1625.2024.1003 ZHANG Y, ZHANG B, DENG X W, et al. Effect of LDHs-NO₂ on properties of cement mortar and corrosion of steel bar[J]. Bulletin of the Chinese Ceramic Society, 2025, 44（1）: 1-10. (in Chinese) doi: 10.16552/j.cnki.issn1001-1625.2024.1003
[12]	王晨宇, 韦经杰, 龙武剑, 等. 纤维取向分布对水泥基复合材料力学性能的影响及其评价方法的研究进展[J]. 材料导报, 2022, 36(15): 20120133. (WANG C Y, WEI J J, LONG W J, et al. Review on the effect of fiber orientation distribution on mechanical performance of cement-based composites and its evaluated methods[J]. Materials Reports, 2022, 36(15): 20120133. (in Chinese) doi: 10.11896/cldb.20120133 WANG C Y, WEI J J, LONG W J, et al. Review on the effect of fiber orientation distribution on mechanical performance of cement-based composites and its evaluated methods[J]. Materials Reports, 2022, 36（15）: 20120133. (in Chinese) doi: 10.11896/cldb.20120133
[13]	LIU P, WANG H T, LIU Q S, et al. FDEM numerical study on the large deformation mechanism of layered rock mass tunnel under excavation-unloading disturbance[J]. Tunnelling and Underground Space Technology, 2025, 159: 106497. doi: 10.1016/j.tust.2025.106497
[14]	曾熙文, 王艳芬, 赵光明, 等. 聚丙烯纤维改性超细水泥复合注浆材料性能研究[J]. 煤炭科学技术, 2024, 52(7): 57-67. (ZENG X W, WANG Y F, ZHAO G M, et al. Study on properties of polypropylene fiber-modified ultrafine cement composite grouting materials[J]. Coal Science and Technology, 2024, 52(7): 57-67. (in Chinese) doi: 10.12438/cst.2023-1292 ZENG X W, WANG Y F, ZHAO G M, et al. Study on properties of polypropylene fiber-modified ultrafine cement composite grouting materials[J]. Coal Science and Technology, 2024, 52（7）: 57-67. (in Chinese) doi: 10.12438/cst.2023-1292
[15]	马豪达, 白银, 陈波, 等. 水胶比和橡胶掺量对砂浆力学性能及能量演化规律的影响[J]. 材料导报, 2025, 39(1): 23120226. (MA H D, BAI Y, CHEN B, et al. Influence of water-cement ratio and rubber admixture on mechanical properties and energy evolution law of mortar[J]. Materials Reports, 2025, 39(1): 23120226. (in Chinese) doi: 10.11896/cldb.23120226 MA H D, BAI Y, CHEN B, et al. Influence of water-cement ratio and rubber admixture on mechanical properties and energy evolution law of mortar[J]. Materials Reports, 2025, 39（1）: 23120226. (in Chinese) doi: 10.11896/cldb.23120226
[16]	贾毅, 赵强, 韦朝宽, 等. 聚丙烯纤维增强水泥基复合材料单轴拉伸损伤本构模型研究[J]. 硅酸盐通报, 2024, 43(11): 4061-4071. (JIA Y, ZHAO Q, WEI C K, et al. Uniaxial tensile damage constitutive model of polypropylene fiber reinforced engineered cementitious composites[J]. Bulletin of the Chinese Ceramic Society, 2024, 43(11): 4061-4071. (in Chinese) JIA Y, ZHAO Q, WEI C K, et al. Uniaxial tensile damage constitutive model of polypropylene fiber reinforced engineered cementitious composites[J]. Bulletin of the Chinese Ceramic Society, 2024, 43（11）: 4061-4071. (in Chinese)
[17]	沈霁, 姚力豪, 王彦平, 等. PP纤维对疏水性水泥-矿渣复合材料性能的影响[J]. 化工新型材料, 2024, 52(S1): 266-271. (SHEN J, YAO L H, WANG Y P, et al. Effect of PP fibers on the performance of hydrophobic cement-slag composites[J]. New Chemical Materials, 2024, 52(S1): 266-271. (in Chinese) doi: 10.19817/j.cnki.issn1006-3536.2024.S1.023 SHEN J, YAO L H, WANG Y P, et al. Effect of PP fibers on the performance of hydrophobic cement-slag composites[J]. New Chemical Materials, 2024, 52（S1）: 266-271. (in Chinese) doi: 10.19817/j.cnki.issn1006-3536.2024.S1.023
[18]	范淋, 杨曌, 祁小龙, 等. SMAF增强PP/PVA混杂纤维工程水泥基复合材料拉伸性能[J]. 硅酸盐通报, 2025, 44(3): 811-820. (FAN L, YANG Z, QI X L, et al. Tensile properties of pp/pva hybrid fiber engineered cementitious composites reinforced by SMAF[J]. Bulletin of the Chinese Ceramic Society, 2025, 44(3): 811-820. (in Chinese) doi: 10.16552/j.cnki.issn1001-1625.2024.1055 FAN L, YANG Z, QI X L, et al. Tensile properties of pp/pva hybrid fiber engineered cementitious composites reinforced by SMAF[J]. Bulletin of the Chinese Ceramic Society, 2025, 44（3）: 811-820. (in Chinese) doi: 10.16552/j.cnki.issn1001-1625.2024.1055
[19]	李召峰, 高益凡, 张健, 等. 水溶性植物胶改性水泥–水玻璃封堵材料试验研究[J]. 岩土工程学报, 2020, 42(7): 1312-1321. (LI Z F, GAO Y F, ZHANG J, et al. Experimental study of water-soluble vegetable gum-modified cement-sodium silicate plugging materials[J]. Chinese Journal of Geotechnical Engineering, 2020, 42(7): 1312-1321. (in Chinese) doi: 10.11779/CJGE202007015 LI Z F, GAO Y F, ZHANG J, et al. Experimental study of water-soluble vegetable gum-modified cement-sodium silicate plugging materials[J]. Chinese Journal of Geotechnical Engineering, 2020, 42（7）: 1312-1321. (in Chinese) doi: 10.11779/CJGE202007015
[20]	连会青, 杨俊文, 雷玉娟. 水泥−粉煤灰−水玻璃注浆材料强度影响因素试验研究[J]. 煤炭工程, 2018, 50(12): 107-112. (LIAN H Q, YANG J W, LEI Y J. Experimental study on the influence factors of strength of cement-fly ash-water-glass grouting material[J]. Coal Engineering, 2018, 50(12): 107-112. (in Chinese) doi: 10.11799/ce201812028 LIAN H Q, YANG J W, LEI Y J. Experimental study on the influence factors of strength of cement-fly ash-water-glass grouting material[J]. Coal Engineering, 2018, 50（12）: 107-112. (in Chinese) doi: 10.11799/ce201812028
[21]	中华人民共和国交通部. 水泥混凝土圆柱体轴心抗压强度试验方法: T 0554—2005[S]. 北京: 人民交通出版社, 2005. ((Ministry of Communications of the People’s Republic of China. Test Method for Axial Compressive Strength of Cement Concrete Cylinders: T 0554—2005[S]. Beijing: China Communications Press, 2005.(in Chinese) (Ministry of Communications of the People’s Republic of China. Test Method for Axial Compressive Strength of Cement Concrete Cylinders: T 0554—2005[S]. Beijing: China Communications Press, 2005.(in Chinese)
[22]	国家市场监督管理总局, 国家标准化管理委员会. 水泥胶砂强度检验方法(ISO法): GB/T 17671—2021[S]. 北京: 中国标准出版社, 2021. (State Administration for Market Regulation, National Standardization Administration. Test method of cement mortar strength (ISO method): GB/T 17671—2021[S]. Beijing: Standards Press of China, 2021. (in Chinese) State Administration for Market Regulation, National Standardization Administration. Test method of cement mortar strength (ISO method): GB/T 17671—2021[S]. Beijing: Standards Press of China, 2021. (in Chinese)
[23]	工业和信息化部. 高延性纤维增强水泥基复合材料力学性能试验方法: JC/T 2461—2018[S]. 北京: 建材工业出版社, 2018. (Ministry of Industry and Information Technology. Standard test method for the mechanical properties of ductile fiber reinforced cementitious composites: JC/T 2461—2018[S]. Beijing: China Building Materials Industry Press, 2018. (in Chinese) Ministry of Industry and Information Technology. Standard test method for the mechanical properties of ductile fiber reinforced cementitious composites: JC/T 2461—2018[S]. Beijing: China Building Materials Industry Press, 2018. (in Chinese)
[24]	中国工程建设标准化协会. 纤维混凝土试验方法标准: CECS 13—2009[S]. 北京: 中国计划出版社, 2010. (China Association for Engineering Construction Standardization. Standard test methods for fiber reinforced concrete: CECS 13—2009[S]. Beijing: China Planning Press, 2010. (in Chinese) China Association for Engineering Construction Standardization. Standard test methods for fiber reinforced concrete: CECS 13—2009[S]. Beijing: China Planning Press, 2010. (in Chinese)
[25]	陈鑫, 殷苏鑫. 氧化钙–碳酸钠复合激发矿渣灌浆材料流变特性研究[J]. 现代隧道技术, 2023, 60(6): 269-277. (CHEN X, YIN S X. Study on the rheological properties of calcium oxide-sodium carbonate composite activated slag based grouting material[J]. Modern Tunnelling Technology, 2023, 60(6): 269-277. (in Chinese) doi: 10.13807/j.cnki.mtt.2023.06.029 CHEN X, YIN S X. Study on the rheological properties of calcium oxide-sodium carbonate composite activated slag based grouting material[J]. Modern Tunnelling Technology, 2023, 60（6）: 269-277. (in Chinese) doi: 10.13807/j.cnki.mtt.2023.06.029
[26]	田婷, 张爱, 李国新, 等. 氧化钙对硅酸盐水泥–铝酸盐水泥–硫酸钙体系低温水化性能的影响[J]. 硅酸盐通报, 2015, 34(12): 3670-3675. (TIAN T, ZHANG A, LI G X, et al. Influence of calcium oxide on the hydration performance of Portland cement-aluminate cement-gypsum ternary system at low temperature[J]. Bulletin of the Chinese Ceramic Society, 2015, 34(12): 3670-3675. (in Chinese) TIAN T, ZHANG A, LI G X, et al. Influence of calcium oxide on the hydration performance of Portland cement-aluminate cement-gypsum ternary system at low temperature[J]. Bulletin of the Chinese Ceramic Society, 2015, 34（12）: 3670-3675. (in Chinese)
[27]	孔爱散, 钱锶嘉, 王伟, 等. 聚丙烯纤维协同碳化养护技术改性水泥土的抗剪特性研究[J]. 硅酸盐通报, 2025, 44(5): 1939-1948. (KONG A S, QIAN S J, WANG W, et al. Shear strength characteristics of cement soil modified with polypropylene fiber and carbonation curing technology[J]. Bulletin of the Chinese Ceramic Society, 2025, 44(5): 1939-1948. (in Chinese) doi: 10.16552/j.cnki.issn1001-1625.2024.1239 KONG A S, QIAN S J, WANG W, et al. Shear strength characteristics of cement soil modified with polypropylene fiber and carbonation curing technology[J]. Bulletin of the Chinese Ceramic Society, 2025, 44（5）: 1939-1948. (in Chinese) doi: 10.16552/j.cnki.issn1001-1625.2024.1239
[28]	鞠鹏, 雷宝锋, 姬语洋, 等. 聚丙烯纤维对流态固化土流变及力学性能的影响[J]. 材料导报, 2025, 39(20): 94-101. (JU P, LEI B F, JI Y Y, et al. Effect of polypropylene fibers on rheological and mechanical properties of fluid-consolidated soil[J]. Materials Reports, 2025, 39(20): 94-101. (in Chinese) doi: 10.11896/cldb.24080171 JU P, LEI B F, JI Y Y, et al. Effect of polypropylene fibers on rheological and mechanical properties of fluid-consolidated soil[J]. Materials Reports, 2025, 39（20）: 94-101. (in Chinese) doi: 10.11896/cldb.24080171
