承压含水层降水引起地层沉降计算与验证

符乔松; 刘盼; 丁春福; 姚爱军; 李立云

doi:10.20265/j.cnki.issn.1007-2993.2025-0299

承压含水层降水引起地层沉降计算与验证

doi: 10.20265/j.cnki.issn.1007-2993.2025-0299

1.
北京工业大学建筑工程学院，北京　100124
2.
中交路桥建设有限公司，北京　100027

基金项目: 国家重点研发计划资助（2023YFC3009300；2023YFC3009302）

详细信息

作者简介:
符乔松，男，2001年生，在读博士研究生，研究方向为岩土工程。E-mail：fqssqf1226@emails.bjut.edu.cn

通讯作者:
李立云，男，1973年生，博士，教授，研究方向为岩土工程。E-mail：lly@bjut.edu.cn

中图分类号: TU46⁺3
计量
- 文章访问数: 56
- HTML全文浏览量: 12
- PDF下载量: 9
- 被引次数: 0
出版历程
- 收稿日期: 2025-07-09
- 修回日期: 2025-08-24
- 录用日期: 2025-11-11
- 网络出版日期: 2026-10-08
- 刊出日期: 2026-10-08

Calculation and verification of ground settlement due to precipitation in a confined aquifer

1.
School of Architectural Engineering, Beijing University of Technology, Beijing 100124, China
2.
Road & Bridge International Co., Ltd., Beijing 100027, China

摘要

摘要: 北京地铁13号线天通苑站暗挖施工中，因地下水丰富且隧道底板位于承压含水层内，采用止水帷幕效果不佳、成本高昂，故改为开挖前对承压含水层进行预降水减压以控制地下水。为预测降水引发的地表沉降，基于三维地下水动力学理论，建立了一个区域划分数学模型，综合考虑了承压含水层降水压力分布曲线与隔水层顶板的空间位置，并将承压含水层上覆隔水顶板受力区域划分为无压区与承压区。依据能量守恒方程构建了单井降水的孔隙水压力分布公式，并引入Mindlin解计算地表沉降。经实测数据验证，最终沉降值与解析解所求值误差平均值为15%。研究表明，该模型可为短期内深层承压含水层降水引起的地表沉降提供理论依据。
- 降水减压 /
- 承压含水层 /
- 孔隙水压力 /
- 隔水层变形 /
- 地层沉降
Abstract: In the underground excavation construction of Tiantongyuan Station of Beijing Metro Line 13, due to the rich groundwater and the tunnel floor located in the confined aquifer, the effect of the waterproof curtain is not good and the cost is high. Therefore, the confined aquifer is pre-dewatered and decompressed before excavation to control groundwater. In order to predict the surface subsidence caused by precipitation, this study established a mathematical model of regional division based on the three-dimensional groundwater dynamics theory, which comprehensively considered the distribution curve of precipitation pressure in confined aquifer and the spatial position of aquiclude roof. After dividing the stress area of confined aquifer into non-pressure area and pressure area, the pore water pressure distribution formula of single well precipitation was constructed according to the energy conservation equation, and the Mindlin solution was introduced to calculate the surface settlement. Verified by the measured data, the average error between the final settlement value and the analytical solution is 15%. The research shows that the model can provide a theoretical basis for surface subsidence caused by precipitation in deep confined aquifer.
- dewatering and pressure relief /
- confined aquifer /
- pore water pressure /
- confined aquifer deformation /
- ground settlement

HTML全文

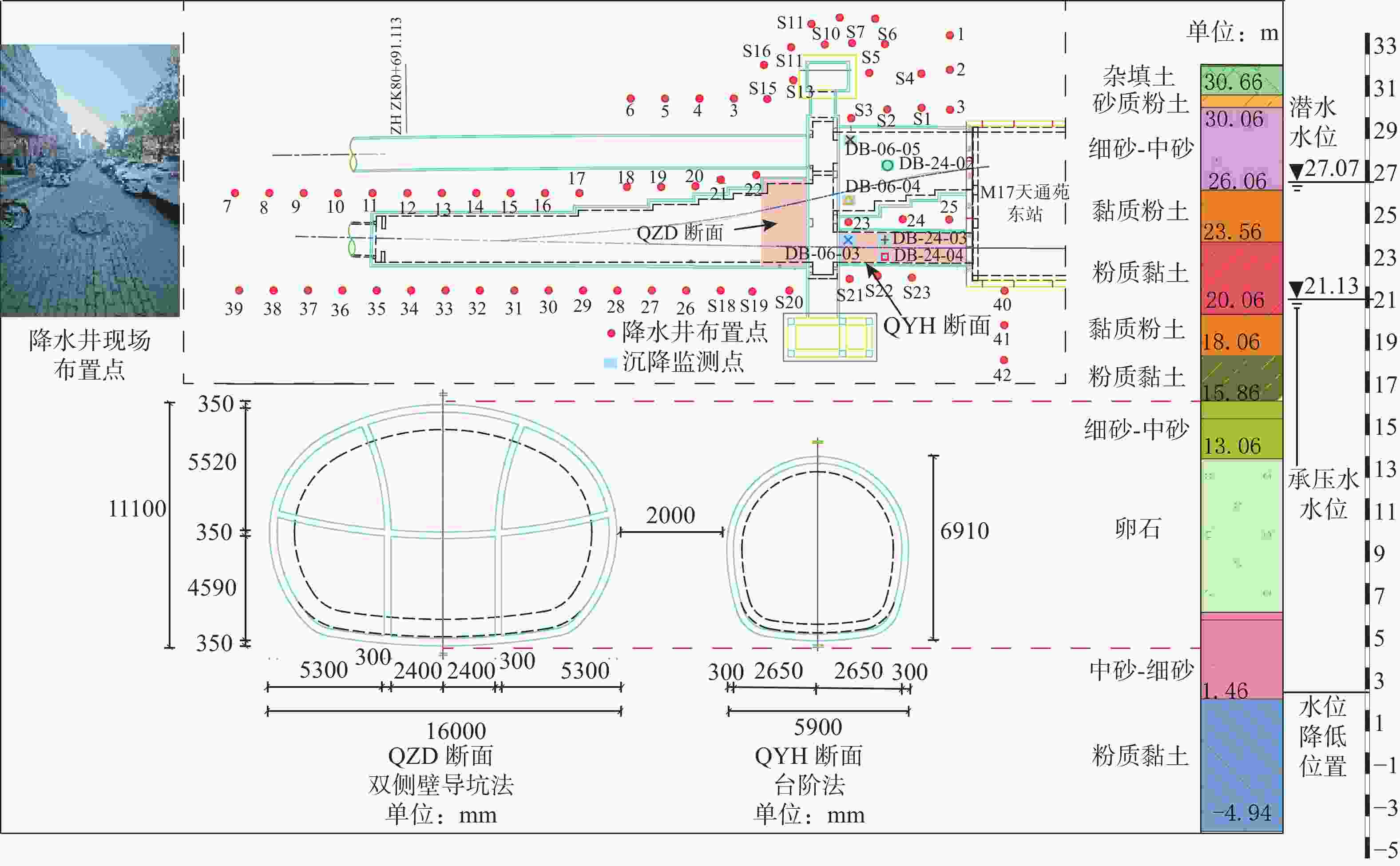

图 1 降水井布置图

Figure 1. Dewatering well arrangement

下载: 全尺寸图片幻灯片

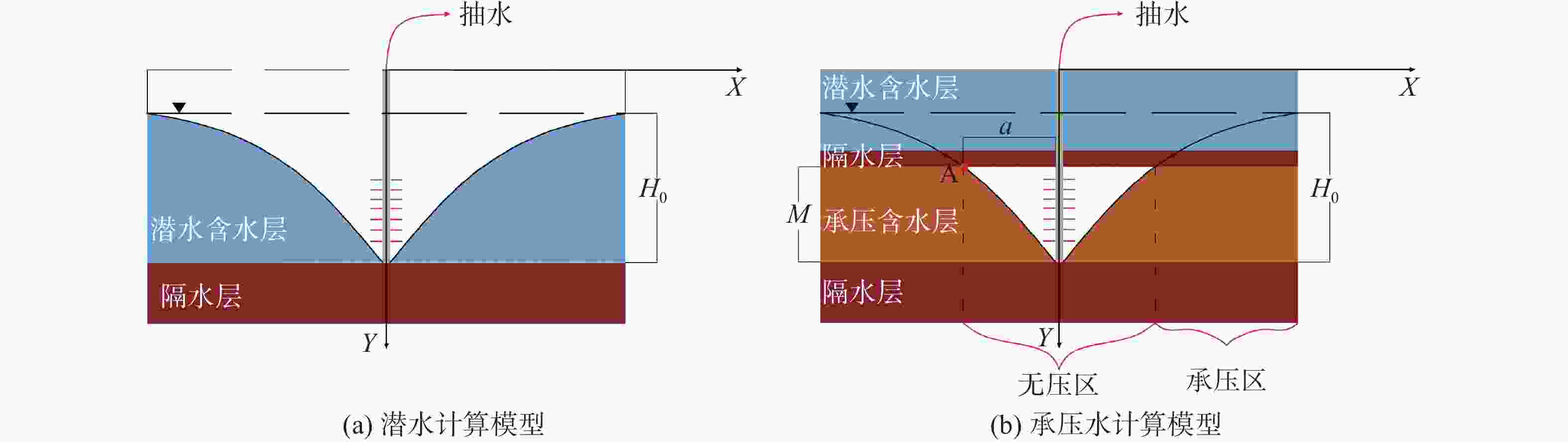

图 2 承压含水层顶板承压分区

Figure 2. Confined aquifer roof pressure partition

下载: 全尺寸图片幻灯片

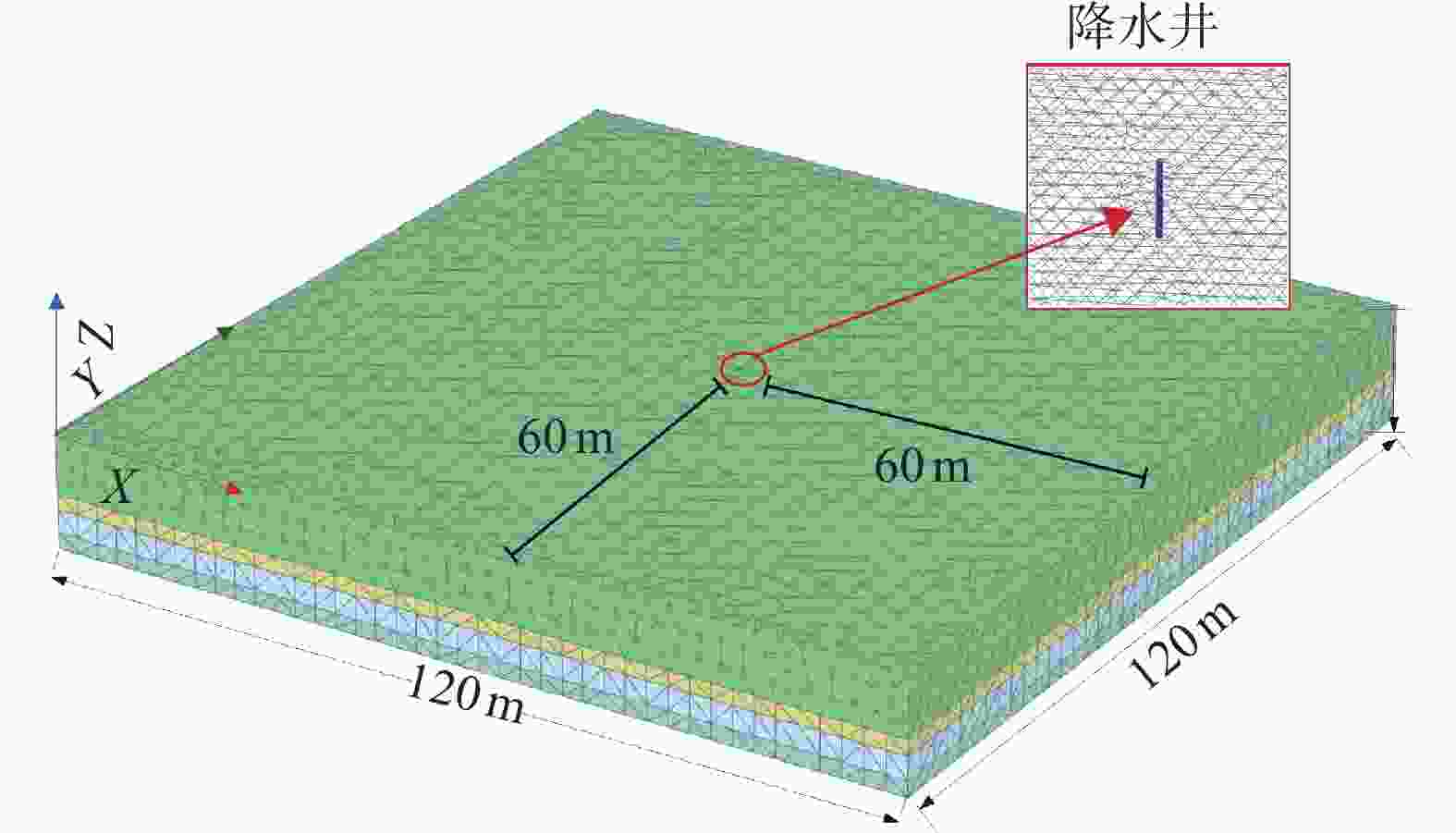

图 3 三维有限元模型

Figure 3. Three-dimensional finite element model

下载: 全尺寸图片幻灯片

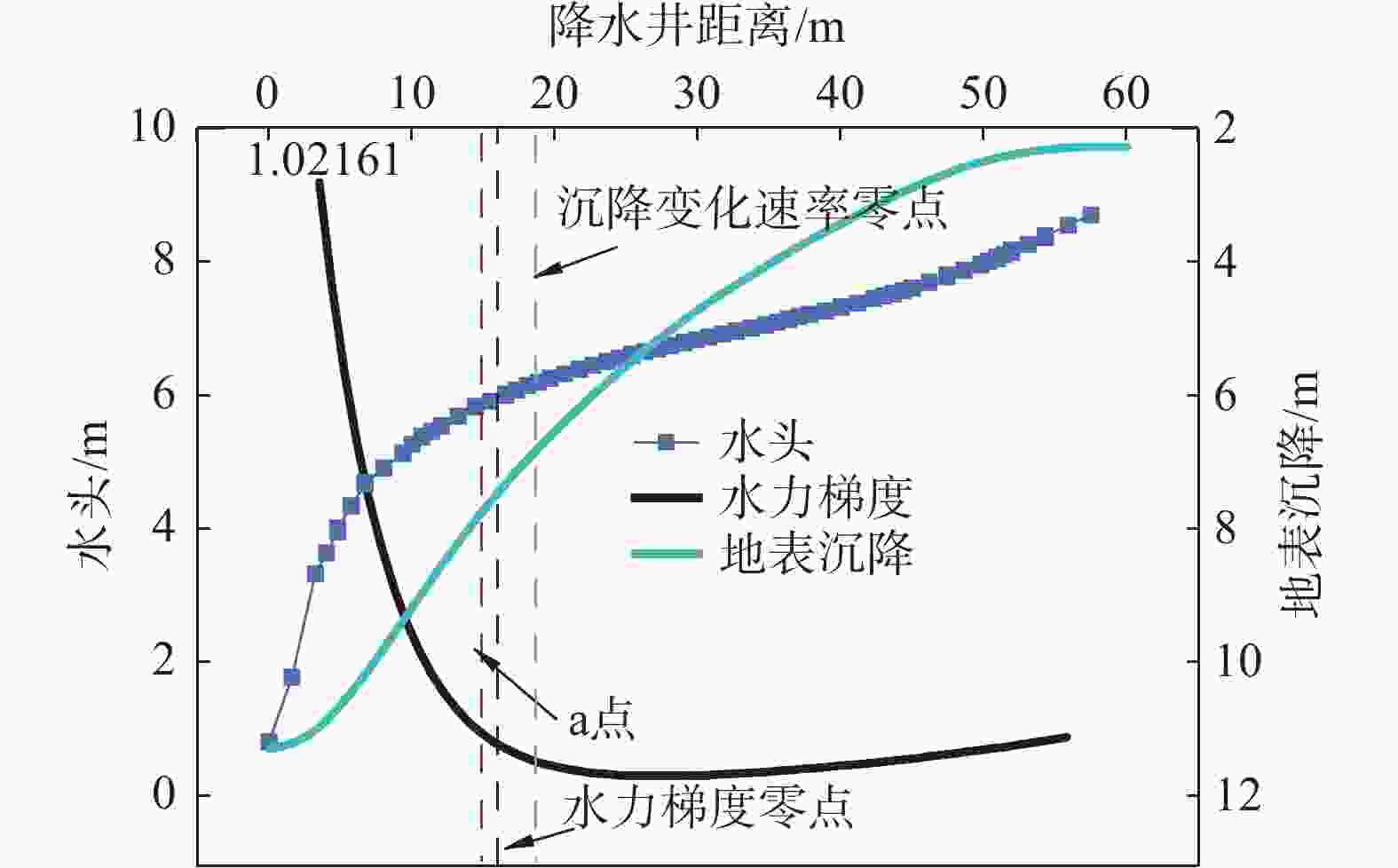

图 4 承压含水层降水引起水头与地表沉降随x方向距离的变化

Figure 4. Simulation of precipitation head, surface subsidence and x-direction distance change of confined aquifer

下载: 全尺寸图片幻灯片

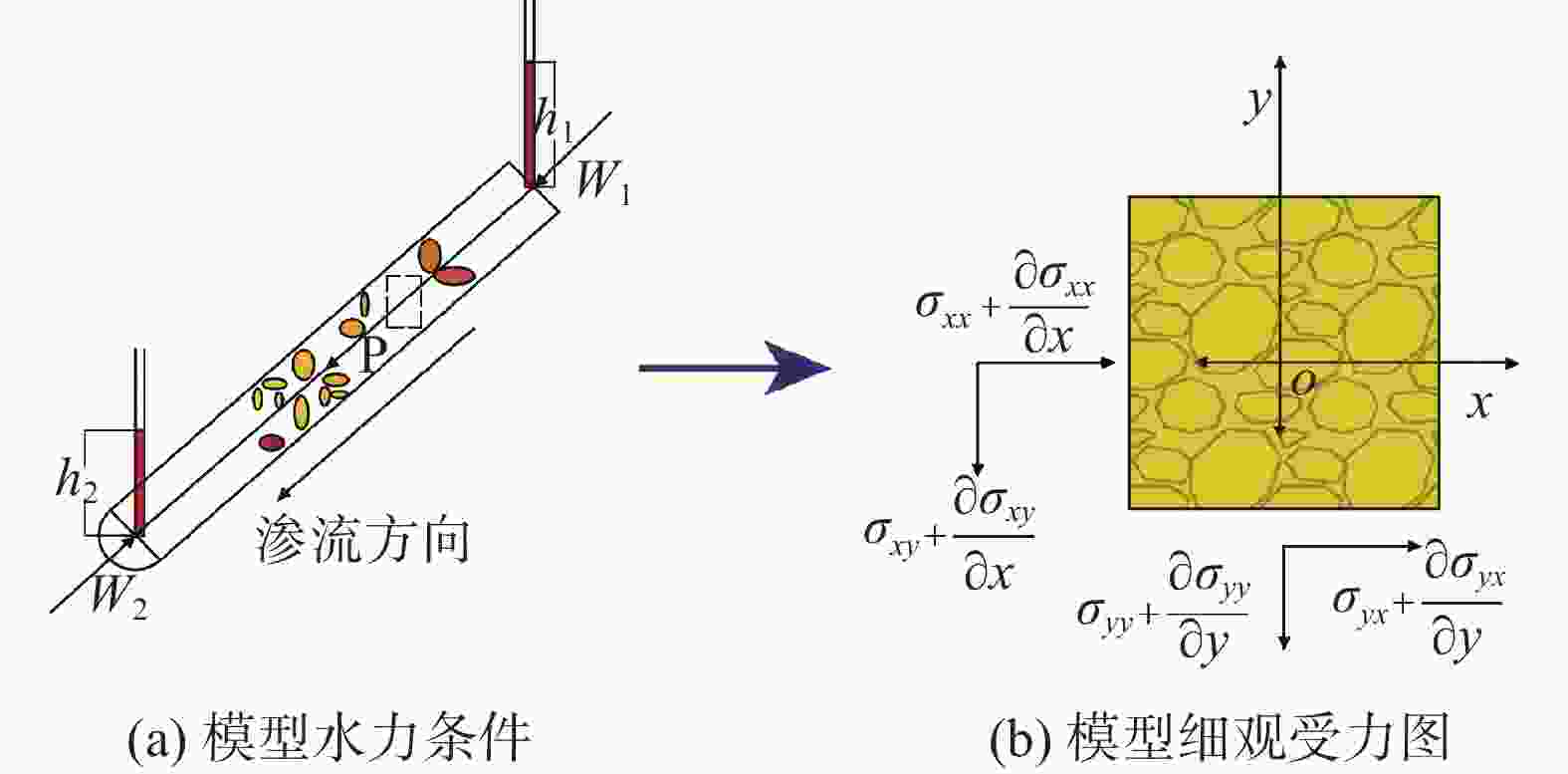

图 5 孔压计算模型

Figure 5. Pore pressure calculation model

下载: 全尺寸图片幻灯片

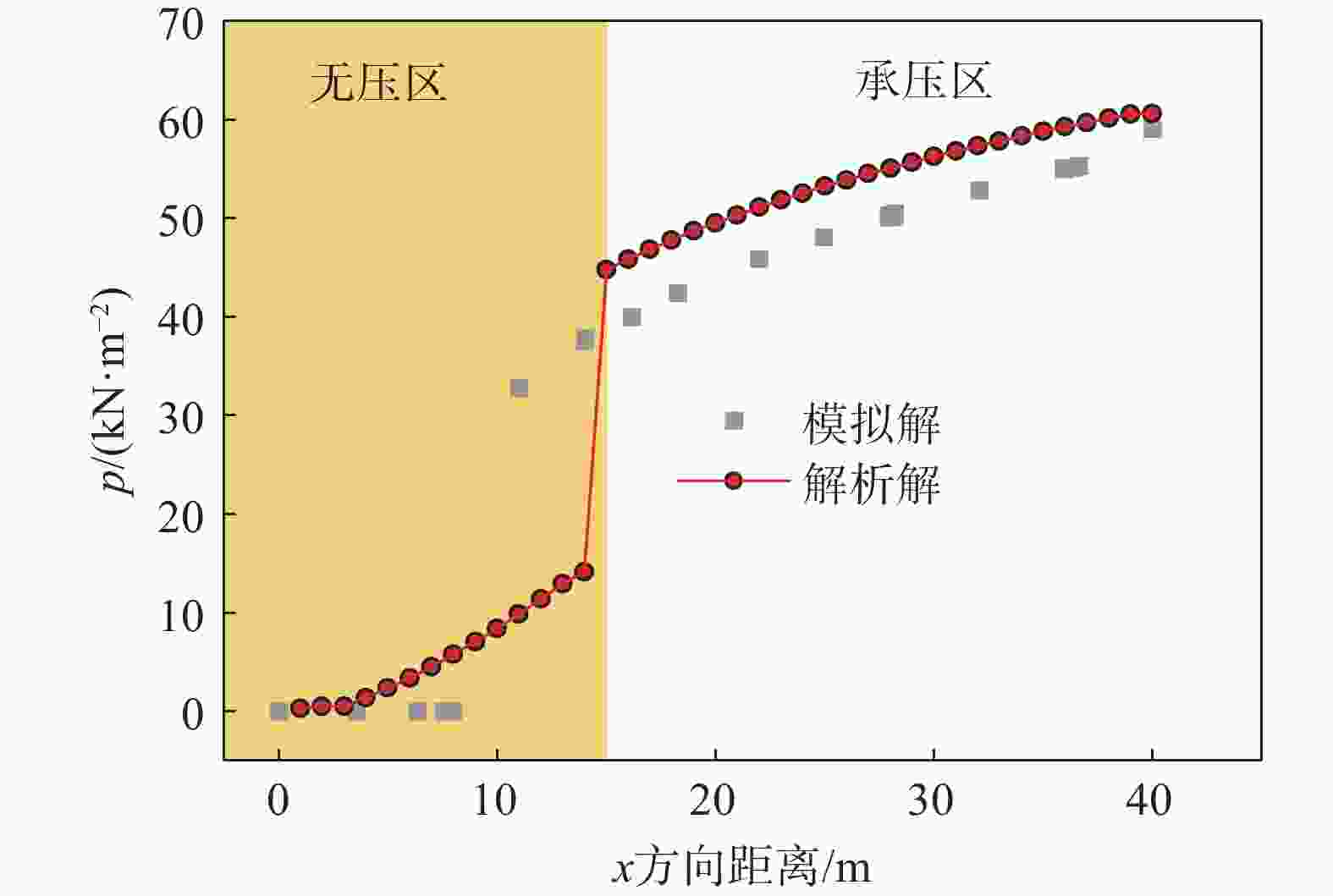

图 6 承压含水层隔水顶板处孔压随x方向距离变化分布对比图

Figure 6. Comparison of distribution of pore pressure at aquiclude roof of confined aquifer with distance in x direction

下载: 全尺寸图片幻灯片

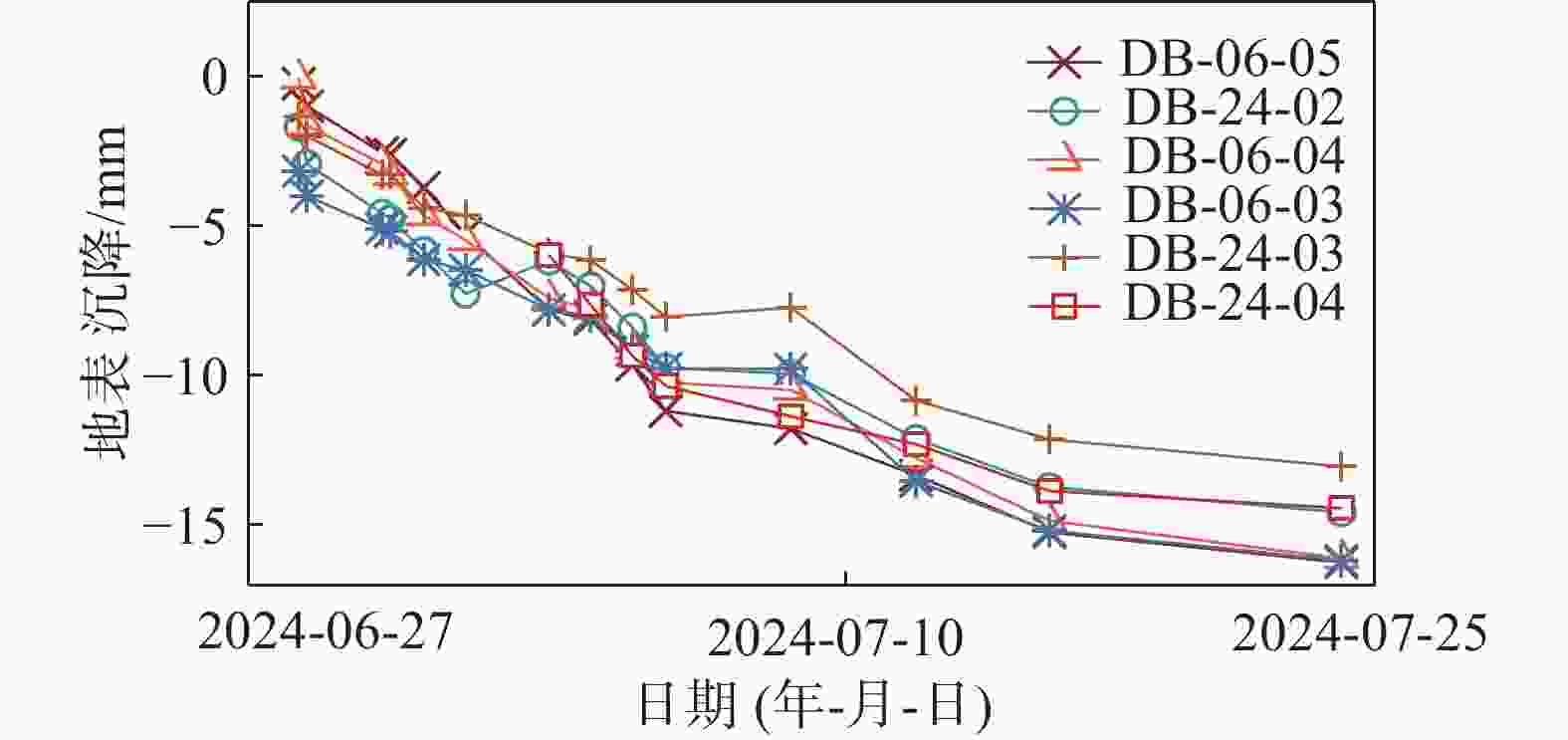

图 7 地表沉降监测值

Figure 7. Surface subsidence monitoring value

下载: 全尺寸图片幻灯片

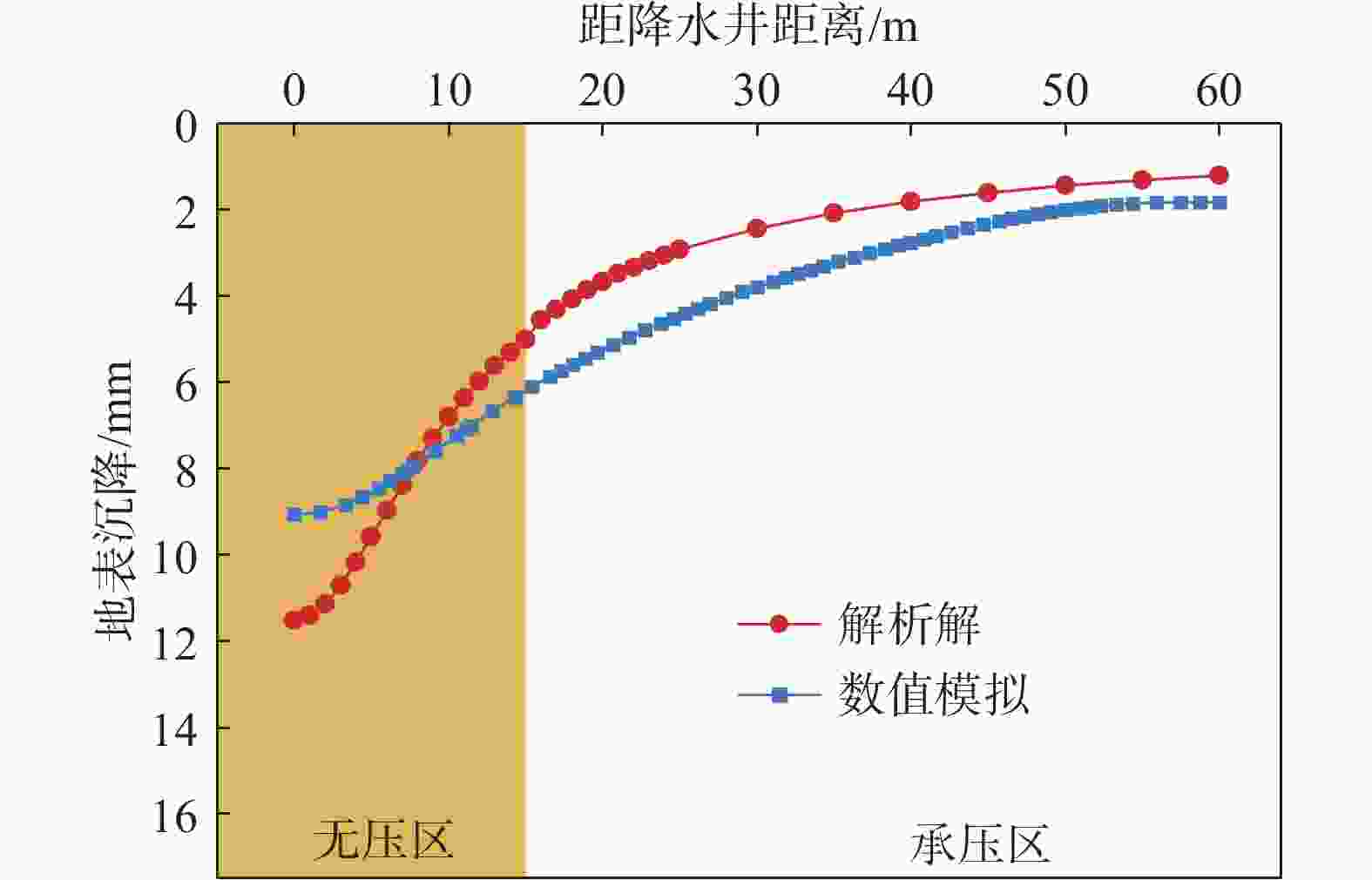

图 8 地表沉降对比

Figure 8. Comparison of surface subsidence

下载: 全尺寸图片幻灯片

表 1 数值模拟土层参数

Table 1. Numerical simulation of soil parameters

土层	初始水头 H/m	土层重度 $ {\gamma }_{\mathrm{s}} $/（kN·m⁻³）	孔隙率 n	黏聚力 c/kPa	内摩擦角 φ/（°）	土压缩模量 E_S/MPa	动弹性模量 E_d/MPa	静弹性模量 E₀/MPa	渗透系数 k/（m·d⁻¹）
杂填土	8	20.4	0.22	0	25	60	50	80	1.86
粉质黏土	8	20.3	0.376	33	12.5	20	160	100	0.008
承压含水层（细砂−中砂）	13	20.5	0.3	0	23.1	120	660	150	1.55
粉质黏土	2	20.3	0.25	33	11.7	20	160	100	0.008

下载: 导出CSV

参考文献(21)

[1]	翟天琦. 深基坑开挖过程中的地连墙水土压力监测与分析[J]. 岩土工程技术, 2025, 39(2): 311-316. (ZHAI T Q. Monitoring and analysis of water and soil pressure on diaphragm wall during excavation of deep foundation pit[J]. Geotechnical Engineering Technique, 2025, 39(2): 311-316. (in Chinese) ZHAI T Q. Monitoring and analysis of water and soil pressure on diaphragm wall during excavation of deep foundation pit[J]. Geotechnical Engineering Technique, 2025, 39（2）: 311-316. (in Chinese)
[2]	张小辉, 王勇华, 杨丽娜, 等. 敞开式降水对富含饱和软黄土地层深基坑变形影响分析[J]. 岩土工程技术, 2023, 37(4): 481-485. (ZHANG X H, WANG Y H, YANG L N, et al. Influence of open dewatering on the deformation of deep foundation pit in saturated soft loess area[J]. Geotechnical Engineering Technique, 2023, 37(4): 481-485. (in Chinese) ZHANG X H, WANG Y H, YANG L N, et al. Influence of open dewatering on the deformation of deep foundation pit in saturated soft loess area[J]. Geotechnical Engineering Technique, 2023, 37（4）: 481-485. (in Chinese)
[3]	PUJADES E, DE SIMONE S, CARRERA J, et al. Settlements around pumping wells: analysis of influential factors and a simple calculation procedure[J]. Journal of Hydrology, 2017, 548: 225-236. doi: 10.1016/j.jhydrol.2017.02.040
[4]	郑刚, 曾超峰, 薛秀丽. 承压含水层局部降压引起土体沉降机理及参数分析[J]. 岩土工程学报, 2014, 36(5): 802-817. (ZHENG G, ZENG C F, XUE X L. Settlement mechanism of soils induced by local pressure-relief of confined aquifer and parameter analysis[J]. Chinese Journal of Geotechnical Engineering, 2014, 36(5): 802-817. (in Chinese) ZHENG G, ZENG C F, XUE X L. Settlement mechanism of soils induced by local pressure-relief of confined aquifer and parameter analysis[J]. Chinese Journal of Geotechnical Engineering, 2014, 36（5）: 802-817. (in Chinese)
[5]	彭晨鑫, 李明广, 甄亮, 等. 上海地区多含水层系统深部承压层降水诱发地层响应规律[J]. 上海交通大学学报, 2023, 57(2): 138-147. (PENG C X, LI M G, ZHEN L, et al. Strata responses due to pumping from deep confined aquifers of multi-aquifer-aquitard system in Shanghai[J]. Journal of Shanghai Jiaotong University, 2023, 57(2): 138-147. (in Chinese) PENG C X, LI M G, ZHEN L, et al. Strata responses due to pumping from deep confined aquifers of multi-aquifer-aquitard system in Shanghai[J]. Journal of Shanghai Jiaotong University, 2023, 57（2）: 138-147. (in Chinese)
[6]	LIU C, SHI B, GU K, et al. Negative pore water pressure in aquitard enhances land subsidence: field, laboratory, and numerical evidence[J]. Water Resources Research, 2022, 58(1): e2021WR030085. doi: 10.1029/2021WR030085
[7]	JAYEOBA A, MATHIAS S A, NIELSEN S, et al. Closed-form equation for subsidence due to fluid production from a cylindrical confined aquifer[J]. Journal of Hydrology, 2019, 573: 964-969. doi: 10.1016/j.jhydrol.2019.03.041
[8]	TSENG C M, TSAI T L, HUANG L H. Effects of body force on transient poroelastic consolidation due to groundwater pumping[J]. Environmental Geology, 2008, 54(7): 1507-1516. doi: 10.1007/s00254-007-0932-2
[9]	李玉选, 杨双锁. 基坑潜水及承压水降水引起的地表沉降计算方法研究[J]. 科学技术与工程, 2020, 20(23): 9574-9579. (LI Y X, YANG S S. Research on calculation method of ground settlement caused by dewater of foundation pit unconfined and confined water[J]. Science Technology and Engineering, 2020, 20(23): 9574-9579. (in Chinese) LI Y X, YANG S S. Research on calculation method of ground settlement caused by dewater of foundation pit unconfined and confined water[J]. Science Technology and Engineering, 2020, 20（23）: 9574-9579. (in Chinese)
[10]	周守强. 承压含水层降水引起地表沉降及其影响分析[D]. 合肥: 合肥工业大学, 2021. (ZHOU S Q. Analysis of surface subsidence and influence caused by Dewatering of confined water[D]. Hefei: Hefei University of Technology, 2021, doi: 10.27101/d.cnki.ghfgu.2021.000635. (in Chinese) ZHOU S Q. Analysis of surface subsidence and influence caused by Dewatering of confined water[D]. Hefei: Hefei University of Technology, 2021, doi: 10.27101/d.cnki.ghfgu.2021.000635. (in Chinese)
[11]	王建秀, 吴林高, 朱雁飞, 等. 地铁车站深基坑降水诱发沉降机制及计算方法[J]. 岩石力学与工程学报, 2009, 28(5): 1010-1019. (WANG J X, WU L G, ZHU Y F, et al. Mechanism of dewatering-induced ground subsidence in deep subway station pit and calculation method[J]. Chinese Journal of Rock Mechanics and Engineering, 2009, 28(5): 1010-1019. (in Chinese) WANG J X, WU L G, ZHU Y F, et al. Mechanism of dewatering-induced ground subsidence in deep subway station pit and calculation method[J]. Chinese Journal of Rock Mechanics and Engineering, 2009, 28（5）: 1010-1019. (in Chinese)
[12]	薛禹群, 吴吉春. 地下水动力学[M]. 北京: 地质出版社, 2010. (XUE Y Q, WU J C. Groundwater dynamics[M]. Beijing: Geological Publishing House, 2010. (in Chinese) XUE Y Q, WU J C. Groundwater dynamics[M]. Beijing: Geological Publishing House, 2010. (in Chinese)
[13]	LIU X T, WANG J X, YANG T L, et al. Dewatering-induced stratified settlement around deep excavation: physical model study[J]. Applied Sciences, 2022, 12(18): 8929. doi: 10.3390/app12188929
[14]	王晓明, 王秀辉, 文望, 等. Dupuit稳定井流公式的模型分析[J]. 煤田地质与勘探, 2014, 42(6): 73-75,81. (WANG X M, WANG X H, WEN W, et al. Model analysis of Dupuit’s steady well flow formula[J]. Coal Geology & Exploration, 2014, 42(6): 73-75,81. (in Chinese) WANG X M, WANG X H, WEN W, et al. Model analysis of Dupuit’s steady well flow formula[J]. Coal Geology & Exploration, 2014, 42（6）: 73-75,81. (in Chinese)
[15]	胡月, 刘国东, 暴伟越, 等. 地下水环境影响评价中的“影响半径”及其确定[J]. 山西科技, 2015, 30(6): 59-62. (HU Y, LIU G D, BAO W Y, et al. The impact radius and its determination in environment impact assessment (EIA) for groundwater[J]. Shanxi Science and Technology, 2015, 30(6): 59-62. (in Chinese) HU Y, LIU G D, BAO W Y, et al. The impact radius and its determination in environment impact assessment (EIA) for groundwater[J]. Shanxi Science and Technology, 2015, 30（6）: 59-62. (in Chinese)
[16]	王怡. 土的动弹性模量与静变形模量关系的初探[J]. 广东土木与建筑, 2002(5): 25-27. (WANG Y. Discussion on the relation of earth elasticity modulus and deformation modulus[J]. Guangdong Architecture Civil Engineering, 2002(5): 25-27. ((in Chinese) WANG Y. Discussion on the relation of earth elasticity modulus and deformation modulus[J]. Guangdong Architecture Civil Engineering, 2002(5): 25-27. ((in Chinese)
[17]	安光明, 杨球玉, 杨立建, 等. 某核电厂岩体动静弹性模量的对比研究[J]. 岩土力学, 2011, 32(S1): 565-569. (AN G M, YANG Q Y, YANG L J, et al. Comparison between static and dynamic elastic moduli of rock mass in a nuclear power plant[J]. Rock and Soil Mechanics, 2011, 32(S1): 565-569. (in Chinese) AN G M, YANG Q Y, YANG L J, et al. Comparison between static and dynamic elastic moduli of rock mass in a nuclear power plant[J]. Rock and Soil Mechanics, 2011, 32（S1）: 565-569. (in Chinese)
[18]	王军辉, 陶连金, 韩煊, 等. 北京地区多层含水层中施工降水诱发地面沉降的实时预测[J]. 北京工业大学学报, 2017, 43(2): 251-260. (WANG J H, TAO L J, HAN X, et al. Real time prediction of subsidence induced by groundwater lowering in construction through multi-layered aquifer in Beijing Area[J]. Journal of Beijing University of Technology, 2017, 43(2): 251-260. (in Chinese) WANG J H, TAO L J, HAN X, et al. Real time prediction of subsidence induced by groundwater lowering in construction through multi-layered aquifer in Beijing Area[J]. Journal of Beijing University of Technology, 2017, 43（2）: 251-260. (in Chinese)
[19]	杜修力, 张佩, 许成顺, 等. 论有效应力原理与有效应力[J]. 岩土工程学报, 2018, 40(3): 486-494. (DU X L, ZHANG P, XU C S, et al. On principle of effective stress and effective stress[J]. Chinese Journal of Geotechnical Engineering, 2018, 40(3): 486-494. (in Chinese) DU X L, ZHANG P, XU C S, et al. On principle of effective stress and effective stress[J]. Chinese Journal of Geotechnical Engineering, 2018, 40（3）: 486-494. (in Chinese)
[20]	狄胜同. 地下水开采导致地面沉降全过程宏细观演化机理及趋势预测研究[D]. 济南: 山东大学, 2020. (DI S T. Research on macro-mesoscopic evolution mechanism of whole process and trend prediction of land subsidence caused by groundwater[D]. Ji’nan: Shandong University, 2020, doi: 10.27272/d.cnki.gshdu.2020.003997. (in Chinese) DI S T. Research on macro-mesoscopic evolution mechanism of whole process and trend prediction of land subsidence caused by groundwater[D]. Ji’nan: Shandong University, 2020, doi: 10.27272/d.cnki.gshdu.2020.003997. (in Chinese)
[21]	龚晓南, 张杰. 承压水降压引起的上覆土层沉降分析[J]. 岩土工程学报, 2011, 33(1): 145-149. (GONG X N, ZHANG J. Settlement of overlaying soil caused by decompression of confined water[J]. Chinese Journal of Geotechnical Engineering, 2011, 33(1): 145-149. (in Chinese) GONG X N, ZHANG J. Settlement of overlaying soil caused by decompression of confined water[J]. Chinese Journal of Geotechnical Engineering, 2011, 33（1）: 145-149. (in Chinese)
